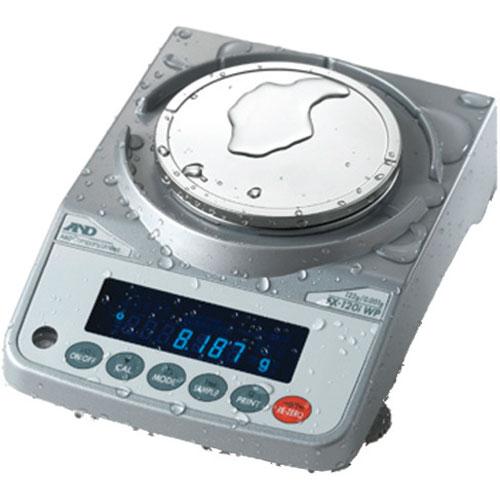

AND Weighing FZ-3000iWP Internal Calibration Balance, 3200 x 0.01 g |
|
| FZ-iWP - Water Proof/Dust Proof with Internal Calibration. For the user that wants it all, the FZ-iWP adds internal calibration to complement the IP-65 rated dustproof and waterproof features. Here is a balance that be used virtually anywhere. more ... |
|
Scales >
Laboratory >
Basic
|
|
|
|
|
|
Features
FZ-iWP - Water Proof/Dust Proof
with Internal Calibration
For the user that wants it all, the FZ-iWP adds internal calibration to complement the IP-65 rated dustproof and waterproof features. Here is a balance that be used virtually anywhere.
What does “IP65” mean? The International Protection (IP) Code, as defi ned by the international standard IEC 60529, specifi es the degrees of protection provided by enclosures. The two digits
next to IP indicate the levels of protection against solid foreign objects (first digit) and water (second digit). For example, a device rated as IP65 should permit no ingress of dust (level 6) and withstand water jetting from any direction (level 5).
Features
Standard RS-232C Interface
Standard RS-232C Interface with a PC, printer or other peripheral devices.
GLP/GMP/GCP/ISO Compliant
In accordance with GLP and LIMS regulations In accordance with GLP and LIMS regulations be printed out using A&D’s AD-8121B or a PC.
Auto Power OFF Function
The display switches OFF automatically when the balance is inactive for 10 minutes as a power-saving tool.
Multiple Weighing Units of Measurement
Programmable or standard weighing units of measurement can be selected; g, pcs, %, oz, lb, lb-oz, ozt, ct, mom, dwt, GN, tl, tol, mes and MLT.
Response Indicator Function
Selectable FAST, MID or SLOW response to suit weighing environment conditions.
Built-in Rechargeable Battery (FXi-09)
An optional Ni-MH rechargeable battery pack can be fi tted into the FX-i series for use without AC power and for mobile applications (10 hours charging time for 8 hours operation).
Product Features:
- Internal Calibration
- IP65 Water proof/Dust Proof
- Compact SHS (Super Hybrid Sensor) 1 Second Stabilization
- Vacuum flourescent display
- Multiple Weighing Units (g, oz, lb, lb-oz, ozt, ct, mom, dwt, GN, tl, tol, mes, pcs, % and MLT)
Weight:
10.00 lb
|
|
Other AND Weighing FZ-iWP - Internal Calibration Balances
|
Specifications
| |
FZ-120iWP |
FZ-200iWP |
FZ-300iWP |
FZ-1200iWP |
FZ-2000iWP |
FZs-3000iWP |
Capacity x
Resolution |
g |
122 x 0.001 |
220 x 0.001 |
320 x 0.001 |
1220 x 0.01 |
2200 x 0.01 |
3200 x 0.01 |
| oz |
4.30 x 0.00005 |
7.76 x 0.00005 |
11.28 x 0.00005 |
43.0 x 0.0005 |
77.6 x 0.0005 |
112.8 x 0.0005 |
| lb |
0.268 x 0.000005 |
0.485 x 0.000005 |
0.705 x 0.000005 |
2.68 x 0.00005 |
4.85 x 0.00005 |
7.05 x 0.00005 |
| lb-oz |
0lb, 4.30oz x 0.01oz |
0lb, 7.76oz x 0.01oz |
0lb, 11.29oz x 0.01oz |
2lb, 11.03oz x 0.01oz |
4lb, 13.60oz x 0.01oz |
7lb, 0.88oz x 0.01oz |
| ozt |
3.92 x 0.00005 |
7.07 x 0.00005 |
10.28 x 0.00005 |
39.2 x 0.0005 |
70.7 x 0.0005 |
102.8 x 0.0005 |
| ct |
610 x 0.005 |
1100 x 0.005 |
1600 x 0.005 |
6100 x 0.05 |
11000 x 0.05 |
16000 x 0.05 |
| dwt |
78.6 x 0.001 |
141.7 x 0.001 |
206.2 x 0.001 |
786 x 0.01 |
1417 x 0.01 |
2062 x 0.01 |
| GN |
1882 x 0.02 |
3395 x 0.02 |
4938 x 0.02 |
18827 x 0.2 |
33951 x 0.2 |
49383 x 0.2 |
| Counting Mode |
Min. Unit
Mass |
0.001g |
0.01g |
# of
Samples |
5, 10, 25, 50 or 100 pieces |
| Percent Mode |
Min. 100%
Ref. Mass |
0.100g |
1.00g |
Min. 100%
Display |
0.01%, 0.1%, 1% (depends on the reference mass stored) |
Repeatability
(Std. Deviation) |
0.001g |
0.01g |
| Linearity |
±0.002g |
±0.02g |
Stabilization Time
(typically set at FAST) |
Approx. 1 second |
Sensitivity Drift
(10°C to 30°C) |
±2ppm / °C |
| Operating Temp |
5°C to 40°C (41°F to 104°F), 85% RH or less (No condensation) |
| Display Type |
Vacuum Fluorescent Display (VFD) |
| Display Refresh Rate |
5 times / second, 10 times / second or 20 times / second |
| Std. Serial Interface |
RS-232C Interface |
| Weighing Pan |
130mm |
150mm |
| External Calibration |
100g
50g |
200g
100g |
300g
200g
100g |
1000g
500g |
2000g
1000g |
3000g
2000g
1000g |
| AC Adaptor |
Confirm that the adaptor type is correct for the local voltage and power receptacle |
| Power Consumption |
Approx. 11VA (supplied to the AC Adaptor) |
| External Dimensions |
193 (W) x 262.5 (D) x 84.5 (H) mm |
| Net Weight |
Approx. 2.5kg |
|
|
|
|
* within the 48 continental US States
|
|
Optional Accessories
more info
|
AND Weighing FXi-02 USB interface with cable FXi--Series
AND Weighing FXi-02 Quick USB interface with cable FXi--Series
FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
(Not IP65 compliant when used with FX-iWP and FZ-iWP)
|
|
more info
|
AND Weighing FXi-08 Ethernet interface with WinCT-Plus software for FXi--Series
AND Weighing FXi-08 Ethernet interface with WinCT-Plus software for FXi--Series
FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
(Not IP65 compliant when used with FX-iWP and FZ-iWP)
|
|
more info
|
AND Weighing FXi-09 Built-in rechargeable battery for FXi--Series
AND Weighing FXi-09 Built-in rechargeable battery for FXi--Series
FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
(Not IP65 compliant when used with FX-iWP and FZ-iWP)
|
|
more info
|
AND Weighing FXiWP-10 Small breeze break 3.4 in for FXi-WP-Series
ANAND Weighing FXiWP-10 Small breeze break 3.4 in for FXi--Series
|
|
more info
|
AND Weighing FXiWP-11 Large breeze break 7.9 in for FXiWP--Series
AND Weighing FXiWP-11 Large breeze break 7.9 in for FXi--Series Breeze break with greater height. Can be used for all models. Convenient when a large beake or measuring cylinder is used and requires more height. The Large breeze break is 7.9 inch high
|
|
more info
|
AND Weighing FXi-12 Animal weighing pan for FZ Series
AND Weighing FXi-12 Animal weighing pan for FZ Series
|
|
more info
|
AND Weighing TB:648 120V/220V AC Adapter
Compatible with the following units: Phoenix GH Series, Gemini GR Series, Galaxy HR Series, Orion HR Series, GF Series, GX Series, FZ Series, FX Series, BM Series, MC Series, AD Pipette Series
|
|
more info
|
AND Weighing AX:073009456 Protective In-Use Cover for AND Weighing HR Series
AND Weighing AX:073009456 Protective In-Use Cover for AND Weighing HR Series
|
|
more info
|
AND Weighing Waterproof RS-232C cable (5 m) for FZiWP
AND Weighing Waterproof RS-232C cable (5 m) for FZiWP
|
|
more info
|
AND Weighing AD-8127 Compact Multi-Function Printer
Features
- Easy setting and operation with a numeric keypad and
LCD display
- Built-in calendar and clock for printing date and time
at any time
- Sends re-zero and weighing data request commands to
the balance/scale
- Clear and visible dot matrix printing, which also enables long-term preservation of the
printed records
- Compact and lightweight for portability and installation anywhere
- Interval printing mode for printing weighing data at set intervals
- Chart printing mode for printing time-series variations of weighing data
- Dump printing mode to receive and print GLP/GMP/GCP/ISO compliant output from
the balance/scale
- Performs and prints the results of statistical calculation including standard deviation
- Prints an ID number set for the printer at any time
- Two types of RS-232C cables (D-Sub 25P and D-Sub 9P) provided as standard to
connect to balances/scales with different interfaces*
- Receives a print, paper feed, print statistical calculation results, print total, re-zero, or
weighing data request command from the optional foot switch (AX-SW128)
| Character specifications |
7 × 9 dots, 1.6 (W) × 3.2 (H) mm |
| Printing speed |
Approx. 1.6 lines/second |
| Paper feeding speed |
Approx. 4 lines/second |
| Number of characters printed |
24 characters/line |
| Printer paper width |
57.5 mm |
| Operating environment |
0 to 40 °C/32 to 104 °F, 35 to 85%RH (no condensation) |
| Storage environment |
-20 to 60 °C/-4 to 140 °F, 10 to 90%RH (no condensation) |
| Interface |
RS-232C (D-Sub 9P, male) / Current loop (DIN) |
| Power supply |
AC adapter |
| Size / weight |
174 (W) × 141 (D) × 87 (H) mm / approx. 500 g |
| Standard accessories |
Ink ribbon (1 pc), plain printer paper (1 roll), AC adapter, AC adapter label, instruction manual, two RS-232C cables (D-Sub 25P and D-Sub 9P)* |
|
|
more info
|
AND AD-8922A Remote Controller
Remote Controller for AND Weighing balances
Displays weighing data Remotely controls a weighing instrument with key operations (no access to the internal settings) Outputs weighing data to another external device such as a PC or printer via the RS-232C connection Optional BCD, comparator, and analog outputs available Can be panel-mounted
|
|
more info
|
AND AD-8920A Universal Remote Display
Universal Remote Display for AND Weighing balances
Connects to A&D’s balances and scales using either RS-232C or current loop
Includes an AC adapter and a communication cable that matches your instrument
Recognizes the balance/scale baud setting automatically
Large and bright VFD display
|
|
|
|
|
|
|
|
|
