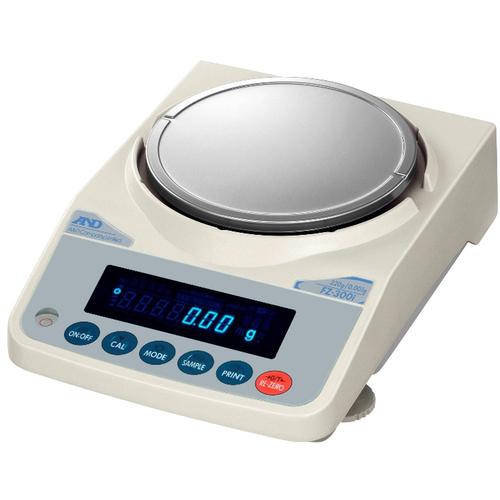

AND Weighing FZ-3000i Internal Calibration Balance, 3200 x 0.01 g
For those who desire the performance of the FX-i plus the convenience and assurance of internal calibration, look no further than the FZ-i. Quick adjustment is just a keystroke away. The unique, air actuated internal motor provides quick, one-touch calibration and its fail-safe mechanism resets the weight to its original position upon interruption. High-end features that come at high level of affordability make the FZ-I unique in its class. more ...
For those who desire the performance of the FX-i plus the convenience and assurance of internal calibration, look no further than the FZ-i.
Quick adjustment is just a keystroke away. The unique, air actuated internal motor provides quick, one-touch calibration and its fail-safe mechanism resets the weight to its original position upon interruption.
High-end features that come at high level of affordability make the FZ-I unique in its class.
Statistical Calculation Function The statistical values Sum, Maximum, Minimum,Range, Standard Deviation, Number of Data, and Coeffi cient of Variation can be displayedor output.
ACAI – Automatic Counting Accuracy Improvement This counting function recalculates the average weight each time a sample is added to eliminate errors caused by variations in unit weight.
Animal Weighing Function The HOLD function enables freezing of weighing data for animal weighing applications and an ANIMAL indicator appears on the display.
Comparator Function Easy to compare weighing results by setting HI limit and LO limit to display HI,OK,LO indicator.
Percent Mode Function A sample can be registered as 100% and the weight of another sample can be compared as a percentage.
Underhook The underhook allows for measurement of magnetic materials and density measurements in air and water.
Weight:10.00 lb
Other AND Weighing FZ-i - Internal Calibration Balances
AND AD-8920A Universal Remote Display more info Price: $250.00 In Stock
Universal Remote Display for AND Weighing balances
Connects to A&D’s balances and scales using either RS-232C or current loop
Includes an AC adapter and a communication cable that matches your instrument
Recognizes the balance/scale baud setting automatically
Large and bright VFD display
AND AD-8922A Remote Controller more info Price: $525.00 In Stock
Remote Controller for AND Weighing balances
Displays weighing data Remotely controls a weighing instrument with key operations (no access to the internal settings) Outputs weighing data to another external device such as a PC or printer via the RS-232C connection Optional BCD, comparator, and analog outputs available Can be panel-mounted
AND AD-1683 Static Eliminator more info Price: $1,040.25 In Stock
The AD-1683 generates bipolar ions continuously by DC corona discharge separately from positive and negative discharge electrodes and directs the ionized air onto the charged body to eliminate static electricity. The generated ionsare well-balanced in polarity and can eliminate static electricity regardless of the polarity of the charged body
Static Electricity
Generally, insulators such as plastics are prone to be charged with static electricity when the ambient relative humidity is below 45% RH. This may affect weighing and cause a measurement error of several milligrams. The AD-1683 can eliminate static electricity very effectively
*Note: Please confirm that the AC adapter type is correct for your local voltage and receptacle type. To prevent electrical shock, insert the POWER cable into a grouding-type outlet and earth ground the grounding cable
How to install AD-1683:
Choose the installation site so that the AD-1683 can be placed beside the electronic balance and a space wide enough to place sample (10cm to 30cm from the front of the AD-1683) can be secured. Place the sample in front of the AD-1683 inside the specified area and perform static elimination. Then, weighthe sample using the electronic balance
External Dimensions
Static Eliminating Method
DC corona discharge (Bipolar)
Elimination Range
Distance:Approz. 10 cm to 30 cm from the electode. Area: 30x30 cm from the electode. (See Figure 2.)
Elimination Performance
When Charged 5kV:
Distance
10cm
20cm
30cm
50cm
Elimination Time
1 sec
4 sec
15 sec
70 sec
Ambient Temperature and Humidity Ozone Concentration
0°C to 40°C, 80% RH or less
Positive discharge pin: 0.07PPM
Negative discharge pin: 0.25PPM
(Measured at a distance of 1cm from each discharge pin.)
Power Supply
AC adapter. Please confirm that the AC adapter type is correct for your local voltage and receptacle type
AND Weighing FXi-02 USB interface with cable FXi--Series more info Price: $79.00 In Stock
AND Weighing FXi-02 Quick USB interface with cable FXi--Series
FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
(Not IP65 compliant when used with FX-iWP and FZ-iWP)
AND Weighing FXi-08 Ethernet interface with WinCT-Plus software for FXi--Series more info Price: $429.00 In Stock
AND Weighing FXi-08 Ethernet interface with WinCT-Plus software for FXi--Series
FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
(Not IP65 compliant when used with FX-iWP and FZ-iWP)
AND Weighing FXi-09 Built-in rechargeable battery for FXi--Series more info Price: $279.00 In Stock
AND Weighing FXi-09 Built-in rechargeable battery for FXi--Series
FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
(Not IP65 compliant when used with FX-iWP and FZ-iWP)
AND Weighing AD-8127 Compact Multi-Function Printer more info Price: $695.00 In Stock Features
Easy setting and operation with a numeric keypad and
LCD display
Built-in calendar and clock for printing date and time
at any time
Sends re-zero and weighing data request commands to
the balance/scale
Clear and visible dot matrix printing, which also enables long-term preservation of the
printed records
Compact and lightweight for portability and installation anywhere
Interval printing mode for printing weighing data at set intervals
Chart printing mode for printing time-series variations of weighing data
Dump printing mode to receive and print GLP/GMP/GCP/ISO compliant output from
the balance/scale
Performs and prints the results of statistical calculation including standard deviation
Prints an ID number set for the printer at any time
Two types of RS-232C cables (D-Sub 25P and D-Sub 9P) provided as standard to
connect to balances/scales with different interfaces*
Receives a print, paper feed, print statistical calculation results, print total, re-zero, or
weighing data request command from the optional foot switch (AX-SW128)
Character specifications
7 × 9 dots, 1.6 (W) × 3.2 (H) mm
Printing speed
Approx. 1.6 lines/second
Paper feeding speed
Approx. 4 lines/second
Number of characters printed
24 characters/line
Printer paper width
57.5 mm
Operating environment
0 to 40 °C/32 to 104 °F, 35 to 85%RH (no condensation)
Storage environment
-20 to 60 °C/-4 to 140 °F, 10 to 90%RH (no condensation)
Interface
RS-232C (D-Sub 9P, male) / Current loop (DIN)
Power supply
AC adapter
Size / weight
174 (W) × 141 (D) × 87 (H) mm / approx. 500 g
Standard accessories
Ink ribbon (1 pc), plain printer paper (1 roll), AC adapter, AC adapter label, instruction manual, two RS-232C cables (D-Sub 25P and D-Sub 9P)*
