Ohaus VX 3000 Washdown Legal For Trade Floor Scales	Authorized Dealer
The OHAUS VX Series is a portable low-profile floor scale package. It is the ideal solution for freight consolidators, forwarders, processing plants, resellers, shipping and receiving departments, as well as startup businesses

Floor Scales

Ohaus Defender 5000XW Extreme Square Scales Washdown Scales

Legal For Trade
Selected models only

Have Questions?

email Us

Our Staff will be glad to help

Specifications Chart

Only the VX32XW2500L and VX32XW5000L Models are
Legal for Trade

The OHAUS VX Series is a portable low-profile floor scale package. It is the ideal solution for freight consolidators, forwarders, processing plants, resellers, shipping and receiving departments, as well as startup businesses.

Quick connects and factory calibration allows the package to operate out-of-the-box with minimal setup.

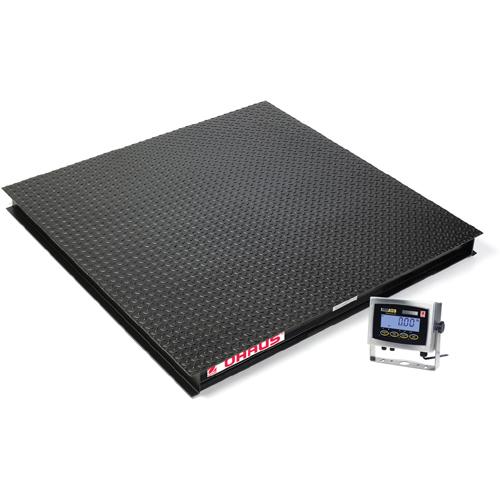

The OHAUS VX Series is a portable low-profile floor platform and indicator scale package. It is the ideal solution for freight consolidators, forwarders, processing plants, resellers, shipping and receiving departments, as well as startup businesses. Quick connects and factory calibration allows the package to operate out-of-the-box with minimal setup. This time saving solution combines a 5000d NTEP approved floor scale (VX2500L and VX5000L) with four analog sealed load cells, and a stainless steel NEMA 4X/IP66 indicator (T31XW) featuring an RS232 interface, high-visibility backlit LCD display, counting function and easy-to-operate positive feedback keys

Standard Features Include

2,500 lb, 5,000 lb, and 10,000 lb scale capacities
4’ x 4’ and 5’ x 5’ platforms with structural bracing that ensures a rigid construction
1/8” (up to 5,000lb models) and 5/16” (10,000lb models) thick top plate with raised cross-hatch surface for added durability and slip resistance
Four IP67 nickel plated alloy steel load cells
Side access NEMA4X/IP65 dust and water protected junction box with 25’ long cable
Features eye bolt mounting holes to allow easier lifting and positioning of the platform

Ohaus VX 3000 Washdown
Legal For Trade Floor Scales

	Ohaus STP-103 Palm-Sized Thermal Printer, add $854.25
	Ohaus SF40A Portable Dot-Matrix Impact Printer, add $1,107.55

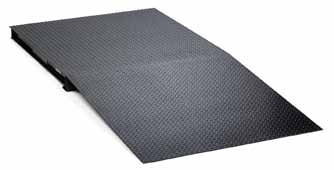

	Ohaus 80252766 Floor Ramp 4 ft Wide for VX32XW2500L or VX32XW5000L Floor Scale, add $1,053.15
	Ohaus 80252795 Floor Ramp 4 ft Wide for VX32XW10000L Floor Scale, add $2,439.50
	Ohaus 80252767 Floor Ramp 5 ft Wide for VX32XW5000X Floor Scale, add $1,355.75
	Ohaus 80252796 Floor Ramp 5 ft Wide fo VX32XW10000X Floor Scale, add $2,694.50

Specifications Chart

Factory-wired and pre-calibrated with OHAUS T31XW stainless steel indicator featuring:

304 stainless steel construction with NEMA 4X/IP66 protection
Backlit LCD display with high-visibility 1” high digits
Five weighing units (lb, kg, g, oz, lb:oz)
Piece counting mode for warehousing and inventory applications
Wall mount bracket included

VX Series Floor Scales Include The Durable T32XW Indicator

The OHAUS T32XW Economy Indicator replaces the T31XW with the addition of an improved NEMA4X/IP65 washdown all stainless steel housing and a 58-hour internal rechargeable battery. The T32XW also features software for weighing and simple parts counting. Stainless steel mounting bracket included.

lb, oz, lb-oz, kg and g weighing units
Ability to drive up to four 350O load cells
Up to 20,000 lb/kg capacity with 20,000d maximum displayed default weighing resolution
6,000d NTEP certified and Measurement Canada approved Legal-for-Trade weighing resolution
Minimum parts counting average piece weight of 1d
Built-in bi-directional RS232C for printing or connection to PC
Adjustable filtering levels to meet the requirements of industrial environments

Ohaus VX 3000 Washdown Legal For Trade Floor Scales

Specifications Charts

Model Number	VX32XW2500L	VX32XW5000L	VX32XW10000L	VX32XW5000X	VX32XW10000X
Price	$2,177.91	$2,177.91	$2,755.62	$2,492.91	$3,142.44
Capacity x Readability	2,500 lb x 0.5 lb 1,000 kg x 0.2 kg	5,000 lb x 1 lb 2,200 kg x 0.5 kg	10,000 lb x 2 lb 4,500 kg x 1 kg	5,000 lb x 1 lb 2,200 kg x 0.5 kg	10,000 lb x 2 lb 4,500 kg x 1 kg
Dimensions	4’ x 4’ x 4.5” - 1,219 x 1,219 x 115 mm			5’ x 5’ x 4.5” - 1,524 x 1,524 x 115 mm
Resolution	NTEP 5000d	NTEP 5000d	5000d	5000d	5000d
Certifications	NTEP: T32XW Indicator: CC 08-066A1 / VX Platform: CC 08-069 / Load cells: CC 91-043A4 Measurement Canada: T32XW Indicator: AM-5713C rev. 1		Not NTEP
Indicator Model	T32XW
Indicator Construction	NEMA4X/IP66 Stainless Steel
Weighing Units	lb, kg
Modes	Weighing, Counting* (min APW 1d)
Display	1 in / 25 mm high, 6-digit, 7-segment, bright white backlit LCD
Keypad	4-button, raised with tactile positive feedback membrane switches
Stabilization Time	Within 2 seconds
Auto-zero Tracking	Off, 0.5, 1 or 3d
Zeroing Range	0%, 2% or 100% of capacity
Span Calibration	5 lb or kg to 100% of capacity
Interface	RS232C, bi-directional
Power	100-240 VAC / 50-60 Hz, internal power supply
Indicator Dimensions	8.3 x 2.8 x 5.8 in / 212 x 71 x 149 mm
Net Weight	185 lb / 84 kg		437 lb / 198 kg	280 lb / 127 kg	660 lb / 300 kg
Shipping Weight	259 lb / 118 kg		509 lb / 231 kg	349 lb / 158 kg	729 lb / 331 kg
Scale Shipping Dimensions (WxDxH)	60 x 48 x 14 in 1,524 x 1,220 x 356 mm			72 x 60 x 14 in / 1,829 x 1,524 x 356 mm
Material	Painted Carbon Steel, treaded surface, fixed top plate, thickness 1/8” (up to 5000lb), 5/16” (10,000lb)
Maximum Central Load	100% of maximum capacity
Safe End Load Capacity	100% of maximum capacity
Load Cell	4 x Shear Beam, IP67, nickel plated alloy steel
LC Output Impedance / Excitation Voltage	350 Ù + 3 Ù / 10V recommended~15V max, AC/DC
Junction Box	Side panel access, NEMA 4X/IP67 Sealed Stainless Steel
Feet	4 x fixed bolt design, adjustable height
Operating Temperature	50^oF to 104^oF / 10 ^oC to 40 ^oC
