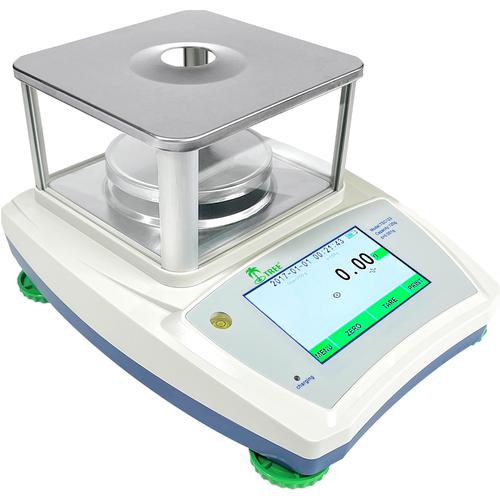

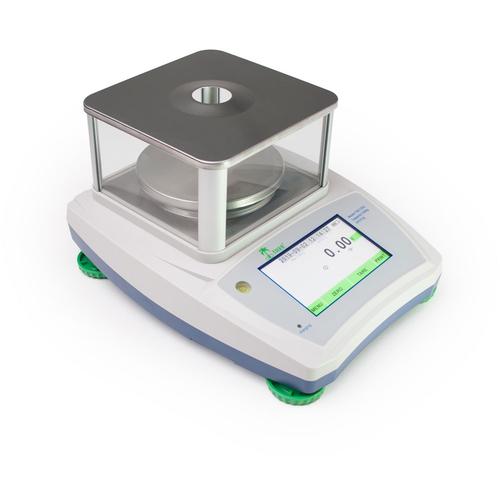

Tree TSC Touch Screen High Resolution Balances provide an easy-to-use and economical solution for precision laboratory measurements. The TSC features a large, brilliantly lit, full-color LCD touch screen display. The intuitive software makes using the TSC simple and efficient, saving to you time and money in the lab. With a multitude of functions including general weighing, counting, percentage weighing, and density functions, the TSC will quickly become the new work horse in any lab setting. With additional features like like auto back light, auto-off, and a low battery indicator, youll never be left without an operatable balance. A rechargeable lithium battery improves portability and the included AC adapter allows continuous use on a bench. The TSC-123 features a 3.85" weighing pan and glass draft shield for more precise readings. The RS-232 port allow the TSC to interface with your labs PC.
FEATURES
- Affordable precision balance fits any budget
- Compact portability
- Ideal for laboratory weighing applications
- Stainless steel weighing pan
- Large touch screen LCD display
- Displays weight, count, percentage, and density
- 16 selectable weighing units (g,oz,lb,dwt,ozt,ct,tlt,tlh,tlj,gn,dr,mm,tola,gsm,T/A/R,T/M/R)
- Overload protection
- Includes internal lithium rechargeable battery and AC adapter
- Integrated level bubble ensures proper setup
- Adjustable leveling feet
- Durable plastic housing
- Low battery indication
- Stability indication
- Configurable auto shut-off
| MODEL
| TSC-123 |
TSC-213 |
TSC-313 |
TSC-1202 |
TSC-2102 |
TSC-3102 |
TSC-6101 |
TSC-10001 |
$413.95
|
$494.95
|
$511.95
|
$344.95
|
$350.95
|
$356.95
|
$310.95
|
$321.95
|
| Capacity x Readability |
120 x 0.001g |
210 x 0.001g |
310 x 0.001g |
1200 x 0.01 g |
2100 x 0.01 g |
3100 x 0.01 g |
6100 x 0.1 g |
10 kg x 0.1 g |
| No. of Display Divisions |
120,000 |
210,000 |
310,000 |
120,000 |
210,000 |
310,000 |
61,000 |
100,000 |
| No. of Internal Resolutions |
16m |
| Accuracy |
+/-5d |
+/-3d |
+/-5d |
+/-3d |
| Platter Size(inch) |
3.85 Ø |
4.52 Ø |
7.68 x 5.9 |
| Draft Shield |
Glass |
- |
| Scale Dimensions(inch) |
8.25 x 10.2 x 5.9 |
8.25 x 10.2 x 3.15 |
| LCD Height(inch) |
0.4 |
| Beeper |
YES |
| Auto Backlight |
Yes,Selectable |
| Auto Shut Off |
Yes,Selectable |
| Auto Hold |
NO |
| Unit Switching |
Yes,Selectable |
| Auto Backlight |
g,oz,lb,dwt,ozt,ct,tlt,tlh,tlj,gn,dr,mm,tola,gsm,T/A/R,T/M/R |
| AD Processor |
24 bit A/D |
| Beeper |
YES |
| AD Update Speed |
5 Hz |
| Settling Time |
<2s |
| Calibration Software |
AnyCAL |
| No of Keys |
touch screen |
| Memory |
Zero |
| Counting Function |
YES |
| RS232C |
YES |
| USB |
YES |
| Battery |
7.4V 2200mAh Rechargeable |
| AC Adapter |
Yes, 12VDC |
| Shipping Weight |
6.5 lb |
5.3 lb |
| Resolution(oz) |
0.00005 oz |
0.00005 oz |
0.00005 oz |
0.0005 oz |
0.0005 oz |
0.0005 oz |
0.005 |
0.005 |
| Resolution(lb) |
0.000002 lb |
0.000002 lb |
0.000002 lb |
0.00002 lb |
0.00002 lb |
0.00002 lb |
0.0002 lb |
0.0002 lb |
| Resolution(dwt) |
0.001 dwt |
0.001 dwt |
0.001 dwt |
0.01 dwt |
0.01 dwt |
0.01 dwt |
0.1 dwt |
0.1 dwt |
| Resolution(ozt) |
0.00005 ozt |
0.00005 ozt |
0.00005 ozt |
0.0005 ozt |
0.0005 ozt |
0.0005 ozt |
0.005 ozt |
0.005 ozt |
| Resolution(ct) |
0.005 ct |
0.005 ct |
0.005 ct |
0.05 ct |
0.05 ct |
0.05 ct |
0.5 ct |
0.5 ct |
Resolution
tl.t, tl.J, tl.h |
0.00005 |
0.00005 |
0.00005 |
0.0005 |
0.0005 |
0.0005 |
0.005 |
0.005 |
| Resolution(gn) |
0.02 gn |
0.02 gn |
0.02 gn |
0.2 gn |
0.2 gn |
0.2 gn |
2 gn |
2 gn |
| Resolution(dr) |
0.001 dr |
0.001 dr |
0.001 dr |
0.01 dr |
0.01 dr |
0.01 dr |
0.1 dr |
0.1 dr |
| Resolution(mm) |
0.0005 mm |
0.0005 mm |
0.0005 mm |
0.005 mm |
0.005 mm |
0.005 mm |
0.05 mm |
0.05 mm |
| Resolution(tola) |
0.0001 tola |
0.0001 tola |
0.0001 tola |
0.001 tola |
0.001 tola |
0.001 tola |
0.01 tola |
0.01 tola |
| Resolution(gsm) |
0.1 gsm |
0.1 gsm |
0.1 gsm |
1 gsm |
1 gsm |
1 gsm |
10 gsm |
10 gsm |
| Resolution(tar) |
0.01 tar |
0.01 tar |
0.01 tar |
0.1 tar |
0.1 tar |
0.1 tar |
1 tar |
1 tar |
| Resolution(ma) |
0.01 ma |
0.01 ma |
0.01 ma |
0.1 ma |
0.1 ma |
0.1 ma |
1 ma |
1 ma |
|
