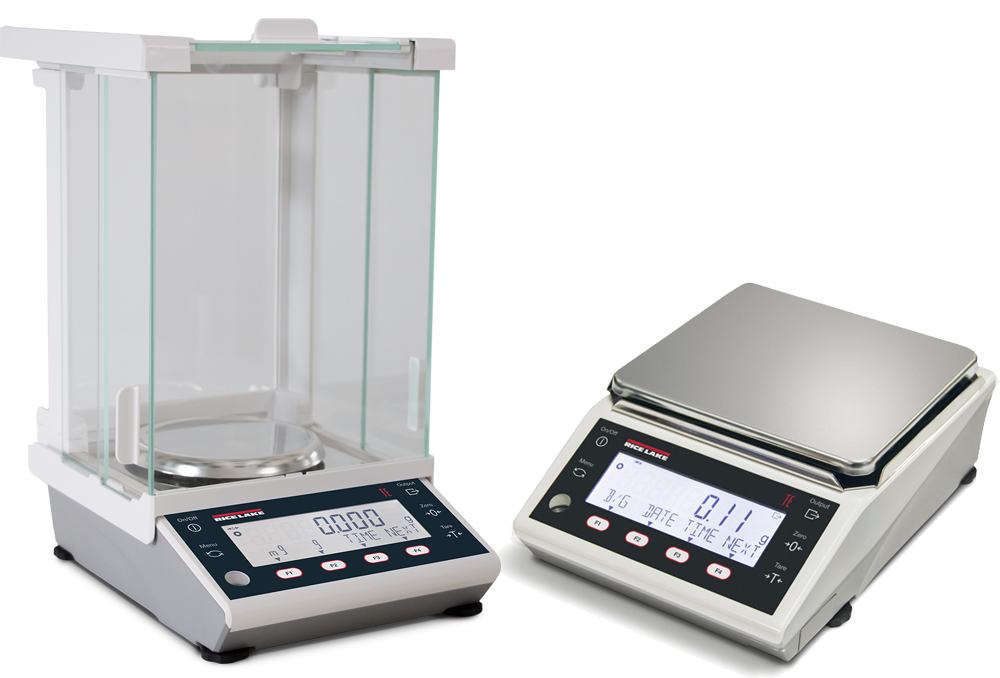

Rice Lake TE-Series Tuning Fork Enhanced Precision Balances
Experience performance with Rice Lake’s enhanced TE Series balance.This NTEP approved balance creates an effortless user experience complete with a wide variety of functions, glass breeze break and configurable user keys. Equipped with Mono-Metal Tuning Fork Sensor (MMTS), the TE series brings remarkable response time and stability to many settings.

Legal For Trade

Specifications Chart

ADVANCED PORTABILITY, STABILITY AND FUNCTIONALITY

Experience performance with Rice Lake’s enhanced TE Series balance.This NTEP approved balance creates an effortless user experience complete with a wide variety of functions, glass breeze break and configurable user keys. Equipped with Mono-Metal Tuning Fork Sensor (MMTS), the TE series brings remarkable response time and stability to many settings. The compact design of the TE Series balance makes it perfect for crowded work environments and portability. Powered by AC, AA batteries or USB, the TE series delivers convenience in a small package.

The TE series’ unique patented tuning fork technology providesstability with an extremely small margin of error. Cutting startup time by 90 percent, this technology eliminates the need for stabilization timewhile maintaining exceptional accuracy. The TE Series has remarkable programming flexibility with a large selection of modes to fit various weighing needs. Enhance productivity with functions such as unit count, percentage, gravimeter, statistics, animal, formulation and coefficient. The TE series adapts to any type of standard with the ability to weigh in 12 different measurement units providing superior performance.

Rice Lake TE-Series Tuning Fork Precision Balances

Model


Rice Lake 186074 TE Series Power Supply Adapter 100-240VAC,, add $59.40

Rice Lake 186075 TE Series In-use dust cover 623 g models and lower, add $26.00

Rice Lake 186076 TE Series In-use dust cover 3,200 g models and higher, add $26.00

Rice Lake 186077 TE Series Specific Density Measurement Kit, add $540.00

Rice Lake 186079 TE Series Ethernet TCP/IP option card, add $540.00
Printers

Rice Lake 158056 Prove Statistical Printer, add $643.50

  • External weight calibration
  • Seven-segment (main) / 16-segment (sub) display
  • Selectable modes: Weighing, Counting, Percentage, Coefficient, Specific Gravity, Statistics, Animal and Formulation
  • Mono-Metal Tuning Fork Technology (MMTF) provides quick response and stability
  • 30-step bar graph display
  • 100-240 VAC adapter included
  • AA dry-cell port, (150 hours continuous use with LCD backlight and communication signal ON)
  • RS-232 & USB (Type B)
  • Glass breeze break (0.001g only)
  • NTEP approved (COC 17-104)

Advanced Portability, Stability and Functionality Experience performance with Rice Lake’s enhanced TE Series balance. This NTEP approved balance creates an effortless user experience complete with a wide variety of functions, glass breeze break and configurable user keys. Equipped with Mono-Metal Tuning Fork Sensor (MMTS), the TE series brings remarkable response time and stability to many settings.

Portability The compact design of the TE Series balance makes it perfect for crowded work environments and portability. Powered by AC, AA batteries or USB, the TE series delivers convenience in a small package.

Stability The TE series’ unique patented tuning fork technology provides stability with an extremely small margin of error. Cutting startup time by 90 percent, this technology eliminates the need for stabilization time while maintaining exceptional accuracy.

Productivity The TE Series has remarkable programming flexibility with a large selection of modes to fit various weighing needs. Enhance productivity with functions such as unit count, percentage, gravimeter, statistics, animal, formulation and coefficient. The TE series adapts to any type of standard with the ability to weigh in 12 different measurement units providing superior performance.

Connectivity

The RS-232 interface enables connection to a PC, printer or other outside device, allowing users to store data, in addition to the ability to create or print data records for ISO/GLP/GMP compliance. USB, Bluetooth® and Ethernet I/P are also available (not Included) methods to connect with the TE series.

Models TE-223
186700
TE-623
186030
TE-3202
186035
TE-6202
186036
TE-15001
186037
Rice Lake TE-223 Tuning F
$945.00
buy now
Rice Lake TE-623 Tuning F
$1,242.00
buy now
Rice Lake TE-3202 Tuning
$1,030.50
buy now
Rice Lake TE-6202 Tuning
$1,264.50
buy now
Rice Lake TE-15001 Tuning
$990.00
buy now
Capacity x Readability 220 x 0.001 g 620 x 0.001 g 3200 x 0.01 g 6200 x 0.01 g 15000 x 0.1 g
Legal For Trade NTEP CC 17-104
Operating Modes Weighing, Counting, Percentage, Coefficient, Specific Gravity, Statistics, Animal, Formulation
Repeatability 1 division
Linearity 1 division
Operating Temperature 41° F to 95° F (5° C to 35° C)
Pan Size 4.6 in
(118 mm)
6.3 in x 7.1 in
(160 mm x 180 mm)
Dimensions 10.6 in x 8.1 in x 11.8 in
(270 mm x 208 mm x 301 mm)
10.4 in x 7.5 in x 3.4 in
(265 mm x 191.5 mm x 86 mm
Est. Ship Weight 6.5 lb (3 kg) 6.0 lb (2.7 kg)
RS-232 Specifications Baud Rate 1200, 2400, 480, 9600, 19200, 38400, 57600, 115200 bps
USB YES
Power 100-240 VAC adapter, AA dry cell (batteries not included)/TD>
Warranty Five-year Limited Warranty

UNIT OF MEASURE

Models TE-223
186700
TE-623
186030
TE-3202
186035
TE-6202
186036
TE-15001
186037
Gram 220 x 0.001 g 620 x 0.001 g 3200 x 0.01 g 6200 x 0.01 g 15000 x 0.1 g
Carat 1,100 x 0.01 ct 3,100 x 0.01 ct 16,000 x 0.1 ct 31,000 x 0.1 ct 75,000 x 1 ct
Pound 0.48 x 0.00001 lb 1.3 x 0.00001 lb 7 x 0.0001 lb 13 x 0.0001 lb 33 x 0.001 lb
Ounce 7.7 x 0.0001 oz 21 x 0.0001 oz 110 x 0.001 oz 210 x 0.001 oz 520 x 0.01 oz
Troy Ounce 7 x 0.0001 ozt 19 x 0.0001 ozt 100 x 0.001 ozt 190 x 0.001 ozt 480 x 0.01 ozt
Grain 3,300 x 0.1 GN 9,500 x 0.1 GN 49,000 x 1 GN 95,000 x 1 GN 230,000 x 10 GN
Pennyweight 140 x 0.001 dwt 390 x 0.001 dwt 2,000 x 0.01 dwt 3,900 x 0.01 dwt 9,600 x 0.1 dwt
Momme 58 x 0.001 mom 160 x 0.001 mom 850 x 0.01 mom 1,600 x 0.01 mom 4,000 x 0.1 mom
MSG 47 x 0.001 MSG 130 x 0.001 MSG 690 x 0.01 MSG 1,300 x 0.01 MSG 3,200 x 0.1 MSG
Tael (Hong Kong) 5.8 x 0.0001 TL 16 x 0.0001 TL 85 x 0.001 TL 160 x 0.001 TL 400 x 0.01 TL
Tael (Singapore) 5.8 x 0.0001 TL 16 x 0.0001 TL 84 x 0.001 TL 160 x 0.001 TL 390 x 0.01 TL
Tael (Taiwan) 5.8 x 0.0001 TL 16 x 0.0001 TL 85 x 0.001 TL 160 x 0.001 TL 400 x 0.01 TL
Tola 14 x 0.0001 Bat 40 x 0.0001 Bat 210 x 0.001 Bat 400 x 0.001 Bat 980 x 0.01 Bat
Milligrams 220,000 x 1 mg 620,000 x 1 mg 3,200,000 x 10 mg 6,200,000 x 10 mg 15,000,000 x 100 mg
