Rice Lake QC-XP Quick Clean Extreme Portable Floor Scale - Base Only |
 |

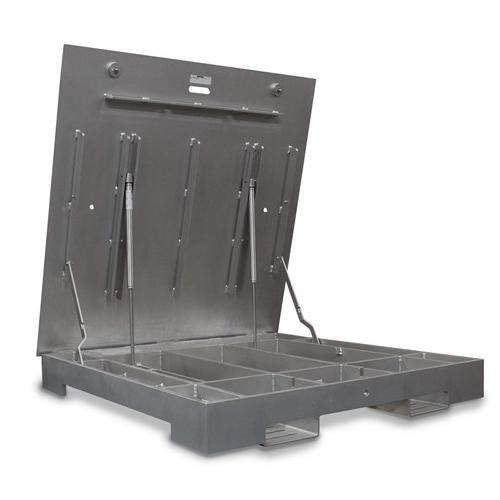

The RoughDeck QC-XP is a portable, quick-clean, washdown, stainless steel floor scale with a solid plate base and forklift channels for portability. This floor scale provides easy cleaning in environments requiring strict sanitation.
|
Rice Lake Scales > Industrial Scales > Floor Scales > Lift Top Scales |
The RoughDeck QC-XP is a portable, quick-clean, washdown, stainless steel floor scale with a solid plate base and forklift channels for portability. This floor scale provides easy cleaning in environments requiring strict sanitation.
Because the floor scale is constructed of solid 304 stainless steel plates with continuous welds instead of steel tubes or channels, it provides superior protection against bacterial growth. The top plate opens 75 degrees, ensuring the entire scale interior can be washed and inspected during sanitation procedures.
- Designed with forklift pockets, allowing the scale to be portable
- Rugged washdown design, rigid 304 stainless steel frame constructed with continuous welds
- Meets HACCP requirements
- Manual drop-in-place safety bars
- Four stainless steel, hermetically sealed, IP69K shear beam load cells with 30 ft cables
- 20 ft of SURVIVOR® EL147HE hostile environment cable for connecting junction box to indicator
- Internally mounted junction box
- 1/4 in top plate
- Four adjustable stainless steel SUREFOOT™ support feet

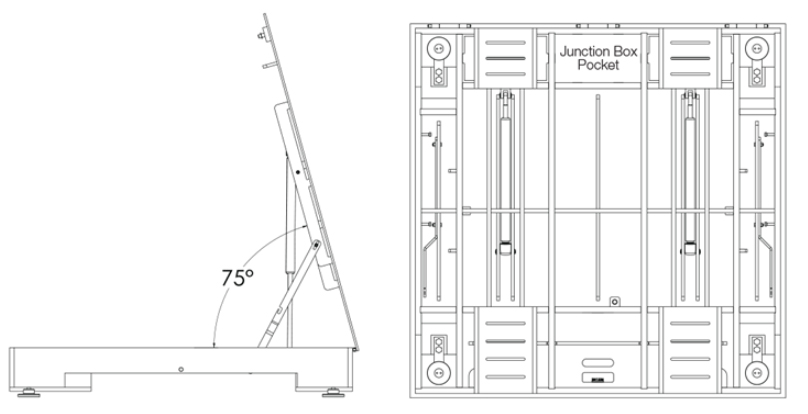

- Top plate opens 75 degrees
- Tool-less top plate lock downs
- Top plate available with a smooth deck or diamond treadplate
- Two 1/2-20 NF threaded eyebolt holes for lifting scale into pit frame
|
Models |
193283 Base Only |
193284 Base Only |
193287 Base Only |
193288 Base Only |

$14,059.00
|

$14,059.00
|

$14,807.00
|

$14,807.00
|
Capacity x Readability |
5000 lb
| 10000 lb
| 5000 lb
| 10000 lb
|
Size (W x L) |
4 ft x 4 ft x 7 in |
4 ft x 4 ft x 7 in |
4 ft x 4 ft x 7 in |
4 ft x 4 ft x 7 in |
End Load Capacity |
100% |
80% |
100% |
80% |
Junction Box |
TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card |
Deck |
smooth |
diamond treadplate |
smooth |
diamond treadplate |
Threaded Eyebolt |
Two 1/2-20 NF threaded eyebolt holes for lifting scale into pit frame |
Welding |
Continuous |
Scale Weldment |
AISI304L, glass bead blasted for even appearance |
Cable Length |
20 ft (6.1 m) for connecting junction box to indicator |
Warranty |
Weldment: Five-year Load cells: Two-year All other components: One-year |
|
