Rice Lake Roughdeck AX-1 Axle Scale - Base Only

Axle scales are compact and can be put in service in a variety of locations, increasing site options for weighing. If you have a location that requires a unique size, Rice Lake can create axle scales in custom sizes and capacities. The AX-1 is the perfect choice for industries that require non-Legal for Trade seasonal weighing. It can be moved and stored when not in use during the off-season.
Rice Lake Roughdeck AX-1 Axle Scale - Base Only
Base Only Indicator Sold Separately
Have Questions?
Call USoremail Us
Our Staff will be glad to help
Specifications Chart Please Call (800)832-0055
or Email Us for help
Ordering this Scale
Rice Lake QC-XP Quick Clean Extreme Portable Floor Scale - Base Only
Price From:


Select Indicator (Must be added with scale)
 Rice Lake 65137 IQ Plus 210 Stainless Steel LED Digital Weight Indicator 115 V
Rice Lake 65137 IQ Plus 210 Stainless Steel LED Digital Weight Indicator 115 V, add $612.25
 Rice Lake 480 LED Legend Series Digital Weight Indicator
Rice Lake 480 LED Legend Series Digital Weight Indicator, add $838.50
 Rice Lake 482 LCD Legend Series Digital Weight Indicator
Rice Lake 482 LCD Legend Series Digital Weight Indicator, add $955.50

For a full list of Rice Lake Indicators Click Here

Ranps for Stand Alone Bases
Rice Lake 169657 Ramp,Roughdeck AX-1 Axle 10ft Wide x 4ft Approach Stand Alone Mild Steel Painted
Rice Lake 169657 Ramp,Roughdeck AX-1 Axle 10ft Wide x 4ft Approach Stand Alone Mild Steel Painted, add $3,190.50
Rice Lake 169658 set of 2 Ramps,Roughdeck AX-1 Axle 10ft Wide x 4ft Approach Stand Alone Mild Steel Painted
Rice Lake 169658 set of 2 Ramps,Roughdeck AX-1 Axle 10ft Wide x 4ft Approach Stand Alone Mild Steel Painted, add $6,385.50
Ranps for scale with Frame
Rice Lake 169655 Ramp,Roughdeck AX-1 Axle 10ft Wide x 4ft Approach Attaches To Axle Scale Frame Mild Steel Painted
Rice Lake 169655 Ramp,Roughdeck AX-1 Axle 10ft Wide x 4ft Approach Attaches To Axle Scale Frame Mild Steel Painted, add $3,190.50
Rice Lake 169656 set of 2 Ramps,Roughdeck AX-1 10ft Wide x 4ft Approach Attaches To Axle Scale Frame Mild Steel Painted
Rice Lake 169656 set of 2 Ramps,Roughdeck AX-1 10ft Wide x 4ft Approach Attaches To Axle Scale Frame Mild Steel Painted, add $6,385.50

Axle Scale Built to Last
The RoughDeck® AX-1 axle scale's double steel decks provide rugged durability in challenging places.

Designed for Durability
The RoughDeck AX-1 is designed with a top and bottom steel plate that provides structural strength creating a more rigid weighing scale—leading to more accurate weighing. With driver safety in mind, the AX-1 top plate is diamond tread and the wide, one-piece design makes it easier to drive vehicles on and off. The RoughDeck AX-1 axle scale is offered in three standard sizes with custom sizes available for unique applications.

Accuracy On-Site
Axle scales are compact and can be put in service in a variety of locations, increasing site options for weighing. If you have a location that requires a unique size, Rice Lake can create axle scales in custom sizes and capacities. The AX-1 is the perfect choice for industries that require non-Legal for Trade seasonal weighing. It can be moved and stored when not in use during the off-season.

Durable Scale Frame
The frame provides additional strength and a safe way to lift and move the scale. Foot plates on the frame ensure the AX-1 has a solid surface for accurate weighing. Top access foot adjustment holes in the top deck make it easy to achieve a level weighing surface after the scale has been placed.

  • Sizes: 7.5 ft, 9.5 ft or 11.5 ft lengths
  • Capacity: 50,000 lb
  • Includes (2) 1-8 NC eye bolts
  • Contains four environmentally sealed, IP67, 20,000 lb single-ended load cells
  • Treaded top plate
  • JB4SS TuffSeal® signal trim top access junction box
  • Top access foot adjustment holes
  • Carbon steel captured ball feet
  • 20 ft SURVIVOR® EL147HE cable
  • Non-Legal for Trade
Options:

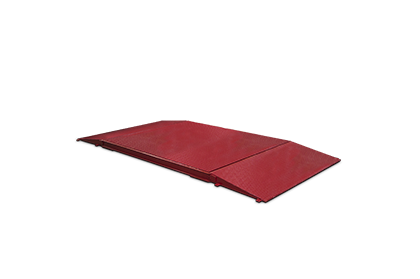

  • Ramps: 10 x 4 ft, treaded top plate
  • Scale frame
Models 169649 169650 169651 169645 169647 169648
Rice Lake 169649 Roughdec
$15,637.50
Rice Lake169650 Roughdeck
$17,617.50
Rice 169651 Roughdeck AX-
$19,561.50
Rice Lake 169645 Roughdec
$17,995.50
Rice Lake169647 Roughdeck
$20,407.50
Rice Lake169648 Roughdeck
$24,205.50
Capacity 50,000 lb 50,000 lb 50,000 lb 50,000 lb 50,000 lb 50,000 lb
Dimensions (L × W × H) 7.5 ft x 9.6 ft x 6.0 in 9.5 ft x 9.6 ft x 6.0 in 11.5 ft x 9.6 ft × 6.0 in 8.0 ft x 10.1 ft x 6.75 in 10.0 ft x 10.1 ft x 6.75 in 12.0 ft x 10.1 ft x 6.75 in
Est. Weight 3,350 lb 4,150 lb 5,500 lb 4,350 lb 5,400 lb 7,000 lb
Frame Included - Yes
Junction Box One JB4SS TuffSeal® junction box, side access
Deck Powder Red
Threaded Eyebolt Includes (2) 1-8 NC eye bolts
Cable Length 20 ft SURVIVOR® EL147HE cable
End Loading Capacity 80% full scale at 50,000 lb
Legal for Trade No
Warranty Load cells: Two-years All other components: One-year limited
