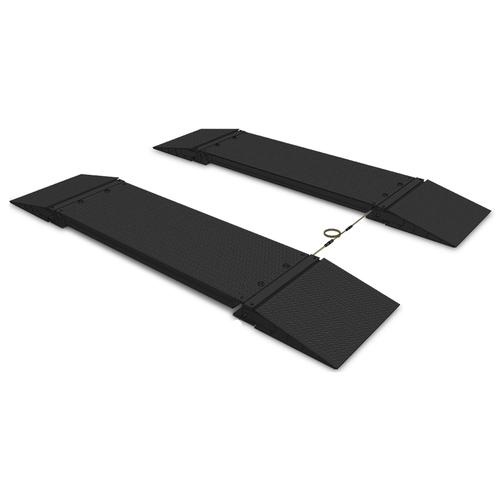

Rice Lake AX3040 Two Platform Axle Scale - Base Only

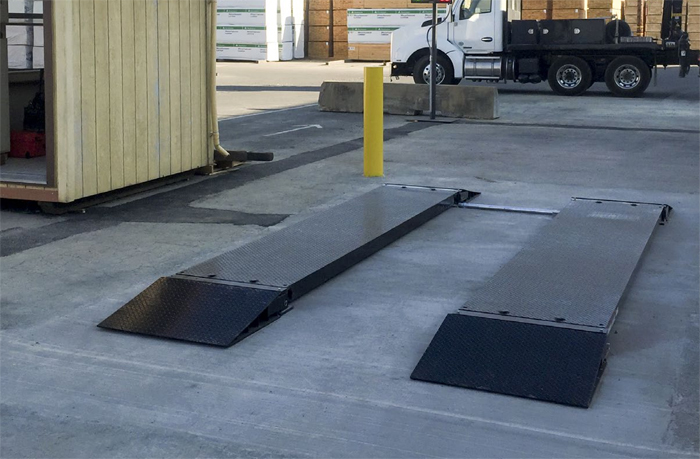

The AX3040 axle scale system includes two diamond tread platforms with on/off ramps. The tandem platforms can weigh a total of 60,000 pounds or 80,000 pounds (30,000 pounds or 40,000 pounds per platform). Combined with the TuffSeal® signal trim junction box and EL147HE cable, the AX3040 axle scale system is the ideal solution for onsite non-Legal for Trade vehicle weighing.
Rice Lake AX3040 Two Platform Axle Scale - Base Only
Base Only Indicator Sold Separately
Have Questions?
Call USoremail Us
Our Staff will be glad to help
Specifications Chart Please Call (800)832-0055
or Email Us for help
Ordering this Scale
Rice Lake AX3040 Two Platform Axle Scale - Base Only
Price From:


Select Indicator (Must be added with scale)
 Rice Lake 65137 IQ Plus 210 Stainless Steel LED Digital Weight Indicator 115 V
Rice Lake 65137 IQ Plus 210 Stainless Steel LED Digital Weight Indicator 115 V, add $612.25
 Rice Lake 480 LED Legend Series Digital Weight Indicator
Rice Lake 480 LED Legend Series Digital Weight Indicator, add $838.50
 Rice Lake 482 LCD Legend Series Digital Weight Indicator
Rice Lake 482 LCD Legend Series Digital Weight Indicator, add $955.50

For a full list of Rice Lake Indicators Click Here

Versatile Axle Weighing System

Rice Lake’s AX3040 is a versatile axle weighing system providing accurate vehicle weights in non-Legal for Trade applications.

The AX3040 axle scale system includes two diamond tread platforms with on/off ramps. The tandem platforms can weigh a total of 60,000 pounds or 80,000 pounds (30,000 pounds or 40,000 pounds per platform). Combined with the TuffSeal® signal trim junction box and EL147HE cable, the AX3040 axle scale system is the ideal solution for onsite non-Legal for Trade vehicle weighing.

Axle Scale Platform Choice - Length and Material
The AX3040 axle scale is available in your choice of length—7, 12 or 14 feet - and is available in aluminum or mild steel. Depending on the size, some vehicles can capture total weight in one step instead of weighing individual axles. The AX3040 axle scale system has a low profile for gradual ramp incline while maintaining durabilityand consistent weighments.

AX3040 Axle Scale
    Scales
  • Sizes: 7 ft, 12 ft and 14 ft lengths
  • Construction: Steel or aluminum
  • Axle capacity, tandem platforms: 60,000 or 80,000 lb (30,000 or 40,000 lb each)
  • Includes (4) 5/8-11 NC eye bolts for lifting scale during installation
  • Contains two load cells per platform
  • Treaded top plate with four lifting eyes
  • JB4SS TuffSeal® signal trim junction box

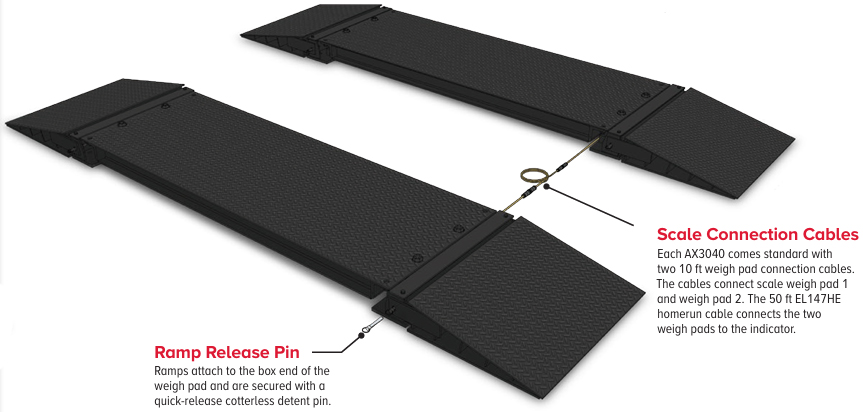

  • 10 ft EL146HE Interconnect cable with MS-type connectors to go between weigh pads
  • 50 ft EL147HE cable to connect weigh pad to indicator
  • Non-Legal for Trade
    Ramps

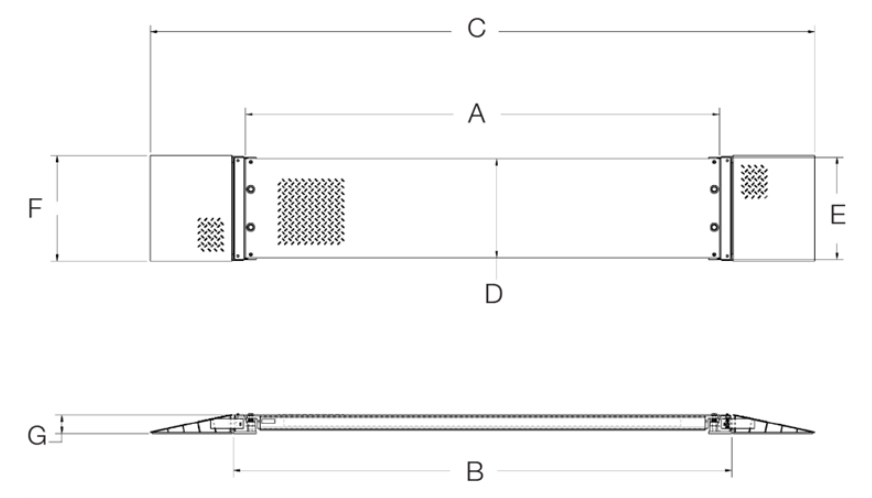

  • Ramps: (L × W) 7 ft and 12 ft scales: 5.63 × 32.00 in, 14 ft scale: 5.75 × 32.00 in
  • Steel or aluminum
  • Anchor bolts not included
Models without Ramps 204097 204099 204100 204101
Rice Lake 204097 AX3040 T
$11,785.50
Rice Lake 204099 AX3040 T
$14,355.00
Rice Lake 204100 AX3040 T
$19,795.50
Rice Lake 204101 AX3040 T
$13,855.50
Models with Ramps 112330 111748 112328 112329
$14,035.50
$16,605.00
$22,045.50
$16,537.50
Capacity 60,000 lb (30,000 lb ea) 80,000 lb (40,000 lb ea) 80,000 lb (40,000 lb ea) 60,000 lb (30,000 lb ea)

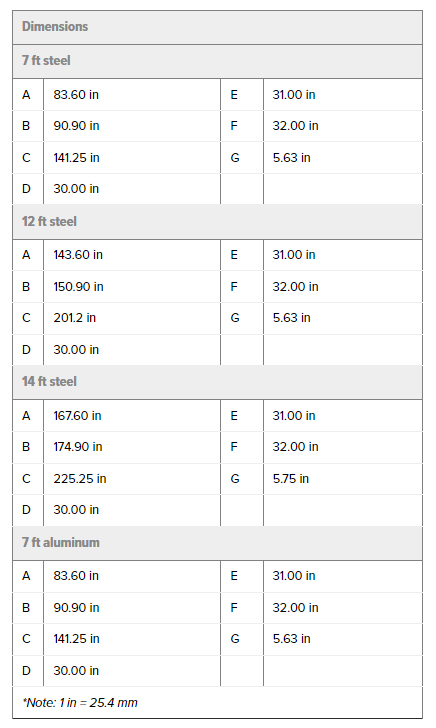

Dimensions (L × W × H) 7 x 2.5 ft (ea) 12 x 2.5 ft(ea) 14 x 2.5 ft(ea) 7 x 2.5 ft(ea)
Est Shipping Weight 2500 lb 4400 lb 5200 lb 1250 lb
Construction Steel Aluminum
Cable Length 10 ft EL146HE Interconnect cable
50 ft EL147HE cable to connect weigh pad to indicator
Junction Box JB4SS TuffSeal® signal trim junction box
Threaded Eyebolt Includes (4) 5/8-11 NC eye bolts for lifting scale during installation
End Loading Capacity 133% full scale at 30,000 lb
100% full scale at 40,000 lb
Legal for Trade No
Warranty One-year limited
