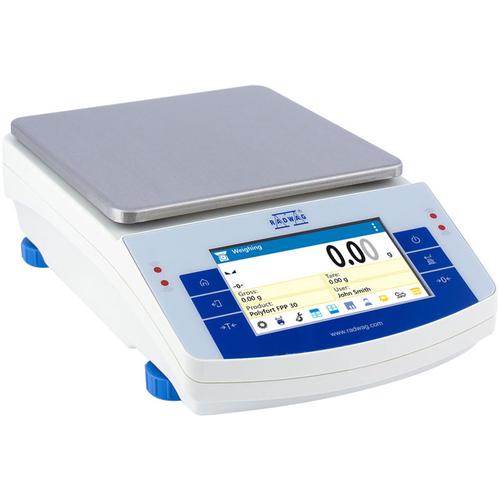

The PS.X2 series represents a new advanced level for precision balances. The X2 series balances feature the latest generation capacitive display providing the maximum comfort of use, available right at your fingertips. Ease of operation, clear menu and practical arrangement of the display guarantee the best ergonomics for your everyday tasks. A wide array of available interfaces facilitate selection of the most optimal means for communication. The X2 series balances offer unlimited possibilities for cooperation with external devices, providing printing, copying, archiving and data transfer.
Built-in IR sensors allow numerous operations (e.g. tarring, transmitting the result to a printer or selecting successive steps of a particular process, etc.) to be performed handsfree, by simply moving a hand across the sensor. The housing is made of plastic, and the pan is made of stainless steel.
The new PS.X2 high capacity balances (6100, 8100 and 10100) feature centrally fixed weighing pan and additional sealing ring. This solution improves air-tightness and simplifies cleaning.
To advance accuracy, the new balances have been equipped with metal anti-draft shield.
Additional assets are both expanded capacity (even up to 10.1 kg) and smaller dispersion of weighings – better repeatability.
Databases in X2 series balances
In new PS.X2 series balances the information system is based on 7 databases which allow several users to work with database storing several products. The registered weighing results can be subject to further analysis.
The data is registered in 7 databases:
- Users (up to 100 users)
- Products (up to 5 000 products)
- Weighments (up to 50 000 weighments)
- Packaging (up to 100 packaging types)
- Formulas (up to 100 formulas),
- Clients (up to 100 clients)
- ALIBI memory (up to 500 000 weighments)
The X2 series features option of making reports of 2 different categories:
- Reports on formulas (up to 200 reports)
- Reports on density determination (up to 500 reports)
ALIBI Memory
The X2 series balances feature ALIBI memory that is a warranty for safety and automatic recording of your measurements. Options such as data preview, copying and archiving are available to users as well. The ALIBI memory allows to record up to 500 000 weighment records.
Personalization taken to the next level
The X2 is the only balance available on the market that provides a user with the option to design display using wide selection of widgets. Customised display of X2 series offers direct access to the results of your work and other important information directly from the home screen.
Weighing Data Management
USB interface facilitates quick transfer and copying of any results of your work (measurements, reports, databases) to other balances.
Network management of the weighing data increases effectivity, productivity and safety of the important data to the maximum.
| Model |
PS 200/2000.X2
WL-218-1002 |
PS 210.X2
WL-218-0015 |
PS 360.X2
WL-218-0020 |
PS 600.X2
WL-218-0022 |
PS 750.X2
WL-218-0024 |
PS 1000.X2
WL-218-0026 |
PS 3000.X2
WL-218-0088 |
| Price |
$1,224.00
|
$1,079.50
|
$1,091.40
|
$1,105.85
|
$1,119.45
|
$1,199.35
|
N/A
|
| Capacity x Readability |
200 g x 1 mg
2000 x 0.01 g |
210 g x 1 mg |
360 g x 1 mg |
600 g x 1 mg |
750 g x 1 mg |
1000 g x 1 mg |
3000 g x 1 mg |
| Legal for Trade |
- |
PS 210.X2.NTEP
WL-218-0015.NTEP |
PS 360.X2.NTEP
WL-218-0020.NTEP |
- |
- |
PS 1000.X2.NTEP
WL-218-0026.NTEP |
- |
| - |
210 g x 0.01 g |
360 g x 0.01 g |
- |
- |
1000 g x 0.01 g |
- |
| - |
$998.75
|
$1,186.60
|
- |
- |
$1,294.55
|
- |
| Minimum load |
20 mg |
20 mg |
20 mg |
20 mg |
20 mg |
20 mg |
- |
| Tare range |
-2000 g |
-210 g |
-360 g |
-600 g |
-750 g |
-1000 g |
-3000 g |
| Linearity |
+2/20 mg |
+2 mg |
+2 mg |
+3 mg |
+3 mg |
+3 mg |
+6 mg |
| Standard repeatability [5% Max] |
0.5 / 5 mg |
0.5 mg |
0.5 mg |
0.5 mg |
0.5 mg |
0.5 mg |
0.6 mg |
| Standard repeatability [Max] |
1 / 10 mg |
1 mg |
1 mg |
1.5 mg |
1.5 mg |
1.5 mg |
1.5 mg |
| Standard minimum weight (USP) |
1 g |
1 g |
1 g |
1 g |
1 g |
1 g |
1.2 g |
| Standard minimum weight (U=1%, k=2) |
0.1 g |
0.1 g |
0.1 g |
0.1 g |
0.1 g |
0.1 g |
0.12 g |
| Stabilization time |
2 / 1.5 s |
2 s |
2 s |
2 s |
2 s |
2 s |
3 g |
| Sensitivity drift |
2ppm/oC in temperature +15 - +35 oC |
| Adjustment / Calibration |
internal (automatic) |
| Leveling system |
manual |
| Display |
5 inch graphic color touchscreen |
| Delivery components |
Balance, weighing pan, weighing pan shield, grounding bumper ×1, bumper ×3, power supply. |
| Weighing pan dimensions |
128×128 mm |
| Packaging dimensions |
475×380×345 mm |
| Net weight |
4.33 kg |
3.54 kg |
3.99 kg |
3.99 kg |
3.9 kg |
4.01 kg |
4.33 kg |
| Gross weight |
5.5 kg |
5 kg |
5 kg |
5.5 kg |
5 kg |
5 kg |
5.5 kg |
| Protection class |
IP 43 |
| Database capacity |
7 |
| Touch-free operation |
2 IR Sensors |
| Communication interface |
2×RS232¹, USB-A, USB-B, Ethernet, Wi-Fi |
| Power supply |
Adapter: 100 – 240V AC 50/60Hz 0,6A; 12V DC 1,2A
Balance: 12 – 15V DC 0,8A max |
| Protection class |
4 W |
| Operating temperature |
+10 - +40 oC |
| Ambient conditions monitoring (option) |
THBR 2.0 System, THBR BOX, THB P, THB W, THB S |
| Relative humidity |
40% ÷ 80% |
Repeatability is expressed as a standard deviation from 10 weighing cycles. Stabilization time depends on the ambient conditions and the
dynamics of weighing pan loading; specified for FAST profile. 1 Barcode scanners, available as weighing instrument accessory,
| Model |
PS 2100.X2.M
WL-218-0127 |
PS 3500.X2.M
WL-218-0134 |
PS 4500.X2.M
WL-218-0103 |
PS 6100.X2.M
WL-218-0104 |
PS 8100.X2.M
WL-218-0102 |
PS 10100.X2.M
WL-218-0101 |
| Price |
$1,071.00
|
$1,074.40
|
$1,134.75
|
$1,233.35
|
$1,630.30
|
$2,028.10
|
| Capacity x Readability |
2100 g x 0.01 g |
3500 g x 0.01 g |
4500 g x 0.01 g |
6100 g x 0.01 g |
8100 g x 0.01 g |
10100 g x 0.01 g |
| Legal for Trade |
PS 2100.X2.M.NTEP
WL-218-0127.NTEP |
PS 3500.X2.M.NTEP
WL-218-0134.NTEP |
PS 4500.X2.M.NTEP
WL-218-0103.NTEP |
PS 6100.X2.M.NTEP
WL-218-0104.NTEP |
PS 8100.X2.M.NTEP
WL-218-0102.NTEP |
- |
| 2100 g x 0.1 g |
3500 g x 0.1 g |
4500 g x 0.1 g |
6100 g x 0.1 g |
8100 g x 0.1 g |
- |
$1,166.20
|
$1,169.60
|
$1,229.95
|
$1,328.55
|
$1,725.50
|
- |
| Tare range |
-2100 g |
-3500 g |
-4500 g |
-6100 g |
-8100 g |
-10100 g |
| Linearity |
+20 mg |
+20 mg |
+20 mg |
+20 mg |
+20 mg |
+20 mg |
| Minimum load |
500 mg |
500 mg |
500 mg |
500 mg |
500 mg |
500 mg |
| Standard repeatability [5% Max] |
5 mg |
5 mg |
5 mg |
5 mg |
5 mg |
5 mg |
| Standard repeatability [Max] |
8 mg |
8 mg |
8 mg |
8 mg |
10 mg |
12 mg |
| Standard minimum weight (USP) |
10 g |
10 g |
10 g |
10 g |
10 g |
10 g |
| Standard minimum weight (U=1%, k=2) |
1 g |
1 g |
1 g |
1 g |
1 g |
1 g |
| Stabilization time |
1.5 s |
1.5 s |
1.5 s |
1.5 s |
1.5 s |
1.5 s |
| Sensitivity drift |
2ppm/oC in temperature +15 - +35 oC |
| Adjustment / Calibration |
internal (automatic) |
| Leveling system |
manual |
| Display |
5 inch graphic color touchscreen |
| Delivery components |
Balance, weighing pan, weighing pan shield, power supply. |
| Weighing pan dimensions |
195×195 mm |
| Packaging dimensions |
475×380×345 mm |
| Device dimensions |
333x206x107 mm |
| Net weight |
4.33 kg |
4.33 kg |
4.33 kg |
4.33 kg |
4.33 kg |
4.33 kg |
| Gross weight |
5.5 kg |
5.5 kg |
5.5 kg |
5.5 kg |
5.5 kg |
5.5 kg |
| Protection class |
IP 43 |
| Database capacity |
7 |
| Touch-free operation |
2 IR Sensors |
| Communication interface |
2×RS232¹, USB-A, USB-B, Ethernet, Wi-Fi |
| Power supply |
Adapter: 100 – 240V AC 50/60Hz 0,6A; 12V DC 1,2A
Balance: 12 – 15V DC 0,8A max |
| Protection class |
4 W |
| Operating temperature |
+10 - +40 oC |
| Ambient conditions monitoring (option) |
THBR 2.0 System, THBR BOX, THB P, THB W, THB S |
| Relative humidity |
40% ÷ 80% |
Optional Accessories
- Balance Storage Case
- Antivibration Tables
- Power Adapters
- Cigarette lighter receptacle power supply cables
- USB cable (scale - printer)
- Density determination KIT
- Barcode scanners
- Anti-Draft Chamber for Balances with a 128×128 mm Weighing Pan
- RS 232, RS 485 cables
- THBR 2.0 System - Ambient Conditions Monitoring
- Displays
- Draft Shield
- Receipt Printer
- Protective cover for balances
- RS 232, RS 485 cables
- Additional modules
- Protective cover for balances
- Under-pan weighing
- RS 232 cables (scale - printer)
- RS 232 – RS 485 Converter
