Mass comparator AKM-2 series featuring automatic mass loader enables automatic determination of mass deviations of a single weight in a single cycle. The system of automatic mass comparator is commonly applicable in mass measuring laboratories, and particularly in certification units for weights classes E, F and M
The supervising part of a mass comparator is a digital module which cooperates with a controller of instrument’s mechanical components. The automatic mass loader features a basis with self-centring fields, a robot and a steel body. The digital module and the robot are located in mass comparator’s weighing chamber. The loading robot is controlled by the computer’s controller. The instrument is operated by means of digital display which is plugged to mass comparator’s controller.
Lengthwise shift of the loading robot with weights is carried out automatically using solenoid actuators. Additional software functions enable loading and taking off the weights, data processing and storing, and data export to instrument’s memory.
- Effective and Excellent Measurement The AKM-2 automatic mass comparator enables determining mass deviations of weights with the minimum possible operator participation. The comparator allows to compare weights of class E1 and lower of mass ranging between 500 g and 50 kg. The device is available in 2–position version for 1 reference weight and 1 test weight.
- Maximum Comfort of Operation To ensure maximum comfort of operation, the mass comparator is equipped with automatic sliding feeder facilitating loading of large-mass weights.
- Excellent Measurement Repeatability The AKM-2 automatic mass comparator, due to the elimination of the human factor, temperature changes and air drafts, guarantees excellent measurement repeatability when compared to manual mass comparator.
- Design and Functionality Specially designed weighing pan enables precise and accurate comparison of the smallest weights. The knob for changing the weighing range allows to compare vast range of loads while maintaining the same resolution. Stable construction of the table with heavy granite stone and robust rubber shock absorbers minimizes the influence of vibrations.
- Dedicated Software Specially designed RMCS computer software enables comprehensive realisation of calibration procedures in laboratory. The system manages the whole calibration process, starting from the moment the order is placed, through procedure performance, to the moment of issuing the calibration certificate
| Model |
AKM-2/10 |
AKM-2/20 |
AKM-2/50 |
| Price |
|
|
|
| Capacity x Readability |
10.2 kg x 0.1 mg |
20.5 kg x 0.1 mg |
51 kg x 1 mg |
| Repeatability nominal load * |
0.2 mg (10 kg) |
0.4 mg (20 kg) |
5 mg (50 kg) |
| Repeatability small load * |
0.2 mg (500 g) |
0.4 mg (1 kg) |
2 mg (5 kg) |
| Stabilization time |
30 s |
| Adjustment |
external |
| Electric compensation range |
– 100 g ÷ 200 g |
+ 500 g |
0 g ÷ 50.5 kg |
| Internal supplementary weights |
semi-automatic |
- |
| Eccentricity (for test weight) |
0 mg |
| Magazine positions |
2 positions |
| OIML calibration range E1 |
2 kg ÷ 10 kg |
5 kg ÷ 20 kg |
20 kg ÷ 50 kg |
| OIML calibration range E2 |
500 g ÷ 10 kg |
1 kg ÷ 20 kg |
5 kg ÷ 50 kg |
| OIML calibration range F1 |
500 g ÷ 10 kg |
1 kg ÷ 20 kg |
5 kg ÷ 50 kg |
| OIML calibration range F2 |
500 g ÷ 10 kg |
1 kg ÷ 20 kg |
5 kg ÷ 50 kg |
| OIML calibration range M1 |
- |
- |
- |
| OIML calibration range M2 |
- |
- |
- |
| Display |
5.7" color resistive touch screen |
| Keypad |
8 keys |
| Ingress protection - indicator |
IP 43 |
| Touch-free operation |
2 programmable sensors |
| USB-A |
2 |
| Ethernet |
10 / 100 Mbit |
| RS-232 |
2 |
| Wi-Fi |
802.11 b/g/n |
| IN/OUT |
4 x IN, 4 x OUT |
| Power supply |
110 ÷ 230 V AC / 50 ÷ 60 Hz |
| Operating temperature |
+15 ÷ +30 oC |
| Operating temperature change rate |
+ 0.5 oC / 12 h (+ 0.3 oC / 4 h) |
| Relative humidity variations |
+2% / 12 h |
| Relative humidity*** |
40 ÷ 60% |
| Transport and storage temperature |
–20 ÷ +50 oC |
| Weighing pan dimensions |
ø 90 mm |
ø 90 mm |
ø 100 mm |

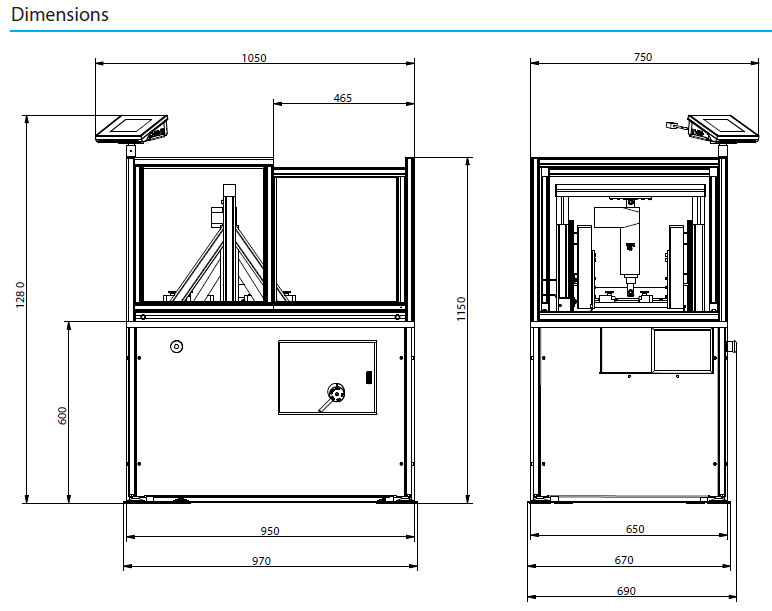

| Mass comparator dimensions** |
1050 x 1280 x 750 mm |
| Indicator dimensions** |
206 x 140 x 71 mm |
| Mass comparator net weight |
330 kg |
340 kg |
380 kg |
| Mass comparator gross weight |
455 kg |
465 kg |
505 kg |
| Mass comparator packaging dimensions** |
1050 x 800 x 1320 mm |
* repeatability is expressed as a standard deviation determined for 6 ABBA cycles
** dimensions: length x width x heights
*** non-condensing conditionss
**** the shipment consists of two packages - box pallet (robot, stone, computer and frame for stone) and packaging with mass comparator (comparator + accessories)s
Optional Accessories (Please Contact Us)
Ambient Conditions
- THB-S or THB-P sensor
Peripheral Devices
- Epson dot matrix printer
- barcode scanner
Cables, Converters
- RS-232 – P0108 computer cable
- RS-232 – P0167 computer cable
- RS-232 – P0151 Epson printer cable
Electrical Accessories
- power supply with ZR–02 battery
Optional Dedicated Software (Please Contact Us)
RMCS System
- performance of calibration procedures in a laboratory from the moment the order is placed, to the moment of issuing a calibration certificate
- compatible with THB sensors enabling recording ambient conditions
- export of report results to various files
- archiving calibration protocols, orders, certificates and ambient conditions
RADWAG Remote Desktop
- remote control of the mass comparator using computer, telephone or tablet
- sending text messages
- version for Windows 10 and Android systems
R-LAB
- collecting measurements
- carrying out statistical analysis of measurements
- customized graphs and reports
Parameters Editor
- remote change of parameters
- remote on-line preview of the display
- displaying current mass indication
- software update
- file loading, editing and saving parameters to a file
- import and export of parameters
- interfaces: RS232, Ethernet and Wireless Connection
- quick and easy edition of balance parameters using computer
|
