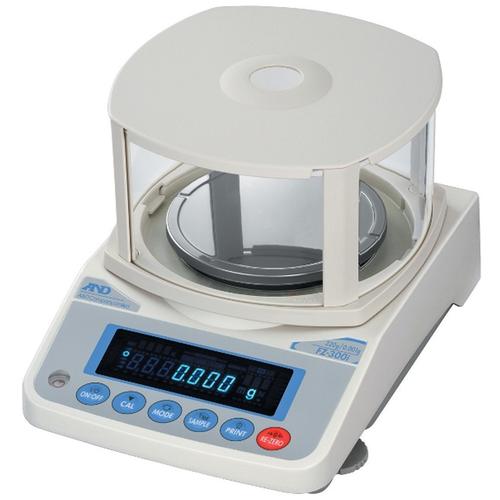

AND Weighing FZ-300i Internal Calibration Balance, 320 x 0.001 g with Breeze Break (3.4inch High) |
|
For those who desire the performance of the FX-i plus the convenience and assurance of internal calibration, look no further than the FZ-i. Quick adjustment is just a keystroke away. The unique, air actuated internal motor provides quick, one-touch calibration and its fail-safe mechanism resets the weight to its original position upon interruption. High-end features that come at high level of affordability make the FZ-I unique in its class. more ... |
Scales >
Laboratory >
Basic
|
|
|
|
Features
FZ-i - Internal Calibration
For those who desire the performance of the FX-i plus the convenience and assurance of internal calibration, look no further than the FZ-i.
Quick adjustment is just a keystroke away. The unique, air actuated internal motor provides quick, one-touch calibration and its fail-safe mechanism resets the weight to its original position upon interruption.
High-end features that come at high level of affordability make the FZ-I unique in its class.
Statistical Calculation Function The statistical values Sum, Maximum, Minimum,Range, Standard Deviation, Number of Data, and Coeffi cient of Variation can be displayedor output.
ACAI – Automatic Counting Accuracy Improvement This counting function recalculates the average weight each time a sample is added to eliminate errors caused by variations in unit weight.
Animal Weighing Function The HOLD function enables freezing of weighing data for animal weighing applications and an ANIMAL indicator appears on the display.
Comparator Function Easy to compare weighing results by setting HI limit and LO limit to display HI,OK,LO indicator.
Percent Mode Function A sample can be registered as 100% and the weight of another sample can be compared as a percentage.
Underhook The underhook allows for measurement of magnetic materials and density measurements in air and water.
Weight:
10.00 lb
|
|
Other AND Weighing FZ-i - Internal Calibration Balances
|
Specifications
|
FZ-120i |
FZ-200i |
FZ-300i |
FZ-500i |
FZ-1200i |
FZ-2000i |
FZ-3000i |
FZ-5000i |
Capacity x Resolution |
g |
122 x 0.001 |
220 x 0.001 |
320 x 0.001 |
520 x 0.001 |
1220 x 0.01 |
2200 x 0.01 |
3200 x 0.01 |
5200 x 0.01 |
oz |
4.30 x 0.00005 |
7.76 x 0.00005 |
11.28 x 0.00005 |
18.34 x 0.00005 |
43.0 x 0.0005 |
77.6 x 0.0005 |
112.8 x 0.0005 |
183.4 x 0.0005 |
lb |
0.268 x 0.000005 |
0.485 x 0.000005 |
0.705 x 0.000005 |
1.14 x 0.000005 |
2.68 x 0.00005 |
4.85 x 0.00005 |
7.05 x 0.00005 |
11.46 x 0.00005 |
lb-oz |
0lb, 4.30oz x 0.01oz |
0lb, 7.76oz x 0.01oz |
0lb, 11.29oz x 0.01oz |
0lb, 18.34oz x 1 lb, 0.01oz |
2lb, 11.03oz x 0.01oz |
4lb, 13.60oz x 0.01oz |
7lb, 0.88oz x 0.01oz |
11 lb, 7.65 x 0.001oz |
ozt |
3.92 x 0.00005 |
7.07 x 0.00005 |
10.28 x 0.00005 |
16.71 x 0.00005 |
39.2 x 0.0005 |
70.7 x 0.0005 |
102.8 x 0.0005 |
167.18 x 0.0005 |
ct |
610 x 0.005 |
1100 x 0.005 |
1600 x 0.005 |
2600 x 0.005 |
6100 x 0.05 |
11000 x 0.05 |
16000 x 0.05 |
26000 x 0.05 |
dwt |
78.6 x 0.001 |
141.7 x 0.001 |
206.2 x 0.001 |
335.1 x 0.001 |
786 x 0.01 |
1417 x 0.01 |
2062 x 0.01 |
3351 x 0.01 |
GN |
1882 x 0.02 |
3395 x 0.02 |
4938 x 0.02 |
8024 x 0.02 |
18827 x 0.2 |
33951 x 0.2 |
49383 x 0.2 |
80248 x 0.2 |
Counting Mode |
Min. Unit Mass |
0.001g |
0.01g |
# of Samples |
5, 10, 25, 50 or 100 pieces |
Percent Mode |
Min. 100% Ref. Mass |
0.100g |
1.00g |
Min. 100% Display |
0.01%, 0.1%, 1% (depends on the reference mass stored) |
Repeatability (Std. Deviation) |
0.001g |
0.01g |
Linearity |
±0.002g |
±0.02g |
Stabilization Time (typically set at FAST) |
Approx. 1 second |
Sensitivity Drift (10°C to 30°C) |
±2ppm / °C |
Operating Temp |
5°C to 40°C (41°F to 104°F), 85% RH or less (No condensation) |
Display Type |
Vacuum Fluorescent Display (VFD) |
Display Refresh Rate |
5 times / second, 10 times / second or 20 times / second |
Std. Serial Interface |
RS-232C Interface |
Weighing Pan |
130mm |
150mm |
External Calibration |
100g 50g |
200g 100g |
300g 200g 100g |
500gg 400gg 300gg 200gg 100gg 50g |
1000g 500g |
2000g 1000g |
3000g 2000g 1000g |
5000g 4000g 3000g 2000g 1000g 500g |
AC Adaptor |
Confirm that the adaptor type is correct for the local voltage and power receptacle |
Power Consumption |
Approx. 11VA (supplied to the AC Adaptor) |
External Dimensions |
193 (W) x 262.5 (D) x 84.5 (H) mm |
Net Weight |
Approx. 2.5kg |
|
|
|
* within the 48 continental US States
|
Optional Accessories
more info
|
A&D Weighing AX-USB-2920-9P Plugable RS-232 to USB DB9 Converter
A&D Weighing AX-USB-2920-9P Plugable USB to RS-232 DB9 Converter
|
|
more info
|
AND Weighing FXi-02 USB interface with cable FXi--Series
AND Weighing FXi-02 Quick USB interface with cable FXi--Series
FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
(Not IP65 compliant when used with FX-iWP and FZ-iWP)
|
|
more info
|
AND Weighing FXi-08 Ethernet interface with WinCT-Plus software for FXi--Series
AND Weighing FXi-08 Ethernet interface with WinCT-Plus software for FXi--Series
FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
(Not IP65 compliant when used with FX-iWP and FZ-iWP)
|
|
more info
|
AND Weighing FXi-09 Built-in rechargeable battery for FXi--Series
AND Weighing FXi-09 Built-in rechargeable battery for FXi--Series
FXi-02, FXi-08 and FXi-09 cannot be used at the same time.
(Not IP65 compliant when used with FX-iWP and FZ-iWP)
|
|
more info
|
AND Weighing FXi-10 Small breeze break 3.4 in for FXi--Series
AND Weighing FXi-10 Small breeze break 3.4 in for FXi--Series Provided for FX-120i /200i /300i as standard. Can be used for FX-1200i /2000i /3000i. The Small breeze break is 3.4 inch high
|
|
more info
|
AND Weighing FXi-11 Large breeze break 7.9 in for FXi--Series
AND Weighing FXi-11 Large breeze break 7.9 in for FXi--Series Breeze break with greater height. Can be used for all models. Convenient when a large beake or measuring cylinder is used and requires more height. The Large breeze break is 7.9 inch high
|
|
more info
|
AND Weighing FXi-12 Animal weighing pan for FZ Series
AND Weighing FXi-12 Animal weighing pan for FZ Series
|
|
more info
|
AND Weighing TB:648 120V/220V AC Adapter
Compatible with the following units: Phoenix GH Series, Gemini GR Series, Galaxy HR Series, Orion HR Series, GF Series, GX Series, FZ Series, FX Series, BM Series, MC Series, AD Pipette Series
|
|
more info
|
AND Weighing AX:073009456 Protective In-Use Cover for AND Weighing HR Series
AND Weighing AX:073009456 Protective In-Use Cover for AND Weighing HR Series
|
|
more info
|
AND Weighing AD-8127 Compact Multi-Function Printer
Features
- Easy setting and operation with a numeric keypad and
LCD display
- Built-in calendar and clock for printing date and time
at any time
- Sends re-zero and weighing data request commands to
the balance/scale
- Clear and visible dot matrix printing, which also enables long-term preservation of the
printed records
- Compact and lightweight for portability and installation anywhere
- Interval printing mode for printing weighing data at set intervals
- Chart printing mode for printing time-series variations of weighing data
- Dump printing mode to receive and print GLP/GMP/GCP/ISO compliant output from
the balance/scale
- Performs and prints the results of statistical calculation including standard deviation
- Prints an ID number set for the printer at any time
- Two types of RS-232C cables (D-Sub 25P and D-Sub 9P) provided as standard to
connect to balances/scales with different interfaces*
- Receives a print, paper feed, print statistical calculation results, print total, re-zero, or
weighing data request command from the optional foot switch (AX-SW128)
Character specifications |
7 × 9 dots, 1.6 (W) × 3.2 (H) mm |
Printing speed |
Approx. 1.6 lines/second |
Paper feeding speed |
Approx. 4 lines/second |
Number of characters printed |
24 characters/line |
Printer paper width |
57.5 mm |
Operating environment |
0 to 40 °C/32 to 104 °F, 35 to 85%RH (no condensation) |
Storage environment |
-20 to 60 °C/-4 to 140 °F, 10 to 90%RH (no condensation) |
Interface |
RS-232C (D-Sub 9P, male) / Current loop (DIN) |
Power supply |
AC adapter |
Size / weight |
174 (W) × 141 (D) × 87 (H) mm / approx. 500 g |
Standard accessories |
Ink ribbon (1 pc), plain printer paper (1 roll), AC adapter, AC adapter label, instruction manual, two RS-232C cables (D-Sub 25P and D-Sub 9P)* |
|
|
more info
|
AND AD-8920A Universal Remote Display
Universal Remote Display for AND Weighing balances
Connects to A&D’s balances and scales using either RS-232C or current loop
Includes an AC adapter and a communication cable that matches your instrument
Recognizes the balance/scale baud setting automatically
Large and bright VFD display
|
|
more info
|
AND AD-8922A Remote Controller
Remote Controller for AND Weighing balances
Displays weighing data Remotely controls a weighing instrument with key operations (no access to the internal settings) Outputs weighing data to another external device such as a PC or printer via the RS-232C connection Optional BCD, comparator, and analog outputs available Can be panel-mounted
|
|
|
|
|
|
|
