Ohaus Pioneer PX Analytical and Precision Balances
Authorized Dealer

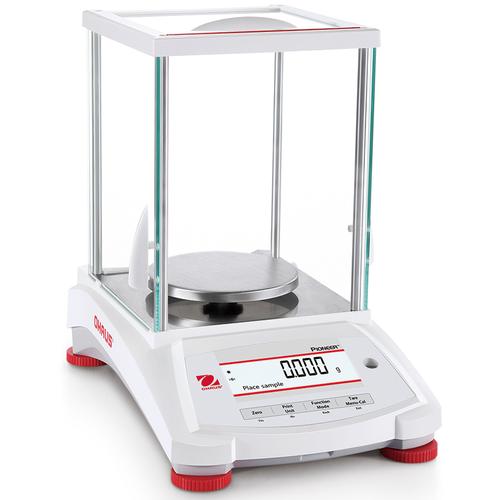

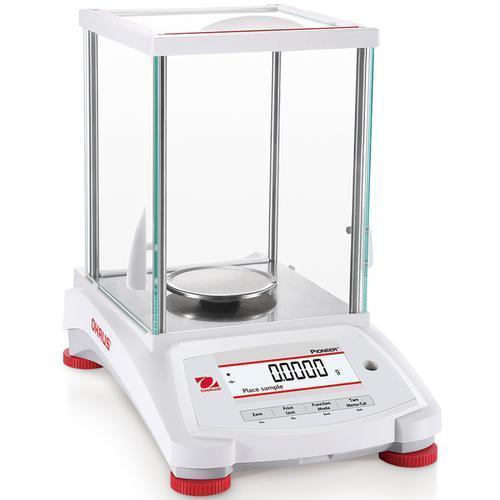

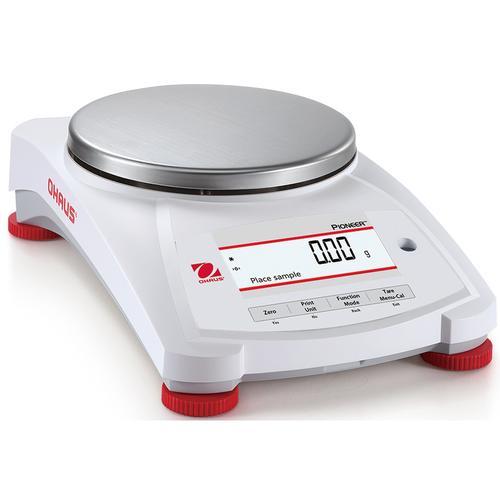

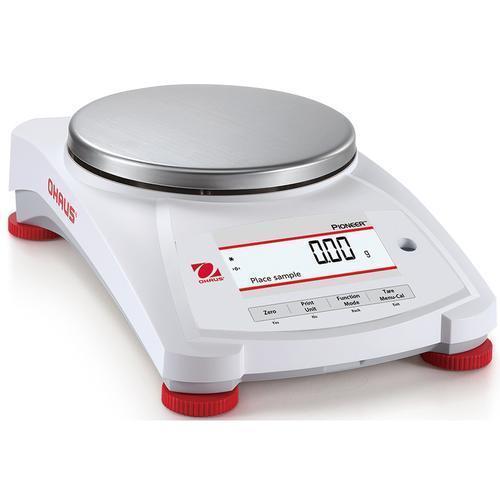

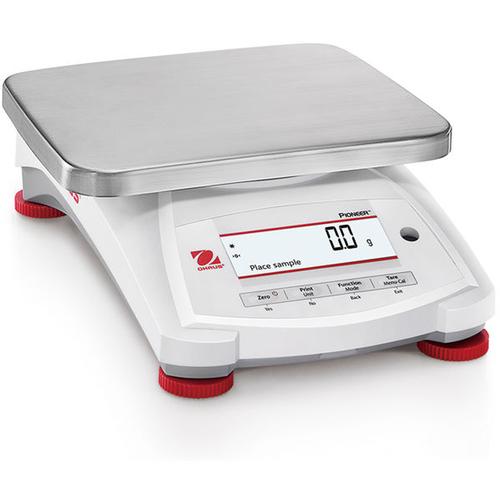

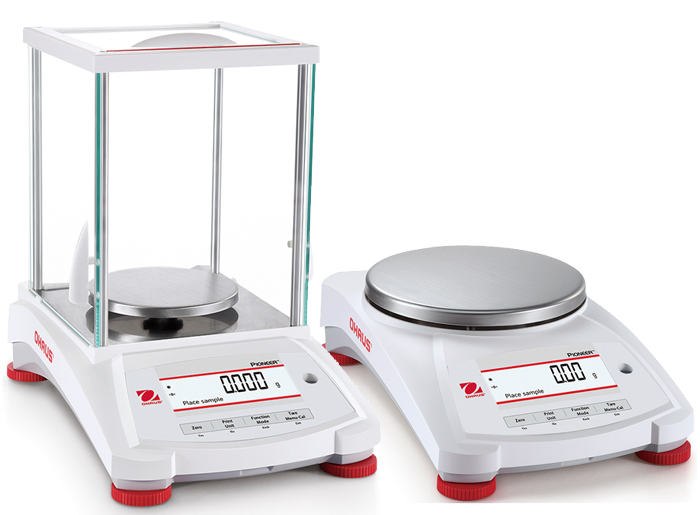

The OHAUS Pioneer PX Series of analytical and precision balances (Internal and Extenal Calibration models) are designed for basic routine weighing in a variety of laboratory, industrial and education applications. With the right combination of performance and features, the OHAUS Pioneer offers uncomplicated performance for all your basic weighing needs.
The OHAUS Pioneer Series of analytical and precision balances (Internal and Extenal Calibration models) are designed for basic routine weighing in a variety of laboratory, industrial and education applications. With the right combination of performance and features, the OHAUS Pioneer offers uncomplicated performance for all your basic weighing needs.
The Best Balance For Basic Weighing!
The OHAUS Pioneer Series of analytical and precision balances are designed for basic routine weighing
in a variety of laboratory, industrial and education applications. Now with both internal and external
calibration models and the right combination of performance and features, the OHAUS Pioneer offers
uncomplicated performance for all your basic weighing needs.
Standard Features Include:
Easy to Clean Analytical Draftshield - Pioneer's draftshield is designed with all glass panels, including three sliding doors. All panels are easy to remove and replace, and together with a stainless steel bottom, make it fast and easy to clean.
Upfront Level Indicator - Pioneer has been designed with an up-front level indicator, so that users can quickly ensure the balance is level prior to use
Bright Backlit Display - The bright backlit LCD display is easy-to-view in any environment.
Selectable Environmental Settings - Three filter modes and adjustable zero tracking adjust balance sensitivity to environmental disturbances, or application requirements.
Removable Doors Provide Convenient Access and Easy Cleaning
To address the ease of cleaning requirement often expressed by routine users,
Pioneer's draftshield has been designed with easy to remove doors and panels.
Disassembly takes just seconds and all components including the balance housing can
be quickly wiped clean.
Periodic cleaning made easy helps avoid sample
contamination and extends product life. In addition,

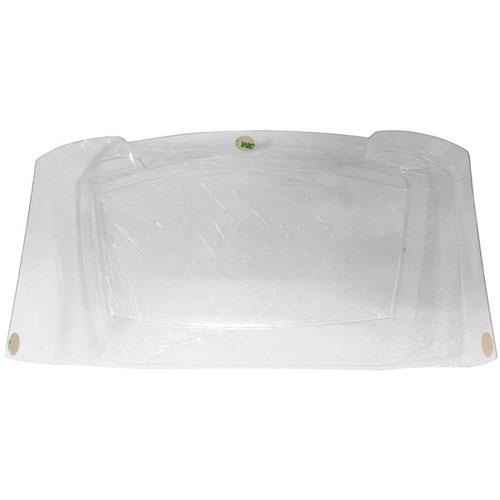

a standard in-use cover provides added protection
against accidental spillage and helps minimize the
chance of damage to the display and keypad.
Should breakage occur, each replacement door or panel can be installed in
seconds.
Backlit Display Bolsters Visibility
The bright backlit LCD display provides ample lighting, making the display
very easy-to-view in laboratories with dim lighting
Selectable Environmental Settings For Working in
Practically Any Condition
To help adapt the balance to real life working conditions, Pioneer is
designed with selectable environmental settings. When working in harsh
environments, the balance can be adjusted to compensate for vibrations
and other disturbances. Conversely, the balance can be adjusted for working
in slow filling applications where sensitivity is a must.
Standard Features:
Integral Security Bracket: Allows you to secure your balance to a workstation to prevent unwarranted movement or theft
RS232 Interface: Pioneer's RS232 allows connection to an Ohaus printer or a computer. Sends Balance ID plus spaces for recording User ID, Project ID, time and date
Integral Menu Lock: A combination of software and a mechanical switch locks menus, including calibration
Weigh-Below Hook: Pioneer's built-in weigh-below hook allows you to suspend an item below the balance to calculate density/specific gravity
Up-Front Level Indicator: A quick glance at the up-front level indicator helps to ensure that the balance is level prior to each use
Multiple Application Modes and Units: Pioneer features basic weighing, parts counting and percent weighing, density weighing, and dynamic weighing and 15 international weighing units including one custom unit
Backlit Display: Enables optimal viewing of results in various lighting conditions
Other Standard Features and Equipment
Fixed integral weigh below hook, user selectable span calibration points, software rest menu, stability
indicator, auto tare, user selectable communication setting, user selectable printing options, up-front level
indicator, menu and calibration locks, mechanical and software overload/underload protection, integral
weigh below hook, security bracket, stainless steel platform, backlit LCD
Model with Internal Calibration
PX85 30475733
PX225D 30475734
PX84 30429837
PX124 30429838
PX224 30430053
PX163 30429839
PX323 30429840
PX523 30430054
PX623 30699092
Model with External Calibration
PX84/E 30429845
PX124/E 30429846
PX224/E 30429847
PX163/E 30429848
PX323/E 30429849
PX523/E 30430057
PX623/E 30699093
-
-
Capacity x Resolution
82 g x 0.01 mg
82 g x 0.01 mg 220 g x 0.1 mg
82 g x 0.1 mg
120 g x 0.1 mg
220 g x 0.1 mg
160 g x 1 mg
320 g x 1 mg
520 g x 1 mg
620 g x 1 mg
Stabilization Time (s)
10 s
4 s
2 s
Linearity (+g)
0.0001 g
0.0002 g
0.002 g
Linearity (+g)
0.00003 g
0.00003 g 0.0001 g
0.0001 g
0.001 g
Pan Diameter (in / mm)
3.15 in / 80 mm
3.54 in / 90 mm
4.72 in / 120 mm
Draft Shield
YES
YES
YES
YES
YES
YES
YES
YES
YES
Warranty
2 Years
Interface
RS232, USB
Units
Milligram, Gram, Kilogram, Ounce, Pound, Carat, Pennyweight, Ounce Troy, Grain, Newton, Hong Kong Tael,Singapore Tael, Taiwan Tael, Momme, Tical (MM), Mesghal, Tola (India), 1 custom unit

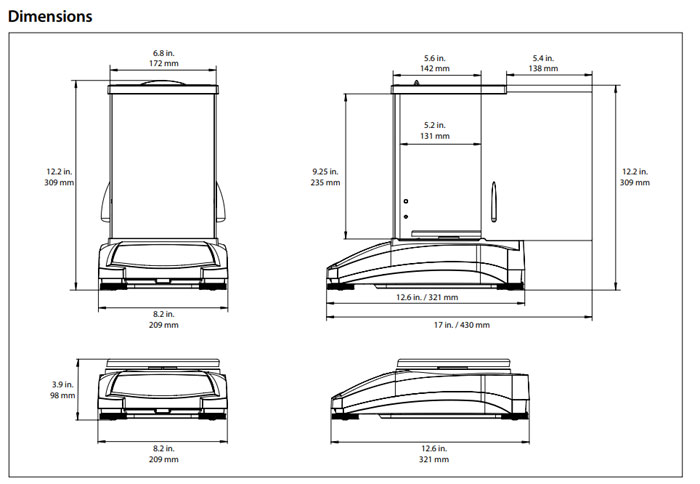

Product Length x Width x Height
12.6 x 8.2 x 13.3 in
12.6 x 8.2 x 13.3 in
Shipping weight (lbs)
15.4 lb
15.4 lb
Power
Input Voltage (VAC) 100-240 V Frequency: 50-60 Hz
Model with Internal Calibration
PX1602 30430055
PX2202 30429841
PX3202 30429842
PX4202 30429843
PX6202 30699094
PX2201 30430056
PX4201 30429844
PX12001 30868075
Model with External Calibration
PX1602/E 30430058
PX2202/E 30429850
PX3202/E 30429851
PX4202/E 30429852
PX6202/E 30699095
PX2201/E 30430059
PX4201/E 30429853
PX12001/E 30868076
Capacity x Resolution
1600 x 0.01 g
2200 x 0.01 g
3200 x 0.01 g
4200 x 0.01 g
6200 x 0.01 g
2200 x 0.1 g
4200 x 0.1 g
12000 x 0.1 g
Stabilization Time (s)
1 s
Linearity (+g)
0.02 g
0.2 g
Linearity (+g)
0.01 g
0.1 g
Pan Diameter (in / mm)
7.09 in / 180 mm
7.6 x 9.8 in
Draft Shield
-
-
-
-
-
-
-
-
Warranty
2 Years
Interface
RS232, USB
Units
Milligram, Gram, Kilogram, Ounce, Pound, Carat, Pennyweight, Ounce Troy, Grain, Newton, Hong Kong Tael,Singapore Tael, Taiwan Tael, Momme, Tical (MM), Mesghal, Tola (India), 1 custom unit
