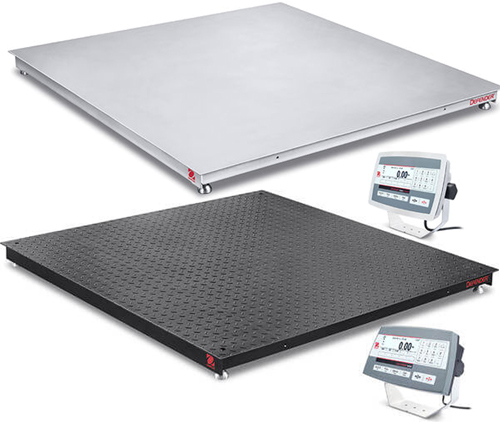

Ohaus Defender 5000 I-DF52 Standard Industrial Floor Scales	Authorized Dealer
Defender 5000 Series Floor Scales meet advanced weighing needs in industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. The indicator features software for Counting, Checkweighing, Accumulation, Display Hold and other modes. Stainless steel bases include IP68 loadcells for wet areas. Ramps and mounting plates are available.
Industrial Scales >> Ohaus Scales > Floor Scales

Have Questions? or email Us Our Staff will be glad to help Legal For Trade Specifications Chart Stainless Steel Specifications Chart Defender 5000 Series Floor Scales meet advanced weighing needs in industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. The indicator features software for Counting, Checkweighing, Accumulation, Display Hold and other modes. Stainless steel bases include IP68 loadcells for wet areas. Ramps and mounting plates are available. Unique Features Powder coated carbon steel, treaded or 304 stainless steel, flat surface decks with four alloy steel load cells, fixed top plate (5 mm / 0.196 in. thick) with structural bracing for stiff construction. Platforms available from in sizes of 3 x 3 ft and 4 x 4 ft, and capacities from 2,500 lb to 5,000 lb with up to NTEP certified 5,000e performance, allowing greater flexibility for your weighing needs. Equipped with new TD52 series indicator featuring an easy-to-use keypad, large backlit display, and plain text on-screen prompts which guide you through operation. Four alloy steel shear beam load cells with top-adjustable height swiveling ball-incup design feet to ease installation. Stainless steel bases feature washdown IP68 loadcells for wet area use. Other Standard Features and Equipment - Eyebolts (included), side-access IP65 or IP68 stainless steel junction box and sealed loadcells, protected internal wiring (included). Line cord and internal switching power supply (included - can also be run on optional battery power). Indicator features up to 50,000 items in library memory, can administrate up to 1,000 users and supports Zebra barcode label printing. Additional data connections, ramps, loadcell cable extenders, foot plates and indicator stands (available as options) Compliance Metrology: Indicator: NTEP: CC 18-065 Class lll; Load Cell: NTEP: CC 13-081, Platform: NTEP: CC 08-048A2 Product Safety: UL61010-1; CAN/CSA C22.2 61010-1; IEC/EN 61010-1 Electromagnetic Compatibility: FCC Part 15 Class A; Canada ICES-003 Class A; IEC/EN 61326-1 Class B, basic environments Ingress Protection: IEC 60529 – IP68 for TD52XW indicator, IEC 60529 – IP68 for SLB215 load cells and junction box used in stainless steel floor scale, IEC 60529 – IP65 for junction box used in painted steel floor scale Other: WEEE, RoHS Check Weighing Display Hold Dynamic Weighing Filling Gross / Net / Tare Parts Counting Weighing Percent Weighing Accumulation Totalization Audible Alerts Auto Shut Off Backlight Environmental Filters GLP Data Output GMP/GLP Level Indicator Leveling Feet Low Battery Indicator Multi-Language Overload Protection Overload/Underload Indicators Rechargeable Battery Software Lockout Option Stability Indicator Time/Date NTEP Certifed DEFENDER™ 5000 FLOOR SCALES-I-DF52 Painted Model Floor Scales for Standard Industrial Applications Display Backlit Liquid Crystal Display (LCD), 256 x 80 pixels Communication Easy access communication ports including RS232 and Micro SD slot (included); second RS232/ RS485/USD device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock Construction ABS plastic (DF52P models) or 304 stainless steel (DF52XW models) indicator, 5mm / 0.196in. fixed top plate, black treaded painted steel platform, IP65 stainless steel junction box with side access, alloy steel load cells, two carbon steel eye bolts, available painted steel ramps Design Features Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories) Operation Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory) Painted carbon steel, treaded decks with four alloy steel load cells, fixed top plate (5 mm / 0.196 in. thick) with structural bracing for stiff construction. Platforms available in sizes of 3 x 3 or 4 x 4 ft, and capacities from 2,500lb to 5,000lb with NTEP certified 5,000e performance, allowing greater flexibility for your weighing needs. Equipped with new TD52 series indicator featuring an easy-to-use keypad, large backlit display, and plain text on-screen prompts which guide you through operation. DEFENDER™ 5000 FLOOR SCALES-I-DF52 Stainless Steel Model Floor Scales for Standard Industrial Applications Display Backlit Liquid Crystal Display (LCD), 256 x 80 pixels Communication Easy access communication ports including RS232 and Micro SD slot (included); second RS232/RS485/USD device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock Construction 304-grade stainless steel IP68 indicator, 5mm / 0.196in. fixed top plate, stainless steel platform, IP68 stainless steel junction box with side access, IP68 load cells, available stainless steel ramps Design Features Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories) Operation Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory) 304 stainless steel, flat surface decks with 4 IP68 load cells, fixed top plate (5 mm / 0.196 in. thick) with structural bracing for stiff construction. Platforms available in sizes of 3 x 3 or 4 x 4 ft, and capacities from 2,500lb to 5,000lb with NTEP certified 5,000e performance, allowing greater flexibility for your weighing needs. Equipped with new TD52 series indicator featuring an easy-to-use keypad, large backlit display, and plain text on-screen prompts which guide you through operation.

Ohaus Defender 5000 I-DF52 Standard Industrial Floor Scales Select Select Plastic Indicator i-DF52P2500B1R 3 x 3 - 2500 x 0.5 lb $2,047.50 i-DF52P2500B1L 4 x 4 - 2500 x 0.5 lb $2,272.50 i-DF52P5000B1L 4 x 4 - 5000 x 1 lb $2,272.50 Stainless Steel Indicator i-DF52XW2500B1R 3 x 3 - 2500 x 0.5 lb $2,205.00 i-DF52XW2500B1L 4 x 4 - 2500 x 0.5 lb $2,430.00 i-DF52XW5000B1L 4 x 4 - 5000 x 1 lb $2,430.00 Stainless Steel IP66 Scale i-DF52XW2500C1R 3 x 3 - 2500 x 0.5 lb $4,608.00 i-DF52XW2500C1L 4 x 4 - 2500 x 0.5 lb $5,112.00 i-DF52XW5000C1L 4 x 4 - 5000 x 1 lb $5,112.00 Ohaus 30812889 36 inch Ramp CS Painted Steel for i-DFxxxB1R, add $414.90 Ohaus 80252565 Floor Ramp 4 ft Wide, add $676.80 Ohaus 80252566 Floor Ramp 5 ft Wide, add $769.50 Ohaus 30812890 36 inch Ramp Stainless Steel for i-DFxxxC1R, add $889.20 Ohaus 30812891 48 inch Ramp Stainless Steel for i-DFxxxC1L, add $861.30 Ohaus 30812892 60 inch Ramp Stainless Steel for i-DFxxxC1X, add $1,000.45 Ohaus 30424405 Battery Kit, Li-ion, TD52, add $236.70 Ohaus 30424406 USB Host for WiFi/BT Dongle, TD52, add $166.50 Ohaus 30412537 WiFi/BT Dongle, OHAUS (Requires 30424406), add $272.70 Ohaus 30097591 Discrete I/O Kit, 2In/4Out, R71, add $183.60 Ohaus 30424021 Light Tower, R-Y-G, IP65, 24VDC (requires 30097591), add $228.60 Ohaus 30424403 Analog Output Kit, TD52, add $198.00 Ohaus 30424404 2nd RS232/RS485/USB, TD523, add $198.00 Ohaus 30572923 USB host interface for flash drive, add $159.30 Ohaus 30429666 Ethernet Kit, D522, add $198.00 Ohaus 30424022 TD52P In-use Cover - 1 Count, add $26.10 Ohaus 30424023 TD52XW In-use Cover - 1 Count, add $33.30 Ohaus 30531244 Floor Scale Column Kit Painted 990mm/39in, add $235.80 Ohaus 30539553 Floor Scale Column Kit Stainless Steel 990mm/39in, add $299.70 Ohaus 30424025 Printer Holder Kit, D52, add $74.70 Ohaus STP-103 Palm-Sized Thermal Printer, add $854.25 Ohaus 80500525 RS-232 Cable PC 9 Pin, add $228.60 Ohaus 80500552 RS232 Cable, PC 9 Pin To Defender 5000 & 7000 with T71XW, T51XW, add $213.30 Ohaus 30611855 Printer Zebra Label GK420T, add $857.70 Ohaus 30593703 Datalogic Barcode Scanner QD2131, add $225.90 Ohaus 72198344 Foot plate kit SST VE/DF-C1 Painted Steel for i-DFxxxB1x, add $69.30 More info

Other Standard Features and Equipment
Eyebolts (included), side-access IP65 or IP68 stainless steel junction box and sealed loadcells, protected internal wiring (included). Line cord and internal switching power supply (included - can also be run on battery power). Indicator supports simple Zebra barcode label printing via included RS232 port. Second data connection, ramps, loadcell cable extenders, foot plates and indicator stands (available as options)

• Metrology: Indicator: NTEP: CC 21-070 Class lll; Load Cell: NTEP: CC 13-081 Platform: NTEP: CC 08-048A2
• Product Safety: UL61010-1; CAN/CSA C22.2 61010-1; IEC/EN 61010-1
• Electromagnetic Compatibility: FCC Part 15 Class A; Canada ICES-003 Class A; IEC/EN 61326-1 Class B, basic environments
• Ingress Protection: IEC 60529 – IP66 for i-DT33XW indicator, IEC 60529 – IP54 for i-DT33P indicator with optional dust cover), IEC 60529 – IP68 for load cells and junction box used in stainless steel floor scale, IEC 60529 – IP65 for junction box used in painted steel floor scale.
• Other: WEEE, RoHS

Model with with Plastic Indicator	i-DF52P2500B1R 30837696	i-DF52P2500B1L 30837698	i-DF52P5000B1L 30837699
Price	$2,047.50 Add to Cart	$2,272.50 Add to Cart	$2,272.50 Add to Cart
Power	100-240 VAC / 50/60 Hz Universal Power Supply, Rechargeable Lithium battery (optional 10-hour operation on full charge)
Indicator	ABS plastic indicator (TD52P)
Model with with Stainless Steel Indicator	i-DF52XW2500B1R 30837706	i-DF52XW2500B1L 30837707	i-DF52XW5000B1L 30837708
Price	$2,205.00 Add to Cart	$2,430.00 Add to Cart	$2,430.00 Add to Cart
Power	100-240 VAC / 50/60 Hz Universal Power Supply, Rechargeable Lithium battery (Optional, 10-hour operation on full charge)
Indicator	304 stainless steel indicator (i-DT33XW)
Capacity x Redability	2500 lb x 0.5 lb	2500 lb x 0.5 lb	5000 lb x 1 lb
	1250 kg x 0.2 kg	1250 kg x 0.2 kg	2500 kg x 0.5 kg
Legal For Trade	Indicator: NTEP: CC 18-065 Class lll; Load Cell: NTEP: CC 13-081, Platform: NTEP: CC 08-048A2
NTEP Certified Resolution	1:5,000
Maximum Displayed Resolution	1:5,000
Platform Size	3 ft x 3 ft	4 ft x 4 ft	4 ft x 4 ft
Platform Material	Powder coated carbon steel, raised treaded surface, fixed top plate 5mm / 0.196 in thick
Display	Dot matrix LCD with white LED backlight, 256 x 80 pixels
Keyboard	6 function, 5 soft keys, 12 alpha numeric membrane switches
Load Cell Model	4 x alloy steel, shear beam, NTEP Class III M
Load Cell Capacity Emax	550 kg	550 kg	1100 kg
Load Cell Output Impedance	350 ohm + 3.5 ohm
Load Cell Excitation Voltage	5V ~ 15V, DC/AC
Junction Box	IP65, 304 stainless steel, with 20’ EasyConnect cable
Net Weight	225 lb / 102 kg	269 lb / 122 kg	269 lb / 122 kg
Approx. Shipping Weight	258 lb / 117 kg	302 lb / 137 kg	302 lb / 137 kg
Platform Size (A x B x min H)	3 ft x 3 ft x 3.5 in	4 ft x 4 ft x 3.5 in	4 ft x 4 ft x 3.5 in
Shipping Dimension (W x L x H)	4.2 x 4.2 x 0.9 ft 129 x 129 x 27 cm
Weighing Units	lb, kg, metric tonnes, short ton, custom unit
Application Modes	Weighing, Percent Weighing, Piece Counting with Optimized APW, Checkweighing/Checkcounting, Filling, Dynamic Weighing/Display Hold
Displays	Dot matrix LCD with white LED backlight, 256 x 80 pixels
Interface	Standard RS232, Optional Ethernet, WiFi/Bluetooth, RS232/RS485/USB Device, USB Host, Analog Output, 2 In/4 Out Discrete I/O
Maximum Central Load	160% of maximum capacity
Safe Endload Capacity	100% of maximum capacity
Operating Temperature	14oF – 104oF / -10oC – 40oC, 85%RH, non-condensing
Feet	4 x self-swiveling ball-in-cup design with rubber bottom, adjustable height top leve
Accessories	Ramps, Mounting Foot Plates, Floor Columns

DEFENDER™ 5000 WASHDOWN FLOOR SCALES-I-DF33

• Display Backlit Liquid Crystal Display (LCD), 256 x 80 pixels
• Communication Easy access communication ports including RS232 and Micro SD slot (included); second RS232/RS485/USD device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock
• Construction 304-grade stainless steel IP68 indicator, 5mm / 0.196in. fixed top plate, stainless steel platform, IP68 stainless steel junction box with side access, IP68 load cells, available stainless steel ramps
• Design Features Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories)
• OperationInternal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)


304 stainless steel, flat surface decks with 4 IP68 load cells, fixed top plate (5 mm / 0.196 in. thick) with structural bracing for stiff construction.

Platforms available in sizes of 3 x 3 or 4 x 4 ft, and capacities from 2,500lb to 5,000lb with NTEP certified 5,000e performance, allowing greater flexibility for your weighing needs.

Equipped with new TD52 series indicator featuring an easy-to-use keypad, large backlit display, and plain text on-screen prompts which guide you through operation.

Model with with Stainless Steel Indicator	i-DF52XW2500C1R 30837697	i-DF52XW2500C1L 30837700	i-DF52XW5000C1L 30837701
Price	$4,608.00 Add to Cart	$5,112.00 Add to Cart	$5,112.00 Add to Cart
Power	100-240 VAC / 50/60 Hz Universal Power Supply, Rechargeable Lithium battery (Optional, 10-hour operation on full charge)
Indicator	IP68 stainless steel indicator (TD52XW)
Capacity x Redability	2500 lb x 0.5 lb	2500 lb x 0.5 lb	5000 lb x 1 lb
	1250 kg x 0.2 kg	1250 kg x 0.2 kg	2500 kg x 0.5 kg
Legal For Trade	Indicator: NTEP: CC 18-065 Class lll; Load Cell: NTEP: CC 13-081, Platform: NTEP: CC 08-048A2
NTEP Certified Resolution	1:5,000
Platform Size	3 ft x 3 ft	4 ft x 4 ft	4 ft x 4 ft
Platform Material	Stainless steel, sand-blasted flat surface, fixed top plate 5mm / 0.196 in thick
Display	Dot matrix LCD with white LED backlight, 256 x 80 pixels
Keyboard	6 function, 5 soft keys, 12 alpha numeric membrane switches
Load Cell Model	4 x IP68 alloy steel, shear beam, NTEP Class III M
Load Cell Capacity Emax	550 kg	550 kg	1100 kg
Load Cell Output Impedance	350 ohm + 3.5 ohm
Load Cell Excitation Voltage	5V ~ 15V, DC/AC
Junction Box	IP68, 304 stainless steel, with 20’ EasyConnect cable
Net Weight	216 lb / 98 kg	260 lb / 118 kg	260 lb / 118 kg
Approx. Shipping Weight	247 lb / 112 kg	291 lb / 132 kg	291 lb / 132 kg
Platform Size (A x B x min H)	3 ft x 3 ft x 3.5 in	4 ft x 4 ft x 3.5 in	4 ft x 4 ft x 3.5 in
Shipping Dimension (W x L x H)	4.2 x 4.2 x 0.9 ft 129 x 129 x 27 cm
Weighing Units	lb, kg, metric tonnes, short ton, custom unit
Application Modes	Weighing, Percent Weighing, Piece Counting with Optimized APW, Checkweighing/Checkcounting, Filling, Dynamic Weighing/Display Hold
Displays	Dot matrix LCD with white LED backlight, 256 x 80 pixels
Interface	Standard RS232, Optional Ethernet, WiFi/Bluetooth, RS232/RS485/USB Device, USB Host, Analog Output, 2 In/4 Out Discrete I/O
Maximum Central Load	160% of maximum capacity
Safe Endload Capacity	100% of maximum capacity
Operating Temperature	14oF – 104oF / -10oC – 40oC, 85%RH, non-condensing
Feet	4 x self-swiveling ball-in-cup design with rubber bottom, adjustable height top leve
Accessories	Ramps, Mounting Foot Plates, Floor Columns

• Foot Plate Kit Painted Steel for i-DFxxxB1x . . . . . . . . . . . . . . . 72198344
• Foot Plate Kit Stainless Steel for i-DFxxxC1x . . . . . . . . . . . . . . 72198345

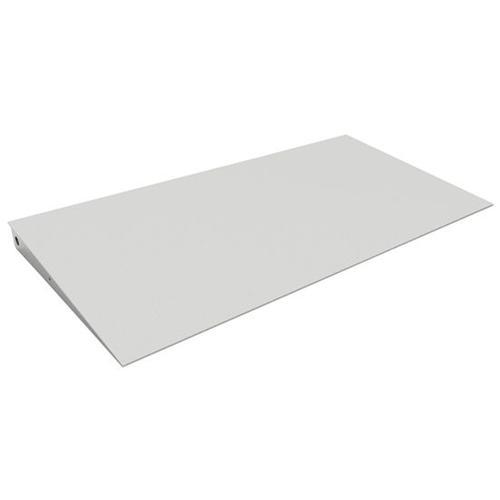

• Ramp Kit 36” Painted Steel for i-DFxxxB1R . . . . . . . . . . . . . . . 30812889
• Ramp Kit 48” Painted Steel for i-DFxxxB1L . . . . . . . . . . . . . . . 80252565
• Ramp Kit 36” Stainless Steel for i-DFxxxC1R . . . . . . . . . . . . . . 30812890
• Ramp Kit 48” Stainless Steel for i-DFxxxC1L. . . . . . . . . . . . . . . 30812891
• Battery Kit, Li-ion, TD52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30424405
• USB Host for Dongle, TD52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30424406

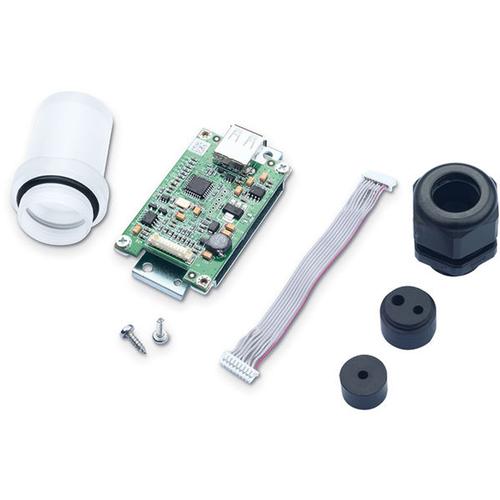

• WiFi/BT Dongle, OHAUS (Requires 30424406) . . . . . . . . . . . . 30412537
• I/O with Relay (2 In/4 Out) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30097591
• Light Tower, 3 Colors, 243mm, IP65 (Requires 30097591) . . 30424021
• Analog Output Kit, TD52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30424403
• Second RS232/RS485/USB Kit, TD52 . . . . . . . . . . . . . . . . . . . . . 30424404
• Ethernet Kit, TD52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30429666
• USB Host for Flash Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30572923
• In-use Cover Kit, TD52P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30424022
• In-use Cover Kit, TD52XW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30424023
• Floor Scale Column Kit Painted . . . . . . . . . . . . . . . . . . . . . . . . . 30531244
• Floor Scale Column Kit SST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30539553

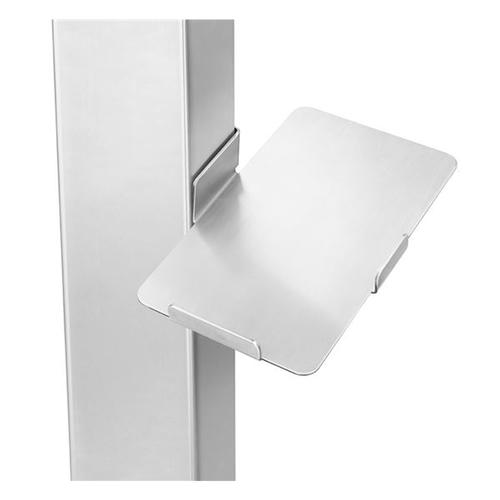

• Printer Holder Kit, D52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30424025
• Thermal Printer STP-103 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80251992
• SF40A Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30064203
• Cable RS232 TD52P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80500525
• Cable RS232 TD52XW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80500552
• Auxiliary display AD7-RS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30472064
• Printer Zebra Label GK420T . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30611855

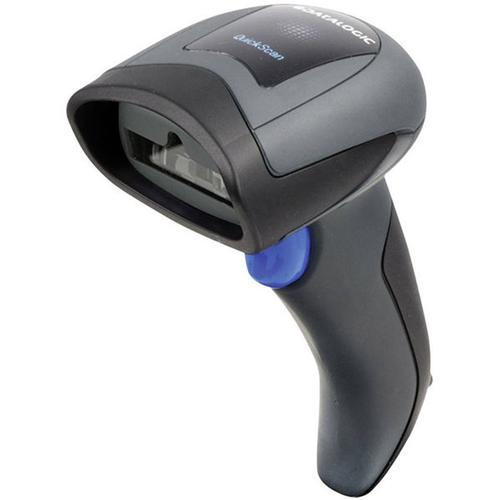

• Datalogic Barcode Scanner QD2131 . . . . . . . . . . . . . . . . . . . . . 30593703
• Ethernet Kit, TD52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30429666
• USB Host for Flash Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30572923
• In-use Cover Kit, TD52P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30424022
• In-use Cover Kit, TD52XW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30424023
• Floor Scale Column Kit Painted . . . . . . . . . . . . . . . . . . . . . . . . . 30531244
• Floor Scale Column Kit SST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30539553
• Printer Holder Kit, D52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30424025
• Thermal Printer STP-103 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80251992
• SF40A Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30064203
• Cable RS232 TD52P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80500525
• Cable RS232 TD52XW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80500552
• Auxiliary display AD7-RS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30472064
• Printer Zebra Label GK420T . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30611855
• Datalogic Barcode Scanner QD2131 . . . . . . . . . . . . . . . . . . . . . 30593703
