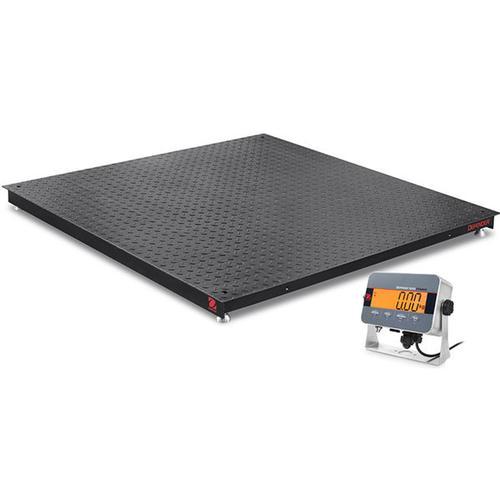

Ohaus Defender 3000 I-DF33 Basic Industrial Floor Scales	Authorized Dealer

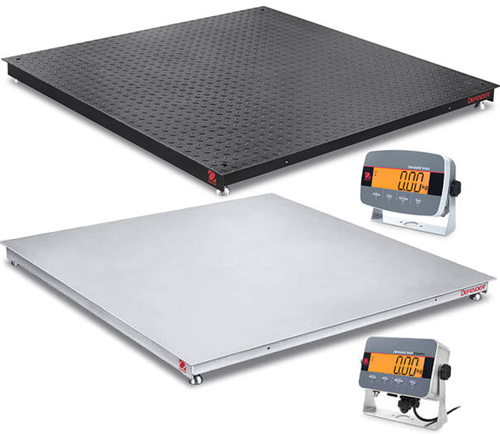

Defender 3000 Floor Platforms meet dry or washdown weighing needs in industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. The indicator features a bright display that can change color when in check mode.
Industrial Scales >> Ohaus Scales > Floor Scales

Have Questions? or email Us Our Staff will be glad to help Legal For Trade Specifications Chart Stainless Steel Specifications Chart Defender 3000 Floor Platforms meet dry or washdown weighing needs in industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. The indicator features a bright display that can change color when in check mode. Scale also includes counting and totalization modes. Stainless steel bases include IP68 loadcells for wet areas. Ramps and mounting plates are available Floor Scales for Basic Industrial Applications Display - 7 Segment LCD with multicolor backlight Communication - Standard RS232 and optional USB Device or Ethernet Construction - ABS plastic (DF33P models) or 304 stainless steel (DF33XW models) indicator, 5mm / 0.196in. fixed top plate, black treaded painted steel platform, IP65 stainless steel junction box with side access, alloy steel load cells, two carbon steel eye bolts, available painted steel ramps Design Features - Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories) Operation - Internal power supply with power cord (included), 6C (LR14) Batteries (DF33P models — not included) or Rechargeable Battery (DF33XW models — included) Unique Features Painted carbon steel, treaded decks with four alloy steel load cells, fixed top plate (5 mm / 0.196 in. thick) with structural bracing for stiff construction. Platforms available from in sizes of 3x3 feet, 4x4 feet and 5x5 feet, and capacities from 2,500lb to 5,000lb with NTEP certified 5,000e performance, allowing greater flexibility for your weighing needs Results are clearly shown on the large, bright backlit LCD display. In Checkweighing mode, display changes color (yellow/green/red) to alert users when within the target weight range Four alloy steel shear beam load cells with top-adjustable height swiveling ball-incup design feet to ease installation. Stainless steel bases feature washdown IP68 loadcells for wet area use. Structural Features Design features welded steel ribs and channels for structural stiffness Top access to foot height adjustment screws makes leveling easy Carbon steel eyebolts included for easy installation Stainless steel feet with rubber bottoms are attached to each load cell – ball-in-cup design makes feet self-swiveling and base easier to install Check Weighing Gross / Net / Tare Parts Counting Weighing Totalization Auto Shut Off Backlight Battery Power Models Environmental Filters LED Check Weighing Indicator Level Indicator Leveling Feet Low Battery Indicator Overload Protection Overload/ Underload Indicators Rechargeable Battery (XW Models) Software Lockout Stability Indicator NTEP Certifed

Ohaus Defender 3000 I-DF33 Basic Industrial Floor Scales Select Select Plastic Indicator i-DF33P2500B1R 3 x 3 - 2500 x 0.5 lb $1,147.00 i-DF33P2500B1L 4 x 4 - 2500 x 0.5 lb $1,323.00 i-DF33P5000B1L 4 x 4 - 5000 x 1 lb $1,323.00 i-DF33P5000B1X 5 x 5 - 5000 x 1 lb $1,449.00 Stainless Steel Indicator i-DF33XW2500B1R 3 x 3 - 2500 x 0.5 lb $1,209.00 i-DF33XW2500B1L 4 x 4 - 2500 x 0.5 lb $1,386.00 i-DF33XW5000B1L 4 x 4 - 5000 x 1 lb $1,386.00 i-DF33XW5000B1X 5 x 5 - 5000 x 1 lb $1,512.00 Stainless Steel IP66 Scale i-DF33XW2500C1R 3 x 3 - 2500 x 0.5 lb $2,623.95 i-DF33XW2500C1L 4 x 4 - 2500 x 0.5 lb $2,976.75 i-DF33XW5000C1L 4 x 4 - 5000 x 1 lb $2,976.75 Ohaus 72198344 Foot plate kit SST VE/DF-C1 Painted Steel for i-DFxxxB1x, add $69.30 Ohaus 30812889 36 inch Ramp CS Painted Steel for i-DFxxxB1R, add $414.90 Ohaus 80252565 Floor Ramp 4 ft Wide, add $676.80 Ohaus 80252566 Floor Ramp 5 ft Wide, add $769.50 Ohaus 30531244 Floor Scale Column Kit Painted 990mm/39in, add $235.80 Ohaus 30539553 Floor Scale Column Kit Stainless Steel 990mm/39in, add $299.70 Ohaus 30429666 Ethernet Kit, D522, add $198.00 Ohaus 30699120 USB Device Interface Kit, add $110.70 Ohaus 30699121 Dust Cover Set(5) for i-DT33, add $55.80 Ohaus 30699122 USB Device Interface Kit Rechargeable battery Kit for i-DT33P , add $55.80 Ohaus SF40A Portable Dot-Matrix Impact Printer, add $1,107.55 Ohaus STP-103 Palm-Sized Thermal Printer, add $854.25 Ohaus 80500525 RS-232 Cable PC 9 Pin, add $228.60 More info

Other Standard Features and Equipment
Eyebolts (included), side-access IP65 or IP68 stainless steel junction box and sealed loadcells, protected internal wiring (included). Line cord and internal switching power supply (included - can also be run on battery power). Indicator supports simple Zebra barcode label printing via included RS232 port. Second data connection, ramps, loadcell cable extenders, foot plates and indicator stands (available as options)

• Metrology: Indicator: NTEP: CC 21-070 Class lll; Load Cell: NTEP: CC 13-081 Platform: NTEP: CC 08-048A2
• Product Safety: UL61010-1; CAN/CSA C22.2 61010-1; IEC/EN 61010-1
• Electromagnetic Compatibility: FCC Part 15 Class A; Canada ICES-003 Class A; IEC/EN 61326-1 Class B, basic environments
• Ingress Protection: IEC 60529 – IP66 for i-DT33XW indicator, IEC 60529 – IP54 for i-DT33P indicator with optional dust cover), IEC 60529 – IP68 for load cells and junction box used in stainless steel floor scale, IEC 60529 – IP65 for junction box used in painted steel floor scale.
• Other: WEEE, RoHS

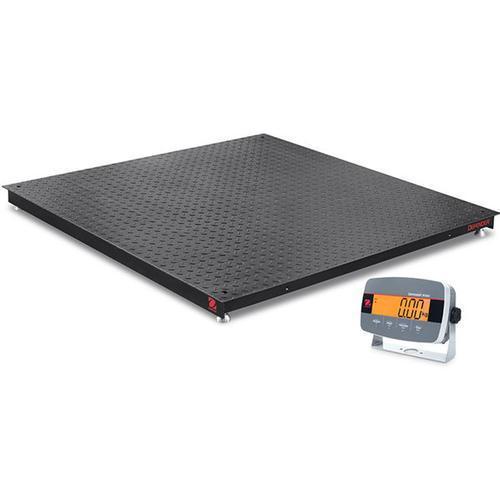

Model with with Plastic Indicator	i-DF33P2500B1R 30837601	i-DF33P2500B1L 30837603	i-DF33P5000B1L 30837604	i-DF33P5000B1X 30837668
Price	$1,147.00 Add to Cart	$1,323.00 Add to Cart	$1,323.00 Add to Cart	$1,449.00 Add to Cart
Power	i-DF33P: 100-240 VAC / 50/60 Hz Universal Power Supply or C cell battery (Not included, 100-hour operation) - Optional rechargeable battery (30-hour operation on full charge)
Indicator	ABS plastic indicator (i-DT33P)
Model with with Stainless Steel Indicator	i-DF33XW2500B1R 30837691	i-DF33XW2500B1L 30837692	i-DF33XW5000B1L 30837693	i-DF33XW5000B1X 30837695
Price	$1,209.00 Add to Cart	$1,386.00 Add to Cart	$1,386.00 Add to Cart	$1,512.00 Add to Cart
Power	i-DF33XW: 100-240 VAC / 50/60 Hz Universal Power Supply, hardwired or standard rechargeable battery (30-hour operation on full charge)
Indicator	304 stainless steel indicator (i-DT33XW)
Capacity x Redability	2500 lb x 0.5 lb	2500 lb x 0.5 lb	5000 lb x 1 lb	5000 lb x 1 lb
	1250 kg x 0.2 kg	1250 kg x 0.2 kg	2500 kg x 0.5 kg	2500 kg x 0.5 kg
Legal For Trade	NTEP: CC 21-070 Class lll; Load Cell: NTEP: CC 13-081 Platform: NTEP: CC 08-048A2
Maximum Displayed Resolution	1:5,000
Platform Size	3 ft x 3 ft	4 ft x 4 ft	4 ft x 4 ft	5 ft x 5 ft
Platform Material	Powder coated carbon steel, raised treaded surface, fixed top plate 5mm / 0.196 in thick
Display	6-digit, 7-segment LCD display with multi-color backlight, 45 mm / 1.8 in high digits
Keyboard	4 membrane function keys
Load Cell Model	4 x alloy steel, shear beam, NTEP Class III M
Load Cell Capacity Emax	550 kg	550 kg	1100 kg	1100 kg
Load Cell Output Impedance	350 ohm + 3.5 ohm
Load Cell Excitation Voltage	1 second
Power	5V ~ 15V, DC/AC
Junction Box	IP65, 304 stainless steel, with 20’ EasyConnect cable
Net Weight	225 lb / 102 kg	269 lb / 122 kg	269 lb / 122 kg	401 lb / 182 kg
Approx. Shipping Weight	258 lb / 117 kg	302 lb / 137 kg	302 lb / 137 kg	434 lb / 197 kg

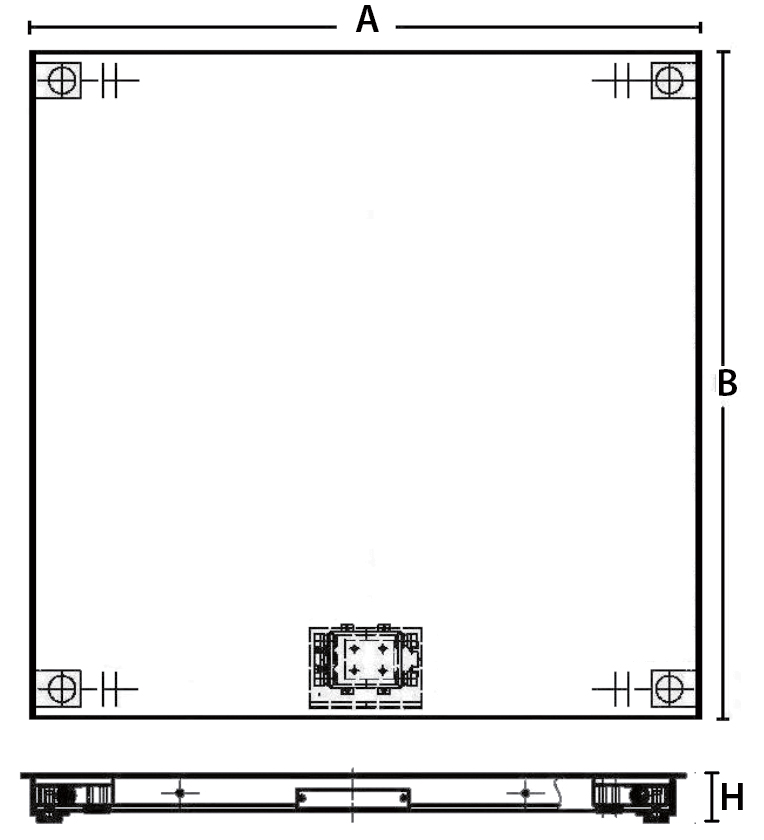

Platform Size (A x B x min H)	3 ft x 3 ft x 3.5 in	4 ft x 4 ft x 3.5 in	4 ft x 4 ft x 3.5 in	5 ft x 5 ft x 3.5 in
Shipping Dimension (W x L x H)	4.2 x 4.2 x 0.9 ft 129 x 129 x 27 cm			5.1 x 5.1 x 0.9 ft 156 x 156 x 27 cm
Weighing Units	kg, lb, toC
Application Modes	Weighing, Parts Counting, Checkweighing and Totalization
Displays	6-digit, 7-segment LCD display with multi-color backlight, 45 mm / 1.8 in high digits
Interface	RS232 included - Optional USB, Ethernet
Maximum Central Load	160% of maximum capacity
Safe Endload Capacity	100% of maximum capacity
Operating Temperature	14oF – 104oF / -10oC – 40oC, 85%RH, non-condensing
Feet	4 x self-swiveling ball-in-cup design with rubber bottom, adjustable height top leve
Accessories	Ramps, Mounting Foot Plates, Floor Columns

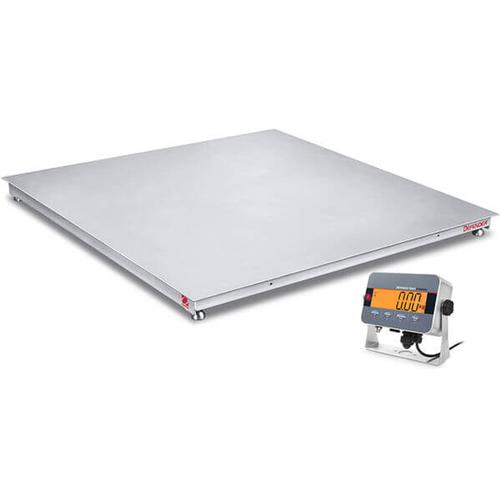

DEFENDER™ 3000 WASHDOWN FLOOR SCALES-I-DF33

• Display 7 Segment LCD with multicolor backlight
• Communication Standard RS232 and optional USB Device or Ethernet
• Construction 304-grade stainless steel IP66 indicator, 5mm / 0.196in. fixed top plate, stainless steel platform, IP68 stainless steel junction box with side access, IP68 load cells, available stainless steel ramps
• Design Features Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories)
• Operation Internal power supply with power cord (included) or Rechargeable Battery (included)


304 stainless steel, flat surface decks with 4 IP68 load cells, fixed top plate (5 mm / 0.196 in. thick) with structural bracing for stiff construction.

Platforms available in sizes of 3 x 3 or 4 x 4 ft, and capacities from 2,500lb to 5,000lb with NTEP certified 5,000e performance, allowing greater flexibility for your weighing needs.

Results are clearly shown on the large, bright backlit LCD display. In Checkweighing mode, display changes color (yellow/green/red) to alert users when within the target weight range.

IP66 Washdown Model	i-DF33XW2500C1R 30837602	i-DF33XW2500C1L 30837605	i-DF33XW5000C1L 30837606
Price	$2,623.95 Add to Cart	$2,976.75 Add to Cart	$2,976.75 Add to Cart
Capacity x Redability	2500 lb x 0.5 lb	2500 lb x 0.5 lb	5000 lb x 1 lb
	1250 kg x 0.2 kg	1250 kg x 0.2 kg	2500 kg x 0.5 kg
Legal For Trade	NTEP: CC 21-070 Class lll; Load Cell: NTEP: CC 13-081 Platform: NTEP: CC 08-048A2
NTEP Certified Resolution	1:5,000
Platform Size	3 ft x 3 ft	4 ft x 4 ft	4 ft x 4 ft
Power	100-240 VAC / 50/60 Hz Universal Power Supply, hardwired or standard rechargeable battery (30-hour operation on full charge)
Indicator	IP66 stainless steel indicator (i-DT33XW)
Platform Material	Stainless steel, sand-blasted flat surface, fixed top plate 5mm / 0.196 in thick
Display	6-digit, 7-segment LCD display with multi-color backlight, 45 mm / 1.8 in high digits
Keyboard	4 membrane function keys
Load Cell Model	4 x IP68 alloy steel, shear beam, NTEP Class III M
Load Cell Capacity Emax	550 kg	550 kg	1100 kg
Load Cell Output Impedance	350 ohm + 3.5 ohm
Load Cell Excitation Voltage	5V ~ 15V, DC/AC
Junction Box	IP68, 304 stainless steel, with 20’ EasyConnect cable
Net Weight	216 lb / 98 kg	260 lb / 118 kg	260 lb / 118 kg
Approx. Shipping Weight	247 lb / 112 kg	291 lb / 132 kg	291 lb / 132 kg
Platform Size (A x B x min H)	3 ft x 3 ft x 3.5 in	4 ft x 4 ft x 3.5 in	4 ft x 4 ft x 3.5 in
Shipping Dimension (W x L x H)	4.2 x 4.2 x 0.9 ft 129 x 129 x 27 cm
Weighing Units	kg, lb, toC
Application Modes	Weighing, Parts Counting, Checkweighing and Totalization
Displays	6-digit, 7-segment LCD display with multi-color backlight, 45 mm / 1.8 in high digits
Interface	RS232 included - Optional USB, Ethernet
Maximum Central Load	160% of maximum capacity
Safe Endload Capacity	100% of maximum capacity
Operating Temperature	14oF – 104oF / -10oC – 40oC, 85%RH, non-condensing
Feet	4 x self-swiveling ball-in-cup design with rubber bottom, adjustable height top leveling
Accessories	Ramps, Mounting Foot Plates, Floor Columns

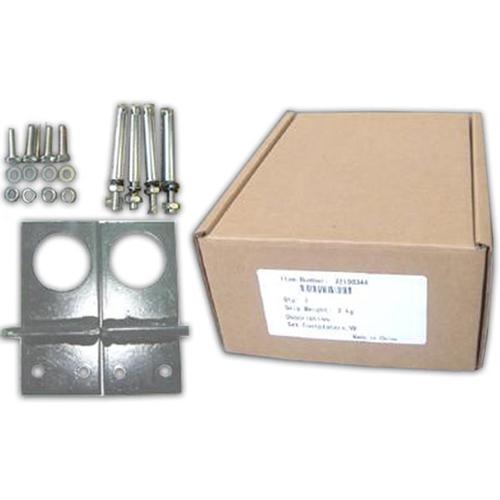

• Foot Plate Kit Painted Steel for i-DFxxxB1x . . . . . 72198344
• Foot Plate Kit Stainless Steel for i-DFxxxC1x . . . . 72198345

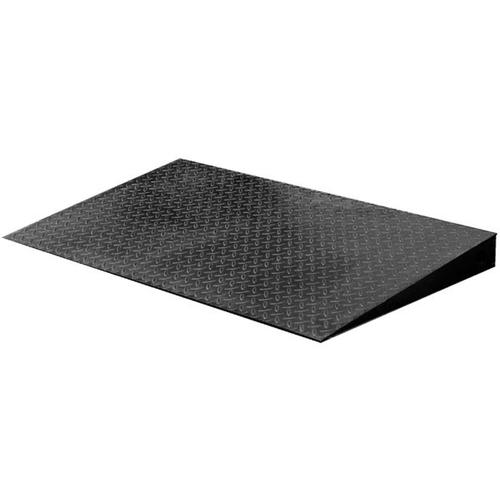

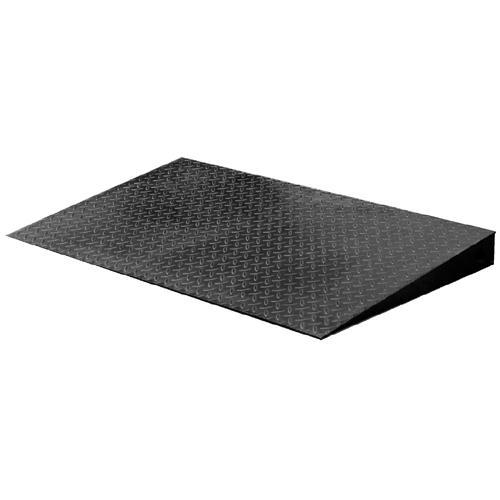

• Ramp Kit 36” Painted Steel for i-DFxxxB1R . . . . . 30812889
• Ramp Kit 48” Painted Steel for i-DFxxxB1L . . . . . 80252565
• Ramp Kit 60” Painted Steel for i-DFxxxB1X . . . . . 80252566
• Ramp Kit 36” Stainless Steel for i-DFxxxC1R . . . . 30812890
• Ramp Kit 48” Stainless Steel for i-DFxxxC1L . . . . 30812891
• Ramp Kit 60” Stainless Steel for i-DFxxxC1X . . . . 30812892
• Ethernet Kit i-DT33 . . . . . . . . . . . . . . . . . . . . . . . . . . 30429666
• USB Device Kit i-DT33 . . . . . . . . . . . . . . . . . . . . . . . . 30699120
• Dust Cover (5) i-DT33 . . . . . . . . . . . . . . . . . . . . . . . . 30699121
• Rechargeable Battery Kit i-DT33P . . . . . . . . . . . . . 30699122
• SF40A Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30064203
• Cable RS232 i-DT33P . . . . . . . . . . . . . . . . . . . . . . . . . 80500525
• Cable RS232 i-DT33XW . . . . . . . . . . . . . . . . . . . . . . . 80500552

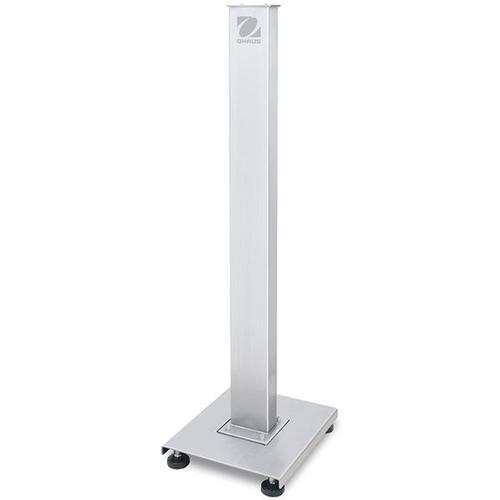

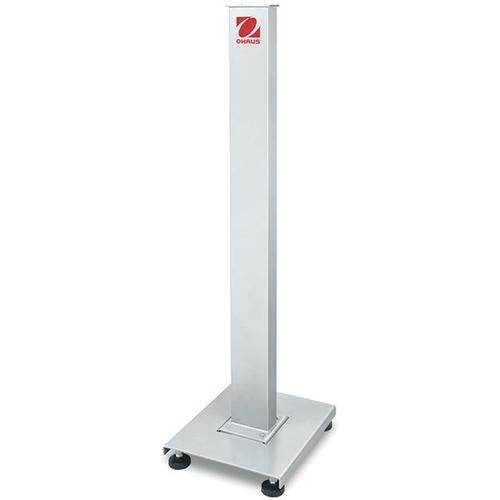

• Floor Scale Column Kit Painted . . . . . . . . . . . . . . . 30531244
• Floor Scale Column Kit SST . . . . . . . . . . . . . . . . . . . 30539553

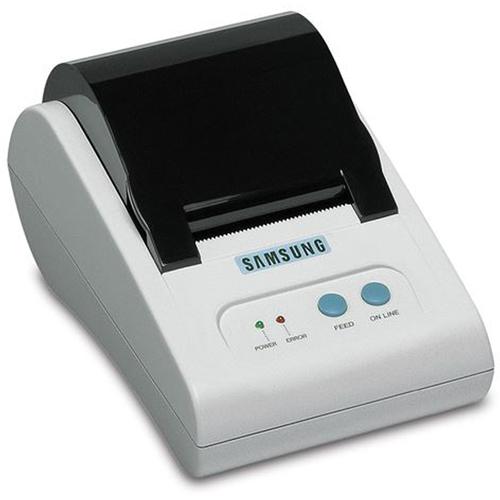

• Thermal Printer STP-103 . . . . . . . . . . . . . . . . . . . . . 80251992
• Auxiliary display AD7-RS . . . . . . . . . . . . . . . . . . . . . 30472064
