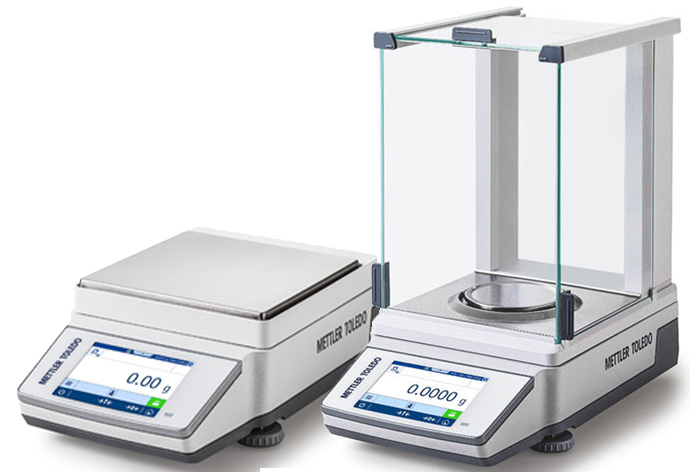

MR Analytical Balances
These reliable balances deliver consistently accurate results even in the toughest weighing environments. Built-in applications and multiple connectivity options make these durable balances highly versatile whether you’re in the lab or out on the factory floor.
The full metal housing and durable components are tested in the harshest environments to ensure protection against dirt and chemicals. The overload protection safeguards the weighing cell against excess loads and accidental drops on the weighing pan.
Designed for Convenience - Advanced technologies, including automatic adjustment and guided leveling, simplify daily weighing. Solidly built with smooth surfaces and rounded edges, cleaning is easy.
Easy Integration - Multiple interfaces and MT-SICS commands make it simple to connect your MR balance to PLC and MES systems as well as other lab instruments.
User Management - By setting up different user groups and profiles, operators see just the functions and applications they need to carry out their tasks, simplifying processes and reducing errors.
Easy-to-Clean - These balances are built with highquality materials and have been designed to have smooth surfaces and rounded edges that are quick and easy to clean. The QuickLock draft shield removes in one easy step and the drip tray simply slides out. All parts are dishwasher safe.
Features
Performance
- Electromagnetic Force Compensation (EMFC) weighing cell
- FACT automatic internal adjustment
Efficient Operation
- 4.5 inch touchscreen
- 8 built-in applications
- Statistical data analysis
Quality Assurance
- OIML/NTEP approved
- User management
- Leveling assistant
- Configurable sample and task IDs
- Activity log
- Pre-defined routine tests
Data Management
- 4 interfaces: USB-A, USB-C, RS232, Ethernet
- Bluetooth option
- Advanced reporting
- Drop-to-cursor
- MT-SICS
- EasyDirect Balance software
- Drop-to-cursor
- MT-SICS
Sustainable Value
- Full metal housing
- Overload protection
- Power-saving mode
- Easy-to-clean QuickLock draft shield
Accessories
Enhance performance, improve ergonomics, and handle your data efficiently with our wide range of accessories, including EasyDirect Balance data management software, printers, weights, density kit, and Bluetooth adapter.
|
Analytical and Milligram - 0.1 mg - 1 mg Specifications Chart
| Model |
MR104
30666203 |
MR204
30666206 |
MR304
30666209 |
MR203
30666212 |
MR303
30666215 |
MR503
30666218 |
MR603
30666221 |
$4,022.76
|
$4,281.14
|
$4,586.58
|
$2,659.44
|
$2,849.28
|
$3,228.96
|
$3,418.80
|
| 120 g x 0.1 mg |
220 g x 0.1 mg |
320 g x 0.1 mg |
220 x 1 mg |
320 x 1 mg |
520 x 1 mg |
620 x 1 mg |
| Legal for Trade |
MR104/A
30666204 |
MR204/A
30666207 |
MR304/A
30666210 |
MR203/A
30666213 |
MR303/A
30666216 |
MR503/A
30666219 |
MR603/A
30666222 |
$4,231.34
|
$4,537.61
|
$4,843.05
|
$2,919.00
|
$3,108.84
|
$3,488.52
|
$3,679.20
|
| 120 g x 1 mg |
220 g x 1 mg |
320 g x 1 mg |
220 x 0.01 g |
320 x 0.01 g |
520 x 0.01 g |
620 x 0.01 g |
CC#24-011
Class I |
CC#24-011
Class II |
| Repeatability (at 5% load) |
0.1 mg |
0.1 mg |
0.1 mg |
1 mg |
1 mg |
1 mg |
1 mg |
| Weighing Pan Diameter |
90 mm |
120 mm |
| Linearity deviation |
0.2 mg |
0.2 mg |
0.2 mg |
2 mg |
2 mg |
2 mg |
2 mg |
| Sensitivity offset (at nominal load) |
0.5 mg |
0.8 mg |
1 mg |
8 mg |
8 mg |
8 mg |
8 mg |
| Typical values |
| Repeatability (at 5% load) |
0.08 mg |
0.08 mg |
0.08 mg |
0.7 mg |
0.7 mg |
0.7 mg |
0.7 mg |
| Linearity deviation |
0.06 mg |
0.06 mg |
0.06 mg |
0.6 mg |
0.6 mg |
0.6 mg |
0.6 mg |
| Sensitivity offset (at nominal load) |
0.3 mg |
0.5 mg |
0.6 mg |
5 mg |
5 mg |
5 mg |
5 mg |
| Minimum weight (USP, tolerance = 0.10%) |
160 mg |
160 mg |
160 mg |
1.4 g |
1.4 g |
1.4 g |
1.4 g |
| Minimum weight (tolerance = 1%) |
16 mg |
16 mg |
16 mg |
140 mg |
140 mg |
140 mg |
140 mg |
| Settling time |
2 s |
2 s |
2 s |
1.5 s |
1.5 s |
1.5 s |
1.5 s |
| Dimensions and other specifications |
| Data Management |
USB-A, USB-C, RS232, Ethernet, Bluetooth (optional) |
| Adjustment |
Internal (automatic/FACT) |
| Display |
4.5" touchscreen |
| Balance dimensions (W × D × H) |
209 × 351 × 354 mm |
Precision - 0.01 g and 0.1 g Specifications Chart
| Model |
MR1002
30666224 |
MR2002
30666227 |
MR3002
30666230 |
MR4002
30666233 |
MR6002
30666236 |
MR6001
30666239 |
| Price |
$2,677.08
|
$2,932.44
|
$3,059.28
|
$3,186.96
|
$3,505.32
|
$2,629.20
|
| Capacity x Readability |
1200 g x 0.01 g |
2200 g x 0.01 g |
3200 g x 0.01 g |
4200 g x 0.01 g |
6200 g x 0.01 g |
6200 g x 0.1 g |
| Legal for Trade Model |
MR1002/A
30666225 |
MR2002/A
30666228 |
MR3002/A
30666231 |
MR4002/A
30666234 |
MR6002/A
30666237 |
MR6001/A
30666240 |
$2,936.64
|
$3,192.00
|
$3,319.68
|
$3,446.52
|
$3,765.72
|
$2,888.76
|
| 1200 g x 0.1 g |
2200 g x 0.1 g |
3200 g x 0.1 g |
4200 g x 0.1 g |
6200 g x 0.1 g |
6200 g x 1 g |
CC#24-011
Class II |
| Repeatability (at 5% load) |
10 mg |
10 mg |
10 mg |
10 mg |
10 mg |
80 mg |
| Weighing Pan |
180 × 180 mm |
| Linearity deviation |
20 mg |
20 mg |
20 mg |
20 mg |
20 mg |
60 mg |
| Sensitivity offset (at nominal load) |
60 mg |
80 mg |
80 mg |
80 mg |
80 mg |
300 mg |
| Typical values |
| Repeatability (at 5% load) |
7 mg |
7 mg |
7 mg |
7 mg |
7 mg |
50 mg |
| Linearity deviation |
6 mg |
6 mg |
6 mg |
6 mg |
6 mg |
20 mg |
| Sensitivity offset (at nominal load) |
40 mg |
50 mg |
50 mg |
50 mg |
50 mg |
150 mg |
| Minimum weight (USP, tolerance = 0.10%) |
14 g |
14 g |
14 g |
14 g |
14 g |
100 g |
| Minimum weight (tolerance = 1%) |
1.4 g |
1.4 g |
1.4 g |
1.4 g |
1.4 g |
10 g |
| Settling time |
1 s |
1 s |
1 s |
1 s |
1 s |
1 s |
| Dimensions and other specifications |
| Data Management |
USB-A, USB-C, RS232, Ethernet, Bluetooth (optional) |
| Adjustment |
Internal (automatic/FACT) |
| Display |
4.5 inch touchscreen |
| Balance dimensions (W × D × H) |
209 × 351 × 100 mm |
|
