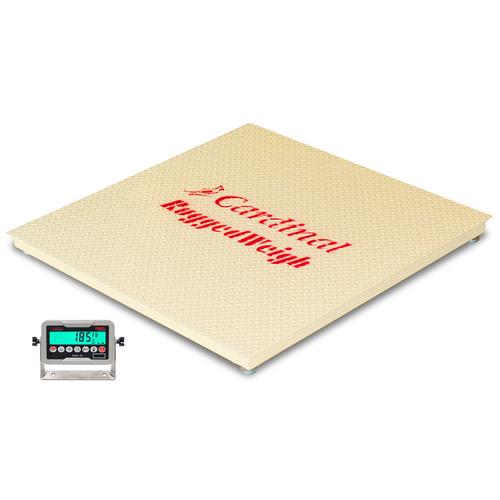

Cardinal Scale’s Echelon EH floor scales provide exceptional performance in light industrial and NTEP legal-for-trade applications for warehouses, logistics operations, processing plants, and shipping/ receiving departments. Ideally suited for pallet, drum, and package weighing, the Echelon’s checkered carbon steel deck tread-plate with powder-coat paint handles rugged industrial weighing use. The EH series features 4-ft-square platforms, 5,000 lb x 1 lb and 10,000 lb x 2 lb capacities, NTEP-approved IP67 waterproof anti-corrosion shear beam load cells, 3/16”-thick checkered steel deck, 2.2-in/5.6-cm diameter rubber feet, and durable structural steel channel.
- 3/16-Inch-Thick Checkered Steel Deck Protection
- 4 x 4 ft Checkered Steel Deck Platform
- 5000 lb x 1 lb or 10000 lb x 2 lb Capacity
- Durable Structural Steel Channel
- High-Quality Economical Floor Scales
- Industrial Tan Powder Paint
- Load Cell Feet Swivel to Find Level Ground
- NTEP Legal for Trade
- NTEP-Approved Alloy Steel Shear Beam Load Cells
- Ramps Available (model EH-501E)
- Rubber Load Cell Footings
- Side-Access Junction Box
| Model |
EH-544 |
EH-1044 |
| Price |
$1,395.00
|
$1,650.00
|
| Capacity |
5,000 x 1 lb |
10,000 x 2 lb |
| Platform Size |
4 ft W x 4 ft D / 122 cm W x 122 cm D |
| Scale Height |
4 in H – 5.5 in H / 10 cm H – 14 cm H
(adjustable height load cell feet) |
| Indicator |
Detecto 180 |
| Scale Construction |
Painted carbon steel structure |
| Platform Surface |
Checkered steel deck |
| Deck Thickness |
3/16” / 5 mm |
| Paint |
Industrial tan powder paint |
| Load Cells |
Four nickel-plated alloy steel IP67 shear beam load cells, NTEP and FM approved |
| Load Cell Cable Length |
15 ft / 4.5 m for connecting to indicator |
| Load Cell Feet |
Four 2.2 in / 5.6 cm diameter nickel-plated alloy steel, height adjustable |
| Junction Box |
Side panel access |
| Certification |
NTEP legal for trade, accuracy class III, certificate of conformance no. 15-085
FM approved load cells |
| Shipping Weight |
240 lb / 110 kg |
| the included Cardinal’s model 180 Specification
|
| Power Requirements: |
12 VDC 1A UL/CSA listed AC power supply |
| Enclosure Construction: |
304 Stainless Steel |
| Enclosure Size: |
7.70 in W x 3.77 in H x 1.28 in D (196mm W x 96mm H x 33mm D) |
| Display: |
Six-digit, seven-segment, 0.56 |
| Standard I/O: |
1 bi-directional RS232 |
| Weight: |
2.1 lb |
| Signal Input Range: |
-0.6 mV/V to +3 mV/V |
| Number of Load Cells: |
Up to 4 each 350 ohm |
| Load Cell Cable Length: |
30 feet maximum |
| Division Value: |
1, 2, 5, 10 or 20 x 1, 0.1, 0.01, 0.001 |
| Sensitivity, Maximum: |
1.28 uV/division displayed |
| Resolution: |
5,000 divisions Approved, 10,000 divisions Non-Approved |
| Sample Rate: |
1 to 16 samples per second, selectable |
| Auto Zero Range: |
0 to 18 by 0.5 divisions |
| Weighing Units: |
Pounds, Kilograms, Ounces |
| Keypad: |
Color coded membrane type, 6 keys |
| Operating Environment: |
Temperature: 14 to 104 ºF (-10 to +40 ºC) / Humidity: 90% non-condensing (maximum) |
| Transducer Excitation: |
8 VDC |
| NTEP Approval: |
06-105 |
| OIML: |
R76/1992-DK1-07.01 |
| Enclosure IP Rating: |
IP40 |
|
