MC-1104AS, MC-6203A |
MC-10203M, MC-32002M |
Have Questions?
Our Staff will be glad to help |
Specifications Chart |
The MC-A and MC-M series mass comparators deliver significantly improved precision and stability over the previous generation, enabling reliable comparison of reference weights in calibration labs—whether in-house or service-based. Despite the performance upgrades, the series remain cost-effective, making high-end mass comparison accessible to a broader range of users.
Smart tools for confident mass comparison
Auto-centering pan to ensure consistent accuracy
One of the challenges in high-precision mass comparison is eccentricity error caused by off-center loading, which can compromise repeatability and overall measurement accuracy. The optional auto-centering pan addresses this by automatically bringing the mass to the center of the balance. Its dome-shaped bottom rests on three ball-tipped supports, allowing smooth movement to correct eccentricity errors. If an automatic loading system is not used, A&D strongly recommends this option for manual loading
Stable weighing through control of external disturbances
Mass comparators, due to their extremely high sensitivity, are more susceptible to various external disturbances. To help the MC-A and MC-M series fully demonstrate their true capabilities, A&D also recommends the following optional accessories
- Remote controller (AD-8922A) - Operate the balance without direct contact, reducing vibration caused by manual handling.
- Tabletop breeze breaks (AD-1676 or AD-1672(A)*1) - Shield the balance from drafts and minor temperature changes caused by air conditioning or operator movement. Made of antistatic panels to minimize static effects.
Extra decimal place for system integration and fine control
The MC-A and MC-M series offer extended resolution not typically available in balances of similar capacity. This extra decimal place enables accurate tracking of small weight changes—even with heavy tare weights common in automated systems for precise dosing, blending, and other demanding processes.
Impact shock detection (ISD) for reliable automation - The ISD function detects impact loads on the weight sensor and displays their intensity in five levels (0–4). High-impact events (Levels 3 and 4) also trigger an audible alert and are logged for review, supporting system adjustments to prevent future errors and sensor damage.
Beyond their primary role as mass comparators
Extra decimal place for system integration and fine control The MC-A and MC-M series offer extended resolution not typically available in balances of similar capacity. This extra decimal place enables accurate tracking of small weight changes—even with heavy tare weights common in automated systems for precise dosing, blending, and other demanding processes.
Impact shock detection (ISD) for reliable automation The ISD function detects impact loads on the weight sensor and displays their intensity in five levels (0–4). High-impact events (Levels 3 and 4) also trigger an audible alert and are logged for review, supporting system adjustments to prevent future errors and sensor damage.
|
|
| Model |
MC-1104A |

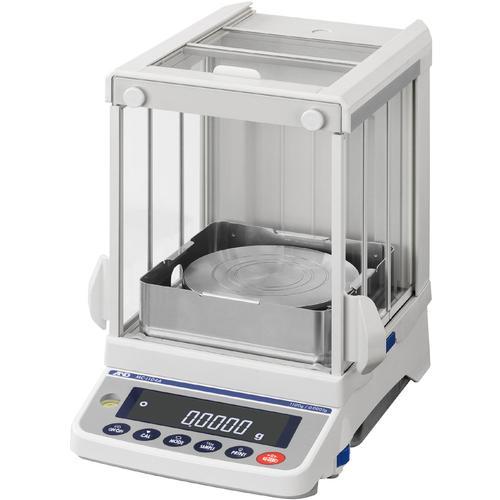

MC-6203A |

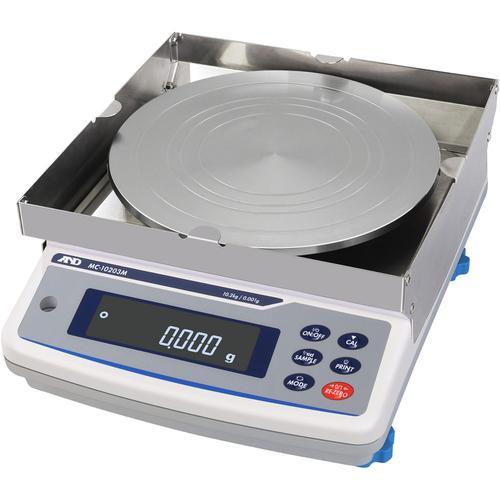

MC-10203M |
MC-32002M |
| Price |
$4,130.18
|
$4,175.00
|
$4,997.50
|
$4,997.50
|
| Capacity x Readability |
1100 x 0.0001 g (0.1 mg) |
6200 x 0.001g (1 mg) |
10.2 kg x 0.001g (1 mg) |
32.2 kg x 0.1 g |
| Repeatability (standard deviation)*i |
0.00035 g |
0.0035 g (over 2000 g)
0.0015 g (up to 2000 g) |
0.05 g (over 20 kg)
0.015 g (up to 20 kg) |
| Linearity*i |
±0.003 g |
±0.03 g |
±0.2 g |
| Linearity*i |
±0.003 g |
±0.03 g |
±0.2 g |
| Sensitivity drift (10 to 30 °C/50 to 86 °F, when automatic self-sensitivity adjustment is OFF) |
±2 ppm/°C |
±3 ppm/°C |
| Accuracy immediately after internal sensitivity adjustment*ii) |
±0.0100 g |
±0.150 g |
±1.50 g |
| Operating environment |
5 to 40 °C (41 to 104 °F), 85 %RH or less (no condensation) |
| Display refresh rate |
5 times/sec, 10 times/sec or 20 times/sec |
| Units of measure*iii |
g (gram), kg (kilogram), oz (ounce), lb (pound), lb-oz (pound-ounce), ozt (troy ounce), ct (metric carat), mom (momme), dwt (pennyweight), gr (grain), pcs (counting mode), % (percent mode), and a user-programmable unit |
| Standard communication interface |
RS-232C (D-Sub 9-pin), USB (mini B) |
| Weighing pan size |
128 × 128 mm |
165 × 165 mm |
270 × 210 mm |
| External dimensions |
259 (W) × 358 (D) × 332 (H) mm (with the large glass breeze break) |
300 (W) × 355 (D) × 111 (H) mm |
| Net weight |
Approx. 7 kg |
Approx. 9.3 kg |
| Dust and waterproof rating |
N/A |
IP65 |
| Power supply / consumption |
AC adapter / approx. 30 VA |
| Standard accessories |
Breeze break × 1*iv, Display cover × 1, AC adapter × 1, USB cable (1.8 m) × 1 |
*i Under good environmental conditions using the auto-centering pan, or with consistent positioning in automated systems.
*ii Under good environmental conditions using the internal weight. The mass of the internal weight may change over time or due to environmental factors.
*iii The kg unit is for the MC-M series only. One additional unit from tael (Singapore/HK jewelry/Taiwan), tola, or Newton can be added upon request.
*iv Large glass breeze break for the MC-A series, and simple, soft plastic breeze break for the MC-M series.
Options
For the MC-A series
- GXA-03*2 2nd RS-232C interface
- GXA-04*2 Comparator relay output/buzzer/ external key input interface
- GXA-06*2 Analog (0-1/0.2-1 V) output interface
- FXi-08*2 Ethernet (TCP/IP) interface
- GXA-09*2 *3 Built-in rechargeable battery
- GXA-10*4 Large glass breeze break
- GXA-12 Animal weighing pan
- GXA-17*2 Large glass breeze break with built-in fanless ionizer and external IR switch
- GXA-23-PRINT*2 External key input interface + AX-SW137-PRINT foot switch
- GXA-23-REZERO*2 External key input interface + AX-SW137-REZERO foot switch
- GXA-23-PLUG*2 External key input interface + AX-T-314A-S plug
- GXA-24A*2 USB host interface
- GXA-25*2 Fanless ionizer with Quick Ion® technology
- GXA-26* External IR switch
- GXA-27*2 Bluetooth® interface
*2 Only one of GXA-03, GXA-04, GXA-06, FXi-08, GXA-09, GXA-17, GXA-23-PRINT /REZERO/PLUG, GXA-24A, GXA-25, GXA-26, or GXA-27 can be installed
*3 Factory-installed/dealer option
*4 Also provided as standard
For the MC-M series
- GXM-04*5*6 Comparator relay output/buzzer/RS-232C/external key input interface
- GXM-06*5*6 Analog (0-1/0.2-1 V) output/RS-232C interface

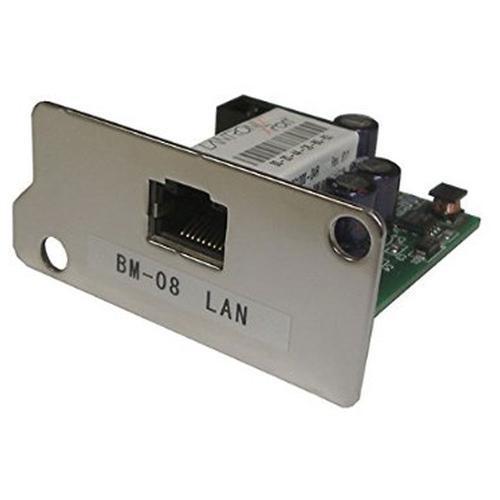

- GXM-08*5*6 Ethernet (TCP/IP) interface
- GXK-012 Animal weighing pan
- GXM-27*5 Bluetooth® interface
- *5 Only one of GXM-04, GXM-06, GXM-08, GXM-27, or the standard (RS-232C and USB) interfaces can be installed.
- *6 The MC-M series is not IP65 with GXM-04, GXM-06, or GXM-08.
Accessories
- AD-1603*7 Calibration masses
- AD-1682 Rechargeable battery unit
- AD-1683A*8 Static eliminator
- AD-1684A Electrostatic fieldmeter
- AD-1687 Weighing environment logger
- AD-1688 Weighing data logger
- AD-1689 Tweezers for calibration weight
- AD-8129TH Compact printer
- AD-8526 RS-232C/Ethernet (TCP/IP) converter
- AD-8541-PC Bluetooth® dongle for PC
- AD-8541-SCALE RS-232C/Bluetooth® converter
- AD-8920A Remote display
- AD-8922A Remote controller
- AX-073007197-S Display cover for the MC-M series (5 pcs)
- AX-GXA-31 Display cover for the MC-A series (5 pcs)
- AX-MC10K/30KPAN Auto-centering pan for the MC-M series
- AX-MC1104APAN Auto-centering pan for the MC-1104A
- AX-MC6203APAN Auto-centering pan for the MC-6203A
- AX-USB-9P RS-232C/USB converter with cable
*7 Available in weights from 1 mg to 20 kg, in OIML classes E2, F1, and F2
*8 For in-line use in automated systems, the AD-1683 (without A) is recommended.
|
