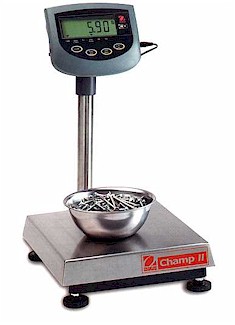

Ohaus Champ II Electronic Industrial Bench Scales

Champ II Bench Scales are Legal for Trade with RS232 bi-directional interface, Net/Gross/Tare function, and Auto-off timer. With rugged steel construction, IP65 load cell, AC adapter. Capacity x readability: 15 x 0.002 lb. 12 x 14 platform.

All Ohaus Champ II Bench Scales are protected by a 2-year warranty on labor and parts.

• All models certified "Legal for Trade"
• A rugged workhorse ideal for plant, warehouse and other industrial weighing applications
• 7 different models with capacities from 15 to 300 kilograms / 30 to 600 pounds.
• Weighs in pounds, kilograms and grams plus parts counting
• Standard RS-232 bi-directional interface
• Net, gross, tare functions
• Auto off timer
• Leveling feet and leveling bubble on platform
• Rugged steel construction
• IP65 Load Cell
• AC Adapter
• 2 year Ohaus warranty

FREE UPS Ground Shipping
(within the 48 continental US States)


**Model CH100R11 is factory calibrated for 100kg Max. capacity is 150 kg. User selectable calibration is 150 kg x 0.002

Model Number	CH15R11	CH30R11	CH60R11	CH60L11	CH100R11	CH150R11	CH300R11
Price
Capacity x Readability (lb)	30 x 0.005	60 x 0.01	120 x 0.02	120 x 0.02	200 x 0.05	300 x 0.05	600 x 0.1
Capacity x Readability (kg)	15 x 0.002	30 x 0.005	60 x 0.01	60 x 0.01	100 x 0.02	150 x 0.02	300 x 0.05
Non LFT Resolution	1:7500	1:6000	1:6000	1:6000	1:5000	1:7500	1:6000
NTEP Resolution	1:3000	1:3000	1:3000	1:3000	1:2500	1:3000	1:3000
Base Size (in/cm)	12 x 14 x 3.7 / 30.5 x 35.5 x 9.5			16 x 20 x 4.1 / 40 x 50 x 10.5		17  x 22 x 5 / 42 x 55 x 12.5
Platform construction	Stainless Steel 304
Frame structure	Black polyurethane painted steel
Column construction	Stainless Steel
Column height (in/cm)	14/35			27/68
Scale weight (lb/kg)	24/11			49/22		55/25
Shipping weight (lb/kg)	30/14			57/26		70/31
Display (in/cm)	LCD 1" (2.54 cm)
Keyboard	4-function membrane switches
Power	9 VDC / 500 mA AC adapter or six alkaline C-type batteries
Typical battery life	250 hours in battery save mode, 100 hours continuous use
Weighing units	g, kg, lb, oz		kg, lb, oz
Modes	Weighing and parts counting
Zeroing range	2%, 18% or 100% capacity
Span Calibration	10% to 100%
Operating temperature	-10 C to 40 C
Storage temperature	-20 C to 60 C
Model Number	CH15R11	CH30R11	CH60R11	CH60L11	CH100R11	CH150R11	CH300R11
