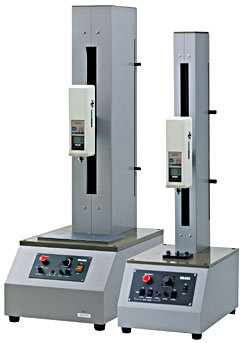

MV-500BA (Basic Type)
MV-500AC (Auto Cycle Type)
MV-1100BA (Basic Type)
MV-1100AC (Auto Cycle Type) |
- Max Load: MV-500 - 500 lbs, MV-1100 - 1100 lbs
- One stand for both compression (push) and tension (pull) tests
- Stroke: 16"
- Combination of ball screw drive system and high performance brushless
motor provides extremely smooth and powerful operation over the entire
speed range.
- Test speed mode: fixed (presettable) or adjustable
Return speed: fixed max. or adjustable
- Auto cycle feature
- Optional dynamic and static distance meter available
Speed Configurations
| Model |
MV-500BA |
MV-1100AC |
| Standard Speed |
0.3 ~ 9.5" / min |
0.4 ~4.5" / min |
| Optional High Speed |
0.5 ~ 15.7" / min |
0.8 ~ 8 " / min |
| Optional Low Speed |
0.2 ~ 4.7 " / min |
0.2 ~ 2 " / min |
Optional Lexan Safety Shield
- 1/4" unbreakable lexan
- Helps protect personnel from injury by containing debris during testing
- Allows access to the control panel
The Lexan safety shield offers protection to the operators of motorized test stands. Access to the test stand controls is still available through the front of the shield. Made of 1/4" lexan, it is virtually unbreakable and will contain the debris from destructive testing. Helps to prevent accidental injuries. Fits all Imada motorized vertical test stands. Dimensions 16.5" x 15.75" x 31.5"
Optional Data Buttons and Data Software
Imada DB-Series data input buttons work with Imada
SW software to automate data collection from Imada force
or torque gauges. Enter peak measurements into the spreadsheet
and "zero" the gauge with a touch of the button.
Minimize computer time and mouse usage
Click here for more info...
These motorized test stands offer consistent and reliable testing. The
combination of ball screw system and state of the art brushless motor
provides extremely smooth and powerful operation over the entire speed
range. It features dual speed mode: fixed speed (presettable) and adjustable
speed. They accept any of the standard range Imada force gauges. Quick
return and Emergency Stop features are also included.
Basic Models:
MV-500 BA
Basic Models have top and bottom travel limits that can be adjusted
for a precise range of movement. Set the travel limits, flip the direction
switch up to move the cross head up to the top travel limit at the selected
speed. Flip the direction switch down to send the cross head down to
the bottom travel limit. The speed is set by a Speed Adjust knob. Quick
Return and Emergency Stop features are also included.
Auto Cycle Models:
MV-500AC, MV-1100AC
Auto cycle models have top and bottom travel limits that can be adjusted
for a precise range of movement. Speed Adjust, Quick Return and Emergency
Stop features are also included. These stands have three function modes
- Manual Mode
While the Direction switch is held up, the head moves up. Holding the switch
down moves the cross head
- Single Cycle Mode
When the Direction switch is pushed up, the cross head moves up at the desired
speed, and when it reaches the top travel limit, it automatically goes
back and stops at the bottom travel limit, completing one cycle. Pushing
the switch down runs the cycle in reverse
- Auto Cycle Mode
This mode is similar to Single Cycle mode, except that the cross head travels
up and down repeating the cycle until either the Power or Emergency switches
is turned off. This mode is ideal for applications such as fatigue testing
Imada MV-1100 diagram
Imada MV-500 diagram
|
