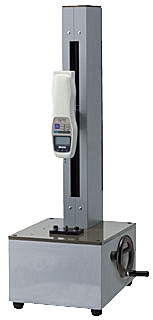

Imada HV-300 and HV-500 Vertical Manual Lever Force Test Stand
Force Testing >> Imada Force
Testing
HV-300 without distance meter
HV-300-S with distance meter
Maximum load 300 lbf
|
HV-500 without distance meter
HV-500-S with distance meter
Maximum load 500 lbf
|
|
HV-300 (capacity 300 lbs)
HV-500 (capacity 500 lbs) |
|
Models HV-300 & HV-5500 have greater clearance to accommodate oversize
materials and a long stroke to test materials that require a greater
range of movement. HV-300/500 are precise push/pull test stands that are
ideal for force applications requiring relatively consistent speed and maximum
gauge control. The force gauge remains in position when the wheel is
released which allows the user to easily change samples between tests. The
hand wheel operation will provide repeatable test results from sample to
sample. The HV-300/500 will accommodate any of the standard range Imada
force gauges.
- Hand wheel design provides a high degree of precise control
- One stand for both compression (push) and tension (pull) tests
- Gauge remains in place when hand wheel is released
- Maximum clearance 15"
Distance Meter Specifications |
Display |
Push button for inch/mm, zero set and on/off |
Resolution |
0.0005"/0.01 mm |
Accuracy |
0.1% of reading or 0.005"/0.1mm, whichever is greater |

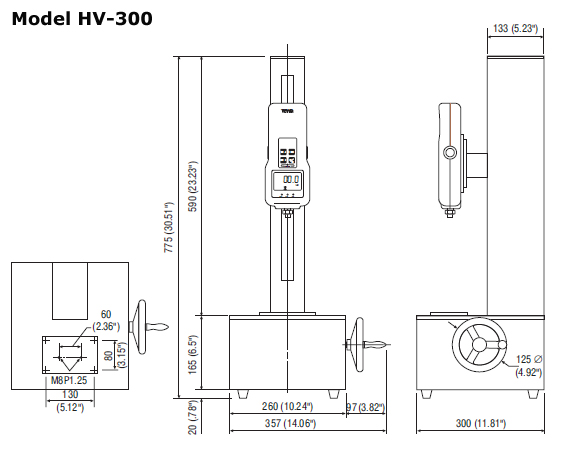

Dimensions


|
