Mark 10 Series TT03 Digital Torque Gauge	Authorized Dealer

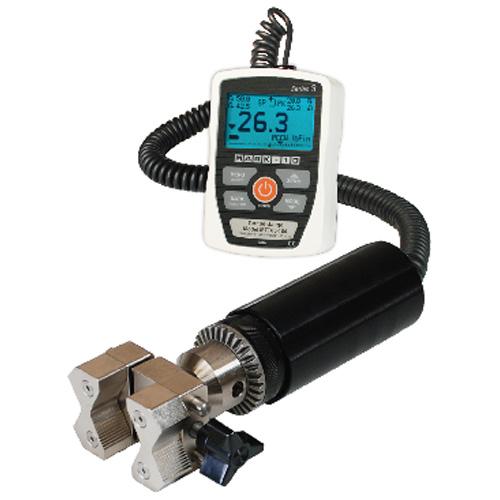

Series TT03C digital cap torque gauges are quick and economical solutions for basic handheld cap torque testing. These portable instruments eliminate the need to secure closures in a fixture or more elaborate testing system. A dedicated remote torque sensor with Jacobs chuck is supplied with a universal grip for caps from 0.65 - 1.55 in (16.5 - 39.4 mm) diameter.
Force Measurement >> Mark-10

View Spec Cart Have Questions? or email Us Our Staff will be glad to help

Mark 10 Model TT03 Digital Cap Torque Gauge FREE UPS Ground Shipping (within the 48 continental US States) Model: Select MTT03C-12 $1,605.50 MTT03C-50 $1,605.50 MTT03C-100 $1,605.50    Mark-10 NIST Certifcate of Calibration with data for Series 2 or for Series 3 gauges (ordered with a new gauge), add $80.75

Series TT03C digital cap torque gauges are quick and economical solutions for basic handheld cap torque testing. These portable instruments eliminate the need to secure closures in a fixture or more elaborate testing system. A dedicated remote torque sensor with Jacobs chuck is supplied with a universal grip for caps from 0.65 - 1.55 in (16.5 - 39.4 mm) diameter.

Series TT03C records both application and removal torque values (clockwise and counter-clockwise directions), and is available in three capacities from 12 to 100 lbFin (135 to 1150 Ncm).

Series TT03C features a sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges’ features and configurable parameters. USB output is provided for data collection purposes.

Set point indicators are provided for pass-fail testing. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied torque.

The gauges include MESURTM Lite data acquisition software. Currently displayed readings may be sent to MESURTM Lite for tabulation and one-click export to Excel for further data manipulation.

Features

• Ergonomic torque sensor with Jacobs chuck
• Peak torque values saved and displayed
• High-speed 2,000 Hz sampling rate
• USB data output
• Programmable set points with pass/fail indicators
• Live load bar graphs with set point markers
• Peak memory for clockwise and counter clockwise readings
• Set points always displayed
• Configurable audio alarms and key tones
• MESURTM Lite data collection software included
• Battery or AC operation
• Safe overload: 150% of capacity
• CE mark

Model	MTT03C-12	MTT03C-50	MTT03C-100
Price	Selected $1,605.50 Add to Cart	$1,605.50 Add to Cart	$1,605.50 Add to Cart
lbFin	12 x 0.01	50 x 0.05	100 x 0.1
kgFmm	140 x 0.1	580 x 0.5	1150 x 1
Ncm	135 x 0.1	570 x 0.5	1150 x 1
Accuracy:	+0.5% of full scale +1 digit
Sampling Rate	2,000 Hz
Power	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Measurement units	lbFin, ozFin, kgFmm, Ncm (depending on model)
Configurable Settings	Digital filters, USB output settings, backlight, automatic shutoff, key tones, audio alarms, default settings, calibration
Safe overload	150% of full scale (display shows “OVER” at 110% and above)
Weight	1.8 lb [0.8 kg]
Included items:	Carrying case, universal voltage AC adapter, battery, chuck key, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user's guide), NIST-traceable certificate of calibration (data is available for an additional charge)
Environmental requirements:	40oF - 100oF [5oC - 45oC], <96% humidity (non-condensating)
Warranty	3 years (see individual statement for further details)
