Shimpo PT Digital Force Gauges with Physical Therapy Kits

Have Questions? or email Us Our Staff will be glad to help Specifications Chart

Shimpo MF-PT Mechanical Force Gauges with Physical Therapy Kits FREE UPS Ground Shipping (48 US States Only) Price<: $1,125.00 /span> Select FGE-PT100 - 100 x 0.1 lb $1,125.00 FGE-PT200 - 200 x 0.1 lb $1,273.50 FGE-PT500 - 500 x 0.1 lb $1,314.00 FGV-PT100 - 100 x 0.1 lb $1,255.50 FGV-PT200 - 200 x 0.1 lb $1,300.50 FGV-PT500 - 500 x 0.1 lb $1,525.50 View Spec Cart

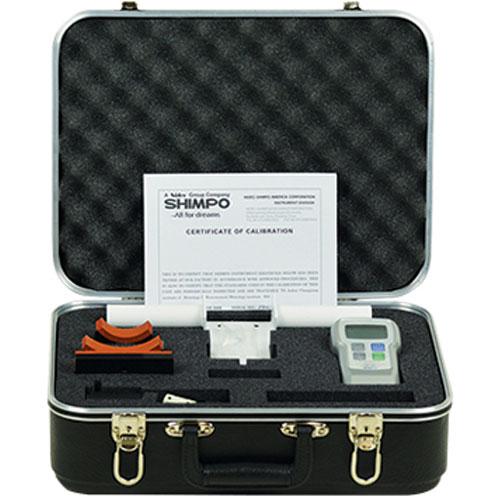

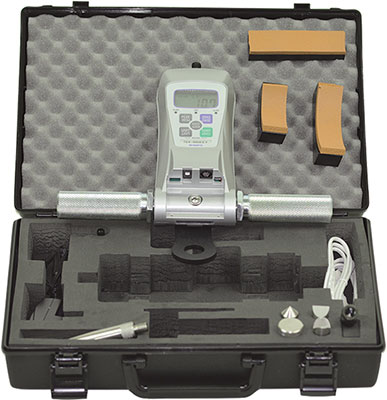

For muscle strength and ergonomic force testing,the SHIMPO digital PT kits have just the right ingredients for the professional Physical Therapist, or Ergonomist. Lightweight, rugged and attractive, these kits are great for Isokinetic testing and job task analysis. The PT kits with digital force gauges are ergonomically crafted and are easy to operate. In addition, the FGV-PT series kits are equipped with free software for Force data collection.

All kits are capable of displaying peak compression, tension or real time forces. These handsome padded kits are furnished with padded ERGO accessories, handle adapters and N.I.S.T. traceable certicates of calibration. The digital PT Kits are ideal for A.D.A Compliance, workplace design and ergonomic studies.

• Ranges from 100 to 500 lbs (50 to 250 kg)
• Large easy to read LCD display with units selection
• Peak hold tension and compression or real time force mode
• 180^o Reversible display aids user operation in various test configurations
• Compact, ergonomic design is perfect for handheld use
• Outstanding +0.2% F.S. accuracy allows usage in strictest applications
• Rugged, die cast aluminum housing provides proper protection
• Operate with the rechargeable batteries or AC Power Adapter
• CE Mark & RoHS Approval

Model	FGE-PT100	FGE-PT200	FGE-PT500	FGV-PT100	FGV-PT200	FGV-PT500
	$1,125.00 Add to Cart	$1,273.50 Add to Cart	$1,314.00 Add to Cart	$1,255.50 Add to Cart	$1,300.50 Add to Cart	$1,525.50 Add to Cart
Capacity X Readability	100 x 0.1 lb	200 x 0.1 lb	500 x 0.1 lb	100 x 0.1 lb	200 x 0.1 lb	500 x 0.1 lb
	50 x 0.01 Kg	100 x 0.1 Kg	250 x 0.1 Kg	50 x 0.01 Kg	100 x 0.1 Kg	250 x 0.1 Kg
	500 x 0.1 N	1000 x 1 N	2500 x 1 N	500 x 0.1 N	1000 x 1 N	2500 x 1 N
Included Gauge	FGE-100XY	FGE-200XY	FGE-500HXY	FGV-100XY	FGV-200XY	FGV-500HXY
Accuracy	+/- 0.2% F.S. @ 73oF (23oC)
Selectable Units	kg, N and lb.
Overload Capacity	150% of F.S.; 200% of F.S. for 100 lb
Data Sampling Rate	1000/sec
Display	Reversible 4-Digit LCD, 0.47? high (12 mm) with various indicators including tension and low battery indication
Power	Rechargeable Ni-battery or universal AC adapter/charger (100 – 240 VAC 50/60 Hz)
Auto Power Shut-Off	Yes (not active if adapter/charge is in use)
Output	-			Analog: +1 VDC (through a 12 bit D/A converter)
	-			RS232C: Baud rate (19200, 9600, 4800, 2400 bps selectable), commands control
	-			USB: Allows communication between FGV-XY and Windows® PC Software with TORIEMON-USB via USB cable (included)
	-			Overload Comparator: Open-collector output (Max DC30V/5mA)
Temperature Limits	32 - 104oF (0 - 40oC)
Certification	CE, RoHS
Warranty	2 year
Included Accessories	Force gauge, carrying case and attachments (hook, chisel, flat head, notched head, hanger, cone head, extension rod, metric to inch adapter), padded ERGO accessories, handle, AC adapter/charger, N.I.S.T. traceable certificate of calibration and FGV-RS232 cable (w/FGV series only)
