| Model |
FG-10TJM6 |
FG-M10TJ5/16 |
FG-M10TM6 |
FG-M4TJ10 |
| From | To |
From | To |
From | To |
From | To |
| Thread Adapter |
$36.00
|
$63.00
|
$63.00
|
$27.00
|
10/32 UNF | M6 |
M10 | 5/16 18UNC |
M10(FEM) | M6 (MALE) |
M4 | 10/32 UNF |
| Model |
FG-M4TM6 |
FG-M6TJ10 |
FG-M6TM10 |
| From | To |
From | To |
From | To |
| Thread Adapter |
$27.00
|
$27.00
|
$72.00
|
M4 (FEM) | M6 (MALE) |
M6 | 10/32 UNF |
M6 (FEM) | M10 (MALE) |
Chisel Adapters
Cone Head Adapters
Flat Head Adapters
Notched Head Adapters
Extension Rod Adapters
Hook Adapters
Shimpo FG-M4HK Aluminum Hook Adapter, M4 Thread For use with 0.5 and 1 lb force gauges
Shimpo FG-M6HK-AL Aluminum Hook Adapter, M6 Thread For use with 2 - 20 lb force gauges
Shimpo FG-M6HKL-AL Aluminum Large Hook Adapter, M6 Thread For use with 2 - 20 lb force gauges
Shimpo FG-M6FKL-AL Aluminum Forked Hook Adapter, M6 Thread For use with 2 - 20 lb force gauges
Shimpo FG-M6HK Steel Hook Adapter, M6 Thread For use with 2 - 200 lb force gauges
Shimpo FG-M6HKL Steel Large Hook Adapter, M6 Thread For use with 2 - 200 lb force gauges
Shimpo FG-M6FKL Steel Forked Hook Adapter, M6 Thread For use with 2 - 200 lb force gauges
Shimpo FG-M10HK Steel Forked Hook Adapter, M6 Thread For use with 500 lb force gauges
Shimpo FG-M10HK-1000HX Steel Forked Hook Adapter, M6 Thread For use with 1000 lb force gauges
| Model |
FG-M4HK |
FG-M6HK-AL |
FG-M6HKL-AL |
FG-M6FKL-AL |
FG-M6HK |
FG-M6HKL |
FG-M6FKL |
FG-M10HK |
FG-M10HK-1000HX |
$18.00
|
$18.00
|
$21.60
|
$22.50
|
$21.60
|
$27.00
|
$58.50
|
$40.50
|
$93.60
|
| Use with force gauges |
0.5 and 1 lb |
2 - 20 lb |
2 - 20 lb |
2 - 20 lb |
2 - 200 lb |
2 - 200 lb |
2 - 200 lb |
500 lb |
1000 lb |
| Thread |
M4 |
M6 |
M6 |
M6 |
M6 |
M6 |
M6 |
M10 |
M10 |
| Type |
Hook |
Hook |
Large Hook |
Forked Hook |
Hook |
Large Hook |
Forked Hook |
Hook |
Hook |
|
Aluminum |
Aluminum |
Aluminum |
Aluminum |
Steel |
Steel |
Steel |
Steel |
Steel |
Standard Adapter Sets
Compression Plates

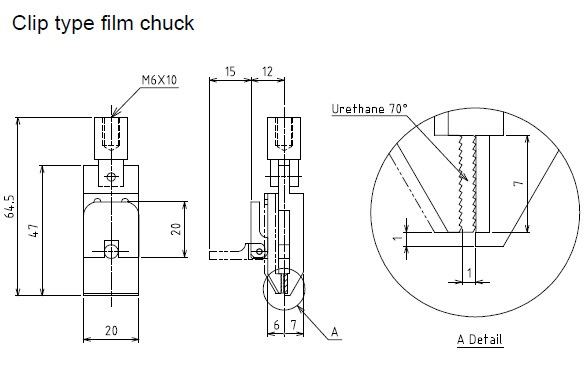

Film Grips
SHIMPO Film Grip attachments are heavy-duty, spring-loaded grips with serrated jaws which are ideal for handling film samples up to 0.39 inch (10 mm) thick and 0.79 inch (20 mm) or 1.97 inch (50 mm) wide. Grips and attachments sold individually
| Model |
FG-M4FLM20 |
FG-M6FLM20 |
FG-M6FLM50U |
FG-FLM50B |
$135.00
|
$135.00
|
$135.00
|
$162.00
|
| Range Thickness |
0.079in (2 mm) |
0.079in (2 mm) |
0.079in (2 mm) |
0.079in (2 mm) |
| Width |
0.79in (20 mm) |
0.79in (20 mm) |
1.97in (50 mm) |
1.97in (50 mm) |
| Capacity |
100 lb (50 Kg) |
100 lb (50 Kg) |
100 lb (50 Kg) |
100 lb (50 Kg) |
| Thread |
M4 |
M6 |
M6 |
M6 |
Quick Release Film Grip
The Quick Release Film Grip is perfect for those with repetitive test requirements. With their quick release lever, operators can quickly change out materials under test and be ready for the next test in seconds.
Each unit has a 0.8 in (20 mm) wide gripping surface and can accept materials up to approximately 1/32 in (2 mm) thick.
| Model |
FG-M6FLMQR20U |
$607.50
|
| Max. Opening Width |
1/32 in (2 mm) |
| Max. Capacity |
45 lb (20 kg) |
| Width |
0.8in (20 mm) |
| Thread |
M6 |
Fine Point Grips
Flat Tensile Grip
SHIMPO Flat Chuck Tensile Grip attachments possess a 0.79 inch (20 mm) square, serrated gripping face that can accept samples up to 0.75 inch (19 mm) thick.
| Model |
FG-M6FTG20U |
$198.00
|
| Material Thickness |
0.75 inch (19 mm) |
| Capacity |
100 lb (50 Kg) |
| Thread Connection |
M6 |
|
Heavy-duty Tensile Grip
SHIMPO Heavy-duty Tensile Grip attachments with manually tightened jaw faces can accept samples 1.25 inch (31.75 mm) wide and 0.25 inch (6.35 mm) thick. Contact faces are serrated hardened tool steel.
| Model |
FG-M10TEN7U |
$297.00
|
| Range Thickness |
1.25 inch (31.75 mm) wide, 0.25 inch (6.35 mm) thick |
| Capacity |
187 lb. (85 kg) |
| Thread |
M10 |
|
Jacobs Chuck Grip
Jacob Chuck Grip attachments are designed for testing low gauge wire and rigid rods. The Chuck Grip accepts material diameters from 0.02 inch (0.05 mm) to 0.20 inch (5 mm).
| Model |
FG-M6JAC5U |
FG-JAC5B |
| Price |
$144.00
|
$171.00
|
| Material Diameters |
0.02 in (0.05 mm) to 0.20 in (5 mm) |
Call |
| Capacity |
100 lb (50 Kg) |
500 lb (225 kg) |
| Thread Connection |
M6 |
- |
|

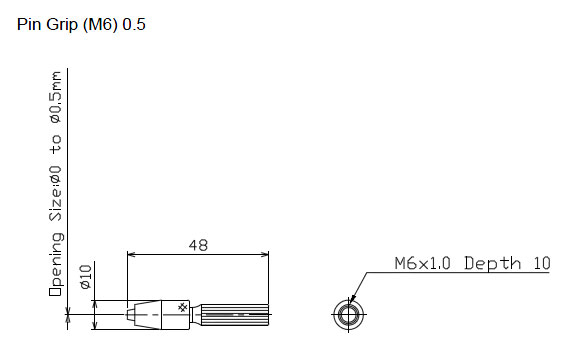

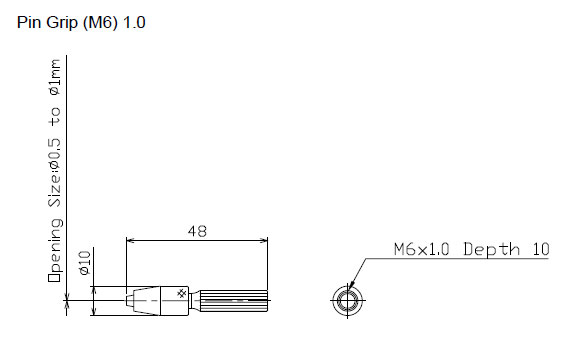

Pin Head Grip
Puncture Test Attachment
Puncture Test Measure the hardness or puncture resistance of a material.
A large variety of materials need to be able to withstand a specific threshold of puncture force in order to pass
certain quality standards. Specifically Gypsum board, or drywall, must be tested in order to determine the
ASTM Standard classification level of the product. ASTM C1629 provides details for classifying Abuse-Resistance
Non-decorated Interior Gypsum Panel Products and Fiber-Reinforced Cement Panels.
Quality Technicians needing to classify their products to this ASTM standard can utilize the Nidec-SHIMPO
FG-M6PUNCTURE-ST adapter. Attaching this adapter to one of Shimpo digital or mechanical force gauges
creates an ideal testing kit for determining the indentation resistance.

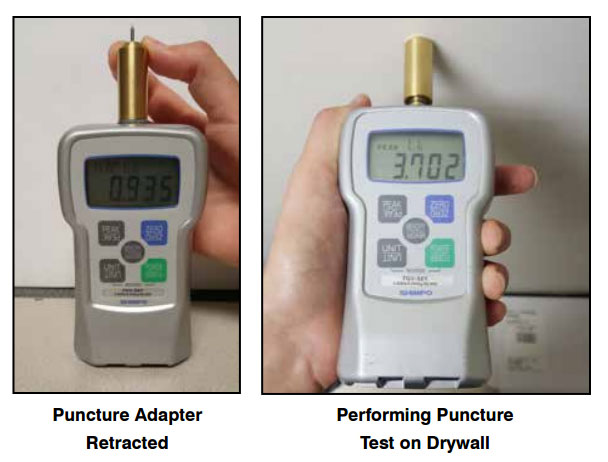

The FG-M6PUNCTURE-ST adapter operation is quite simple. The outer shell of the FG-M6PUNCTURE-ST retracts
as a load is applied to the test material. As the retraction of the outer shell occurs, the pin becomes
exposed. The puncture test continues until the outer shell comes to a stop from contact with the base of the
force gauge. The maximum force reading displayed on the gauge is the resultant puncture resistance of the
test material.
The FG-M6PUNCTURE-ST combined with the Shimpo force gauge can be used to test puncture resistance on
a multitude of materials such as: foam, cardboard, cork, tubing, membranes, baked goods, and even the ripeness
of fruits or vegetables.
Equipment Used
- FG-M6PUNCTURE-ST accessory
- Any Shimpo Series Mechanical or Digital Force Gauge with recommended ranges of 20 lb (10 kg) to 100 lb (50 kg):
| Model |
FG-M6PUNCTURE-ST |
$76.50
|
| Range |
20 lb (10 kg) to 100 lb (50 kg) |
| Thread |
M6 |
|
Spool Grip
SHIMPO Spool Grip attachments are ideal for hard-to-hold items like thread, .laments, etc. The sample is wrapped around the spool, anchored by friction
| Model |
FG-M6SP010U |
$198.00
|
| Capacity |
100 lb (50 Kg) |
| Thread |
M6 |
|
Tape Grip
SHIMPO Tape Grip attachments with self-tightening lever action are the perfect fixture for testing rubber, tape and paper
| Model |
FG-M6SP010U |
$225.00
|
| Capacity |
100 lb (50 Kg) |
| Thread |
M6 |
|
Wedge Grips
SHIMPO Wedge Grip attachments are ideal for testing wires, strip material, and plastic tape or films. The Wedge Grip comes in two capacities for lighter and heavier loads; spring-loaded jaws automatically close on the specimen and tighten as tension is applied.
| Model |
FG-M6WDG50U |
FG-M10WDG500U |
$360.00
|
$877.50
|
| Capacity |
100 lb (50 Kg) |
500 lb (250 Kg) |
| Thread |
M6 |
M10 |
|
|
Clevis Grip
SHIMPO Clevis Grip easily attach and secure odd shaped parts, punched samples or tension springs. Concave shape of pins assures centering under load. Throat clearance with pin is 0.5 inch (12.7 mm) and can easily accept samples up to 0.375 inch (9.65 mm) wide.
Grips and attachments sold individually (not in pairs).
| Model |
FG-M10CLV10U |
FG-CLV10B |
$85.50
|
Call |
| Throat Clearance |
0.5 inch (12.7 mm) with pin |
0.5 inch (12.7 mm) with pin |
| Samples Width |
0.375 inch (9.65 mm) wide |
0.375 inch (9.65 mm) wide |
| Capacity |
500 lb (250 Kg) |
500 lb (250 Kg) |
| Thread |
M10 |
- |
|
Fabric Grip
SHIMPO Fabric Grip attachments are eccentrically mounted and contain serrated roller grips that allow for self-tightening of specimens up to 3 inch (76.20 mm) wide and 0.25 inch (6.4 mm) thick.Grips and attachments sold individually (not in pairs).
| Model |
FG-M10FAB80U |
FG-FAB80B |
$310.50
|
Call |
| Self-tightening Jaw Width |
3 inch (76.20 mm) |
3 inch (76.20 mm) |
| Range Thickness |
0.25 inch (6.4 mm) thick |
0.25 inch (6.4 mm) thick |
| Capacity |
500 lb (250 Kg) |
500 lb (250 Kg) |
| Thread |
M10 |
- |
|
Cord/Twine Grip
SHIMPO Cord and Twine Grip attachments contain a figure 8 wrap that assures a center break. These grips feature non-locking pins which permit quick installation and release. Throat and pin clearance is 0.375 inch (9.65 mm) wide with the throat width being 0.5 inch (12.7 mm). The FG-M10TWN500U is the upper grip only while the FG-M10TWN500UB includes both the upper grip and lower bottom grip attachments.
| Model |
FG-M10TWN500U |
FG-M10TWN500UB |
$292.50
|
$306.00
|
| Throat Clearance |
0.375 inch (9.65 mm) wide |
0.375 inch (9.65 mm) wide |
| Throat Width |
0.5 inch (12.7 mm) |
0.5 inch (12.7 mm) |
| Capacity |
500 lb (250 Kg) |
500 lb (250 Kg) |
| Thread |
M10 |
M10 |
|
Roller Cam Grip
Shimpo FG-M6RCG4U Roller Cam Grip 0.16" Max. Roller Cam Grip is mounted to the gauge, cam action grips wire and elastomers up to 4 mm. M6 thread
| Model |
FG-M6RCG4U |
$355.50
|
| Max. Opening Width |
0.16 in (4 mm) |
| Max. Capacity |
50 lb (25 kg) |
| Thread |
M6 |
|
Adhesive Test Plates
SHIMPO Adhesive Test Plate attachments with hardened tool steel, detachable face-plates can test samples up to 3 inch (76.20 mm) in diameter. Ball socket mounting screws in both grips assure parallelism and perpendicularity to force when load is applied. Grips and attachments sold individually (not in pairs).
| Model |
FG-M10ADHE3 |
$513.00
|
| Capacity |
500 lb (250 Kg) |
| Thread |
M10 |
|

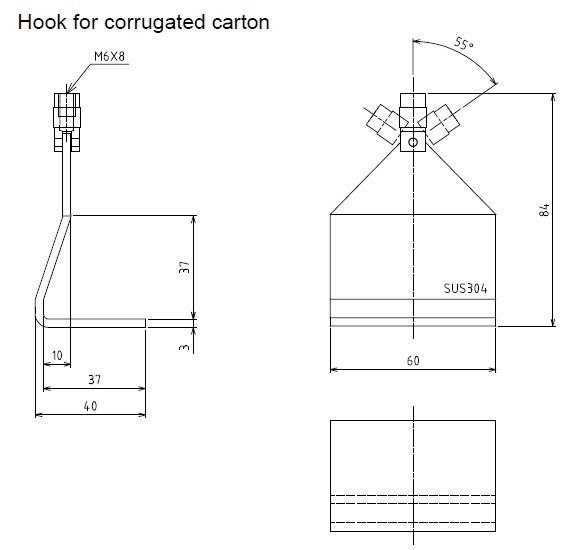

Carton Box Pull Hook
Simple, yet specialized force gauge attachment for testing the required force to open cardboard boxes and similar packages
Each unit possesses a 2.3 inch (60 mm) width, and can work up to a maximum load of 56 lb (250 N). This hook has a M6 female connection, enabling connection with any M6 compatible device.
| Model |
FG-M6CBH60U |
$166.50
|
| Maximum Range |
2.3 inch (60 MM) |
| Capacity |
56 LB (25 KG) |
| Thread |
M6 |
|
Pincer Wedge Grip
The Pincer Wedge Grip is a dynamic force gauge attachment that allows the user to easily attach items to its serrated jaw opening via its adjustable, retractable legs.
Designed to allow thicker materials up to approximately 0.6 inch (15 mm) thick to be tested, larger than other style tensile grips. These pincer grips can withstand tensile loads up to 112 lb. (50 kg).
| Model |
FG-M6PWDG15U |
$382.50
|
| Max Opening Width |
0.6 inch (15 mm) |
| Capacity |
112 LB (50KG) |
| Thread |
M6 |
|
Wire Clamp Fixture Grip
The Wire Clamp Fixture is the ideal force gauge attachment for repetitive, tensile testing of wire and similar materials.
Large lever allows the quick loading and unloading of materials up to approximately 0.2 inch (5 mm). These wire clamps can withstand material tensile strengths up to 112 lb. (50 kg).
| Model |
FG-M6WCF5U |
$427.50
|
| Max Width |
0.2 inch (5mm) |
| Capacity |
112 lb (50 kg) |
| Thread |
M6 |
|

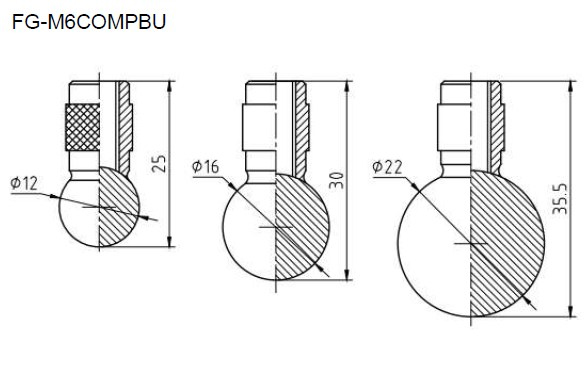

Compression Ball Adapter Set
The Compression Ball Adapter Set is a simple, yet specialized force gauge attachment for testing compression forces over a specific area. These adapters are ideal for use with shape-changing materials such as foam, rubber, sponge, but can also be used in destructive tests on flat surface materials such as glass or stone.
- Each set includes three compression ball adapters with 0.47, 0.63, 0.86“ (12, 16, 22 mm) diameter heads.
- Each adapter can withstand up to 112 lb (50 kg) of compressive forces.
- Each compressive ball adapter has a M6 female connection, enabling connection with any M6 compatible device.
| Model |
FG-M6COMPBU |
$29.00
|
| Diameter |
0.47 inch, 0.63 inch, 0.86 inch (12,16, 22mm) |
| Max Capacity |
112 lb (50kg) |
| Thread |
M6 |
|
Adjustable Tension Grip
The tension force attachment possesses large, adjustable-width teeth for securely clamping down on test specimens. The serrated grip teeth are altered to the desired opening and tightness with an adjustable handle to a maximum of 1” (25 mm) wide . Units are built to withstand tension forces up to 220 lb (100 kg).
The serrated grip teeth are altered to the desired opening and tightness with an adjustable handle to a maximum of 1” (25 mm) wide . Units are built to withstand tension forces up to 220 lb (100 kg).
| Model |
FG-M6ATC25U |
$85.50
|
| Maximum Opening |
1 inch (25 mm) |
| Maximum Capacity |
220 lb. (100 kg) |
| Thread |
M6female connection |
|
Stainless Steel Push Rod
Stainless Steel Push Rods are simple, yet specialized force gauge attachment for testing compression forces on small components or over a specific area of an item under test.lever allows the quick loading and unloading of materials up to approximately 0.2 inch (5 mm). These wire clamps can withstand material tensile strengths up to 112 lb. (50 kg).
| Model |
FG-M6COMP5U |
FG-M6COMP10U |
$144.00
|
$90.00
|
| Max Width |
0.2 inch (5mm) |
0.4 inch (10mm) |
| Capacity |
225 lb (100 kg) |
225 lb (100 kg) |
| Thread |
M6 |
M6 |
|
Peel Test Grip
The Peel Test Grip possesses wide, serrated teeth for securely clamping down on test specimens such as films, tapes, labels or similar materials used in adhesive peel tests. Adjustment screw conveniently opens and closes the serrated teeth for quick test change out. Units are built to withstand tension forces up to 112 lb (50 kg).
- Tension forces up to 112 lb (50 kg)
- Serrated teeth for securely clamping down on test specimens
- Adjustment screw
FG-M6PTG2U Tension Peel Grip with wide, serrated teeth, maximum sample thickness of 0.08” (2 mm), 112 lb. (50 kg).
| Model |
FG-M6PTG2U |
$58.50
|
| Maximum Opening |
0.08 inch (2 mm) |
| Maximum Capacity |
112 lb. (50 kg) |
| Width |
2.36 inch (60 mm) |
| Thread |
M6female connection |
|
Heavy Duty Wedge Grip
The Heavy Duty Wedge Grip provides high-capacity tensile testing for materials with strengths up to 1124 lb (500 kg) capacities.
The wedge grips serrated jaws have a maximum opening allowing items to be tested up to approximately 0.2 in (5 mm) thick.
- FG-M10HWDG5U Heavy Duty Wedge Grip 0.2 in (5 mm) Max. Opening, 1124 lb (500 kg) Max. Capacity
- FG-HWDG5B Heavy Duty Wedge Grip Bottom Fixture 0.2 in (5 mm) Max. Opening, 1124 lb (500 kg) Max. Capacity
| Model |
FG-M10HWDG5U |
FG-HWDG5B |
| Price |
$607.50
|
$634.50
|
| Type |
Top |
Bottom |
| Max Opening |
0.02 inch (5 mm) |
0.02 inch (5 mm) |
| Max Capacity |
1124 lb (500 kg) |
1124 lb (500 kg) |
| Thread |
M10 |
- |
|

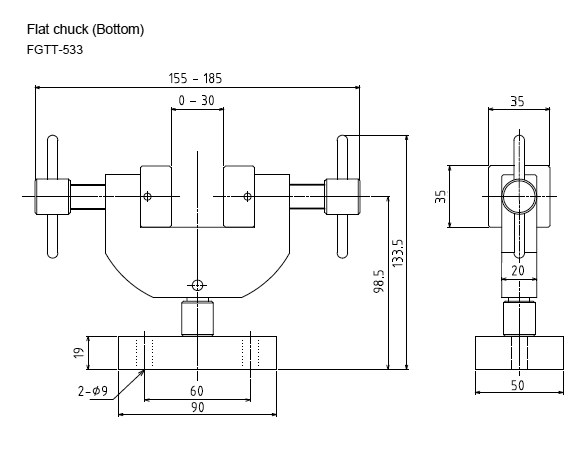

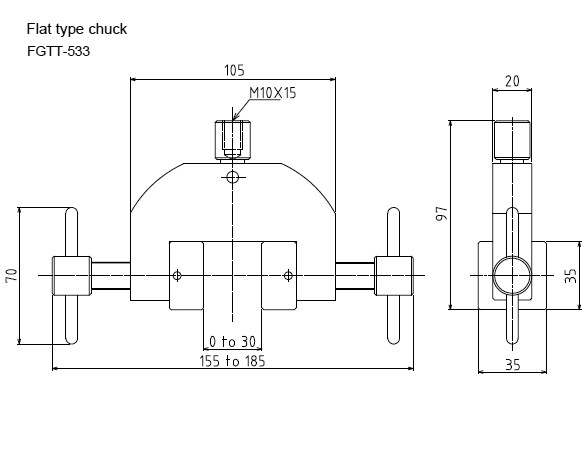

Heavy Duty Flat Chuck Tensile Grip
The Heavy Duty Flat Chuck Tensile Grip provides high-capacity tensile testing of thick materials with its easy open/close chuck adjusters.
NIDEC-SHIMPOs Heavy Duty Flat Chuck Tensile Grip attachments possess a 1.4 inch (35 mm) flat test pads of the grip can open wide enough to allow up to approximately 1.2 inch (30 mm) thick items with tensile strengths up to 1124 lb (510 kg) capacities.
- FG-M10HTG30U Heavy Duty Flat Chuck Tensile Grip, 1.2 inch (30 mm) Max. Opening, 1124 lb (500 kg) Max. Capacity
- FG-HTG30B Heavy Duty Flat Chuck Tensile Grip Bottom, 1.2 inch (30 mm) Max. Opening, 1124 lb (500 kg) Max. Capacity
| Model |
FG-M10HTG30U |
FG-HTG30B |
| Price |
$607.50
|
$634.50
|
| Type |
Top |
Bottom |
| Max Opening |
1.2 inch (30 mm) |
1.2 inch (30 mm) |
| Max Capacity |
1124 lb (500 kg) |
1124 lb (500 kg) |
| Thread |
M10 |
- |
|
|
|
|
