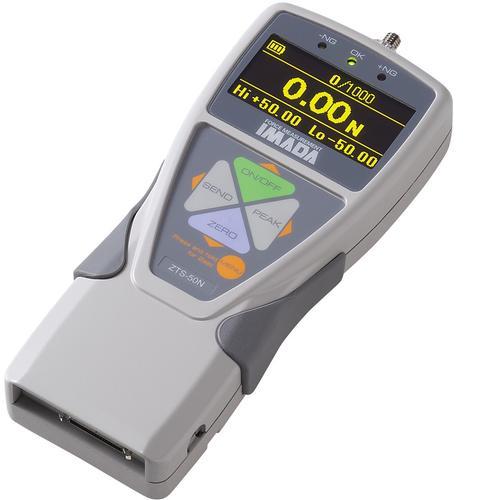

Imada ZTA Advanced Digital Force Gauges with Luminescent EL Display

Specifications Chart

Imada ZTA Advanced Digital Force Gauges Model Select ZTA-0.4 $1,075.00 ZTA-1 $1,075.00 ZTA-4 $1,075.00 ZTA-11 $1,075.00 ZTA-44 $1,075.00 ZTA-110 $1,075.00 ZTA-220 $1,185.00 ZTA-550 $1,285.00 ZTA-1100 $1,440.00 Imada OH-1 Handle for DS2,ZTS,ZTA Gauges, add $85.00 Imada SW-1X Force Data Acquisition Software, add $199.00 Imada DB-1 Data Button, add $145.00 Shipping Wt: 10 lbs.

Imada digital force measurement gauges are state-of-the-art, instruments capable of the highly accurate measurements required in quality testing to determine the strength or functionality of a part or product. Imada force measurement gauges check both compression and tension (push or pull). Standard and special attachments simply screw on to the threaded shafts to provide various ways to grip or test samples. Imada digital force measurement gauges also output data for collection by data acquisition software in USB, RS232, Digimatic and analog formats.

ZTS/ZTA Kit

ZTA Additional Features

• Display force and displacement data with Imada FA test stand
• Export gauge memory or save continuous data to USB flash drives

• EL electro luminescent display is highly visible in dark locations
• Multi-language program menus: English, Spanish, French, Chinese, German, Italian, Korean, Japanese
• Processes and transmits 2,000 data/sec.
• Color-coded LED indicators and output signal for Go/No Go testing
• Ergonomic design with non-slip grips, heavy duty metal construction
• Capacity up to 1,100 lbs (push/pull)
• Overload capacity 200% F.S.
• USB (virtual COM port), RS-232C, Digimatic and Analog outputs
• lbf, kgf, and N units are selectable
• 1,000 data memory for recall or download
• External switch display hold and clear
• Internal Ni-MH batteries or AC adapter
• Real time and peak mode (selectable)
• Overload alarm and output signal
• Kit includes, full set of attachments, ZT Logger data acquisition software, USB cable, AC adapter/charger, calibration cert traceable to NIST and carrying case.

Easy-to-use menus make programming simple in eight languages. Select units, reverse display, set high/low setpoints, and all other functions in plain language.

Electro luminescent EL display shows force value, unit, and peak, and can be configured with additional user-selectable data including memory data, +NG count, high/low setpoints, 1st and 2nd peaks, displacement value (using Imada test stand with FA option), etc.

Color-coded LED indicators alert the user to Go/NoGo conditions. Orange lights for less than low setpoint, green lights between high and low, and red for over the high.

Process and transmit 2,000 actual data per second, not just the peak from a high sampling rate. Optional Force Recorder data acquisition software is designed to process up to 2,000 data per second.

Display force and displacement data on ZTA gauges with Imada test stands equipped with FA option.

Save data to USB flash drives. Export peak data or capture continuous data at 100 data/second to flash drives with ZTA force gauges.

ZT Logger data acquisition software downloads data from the gauge memory or captures a continuous stream of data at 10 data/second. Zero the gauge or capture data while at the computer. All gauge programming can be set and saved from the software.

Model	ZTA-0.4	ZTA-1	ZTA-4	ZTA-11	ZTA-44	ZTA-110	ZTA-220	ZTA-550	ZTA-1100
	$1,075.00 Add to Cart	$1,075.00 Add to Cart	$1,075.00 Add to Cart	$1,075.00 Add to Cart	$1,075.00 Add to Cart	$1,075.00 Add to Cart	$1,185.00 Add to Cart	$1,285.00 Add to Cart	$1,440.00 Add to Cart
Capacity x Resolution Pounds/Ounces	7.0 x 0.01 oz	18.0 x 0.01 oz	4.4 x 0.001 lb	11 x 0.01 lb	44 x 0.01 lb	110 x 0.1 lb	220 x 0.1 lb	550 x 0.1 lb	1100 x 1 lb
Capacity x Resolution Kilograms/Grams	200 x 0.1 g	500 x 0.1 g	2 x 0.001 kg	5 x 0.001 kg	20 x 0.01 kg	50 x 0.01 kg	100 x 0.1 kg	250 x 0.1 kg	500 x 1 kg
Capacity x Resolution Newtons	2 x 0.001 N	5 x 0.001 N	20 x 0.01 N	50 x 0.01 N	200 x 0.1 N	500 x 0.1 N	1000 x 1 N	2500 x 1 N	5000 x 1 N
Accuracy	+ 0.2% F.S., + 1 LSD
Selectable Units	lbf(ozf), kgf(gf) or Newtons
Overload Capacity	200% of F.S. (Overload indicator flashes beyond 110% of F.S.)
Power	Rechargeable Ni-MH battery pack or AC adapter
Battery Indicator	Indicates three charge states high, med and low
Memory	Non-volatile, recall up to 1,000 data Export gauge memory or save continuous data to USB flash drives
Setpoints	Programmable high/low setpoints w/ color-coded LEDs & output signal
Outputs	Outputs USB (virtual COM port), RS-232C, Digimatic and + 2 VDC analog output
Operating Temp	Operating Temp. 32o to 100oF (0o to 40oC)

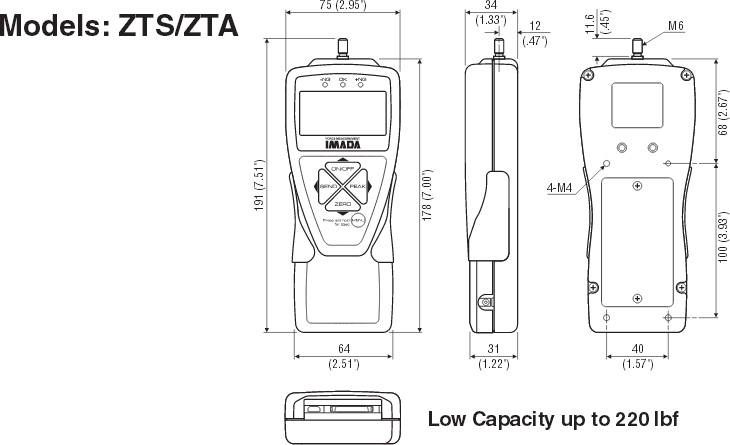

Dimensions
