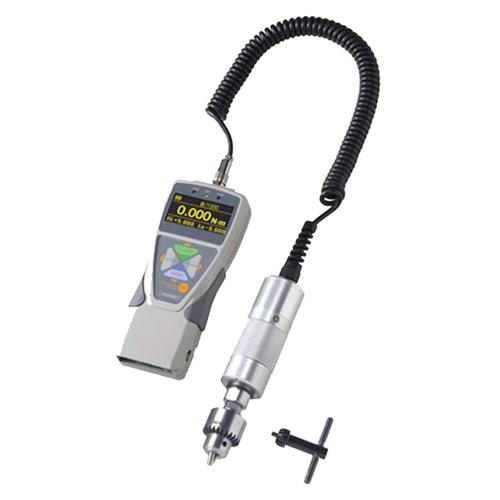

Imada Hand Heald Digital Torque Gauge Luminescent EL Display, User-Friendly, Multi-Language Menu Standard HTGS Series USB (virtual COM port), RS-232C, Digimatic and Analog outputs
- Programmable high/low setpoints with color-coded LED indicators and output signal for quick Go/No testing
- EL electro luminescent display is highly visible in dark locations
- Multi-language program menus: English, Spanish, French, Chinese, German, Italian, Korean and Japannese
- Eronomic design, non-slip grips, heavy duty metal construction
- USB (virtual COM port), RS-232C, Digimatic and Analog outputs
- Proceesses and transmits 2000 data/sec.
- lbf-in, kgf-m and N-m units are selectable
- Overload capacity 200% of F.S.
- 1000 data memory for recall or download
- External switch display hold and clear
- Internal Ni-Mh batteries or AC adapter
- Real time and peak mode (selectable)
- Overload alarm and output signal
- kit includes: 6.5mm chuch, ZT logger data acquisition software, USB cable, Allen Wrench, AC adapter/charger, calibration cert traceable to NIST and carrying case (handles for 10-m range only)
Easy-to-use menus make programming simple in eight languages. Select units, reverse display, set high/low setpoints, and all other function.
Electro luminescent EL display shows torque value, unit, and peak, and can be configured with additional user-selectable data including memory data, +NG count, high/low setpoints, 1st and 2nd peaks, torque angle etc
Color-coded LED indicators alert the user to Go/NoGo conditions. Orange lights for less than low setpoit, green lights between high and low, and red for over the high
Process and transmit 2000 actual data per second not just the peak from a high sampling rate. Optional Force Recorder data acquisition software processes up to 2000 data per se
ZT Logger data acquisition software downloads data from the gauge memory or captures a continuous stream of data at 10 data/secound. Zero the gauge or capture data while at the computer. all gauge programming can be set and saved from the software.
| Model |
HTGS-4 |
HTGS-15 |
HTGS-15L |
HTGS-40 |
HTGS-40L |
HTGS-85 |
HTGS-85L |
$1,635.00
|
$1,475.00
|
$1,575.00
|
$1,625.00
|
$1,575.00
|
$1,575.00
|
$1,675.00
|
| Capacity x Resolution |
70.00 ozf-in x 0.01 ozf-in |
15.00 x 0.01 lbf-in |
40.00 x 0.01 lbf-in |
85.0 x 0.1 lbf-in |
| 5.000 x 0.001 kgf-cm) |
20.00 x 0.01 kgf-cm |
50.00 x 0.01 kgf-cm |
100.0 x 0.1 kgf-cm |
| 5.000 x 0.001 kgf-cm) |
200.0 x 0.1 N-cm |
500.0 x 0.1 N-cm |
1000 x 1 N-cm |
| Chuck Size |
4 mm |
6.5 mm |
13 mm |
6.5 mm |
13 mm |
6.5 mm |
13 mm |
| Accuracy |
+0.5% F.S. +1 LSD |
| Selectable Units |
lbf-in, kgf-cm, N-cm, ozf-in, N-m, kgf-m |
| Overload Capacity |
200% of f.s. (overload indicator flashes beyond 100% of F.S.) |
| Power |
NiMH rechargeable battery
AC adaptor |
| Battery Indicator |
Indicates three charge states high, med and low |
| Memory |
Non-volatile, recall up to 1000 data |
| Setpoints |
Programmable high/low setpoints with color-coded LEDs & output signal |
| Outputs |
USB (virtual COM port), RS-232C, Digimatic and + 2 VDC analog output |
| Operating Temp |
32o to 100oF (0o to 40oC) |
|
