| Easy-to-use menus make programming simple in eight languages. Select units, set high/low setpoints, and all other functions in plain language.
|
| Force Testing >> Imada Force Testing |
|
|
|
|

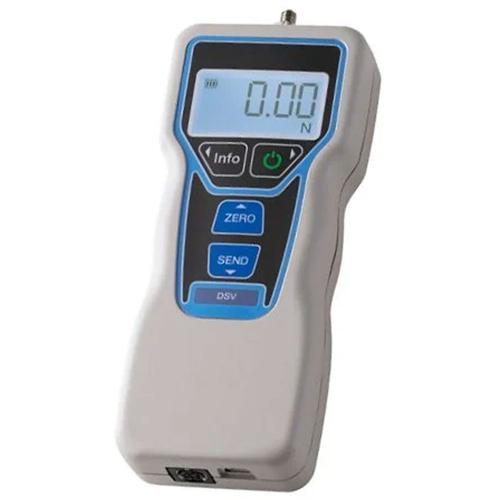

The Imada DSV Series digital force gauges are advanced, user-friendly instruments designed to provide high-precision tension and compression measurements. Featuring a unique built-in tilt sensor, the DSV helps operators maintain a consistent angle during handheld testing, significantly reducing measurement error and improving repeatability.
|
Standard Features
- Tilt Sensor: Alerts user to deviation from the reference angle
- Backlit LCD display with user-friendly menus
- Ergonomic, durable, heavy-duty metal construction
- 30,000/sec ultra-high sampling rate
- 1,000 Data memory; automatically calculates Max, Min, Avg statistics
- USB and RS-232C output
- Selectable real time or peak mode operation
- Setting security lock prevents accidental changes
- Overload capacity 200% F.S.; Display flashes at overload limit
- Runs on internal Ni-MH batteries (user replaceable) or AC adapter; Charges with USB port or portable charger
|
Tilt Sensor Helps users performing handheld measurements to push or pull at a consistent angle, improving measurement accuracy. The tilt alarm has three degrees of sensitivity 4o, 8o or 18o from the reference angle.
|
DSV-0.4A |
DSV-1A |
DSV-4A |
DSV-11A |
DSV-44A |
DSV-110A |
DSV-220A |
| Price |
$710.00
|
$710.00
|
$710.00
|
$710.00
|
$710.00
|
$710.00
|
$985.00
|
| Capacity x Resolution |
2 x 0.001 N |
5 x 0.001 N |
20 x 0.01 N |
50 x 0.01 N |
200 x 0.1 N |
500 x 0.1 N |
1000 x 1 N |
| 7 x 0.001 ozf |
17 x 0.01 ozf |
4.4 x 0.001 lbf |
11 x 0.01 lbf |
44 x 0.01 lbf |
110 x 0.1 lbf |
220 x 0.1 lbf |
| 200 x 0.1 gf |
500 x 0.1 gf |
2 x 0.001 kgf |
5 x 0.001 kgf |
20 x 0.01 kgf |
50 x 0.01 kgf |
100 x 0.1 kgf |
| Tilt Alarm |
OFF, Strict (4o), Normal (8o) or Loose (18o) |
| Accuracy |
+ 0.2% F.S., + 1 LSD |
| Selectable Units |
lbf(ozf), kgf(gf) or Newtons |
| Display |
4 digit backlit LCD |
| Overload Capacity |
Approx. 200% of F.S. |
| Overload Alarm |
Audible alarm at 90% of capacity; Audible alarm and indicator flashes beyond 110% of F.S. |
| Sampling Rate |
30,000/second |
| Internal Memory |
1,000 data with statistics |
| Battery Life |
Approx. 30 hours backlight off
Approx. 14 hours backlight on
4.5 hours required for full charge |
| Battery Indicator |
Battery icon displays three levels of charge |
| Setpoints |
Programmable high/low setpoints with OK indicator |
| Outputs |
USB, RS-232C |
| Operating Temp. |
32o to 100oF (0o to 40oC) |
| Accessories Included |
AC adapter, Attachments (hook, flat tip, conical tip, chisel tip, notched tip, extension shaft), Carrying Case |
|
|
