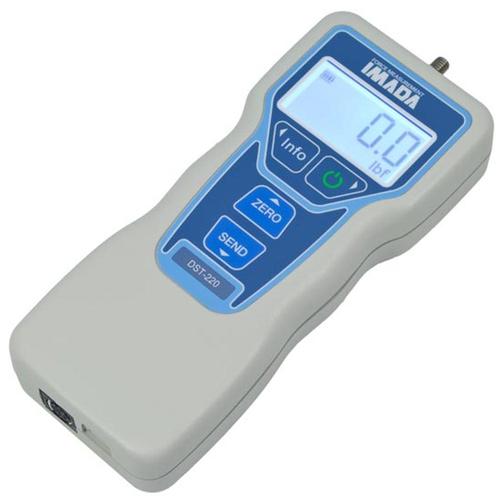

Imada DST digital force gauges are simple-to-use basic gauges featuring user-friendly menu operation. Selections including unit and measuring mode can be locked to prevent accidental changes.
The large backlit LCD display can be configured in basic format to show value, unit and measuring mode or multi-line format to display peak and real time values simultaneously. Additional features include reversible display and high/low setpoints with OK indicator for Go/No Go testing.
The gauges have a 30,000/sec ultra-high sampling rate. Collect the data via USB or RS-232 connections with the optional Force Logger or SW-1X software.
DST gauges are powered by rechargeable Ni-MH batteries or the AC adapter/charger. The batteries are user replaceable and can also be charged using USB ports or USB portable chargers.
All DST gauges are sold as kits complete with gauge, carrying case, six attachments and AC adapter/charger.
Easy-to-use basic force gauge with large backlit LCD display
Standard Features
Easy-to-use basic force gauge
Backlit LCD display with user-friendly menus
Ergonomic, durable, heavy-duty metal construction
30,000/sec ultra-high sampling rate
Selectable real time or peak mode operation
USB and RS-232C output
Overload capacity 200% F.S.; Display flashes at overload limit
Runs on internal Ni-MH batteries (user replaceable) or AC adapter; charge with USB port or portable charger
DST?kit includes set of six attachments, AC charger/adapter, calibration cert traceable to NIST and carrying case
Model
DST-0.4a
DST-1a
DST-4a
DST-11a
DST-44a
DST-110a
DST-220a
$636.00
$636.00
$636.00
$636.00
$636.00
$636.00
$904.00
Capacity x Resolution
Grams
200 x 0.1 gf
500 x 0.1 gf
-
-
-
-
-
Kilograms
-
-
2 x 0.001 kgf
5 x 0.001 kgf
20 x 0.01 kgf
50 x 0.01 kgf
100 x 0.1 kgf
Ounces
7 x 0.001 ozf
18 x 0.01 ozf
-
-
-
-
-
Pounds
-
-
4.4 x 0.001 lbf
11 x 0.01 lbf
44 x 0.01 lbf
110 x 0.1 lbf
220 x 0.1 lbf
Newtons
2 x 0.001 N
5 x 0.001 N
20 x 0.01 N
50 x 0.01 N
200 x 0.1 N
500 x 0.1 N
1000 x 1 N
Accuracy
+ 0.2% F.S., + 1 LSD
Selectable Units
lbf(ozf), kgf(gf) or Newtons
Display
4 digit backlit LCD
Overload Alarm
Audible alarm at 90% of capacity; Audible alarm and indicator flashes beyond 110% of F.S.
Sampling Rate
30,000/second
Battery Life
Approx. 30 hours backlight off Approx. 14 hours backlight on 4.5 hours required for full charge
Battery Indicator
Battery icon displays three levels of charge
Power
Runs on internal Ni-MH batteries (user replaceable) or AC adapter; charge with USB port or portable charger
Setpoints
Programmable high/low setpoints with OK indicator
Outputs
USB, RS-232C
Operating Temp.
32o to 100oF (0o to 40oC)
Accessories Included
AC adapter, Attachments (hook, flat tip, conical tip, chisel tip, notched tip, extension shaft), Carrying Case
DST Digital Force Gauge
Easy-to-use basic force gauge with large backlit LCD display
Imada DST digital force gauges are simple-to-use basic gauges featuring user-friendly menu operation. Selections including unit and measuring mode can be locked to prevent accidental changes.
The large backlit LCD display can be configured in basic format to show value, unit and measuring mode or multi-line format to display peak and real time values simultaneously. Additional features include reversible display and high/low setpoints with OK indicator for Go/No Go testing.
The gauges have a 30,000/sec sampling rate. Collect the data via USB or RS-232 connections with the included Force Logger or optional SW-1X software.
DST gauges are powered by rechargeable Ni-MH batteries or the AC adapter/charger. The batteries are user replaceable and can also be charged using USB ports or USB portable chargers.
All DST gauges are sold as kits complete with gauge, carrying case, six attachments and AC adapter/charger.
Force Logger (optional) - Available to users who need to collect peak data. Please Call 800-832-0055 or email us.
SW-1 Data Acquisition Software (optional) - Capture and analyze real-time data from any Imada gauge with a USB or RS-232 port directly into any Windows program. Log measurements and generate a profile graph plus statistical information. Control the gauge functions from your computer.
DB-1 Data Input Button (optional) - DB-1 is a compact, one channel interface that enables users to send measurement data to a PC running SW-1X, Imada data acquisition software or other software. The data input button ‘zeros’ the gauge after sending data to the PC eliminating the need to reset manually.
