Chatillon DFE 3 Digital Force Gauges Chatillon
The DFE3 force gauges are low-cost, high functionality digital force gauges designed for simple applications. The DFE3 is ideal for collecting production sample data at the end of a production line, performing pass/fail test status, or recording of quality testing data for incoming material inspection conformance
Chatillon DFE2-200 Digital Force Gauge - 200 x 0.1 lbf
Have Questions?
Call USoremail Us
Our Staff will be glad to help

Specifications Chart

Grips & Fixtures

View Test Stands

The DFE3 force gauges are low-cost, high functionality digital force gauges designed for simple applications. The DFE3 is ideal for collecting production sample data at the end of a production line, performing pass/fail test status, or recording of quality testing data for incoming material inspection conformance.

The Chatillon DFE3 Series is the new generation of digital force gauges for force measurement. It is specially designed for users looking for easy-to-use force gauges with functionality that can help them optimize their processes and save time.

The DFE3 Series force gauges come in an ergonomic design that ensures a stable grip and easy mounting. They are designed for simple applications where a low-cost force gauge will meet requirements, without compromising functionality. These digital force gauges are ideal for handheld use.

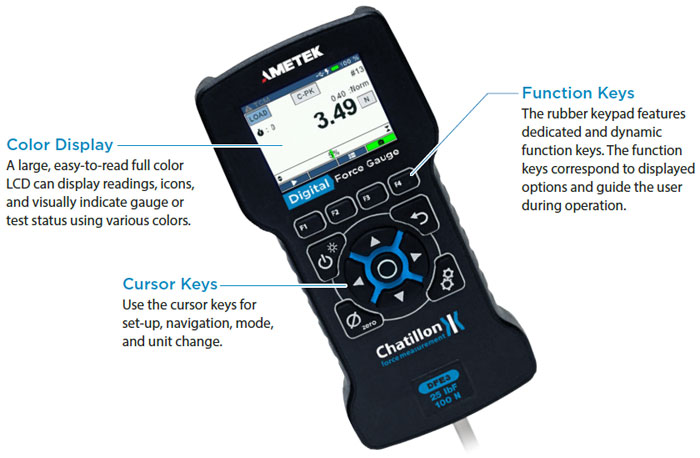

The DFE3 Series digital force gauges feature a large, easy-to-read color-display that highlights readings and icons for easy navigation. A rugged rubber keypad ensures a single touch operation that corresponds to displayed options on the screen and guides its user during operation.

To help the user save time, it offers test setups functionality, auto-save test results, and automatic export of these for further analysis. Additionally, the force gauges offer a variety of standard gauge functions, including normal and peak readings, high/low limits, set points, load averaging and pass/fail results.

For comfort, the display can be inverted, or the display illumination can be dimmed. Key and user audible warning tones can also be configured. Menus, test setups and functions can be disabled for use an operator by using the Pincode settings and home screen lock. Displayed results may also be “hidden” from the operator.

The DFE3 Series offers the best price performance of any digital force gauge available today. This compact, easy-to-use force gauge is designed for basic and complex applications. Ideal for handheld or test stand applications.

Measurement accuracy is better than 0.2% full scale in integral load cell models. A large, easy-to-read, high resolution, full color LCD display supports a variety of standard gauge functions including normal and peak readings, high/low limits, setpoints, pass/fail results, statistical results, load averaging, loadcell actuation and direction. Loads are displayed in ozf, gf, lbf, kgf and N units. The display can be inverted and displayed results may be “hidden” from the operator. The DFE3 also offers password protection for gauge set ups.

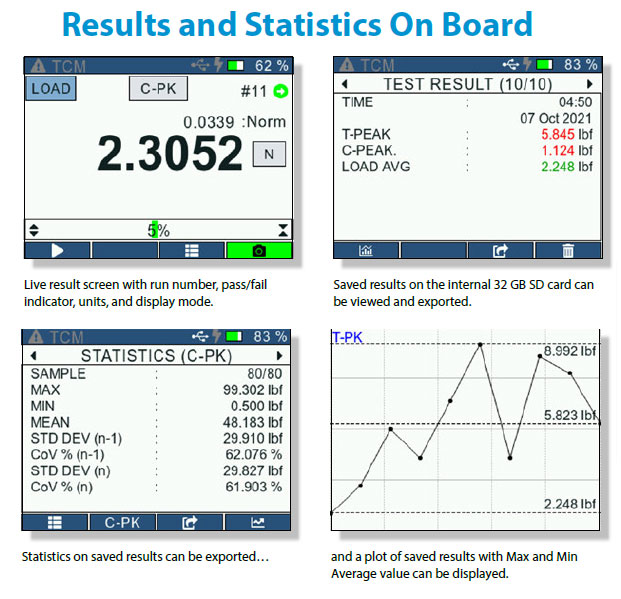

Comprehensive Results The DFE3 Series supplies you with comprehensive results that are easy to view and understand. The gauge displays:
  • Measured Result with Units:
    • Peak Tension and Compression.
    • Load Average/Time.
  • Operating Mode.
  • Pass-Fail Result.
  • High and Low Load Results.
  • Saved Results.
  • Statistical Calculations:
    • Average with MIN and MAX Results.
    • Cv with Average and Standard Deviation.
    • Standard Deviation.
    • Graphical representation of saved results
Chatillon DFE3 Series Digital Force Gauges
FREE Shipping!

Chatillon SPK-FMG-008B Chisel Point Adapter 500 lbf, 2.5 kN 5/16-18F
Chatillon SPK-FMG-008B Chisel Point Adapter 500 lbf, 2.5 kN 5/16-18F, add $35.15
Chatillon SPK-FMG-013B Extension Rod, 6-inch 500 lbf Thread 5/16-18F
Chatillon SPK-FMG-013B Extension Rod, 6-inch 500 lbf Thread 5/16-18F, add $52.25
Chatillon SPK-FMG-011A Flat Adapter  #10-32 100 lbf 500 N
Chatillon SPK-FMG-011A Flat Adapter #10-32 100 lbf 500 N, add $26.00
Chatillon SPK-FMG-009A Point Adapter  100 lbf (500 N)
Chatillon SPK-FMG-009A Point Adapter 100 lbf (500 N), add $26.00
Chatillon ML3868 Swivel Hook, 500 lbf (2.5 kN)
Chatillon ML3868 Swivel Hook, 500 lbf (2.5 kN), add $81.70
Chatillon SPK-FMG-009B Point Adapter  500 lbf, 2.5 kN 5/16-18F
Chatillon SPK-FMG-009B Point Adapter 500 lbf, 2.5 kN 5/16-18F, add $35.15
Chatillon SPK-FMG-141 Pistol Grip
Chatillon SPK-FMG-141 Pistol Grip, add $118.75
Chatillon ML3867 Swivel Hook, 20 lbf 112 N
Chatillon ML3867 Swivel Hook, 20 lbf 112 N, add $29.45
Chatillon SPK-FMG-010A Notch Adapter 100 lbf (500 N)
Chatillon SPK-FMG-010A Notch Adapter 100 lbf (500 N), add $26.00
Chatillon SPK-DF-RS232  -  RS232 Cable, 10’ (3m)
Chatillon SPK-DF-RS232 - RS232 Cable, 10’ (3m), add $88.00
Chatillon SPK-FMG-011B Flat Adapter 500 lbf 5/16-18F
Chatillon SPK-FMG-011B Flat Adapter 500 lbf 5/16-18F, add $35.15
Chatillon SPK-FMG-010B Notch Adapter 500 lbf, 2.5 kN 5/16-18F
Chatillon SPK-FMG-010B Notch Adapter 500 lbf, 2.5 kN 5/16-18F, add $35.15
Chatillon SPK-FMG-012A Hook, Stationary - 50 lbf 225 N
Chatillon SPK-FMG-012A Hook, Stationary - 50 lbf 225 N, add $26.00
Chatillon ML3850 Swivel Hook, 100 lbf 500 N
Chatillon ML3850 Swivel Hook, 100 lbf 500 N, add $38.95
Chatillon P-10020  #10-32 to 5/16-18 Female to Male Thread Adapter
Chatillon P-10020 #10-32 to 5/16-18 Female to Male Thread Adapter, add $30.00
Chatillon SPK-DF-118 Carrying Case for DFX, DFE and DFS
Chatillon SPK-DF-118 Carrying Case for DFX, DFE and DFS, add $95.95
Chatillon SPK-FMG-012C Hook, Stationary -  500 lbf, 2.5 kN 5/16-18F
Chatillon SPK-FMG-012C Hook, Stationary - 500 lbf, 2.5 kN 5/16-18F, add $35.15
Chatillon NC002500 Hook with Latch 500 lbf Thread 5/16-18F
Chatillon NC002500 Hook with Latch 500 lbf Thread 5/16-18F, add $135.85
Chatillon SPK-FMG-012B Hook, Stationary - 100 lbf 500 N
Chatillon SPK-FMG-012B Hook, Stationary - 100 lbf 500 N, add $35.15
Chatillon SPK-FMG-008A Chisel Point Adapter 100 lbf (500 N)
Chatillon SPK-FMG-008A Chisel Point Adapter 100 lbf (500 N), add $26.00
Chatillon SPK-FMG-013A Extension Rod, Low Capacity  (#10-32)
Chatillon SPK-FMG-013A Extension Rod, Low Capacity (#10-32), add $35.15
Chatillon ML3869 Swivel Hook, 225 lbf.
Chatillon ML3869 Swivel Hook, 225 lbf., add $50.00

Outputs The DFE3 Series comes standard with a USB-C connection. The USB interface allows communications with a PC.

Calibrate and Verify Status The DFE3 Series incorporates flash memory. You have immediate access to battery conditions, including estimated battery life remaining. You can also view loadcell status, including the number of overloads that have been applied to the gauge.

Time Method The Time method allows you to establish your load averaging based on a load threshold and time duration. The load threshold determines the start of the averaging, while the time duration defines the length of the test period. The gauge will begin taking readings when the threshold is reached and will continue to take and average readings until the time duration has expired.

Battery Life The extraordinarily long battery life of the DFE3 reduces the need for continuous recharging. The dimming functionality of the DFE3 provides a battery life of 30 hours when the dimming is off while turning the dimming on will provide a full 40 hours of battery life.

Functions and Features

Unique User Interface Easy to use, single layer user interface. No deep menu structure! Operate and set-up the DFE3 to perform your tasks. Fast and intuitive! The high resolution display features brightness adjustments and can be inverted when required. The display can even be "hidden" at the press of a button. A load bar graph indicating load direction, measured load, and safe load helps prevent overloads: the load bar changes from green to red to indicate proximity to load cell capacity. The integral loadcells feature mechanical overload protection at 150% Full Scale.

Dependable Measurements The DFE3 Series features an integral loadcell sensor that delivers repeatable, accurate results. The innovative load bargraph shows dynamic load, direction of load and warns you of pending overload conditions. Smart technology in the gauge even keeps track of overload history to aide in maintenance and troubleshooting.

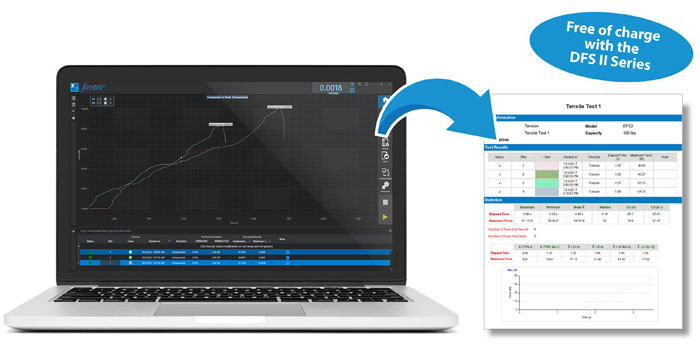

Automate with ForceTest (Free with your Chatillon DFE3)

  • Expand Functionality - The ForceTest software expands the functionality of your Chatillon DFE3 force gauge. This easy-to-use Windows based software interfaces directly to your digital force gauge enabling you to automatically perform tests and graphs using a personal computer. Test results can be followed directly on the screen while the test is running.
  • Intuitive User Interface - The colorful and intuitive user interface ensures that tests are simple to set up. Custom chart colors can be set for easy viewing. Units of measure, fonts, titles and force measurement resolution can also be customized through the ForceTest software.
  • Easy Export and Reporting - Test results are presented in a preadsheet format allowing you to analyze and manipulate data and perform common mathematical and statistical calculations. Results may be displayed graphically versus time. Tabular results are displayed and can be used to create relationships, queries or used to produce reports. Test results can be exported to a .csv format. Graphs and test results can also be exported directly to PDF and Word formats.
  • Wide Variety of Options - Force at maximum in a time window, average force and much more can be captured using the ForceTest software. Basic force measurement such as tensile and compression test formats, pull to limit, and compress to limit are performed by clicking just a few buttons.
  • Reduce Setup Time - To reduce setup time the ForceTest software offers pre-set templates. It also empowers its user to auto load the latest test performed, and to open previously saved tests for use as template for new tests.

Specifications

Model DFE3-002 DFE3-010 DFE3-025 DFE3-050 DFE3-100 DFE3-200 DFE3-500
Price Chatillon DFE3-002 Digital Force Gauge -  2 x 0.0001 lbf
$1,295.00
Chatillon DFE3-010 Digital Force Gauge -  10 x 0.001 lbf
$1,295.00
Chatillon DFE3-025 Digital Force Gauge -  25 x 0.001 lbf
$1,295.00
Chatillon DFE3-050 Digital Force Gauge -  50 x 0.001 lbf
$1,295.00
Chatillon DFE3-100 Digital Force Gauge -  100 x 0.01 lbf
$1,295.00
Chatillon DFE3-200 Digital Force Gauge -  200 x 0.01 lbf
$1,295.00
Chatillon DFE3-500 Digital Force Gauge -  500 x 0.01 lbf
$1,295.00
Capacity x Resolution 2 x 0.0001 lbf 10 x 0.001 lbf 25 x 0.001 lbf 50 x 0.001 lbf 100 x 0.01 lbf 200 x 0.01 lbf 500 x 0.01 lbf
10 x 0.001 N 50 x 0.001 N 100 x 0.01 N 250 x 0.01 N 500 x 0.01 N 1000 x 0.1 N 2500 x 0.1 N
1 x 0.0001 kgf 5 x 0.0001 kgf 10 x 0.001 kgf 25 x 0.001 kgf 50 x 0.001 kgf 100 x 0.01 kgf 250 x 0.01 kgf
32 x 0.001 ozf 160 x 0.01 ozf 400 x 0.01 ozf 800 x 0.01 ozf 1600 x 0.1 ozf - -
1000 x 0.1 gf 5000 x 0.1 gf 10000 x 1 gf 25000 x 1 gf 50000 x 1 gf - -
Ports USB-C
Accuracy ±0.2% of Full Scale
Maximum Overload 150% of Rated Capacity
Resolution Up to 50,000 resolution points
(according the Unit & Capacity)
Peak Capture Rate 10 kHz
Data Sampling 30 kHz
Display Update Rate 10 Hz
Data Save Up to 100 Results (internal 32Go SD Card)
Loadcell Thread End #10-32 5/16-18 UNC
Power Battery (Lithium Ion) or via the USB-C port
Battery Life With Dimming On: 40 Hours
With Dimming Off: 30 Hours
Operating Temperature 40 to 110°F (5 to 45°C)
Instrument Weight 1.1 lbs (0.5 kg)
Shipping Weight 4 lbs (2 kg)

Accessories

Supplied Ready-To-Go Regardless of the configuration, your DFE3 is supplied ready-to-go. The gauge and accessories are supplied in a durable carrying case that is designed for all components including adapters and a USB charger. The units are powered by an internal, rechargeable Lithium-Ion battery. The compliment of adapters is comprehensive and includes a hook, compression tip, pointed tip, chisel tip, and a notch tip: everything you need to get started.

Included Accessories List
  • Chisel Point, 110 lbf. SPK-FMG-008A
  • Chisel Point, 550 lbf. SPK-FMG-008B
  • Point Adapter, 110 lbf. SPK-FMG-009A
  • Point Adapter, 550 lbf. SPK-FMG-009B
  • Notch Adapter, 110 lbf. SPK-FMG-010A
  • Notch Adapter, 550 lbf. SPK-FMG-010B
  • Flat Adapter, 110 lbf. SPK-FMG-011A
  • Flat Adapter, 550 lbf. SPK-FMG-011B
  • Hook, 50 lbf. SPK-FMG-012A
  • Hook, 110 lbf .SPK-FMG-012B
  • Hook, 550 lbf .SPK-FMG-012C
  • Carrying Case. SPK-DF-118
  • Battery Charger, Universal, with Cable . SPK-DF3-UNIV
Full Accessories List
  • Chisel Point, 110 lbf. SPK-FMG-008A
  • Chisel Point, 550 lbf. SPK-FMG-008B
  • Point Adapter, 110 lbf. SPK-FMG-009A
  • Point Adapter, 550 lbf. SPK-FMG-009B
  • Notch Adapter, 110 lbf. SPK-FMG-010A
  • Notch Adapter, 550 lbf. SPK-FMG-010B
  • Flat Adapter, 110 lbf. SPK-FMG-011A
  • Flat Adapter, 550 lbf. SPK-FMG-011B
  • Hook, 50 lbf. SPK-FMG-012A
  • Hook, 110 lbf . SPK-FMG-012B
  • Hook, 550 lbf . SPK-FMG-012C
  • Extension Rod, 6" (152mm), #10-32. SPK-FMG-013A
  • Extension Rod, 6" (152mm), 5/16-18. SPK-FMG-013B
  • Carrying Case. SPK-DF-118
  • Load Cell Shaft Protector. SPK-DFG3-001
  • #10-32 to 5/16-18 Adapter. P-10020
  • RS232 Cable, 10' (3m). SPK-DF-RS232
  • Pistol Grip. SPK-FMG-141
  • Swivel Hook, 50 lbf . ML3867
  • Swivel Hook, 110 lbf. ML3850
  • Swivel Hook, 225 lbf. ML3869
  • Swivel Hook, 550 lbf . ML3868
  • Hook, Latch NC002500
  • Force Test DF2 & DF3 Software. SPK-DF-FORCETEST
    Handle Assembly, DFE3/DFS3. SPK-DF3-HANDLE
  • Handle Assembly, DF3 Series. 6873
  • Grip Handle, MSC/FCE Rev. A. NC002825
  • Screw, Flat Head Socket Cap Rev. –. E08-257
    5/8 Eye End Kit with Grip Pin for Gauges. SPK-TCM-001
  • Phan. 5/8 Eye End Kit with. SPK-TCM-001/PHAN
  • Grip Pin for Gauges
  • Shaft, Load Cell to 5/8 Eye End, 5/16-24M . NC003235
  • to 5/16-18M Rev A
  • Upper Eye End Adapter, 5/8" to 5/16-18F Rev A. NC003236
  • Locking Ring Rev –. NC003140
  • Locking Ring – Eye End, 5/16-18F Rev A. NC003237
  • Use PIT/0169/00 Pin, Small Grip Rev 5. NC000612
  • Adapter, 5/16-18M to 5/16-18F THRD. NC003254
  • for 5/8 Upper Eye End, DFG3
  • Adapter, 5/16-18M to 10-32F THRD. NC003255
  • for 5/8 Upper Eye End, DFG3
    Kit, DF Metric Couplers #10-32_M6; SPK-TCM-033
  • 5/16-18_M6; M8_5/16-18
  • Coupling #10-32 Female to M6x1mm Female Rev –. NC002652
  • Coupling 5/16-18 Female to M6x1mm Female Rev –. NC002658
  • Adapter, Threaded, M8x1.25 to 5/16x18, DFG3. NC003256
    Battery Charger, Universal, with Cable . SPK-DF3-UNIV
  • Cable, USB-C/USB-A, 3 FT, Black . 6885
  • Adapter, Wall Mount, AC/DC, 5V, 5W, USB-A . 6886
  • Kit, AC Adapter for P/N 6886 . 6887
SPK-TCM-001 The redesigned grip and fixture connection kit offers more flexibility with a wide variety of fixtures.

Included Accessories

Part No. Image Description Capacity
SPK-FMG-008A Chisel Point 100 lbf (500 N)
SPK-FMG-008B Chisel Point 500 lbf, 2.5 kN
SPK-FMG-009A Point Adapter 100 lbf (500 N)
SPK-FMG-009B Point Adapter 500 lbf, 2.5 kN
SPK-FMG-010A Notch Adapter 100 lbf (500 N)
SPK-FMG-010B Notch Adapter 500 lbf, 2.5 kN
SPK-FMG-011A Flat Adapter #10-32 100 lbf 500 N
SPK-FMG-011B Flat Adapter 5/16-18F 500 lbf, 2.5 kN

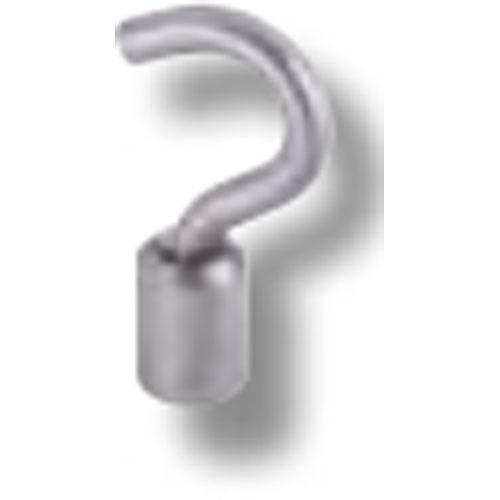

SPK-FMG-012A Hook, Low Capacity #10-32 50 lbf 225 N

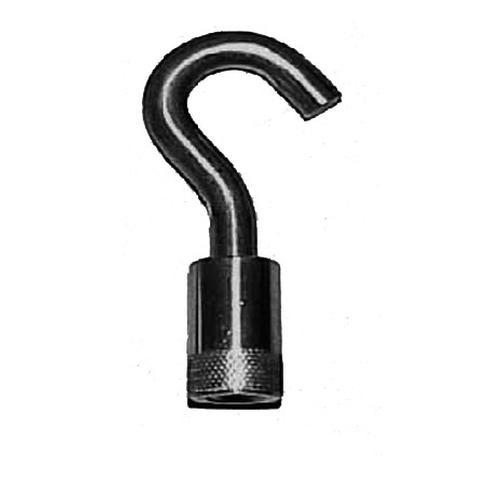

SPK-FMG-012B Hook, Medium Capacity #10-32 100 lbf 500 N

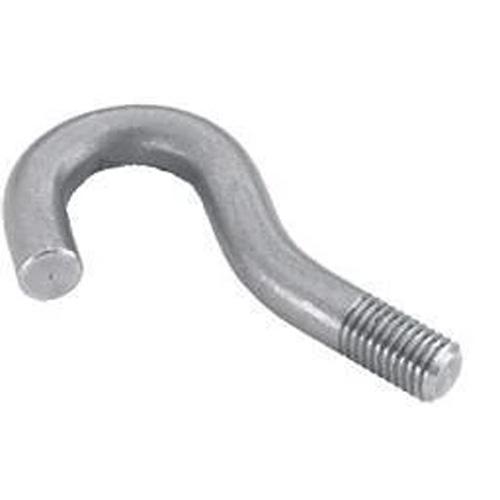

SPK-FMG-012C Hook, Stationary 5/16-18 500 lbf, 2.5 kN
SPK-FMG-013A Extension Rod, 6” (152mm), Low Capacity (#10-32) 100 lbf 500 N
SPK-FMG-013B Extension Rod, 6” (152mm) (5/16-18F) 500 lbf, 2.5 kN
SPK-DF2-UNIV Universal Battery Charger -

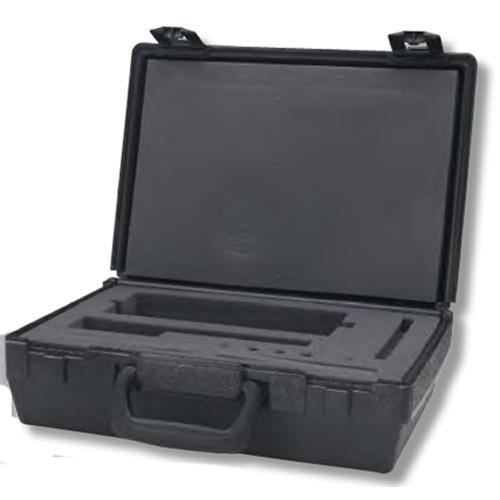

SPK-DF-118 DFX Series Carrying Case -
SPK-DF-RS232 RS232 Cable, 10’ (3m) -
