Eilon Engineering Ron3050CW005 0.5t Integrated Display Crane Scale 1000 x 0.5 lb |
|
| Ron 3050 Integrated 2inch/50mm Display Crane Scale The Ron 3050 features high accuracy (0.1% of full scale). Featuring extremely long battery life , the Ron 3050 can operate up to 2000 hours on AA disposable batteries. Made from aerospace steel, more ... |
|
Industrial Scales >
Crane Scales & Dynamometers >
Digital Crane Scales
|
|
|
|
|
|
Features

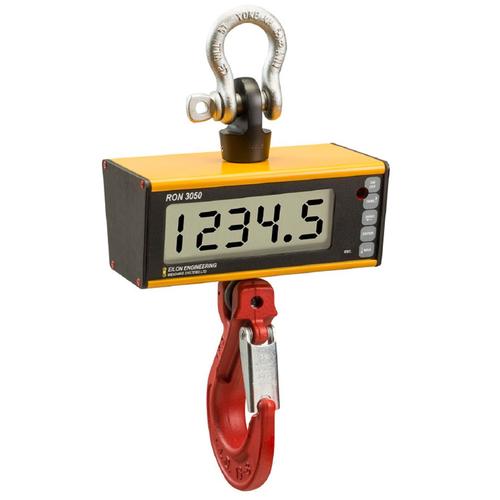

Ron 3050 Integrated 2inch/50mm Display Crane Scale The Ron 3050 features high accuracy (0.1% of full scale). Featuring extremely long battery life , the Ron 3050 can operate up to 2000 hours on AA disposable batteries. Made from aerospace steel, the Ron 3050 includes fatigue rated load cells for increased safety. Separate load cell and indicator for safety and durability. Often used in offshore, wind turbines maintenance and other heavy industries. Its durable and shock absorbing design and optional protective cage makes it especially suitable for harsh conditions. The Ron 3050 is available with advanced options like data loggers, serial/USB outputs or wired/wireless communication with PCs, printers and additional displays.
- Warranty: 5 years
- Portable: Lightweight and small.
- Highly Accurate: ± 0.1% of full range - important for early overload detection.

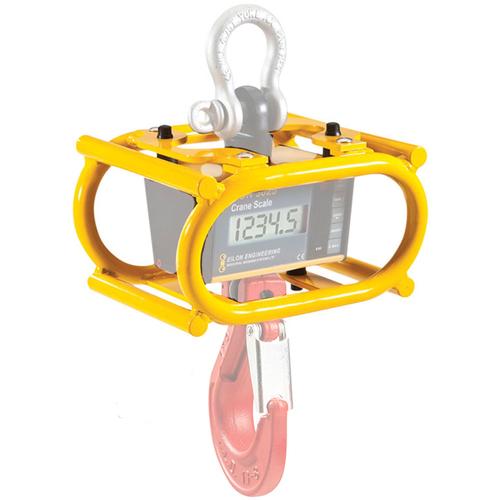

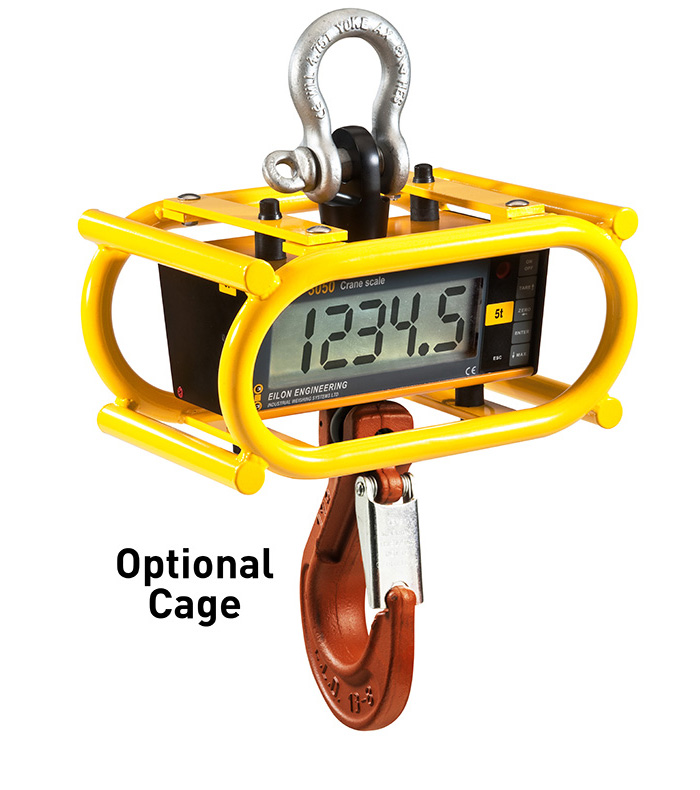

- Protective Cage: High quality cage mounted on rubber cushions for protection against external impacts.
- Heavy-Duty: Aluminum housing and optional protective cage.
- Readable: Large digits can be read from a distance.
- Excellent battery life: Up to 2000 Hours (3x AA batteries)
- Quality Materials: Exclusive use of high strength aerospace quality steel for load cell bodies
- Meets Standards: All Eilon Engineering load cells are Fatigue Rated according to ASME BTH-1-2017, ASME B30.26 and IEC 61508.
- Robust: Heavy duty designs with shock absorbing mechanisms.
- Minimal Headroom loss: Smallest on the market - important for indoor applications.
- Short delivery time: 48-72 hours.
- Remote Control: Optional
- More than 40 years in the market with repeat customers such as NASA, Boeing, Cirque du Soleil, Disney, GE, Lockheed Martin, other Fortune 500 companies, as well as numerous small businesses
- Safety factor: Load cell body - 5:1. Hook - at least 4:1
- Accuracy: 0.1% of full range.
- Calibration: User calibration. Initial factory calibration, fully traceable (certified).
- Load Cell Material: high-strength, aerospace quality, alloy steel.
- Proof Load: Each system proof-loaded to 200% of capacity (certified)
- Display: 5/6 digits, 2" (50mm) liquid crystal display. Overload warnings (100%/130%), Max (peak hold), low battery indication, Gross/Net. Refresh rate 1Hz.
- Sampling Rate: 200 per second.
- Functions: Zero. Tare. Battery charge level indication. Low battery warning. Max. (peak hold). Sleep mode, wakes automatically when loaded.
- Units: User selectable units (metric tons, short tons, kgs., Ibs., Newtons, Deca-Newtons, Kilo-Newtons.
- Housing: Extruded Aluminum.
- Temperature Range: -4°F to +158°F (-20°C to +70°C).
- Environmental: IP65.
OPTIONS - Please Call 718-336-5900 for more Info
- 1 or 2 user-adjustable set points
- Additional 0.5"/12 mm LCD display with cable connection or wireless.
- Additional 1"/25 mm LCD display with cable connection or wireless.
- Additional 2"/50 mm LCD display with cable connection or wireless.
- Additional 5"/125 mm LED display with cable connection or wireless
- Analog output: 0 to 3V
- Analog output: 4 to 20 mA
- Dampened display for unstable load
- Automatic/Manual Data Logger - Up to 50,000 measurements

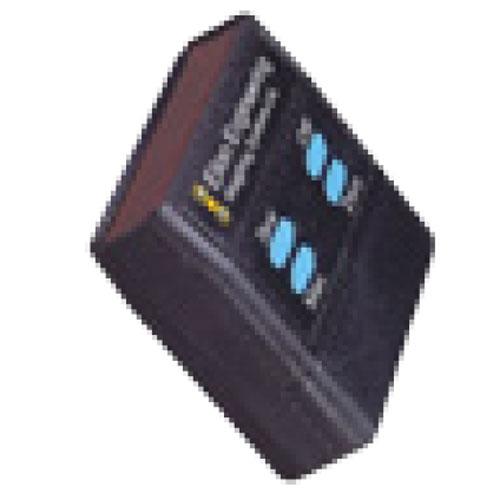

- Remote Control
- Number of measurements per second: 1, 2, 3, factory set
- Real-time clock: date, hour, minute, second adds time stamp to RS-232 output
- Rechargeable batteries with an external charger.
- RS-232 - continuous or on demand data output, user-selectable
- RS-485 - continuous or on demand data output, user-selectable
- Totalizer
- Totalizer with Data Logging
- Wireless communication to additional display or PC
- USB
Weight:
11.00 lb
|
5 Year Manufacture Warranty
|
Other Eilon Engineering Ron 3050 Integrated Display Crane Scales with 2 inch Display
Ron3050CW005
0.5t Integrated Display Crane Scale 1000 x 0.5 lb
$2,533.56
You are viewing this product
|
Ron3050CW01
1t Integrated Display Crane Scale 2000 x 1 lb
$2,544.98
|
Ron3050CW012
1.25t Integrated Display Crane Scale 2500 x 1 lb
$2,556.40
|
Ron3050CW016
1.6t Integrated Display Crane Scale 3200 x 2 lb
$2,565.92
|
Ron3050CW02
2t Integrated Display Crane Scale 4000 x 2 lb
$2,579.24
|
Ron3050CW025
2.5t Integrated Display Crane Scale 5000 x 2 lb
$2,594.47
|
Ron3050CW03
3t Integrated Display Crane Scale 6000 x 2 lb
$2,607.80
|
Ron3050CW032
3.2t Integrated Display Crane Scale 6400 x 5 lb
$2,621.12
|
Ron3050CW05
5t Integrated Display Crane Scale 10000 x 5 lb
$2,692.50
|
Ron3050CW08
8t Integrated Display Crane Scale 16000 x 10 lb
$2,836.22
|
Ron3050CW10
10t Integrated Display Crane Scale 20000 x 10 lb
$2,918.07
|
Ron3050CW12
12.5t Integrated Display Crane Scale 25000 x 10 lb
$2,984.69
|
Ron3050CW15
15t Integrated Display Crane Scale 30000 x 10 lb
$3,121.74
|
|
Specifications
| Model |
Capacity in Metric Tons |
Capacity x Readability |
Weight |
| Ron3050CW005 |
0.5t |
1000 x 0.5 lb |
11 LB |
| Ron3050CW01 |
1t |
2000 x 1 lb |
11 LB |
| Ron3050CW012 |
1.25t |
2500 x 1 lb |
11 LB |
| Ron3050CW016 |
1.6t |
3200 x 2 lb |
11 LB |
| Ron3050CW02 |
2t |
4000 x 2 lb |
13.2 LB |
| Ron3050CW025 |
2.5t |
5000 x 2 lb |
13.2 LB |
| Ron3050CW03 |
3t |
6000 x 2 lb |
13.2 LB |
| Ron3050CW032 |
3.2t |
6400 x 5 lb |
13.2 LB |
| Ron3050CW05 |
5t |
10000 x 5 lb |
15.4 LB |
| Ron3050CW08 |
8t |
16000 x 10 lb |
22 LB |
| Ron3050CW10 |
10t |
20000 x 10 lb |
33 LB |
| Ron3050CW12 |
12.5t |
25000 x 10 lb |
33 LB |
| Ron3050CW15 |
15t |
30000 x 10 lb |
44 LB |
|
|
|
* within the 48 continental US States
|
|
|
|
|
|
|
|
