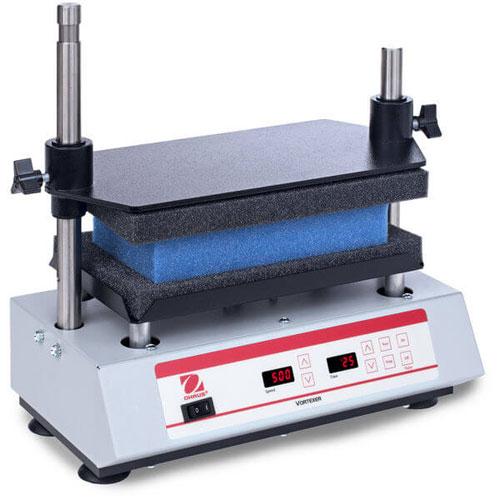

Ohaus VXMTDGB Digital Painted Steel Multi-Tube Vortex Mixer - 500 rpm – 2500 rpm (Two-piece housing) |
|
| Multi-Tube Vortexers are ideal for high throughput sample processing. Interchangeable foam racks for vortexing tubes from 10 to 29 mm in diameter available. Vortexing action is created by securing the top of the sample in place while allowing the bottom to rotate freely in a 3.6mm orbit. Suction cup feet reduce motion and prevent sliding on work surface. more ... |
|
Scales >
Laboratory >
Vortex Mixers
|
|
Have Questions?
Our Staff will be glad to help |
|
|
|
|
|
|
|
|
|
Features
Multi-Tube Vortexers are ideal for high throughput sample processing. Interchangeable foam racks for vortexing tubes from 10 to 29 mm in diameter available. Vortexing action is created by securing the top of the sample in place while allowing the bottom to rotate freely in a 3.6mm orbit. Suction cup feet reduce motion and prevent sliding on work surface. Analog & digital models, both microprocessor-controlled and run in continuous or timed mode.
Applications
Suspensions, Genotyping, High Throughput DNA and RNA Testing in Clinical Labs
Display
Independent LED displays for speed/time allow the operator to view both settings simultaneously (digital models)
Operation
Detachable 3-wire cord and plug (included)
Communication
N/A
Construction
Stainless steel foam rack for (50) 12 mm diameter tubes (included), interchangeable foam racks for vortexing tubes from 10 - 29 mm in diameter
Design Features
Microplate adapter and cup head (included)
| Housing |
Painted Steel / Two-Piece |
| Control |
Digital |
| Duty Rating |
Continuous |
| Orbit {metric} |
0.1 in (3.6 mm) |
| Speed Range |
500 rpm – 2500 rpm |
| Capacity |
10 lbs (4.5 kg) |
| Dimensions (HxLxW) |
16 in x 9.5 in x 15.1 in (40.6 cm x 24.1 cm x 38.4 cm) |
| Net Weight |
44.8 lb (20.3 kg) |
| Power |
120V, 5A, 50/60Hz |
| Power Consumption |
100 W |
| Safety Certification |
TUV |
| Tray Size |
7.25 in x 18.4 cm x 12.25 in x 31.1 cm |
| Working Environment |
39°F – 104°F, 20% – 85%RH, non-condensing (4°C – 40°C, 20% – 85%RH, non-condensing) |
|
|
