Shimpo DT-361 High Intensity LED Stroboscope, 100-230VAC

SHIMPO INSTRUMENTS
The DT-361 High-Intensity LED Stroboscope is a velocity analyzing and measuring device that is ideal for machinery process inspection. The DT-361s LED technology extends operation due to the low energy requirement of the light diodes. The light output (Lux) of the LED array is far brighter than xenon powered stroboscopes more ...
Scales > Industrial Scales > Accessories
Shimpo DT-361 High Intensity LED Stroboscope, 100-230VAC

Specifications Chart

Clall for more info
Shimpo DT-361 High Intensity LED Stroboscope, 100-230VAC
FREE Ground Shipping *


Price: $946.00


In Stock - Ships within 24 hours

Optional Accessories

View Features

SKU: DT-361
Other Shimpo DT-360 High Intensity LED Stroboscopes

DT-361
High Intensity LED Stroboscope
100-230VAC

Price: $946.00
You are viewing this product

DT-365E
High Intensity LED Portable Stroboscope with Rechargeable Battery
6 LED's

Price: $1,100.00

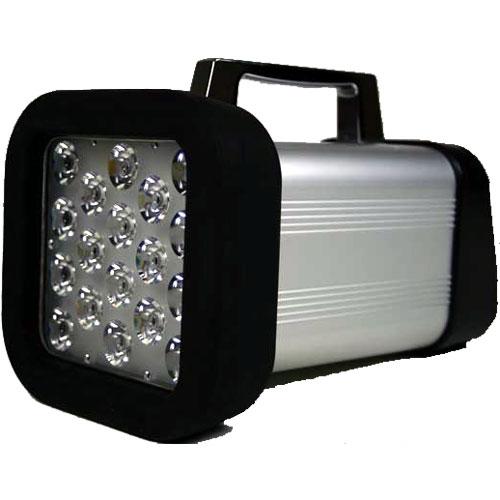

DT-365
High Intensity Portable LED Stroboscope with Rechargeable Battery
18 LED's

Price: $1,315.60

Features

The DT-361 High-Intensity LED Stroboscope is a velocity analyzing and measuring device that is ideal for machinery process inspection. The DT-361s LED technology extends operation due to the low energy requirement of the light diodes. The light output (Lux) of the LED array is far brighter than xenon powered stroboscopes.

The simple to use keypad plus rate adjustment dial aids in making quick changes of the flash rate to coincide with changes in the speed of your process. The dial allows fine-tune altering of the flash rate while the x2/÷2 keys enable large spanning over the entire flash range. The DT-361 has the added feature of modifying the flash duration or on time which aids in picture clarity often necessary in printing processes. The phase shift function is ideal for rotating equipment where the user needs to change the focus on different blades, gears, or section of the machinery.

Features
  • Extraordinary durability with extruded aluminum, NEMA 4X (IP65) construction
  • Bright LED display and simple controls aid in user operation
  • Phase shift (in degrees of delay time) enables visual analysis of rotating or reciprocating objects through all points of motion/time/angle
  • Flash controller dial permits accurate adjustments to the flash rate
  • LED technology greatly extends operation life and eliminates need to replace burned out bulbs
  • Capable of being synchronized with input signal from sensor or controller
Applications

Typical applications for using the DT-361 is to determine speeds, inspect rotors, meshing gears, vibration diagnostic equipment, textile equipment, printing production lines, industrial fan inspection and many more.

Whats included with the SHIMPO DT-361
  • Stroboscope
  • Input Signal Connector
  • Flash-light Style Attachable Handle

Weight: 4.00 lb
2 Year Manufacture Warranty

Specifications

Model DT-361 DT-365 DT-365E
Power Requirement 100 to 230 VAC
Battery - NiMH battery requires approximate 2.5 hour recharge time
Battery Life - Approx. 2 hrs. with flash duration set to 3.6° & 5 hrs. with duration set to 1.0°
Range 60 to 120,000 FPM; From Input Signal 40-35,000rpm
Accuracy ±0.02% of reading
Lux Rating 6000 FPM & 3.6° (100 µs): Distance 8" (20 cm) 18,400 lx with 10" (250 mm) irradiation dia., Distance 20" (50 cm) 6200 lx with 13.5" (350 mm) irradiation dia.
1500 FPM & 3.6° (400 µs): Distance 8" (20 cm) 15,000 lx with 10" (250 mm) irradiation dia., Distance 20" (50 cm) 6000 lx with 13.5" (350 mm) irradiation dia.
Lamp Lifetime Typically 50,000 hours. Varies depending on usage.
Display 6 digit Red LED
Resolution Internal Mode 1 FPM; External Mode 0.1 FPM
Flash Duration 0.1 to 3.6° (0.14 µsec to 400 µsec)
Phase Shift 0 to 999 msec; 0 to 359° 0 to 359°
Synchronization Input Signal H level: 2.5 - 12V; L level: 0 - 0.4V NPN Open Collector 12-24 VDC
Input Signal Range FPM (RPM) 40 – 35,000
Input Signal Flash Delay FPM (RPM) 60-10,000
Input Signal 12V pulse input NPN open collector DC30V, 50 mA
Power Supply Output DC12V 40mA for sensor input
Temperature Limits 32 to 95°F (0 to 35°C)
Humidity Limits 35 to 85% RH
Protection Class NEMA 4X (IP65)
Product Weight 4 lbs (1.8 kg) 4.6 lbs (2.1 kg)
Package Weight 6 lbs (2.72 kg)
Approvals RoHs
Warranty 2-Year
Included Accessories Input Signal Connector, flash-light style attachable handle AC power adapter, Input signal connector, flash-light style attachable handle AC power adapter, flash-light style attachable handle

* within the 48 continental US States


Optional Accessories

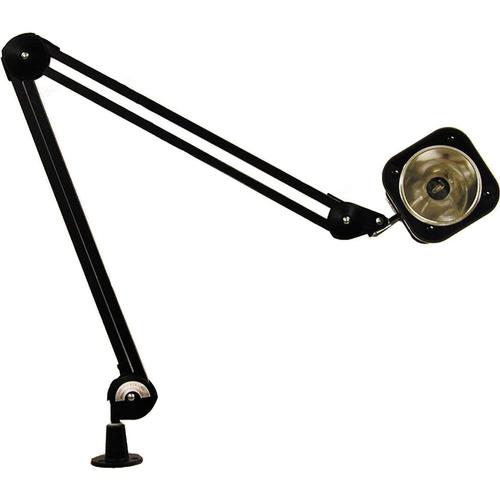

Shimpo SAS-360 Flexible Swing Arm for DT-361, DT-365, DT-365E LED Stroboscopes
more info
Shimpo SAS-360 Flexible Swing Arm for DT-361, DT-365, DT-365E LED Stroboscopes
more info
Price: $220.00
In Stock
btn buy Articulating swing arm for DT-360 series stroboscopes. Heavy duty construction with internal springs for improved strength. Surface mount swivel bracket for mounting to horizontal surface sold separately.
Shimpo CABLE-361-10FT Cable-361-10' 10' Length Daisy Chain Syncing Cable for DT-361 & DT-365 Stroboscopes with Connectors
more info
Shimpo CABLE-361-10FT Cable-361-10' 10' Length Daisy Chain Syncing Cable for DT-361 & DT-365 Stroboscopes with Connectors
more info
Price: $110.00
In Stock
btn buy The Shimpo CABLE-361-10FT is a 10-foot long daisy chain cable for Shimpo dt-361 and dt-365 stroboscopes.
Shimpo CONN-SET361 Input/Output Connector for DT-361 & and DT-365 Stroboscopes
more info
Shimpo CONN-SET361 Input/Output Connector for DT-361 & and DT-365 Stroboscopes
more info
Price: $57.20
In Stock
btn buy The Shimpo CONN-SET361 is an input and output connector for the Shimpo DT-361 and DT-365 stroboscopes.
