MSI 214371 MSI-9600HT Hi-Torque Port-A-Weigh Plus Legal for Trade 10000 lb x 2 lb |
|
| The MSI-9600HT has a unique configuration designed for heavy capacity coil handling, or other applications, reaching up to 100 tons. A fixed hook is featured for interface compatibility with crane hooks equipped with powered rotation and where high torque conditions exist between the crane hook and load. more ... |
|
Industrial Scales >
Crane Scales & Dynamometers >
Digital Crane Scales
|
|
|
|
|
|
Features
The MSI-9600HT Hi-Torque Port-A-Weigh Plus crane scale, integrated with ScaleCore technology, has models up to 200,000-pound capacity that captures weight within a +/- 0.2% accuracy.
The MSI-9600HT has a unique configuration designed for heavy capacity coil handling, or other applications, reaching up to 100 tons. A fixed hook is featured for interface compatibility with crane hooks equipped with powered rotation and where high torque conditions exist between the crane hook and load.
The enclosure, made with IP66 marine grade alloy anodized aluminum, features a rear-battery casting with snap-closure—keeping everything weathertight. The MSI-9600HT’s vibrant, extra-large, six-digit LED display shows either red, green or orange digits, ensuring operators can view weight in any light condition. Internal setpoints can be used to program the display to change color when nearing an overload condition.
Meeting or exceeding all industrial safety requirements, the MSI-9600HT features a 200% Safe and 500% Ultimate Safety Factor, minimizing overloading accidents.
With a battery life up to 250 hours (see specifications), the MSI-9600HT is built to perform reliably between charges and minimize overload accidents. Choose between an optional Wi-Fi or RF modem for connectivity to the MSI-8000, MSI-8000HD, MSI-8004HD, TranSend™, LaserLight2™ remote display and MSI ScaleCore Webserver.
STANDARD FEATURES
- LED display (red/orange/green) and annunciators
- Top shackle (sold separately)
- 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard)
- Hi-torque load train designed for use with powered rotation
OPTIONS(Contact ScalesGalore for application consultation)
- Top shackle
- Dual radio capability
- Rugged remote control (control for On/Off, Zero, Tare and other functions)
- Anti-heat shielding for high-temperature applications
- Substitute bottom hook with shackle
- Oversized top or shackle
- Oversized bottom hooks
- Universal direct power supply
- Wi-Fi communication is available for specialty applications
- RF modem install for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF remote display, TranSend and LaserLight2 remote display
- Typically 100 to 300ft, line of sight; for longer range consult factory
- Low headroom top adaptor
- Audible alarm
- Custom top and bottom interfaces
Dimensions
X:
28.70
Y:
9.00
Z:
14.00
|
|
Other MSI MSI-9600HT Hi-Torque Port-A-Weigh Plus Legal for Trade Crane Scales
|
Specifications
| Model |
214371 |
214370 |
214369 |
214477 |
214474 |
214479 |
| Capacity x Redability |
10,000 lb x 2 lb |
30,000 lb x 10 lb |
70,000 lb x 20 lb |
100,000 lb x 20 lb |
120,000 lb x 50 lb |
200,000 lb x 100 lb |
| 5,000 kg x 1 kg |
15,000 kg x 5 kg |
35,000 kg x 10 kg |
50,000 kg x 10 kg |
60,000 kg x 20 kg |
100,000 kg x 50 kg |
| Legal For Trade |
Indicator: NTEP: CC 19-122A1 |
| Accuracy |
± (0.1% +1 d) of capacity |
± (0.2% +1 d) of capacity |
| Resolution |
3,000 to 5,000 d standard
(Up to 10,000 d available) |
| Enclosure |
NEMA Type 4, IP66, marine grade 356 alloy anodized cast aluminum |
| Lifting Eye, Shackle & Hook |
Shackle is optional and Crosby® fixed hook provided as standard |
| Safe Design Overload |
200% |
| Ultimate Design Overload |
500% |
400% |
| Functions |
Power: Turns unit on or off Zero: Zeros applied load up to 100% of capacity
Tare: Tares applied load and displays weight in net Mode
F1: Programmable as test, units, net/gross, total and peak hold
|
| Display |
6 digit, 1.5 in (38 mm) LED with programmable brightness control |
| Displayable Units |
Pounds or kilograms selectable |
| Power |
12 Volt rechargeable battery, 115/230 VAC battery charger included |
| Operating Time |
Up to 30 hours between charging with typical use |
| Operating Temperature |
40 °F to 140 °F (-40 °C to 60 °C)
Max: -76 °F to 176 (-60 °C to 80 °C)
Radio may not be reliable below -40 °F (-40 °C)
Continuous operation above 140 °F (60 °C) may reduce battery life |
| Calibration |
Digital |
| Filtering |
OFF, LO, HI-1 or HI-2 selectable |
| Radio Link |
802.15.4 at 2.4 GHz, Wi-Fi |
| Radio Link Effective Range |
Typically 100 to 300 ft line of sight |
| Warranty |
One-year limited |
| Est. Weight |
62 lb |
125 lb |
270 lb |
420 lb |
550 lb |
1100 lb |
Options/Accessories
141992 Top lifting shackle Crosby® G2130 17 ton for 30,000 lb cap unit
146335 Top lifting shackle Crosby® G2140 40 ton for 70,000 lb cap unit
146336 Top lifting shackle Crosby® G2140 55 ton for 120,000 lb cap unit
150971 MSI RF modem option kit (used in MSI-4260, MSI-4260M, MSI-6360, MSI-9600HT) 3 lb
173014 RF rugged remote control (requires MSI-9600HT equipped with RF modem)
153591 MSI-8000HD RF remote display AC powered ( no A/D) 180 lb
178004 4in LaserLight2 MSI RF 21 lb
159221 Universal crane scale transport cart
AC direct power supply-Consult
Anti-heat shield-Consult
Audible alarm-Consult
176956 MSI Wi-Fi modem option kit (used in MSI-4260, MSI-4260M, MSI-6360, MSI-9600HT)
150367 Battery assembly, 12 V rechargeable 7 lb
138006 Universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard) 4 lb Consult
138007 Universal 115/230 VAC, 50/60 Hz battery charger (UK plug standard) 4 lb Consult
138008 Universal 115/230 VAC, 50/60 Hz battery charger (EC plug standard) 4 lb Consult
|
|
|
|
|
|
|
Optional Accessories
more info
|
MSI 138006 (502221-0001) replacement Universal 115/230 VAC, 50/60 Hz battery charger (NA Plug)
MSI 502221-0001 replacement Universal 115/230 VAC, 50/60 Hz battery charger (NA Plug)
|
|
more info
|
MSI 176956 MSI-4260B WIFI Opt. Kit. WIFI Modem Will Allow For Connectivity With Scaleconnect App. (Factory Install only)
MSI 176956 MSI-4260B WIFI Opt. Kit. WIFI Modem Will Allow For Connectivity With Scaleconnect App. (Factory Install only)
|
|
more info
|
MSI 138008 (502221-0003) replacement Universal 115/230 VAC, 50/60 Hz battery charger (EC Plug)
MSI 138007 (502221-0002) replacement Universal 115/230 VAC, 50/60 Hz battery charger (UK Plug)
|
|
more info
|
MSI 138007 (502221-0002) replacement Universal 115/230 VAC, 50/60 Hz battery charger (UK Plug)
MSI 138007 (502221-0002) replacement Universal 115/230 VAC, 50/60 Hz battery charger (UK Plug)
|
|
more info
|
MSI 150367 (D00559-0004) Port-A-Weigh 12V Rechargeable Non-Spillable Battery
MSI 150367 (D00559-0004) Port-A-Weigh 12V Rechargeable Non-Spillable Battery
|
|
more info
|
MSI 159221 Universal Crane Scale Transport Cart
MSI 159221 Universal Crane Scale Transport Cart
|
|
more info
|
MSI 173014 MSI-Rugged Remote Control for Products with XBEE Radios
MSI 173014 MSI-Rugged Remote Control for Products with XBEE Radios
|
|
more info
|
MSI 153591 MSI-8000HD RF 85-265 VAC Remote Display
Fortified by the acclaimed reputation of its star precursor, MSI-8000HD is the heavyduty version of the reputable handheld MSI-8000 RF Remote Display. The milled anodized aluminum, IP68-rated, enclosure is mountable in either a direct panel mount or optional tilt stand. The full waterproof construction resists most elements making it especially appealing to the petro-chemical, energy, marine, and aerospace industries. Fully compatible with all MSI ScaleCore-based crane scales and dynamometers, the MSI-8000HD provides utmost versatility for any application.
Fully ergonomic with user-definable function keys and a bold six-digit one inch display ease usability and readability. Process control, safety and other systems benefit with optional relays installed to optimize workflow and operator ease. The MSI-8000HD-1 and MSI-8000HD-2 may be used as a fully functional weigh meter with the standard inclusion of a precision 24-bit A/D. Additionally, the MSI-8000HD-2 has RF capability to transmit data to a secondary MSI-8000 or non-A/D MSI-8000HD.
Wi-Fi, Ethernet, or serial option cards are available for direct connections to networks and computers for advanced traceability and reporting
- IP68 Rugged Milled Aluminum enclosure
- Membrane Keypad for User Control Functionality
- User Definable Function Keys for added versatility
- Indicator or RF remote display with six-digit 1.0 in (26.4 mm) LCD screen
- IP68 milled aluminum enclosure
- Membrane keypad for remote-control functionality
- User definable function keys for added versatility
- Compatible with all ScaleCore™-based products including: MSI-7300 Dyna-Link 2, MSI-3460 Challenger 3, MSI-4260 Port-A-Weigh, MSI-7000 and MSI-7001
- Swivel tilt stand
|
|
more info
|

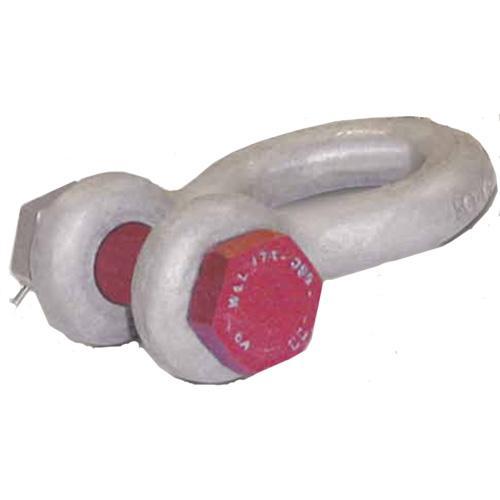

MSI 146336 (23650-0050) Shackle Anchor 55 Ton Bolt Type for 100000 lb cap unit
