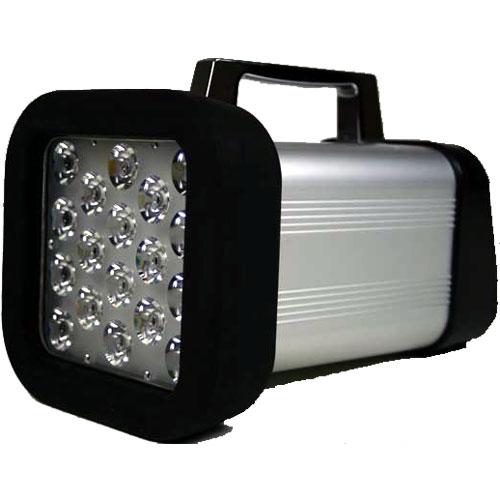

Shimpo DT-365E High Intensity LED Portable Stroboscope with Rechargeable Battery, 6 LED's |
|
The DT-365E Stroboscopes are capable of flashing their LED lights in a synchronous frequency to the operating machinery, creating the illusion of viewing slowed or frozen images. more ... |
Laboratory Equipment >
Stroboscopes >
Stroboscopes
|
|
|
|
Features
The DT-365E Stroboscopes are capable of flashing their LED lights in a synchronous frequency to the operating machinery, creating the illusion of viewing slowed or frozen images. Utilizing this phenomenon of slowing or stopping the motion with the adjusted flash rate of its LED lights, machine parts and processes may be inspected for defects, aiding in preventative maintenance programs. This LED technology extends operation due to the low energy requirement of the light diodes. The DT-365E has the added feature of modifying the flash duration or on time which aids in picture clarity often necessary in printing processes. The phase shift function is ideal for rotating equipment where the user needs to change the focus on different blades, gears, or section of the machinery.
Features
- Extraordinary durability with extruded aluminum, NEMA 4X (IP65) construction
- Bright LED display and simple controls aid in user operation
- Phase shift (in degrees of delay time) enables visual analysis of rotating or reciprocating objects through all points of motion/time/angle
- Flash controller dial permits accurate adjustments to the flash rate
- LED technology greatly extends operation life and eliminates need to replace burned out bulbs
- Capable of being synchronized with input signal from sensor or controller
Applications
Typical applications for the DT-365E are to determine speeds, inspect rotors, meshing gears, motors, textile equipment, printing production lines, conveyors, industrial fans, pump operation, vibration equipment diagnostics and many more.
Whats included with the SHIMPO DT-365E
- Stroboscope
- AC Power Adapter
- Flash-light Style Attachable Handle
Weight:
4.00 lb
|
2 Year Manufacture Warranty
|
Other Shimpo DT-360 High Intensity LED Stroboscopes
|
Specifications
Model |
DT-361 |
DT-365 |
DT-365E |
Power Requirement |
100 to 230 VAC |
Battery |
- |
NiMH battery requires approximate 2.5 hour recharge time |
Battery Life |
- |
Approx. 2 hrs. with flash duration set to 3.6° & 5 hrs. with duration set to 1.0° |
Range |
60 to 120,000 FPM; From Input Signal 40-35,000rpm |
Accuracy |
±0.02% of reading |
Lux Rating |
6000 FPM & 3.6° (100 µs): Distance 8" (20 cm) 18,400 lx with 10" (250 mm) irradiation dia., Distance 20" (50 cm) 6200 lx with 13.5" (350 mm) irradiation dia. 1500 FPM & 3.6° (400 µs): Distance 8" (20 cm) 15,000 lx with 10" (250 mm) irradiation dia., Distance 20" (50 cm) 6000 lx with 13.5" (350 mm) irradiation dia. |
Lamp Lifetime |
Typically 50,000 hours. Varies depending on usage. |
Display |
6 digit Red LED |
Resolution |
Internal Mode 1 FPM; External Mode 0.1 FPM |
Flash Duration |
0.1 to 3.6° (0.14 µsec to 400 µsec) |
Phase Shift |
0 to 999 msec; 0 to 359° |
0 to 359° |
Synchronization Input Signal |
H level: 2.5 - 12V; L level: 0 - 0.4V |
NPN Open Collector 12-24 VDC |
Input Signal Range FPM (RPM) |
40 – 35,000 |
Input Signal Flash Delay FPM (RPM) |
60-10,000 |
Input Signal |
12V pulse input |
NPN open collector DC30V, 50 mA |
Power Supply Output |
DC12V 40mA for sensor input |
Temperature Limits |
32 to 95°F (0 to 35°C) |
Humidity Limits |
35 to 85% RH |
Protection Class |
NEMA 4X (IP65) |
Product Weight |
4 lbs (1.8 kg) |
4.6 lbs (2.1 kg) |
Package Weight |
6 lbs (2.72 kg) |
Approvals |
RoHs |
Warranty |
2-Year |
Included Accessories |
Input Signal Connector, flash-light style attachable handle |
AC power adapter, Input signal connector, flash-light style attachable handle |
AC power adapter, flash-light style attachable handle |
|
|
|
