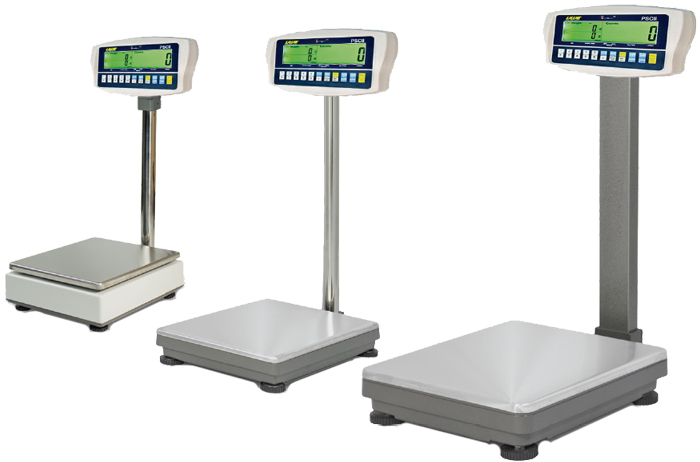

The PSCII-HRC is the newest version of the popular PSCII-HRC Series of bench style counting scales from Intelligent Weighing Technology. The PSCII-HRC scales come in a variety of platform sizes and capacities. These are high capacity, heavy-duty counting scales. Each of these scales has 30,000 displayed divisions, with 1.2 Million internal divisions for accurate counting.
- Ultra-High Resolution of 30,000 Divisions
- Dual Channel Remote Base Compatible
- Numeric & Functions Key Board
- Counting Resolution 1.2 million
- Management Capabilities
- Multiple Data Collection
- Optional Wheel Kit
- Tri-Volor Display
- Real Time Clock
- 100 PLU’s
FEATURES
- Supports Single, Dual Range & Dual Interval operations
- All Current Operation Results Output in Database Format for Data Management, Processing & Analysis
- 100 x PLU’s per Each Platform (P1, P2 & P1+P2 Together)
- Configurable Keypad, Check & System Buzzer
- Real Time Clock
- Alibi Memory to Store 130,000 Plus Transactions
- Counting Resolution / Platform – 1.2 Million
- Manual, Preset, Repetitive & Continuous Tare Operation
- Continuous Tare w/ Configurable Delay Time Before Tare Action
- Full Numeric & Functions Keyboard
- Multi Search Criteria for Report Generation
- Selectable Portrait / Landscape Ticket Printout Format
- Customer & Product Code & Description Support Numbers, Alphabets & Selected Symbols
- User Programmable & 10 x built-in Predefined Continuous / Interval Output Protocol
- Check Result Control for Accumulation, Data Printout & Data Output
- Supports Product Expiry Duration Input & Output
- Machine ID, Machine Group & Operator Number
- Daily, Monthly, Specific Period Report Output
- Supports Customer & Product Code & Description Input
- Supports Inquiry, Setting & Execution Comamands from a PC
- 10 x Quick PLU’s for Unit Weight, Quantity Check Limits, Weight Check Limits,
- Pre-Set Tare, Customer & Product Code Description
| Model |
PSCII-HRC-6EL
00810111852081 |
PSCII-HRC-15EL
00810111852098 |
PSCII-HRC-30EL
00810111852104 |
PSCII-HRC-60EL
00810111852111 |
PSCII-HRC-60FL
00810111852128 |
PSCII-HRC-150FL
00810111852135 |
PSCII-HRC-300FL
00810111852142 |
| Price |
$533.00
|
$533.00
|
$557.70
|
$557.70
|
$658.98
|
$681.66
|
$753.48
|
| Capacity x Readability |
13 x 0.0005 lb |
33 x 0.001 lb |
66 x 0.002 lb |
132 x 0.005 lb |
132 x 0.005 lb |
330 x 0.01 lb |
660 x 0.02 lb |
| 6 kg x 0.2 g |
15 kg x 0.5 g |
30 kg x 1 g |
60 kg x 2 g |
60 kg x 0.005 kg |
150 kg x 0.005 kg |
300 kg x 0.01 kg |
| Platform Size (W x D x H) |
11 x 13 in |
13 x 17.7 in |
16.5 x 20.5 in |
| Divisions |
30,000 |
| Internal Divisions |
1.2 Million |
| Functions |
High Resolution Counting, Statistics, Accumulation, Data Management |
| Weighing Units |
lb or KG *Must select at time of purchase |
| Repeatability & Linearity |
+/– Two Divisions |
| Tare Range |
To capacity by subtraction |
| Power Source |
Built-in rechargeable battery or external power adapter (included) |
| Indicator Construction |
ABS |
| Platform Construction |
Stainless Steel Platform Cover, Cast Aluminum Base, SS Pillar in smaller sizes |
| Display |
Tri-Color Backlit LCD Display |
| Connectivity |
RS232 Male & Female Interfaces, 25 Pin Relay Port External Input Port |
| Operating Environment |
10ºC to 40ºC Non Condensing R.H. < 85% |
| Net Weight |
25.8 lb / 11.7 kg |
42.2 lb / 19.2 kg |
56 lb / 25.4 kg |
| Shipping Weight |
29 lb / 13.2 kg |
46 lb / 20.8 kg |
63 lb / 28.4 kg |
| Options |
Ticket Printer, Label Printer, Wheel Kit, Secondary Weighing Platform Input, Stainless Steel U Shaped Bracket, Wireless Connection Wifi, Bluetooth 2.0 / 4.0 BLE |
| Country of Origin |
Taiwan |
Taiwan |
Taiwan |
Taiwan |
Taiwan |
Taiwan |
Taiwan |
|
