Ohaus Frontier 5000 Multi Pro Centrifuges
Authorized Dealer
Frontier 5000 Multi Pro Centrifuges are designed for universal use in research, industrial & clinical laboratories, and can be combined with our rotors & accessories for customized use in specific applications. Available in 5 models with capacities from low microliter to 6x250 ml, and featuring high-speed performance at maximum volume, automatic rotor identification and safety features - these multi-purpose centrifuges are a must for any lab.
Milligram Model with Round Platform (draftshield included)
FC5714 ,FC5718, FC5816

FC5718R
Square Platform
FC5816R

Specifications Chart

Call now

FC5714

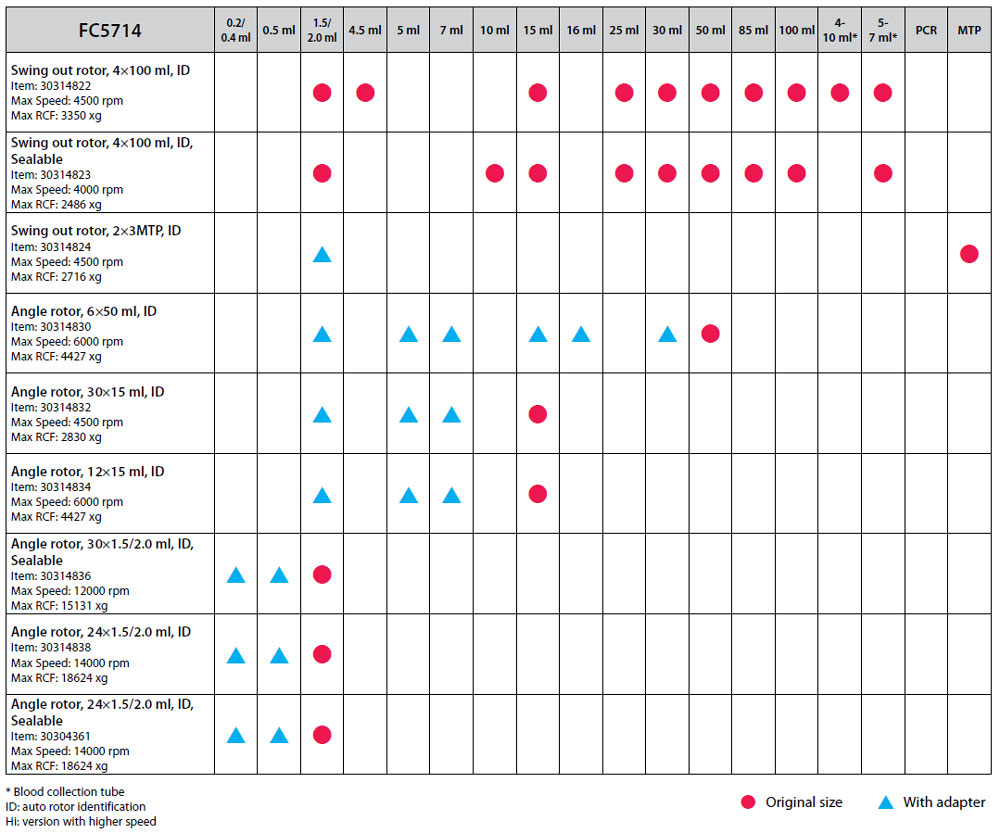

Compatible Rotors Chart

FC5718 / FC5718R
Compatible Rotors Chart

FC5816 / FC5816R
Compatible Rotors Chart

Powerful and Versatile Universal Centrifuges for Virtually Every Lab Application
Frontier 5000 Multi-Pro Centrifuges are designed for universal use in virtually every application in research, industrial & clinical laboratories. Combine with our range of rotors & accessories for customized use in specific applications. Available in 5 models with capacities from low microliter to 6x250 ml - and featuring high speed performance at maximum volume, automatic rotor identification system and safety features, these multi-purpose centrifuges are a must for any lab. Standard Features Include:
  • Powerful Platform Offers Maximum Flexibility for a Range of Applications Our multi-purpose centrifuges offer a high-speed centrifugation platform which can be cust omized to fit workflow needs using a wide variety of rotors and accessories.
  • Intuitively Designed for User-Friendly Operation The intuitive design of the centrifuges & accessories enable easy access to parameter settings, and quick rotation between applications. Features include automatic rotor recognition and backlit LCD.
  • Solid Engineering Ensures Reliability and Durability The performance of these centrifuges is propelled by German engineering, and highquality components for reliable use. Constructed of chemical-resistant stainless steel to ensure durability in lab use.
  • Increased Safety With Built-in Protective Features Frontier 5000 Series is equipped with protective features, including automatic over-speed protection, imbalance detection and self-diagnostic system to ensure reliable use and operator safety.

Maximum Application Flexibility
Choose from five models from small to medium capacity, speed range of 14,000 – 16,000 rpm and non-refrigerated/refrigerated options to suit your application. Ideal for spinning most tubes and bottles in the lab, including microtubes, blood tubes, round bottom tubes, conical tubes and microtiter plates.

FC5714 Centrifuge (non-refrigerated)
  • Compatible with up to 9 optional rotors and 77 accessories
  • Capacities from microliter to 4×100 ml
  • High-speed centrifugation (>10000 rpm) from 0.2 ml up to 1.5/2.0 ml tubes
FC5718 (non-refrigerated) and FC5718R (refrigerated) Centrifuges
  • Compatible with up to 19 optional rotors and 122 accessories
  • Capacities from microliter to 4×100 ml
  • High-speed centrifugation (>10000 rpm) from 0.2 ml up to 85 ml tubes
  • Temperature variable range of -20 °C to 40 °C (FC5718R)
FC5816 (non-refrigerated) and FC5816R (refrigerated) Centrifuges
  • Compatible with up to 13 optional rotors and 71 accessories
  • Capacities from microliter to 6×250 ml
  • Improved sample processing through-put with additional rotor for blood collection tubes and standard conical
  • High-speed centrifugation (>10000 rpm) from 0.2 ml up to 250 ml tubes
  • Temperature variable range of -20 °C to 40 °C (FC5816R)
Intuitively Designed for Simple Operation

Frontier 5000 Series was designed to make lab processes more efficient and easier, and includes many user-friendly features & software that allow for intuitive operation.

  • Automatic rotor identification makes switching between applications extremely easy
  • Simple one-hand operation enabled by the selection button/rotary knob combination —even with gloves on
  • Large backlit LCD display shows centrifugation settings and real-time parameters on one interface
  • Program storage up to 99 runs including parameter settings and rotor types
Solid Engineering Ensures Reliability

Manufactured with high-quality components for reliable use and German engineered for high performance. Chemical and corrosion-resistant stainless steel housing ensures durability in lab environments.

  • Maintenance-free induction drive
  • Thread-free rotor locking mechanism
  • Optimized airflow system to keep samples cool (non-refrigerated models)
  • Pre-cooling program to quickly reach desired temperature (refrigerated models)
  • Chemical and corrosion-resistant stainless steel housing ensures durability in lab environments
  • Self-diagnostic program to record usage and error history for easy maintenance and to minimize downtime
Safety Features for Increased Security

These centrifuges are equipped with additional protective features for redundancy in safety and reliable operation.

  • Over-speed protection, immediately upon rotor insertion
  • Active imbalance-detection with individual imbalance tolerances set for each rotor
  • Motorized lid-locking system to protect operators from accidental injuries
  • Sealed and bio-containment rotors to safeguard operators from harmful aerosols
Model FC5714 FC5718 FC5718R FC5816 FC5816R
Price 120V 0
$2,486.25
buy now
0
$3,591.25
buy now
0
$5,368.60
buy now
0
$4,288.25
buy now
0
$6,710.75
buy now
Price 230V $2,486.25
buy now
$3,591.25
buy now
$5,368.60
buy now
$4,288.25
buy now
$6,710.75
buy now
Maximum Speed 14000 rpm
10 rpm/set
18000 rpm
10 rpm/set
18000 rpm
10 rpm/set
15000 rpm
10 rpm/set
16000 rpm
10 rpm/set
Maximum RCF 18624 × g
10 × g/set
23542 × g
10 × g/set
23542 × g
10 × g/set
21379 × g
10 × g/set
24325 × g
10 × g/sey
Maximum Capacity 4 × 100ml 4 × 100ml 4 × 100ml 6 × 250ml 6 × 250ml
Temperatur Range Air cool Air cool -20~40°C Air cool -20~40°C
Running Time Short Spin, 10 sec to 99 hr 59 min 59 sec, or continuous
Noise Level
(depending on the rotor)
< 63 + 2 dB(A) < 60 + 2 dB(A) < 60 + 2 dB(A) < 61 + 2 dB(A) < 63 + 2 dB(A)
Number of Compatible Rotors 9 19 19 13 13
Acc/Dec Levels Allowable Kinetic Energy
Allowable Kinetic Energy 5595 Nm 16672 Nm 25111 Nm 34363 Nm 34363 Nm
AC Power 120V ~ 50/60 Hz 120V ~ 50/60 Hz 120V ~ 50/60 Hz 120V ~ 50/60 Hz 120V ~ 50/60 Hz
Current Consumption 2.4 A 4.0 A 6.0 A 4.2 A 7.8 A
Power Consumption 300 W 475 W 660 W 520 W 850 W
Voltage Fluctuation ± 10 %
Dimensions (W × D × H) 362 x 493 x 330 mm 408 × 499 × 351 mm 407 × 731 × 359 mm 446 × 538 × 354 mm 723 × 538 × 354 mm
Net Weight (without rotor) 30 kg 43 kg 60 kg 52 kg 77 kg
Environment For indoor use only

Other Standard Features and Equipment Ten acceleration and ten deceleration rates, pre-selection of running time from 10s to 99h 59min or continuous, audible signal at the end of each run with melody options, quick spin, CFC-free refrigeration system, sample temperature indication and standstill cooling (refrigerated models)

Compliance
  • Product Safety: EN 61010-1; EN 61010-2-020
  • EMC: EN 61326-1

FC5714 Compatible Rotors

Ohaus Frontier 5000
Multi Pro Centrifuges

FREE UPS Ground Shipping
(within the 48 continental US States)

FC5714 Compatible Rotors


Ohaus 30314834 Frontier Rotor, 12x15ml RB/FA, ID, add $746.10

Ohaus 30314838 Frontier Rotor, 24x1.5/2.0ml, ID, add $664.20

Ohaus 30304361 Frontier Rotor, 24x1.5/2.0ml, ID, Sealable, add $880.20

Ohaus 30314836 Frontier Rotor, 30x1.5/2.0ml, ID, Sealable, add $1,191.60

Ohaus 30314832 Frontier Rotor, 30x15ml RB/FA, ID, add $1,152.00

Ohaus 30314830 Frontier Rotor, 6x50ml RB/FA, ID, add $736.20

Ohaus 30314824 Frontier Swing Out Rotor, 2x3MTP, ID, add $1,481.40

Ohaus 30314822 Frontier Swing Out Rotor, 4x100ml, ID, add $1,015.20

Ohaus 30314823 Frontier Swing Out Rotor, 4x100ml, ID, Sealable, add $853.20

FC5718 / FC5718R Compatible Rotors


Ohaus 30314829 Frontier Rotor, 10x50ml FA, ID, add $2,166.30

Ohaus 30314839 Frontier Rotor, 12x1.5/2.0ml, ID, add $1,066.50

Ohaus 30314834 Frontier Rotor, 12x15ml RB/FA, ID, add $746.10

Ohaus 30314833 Frontier Rotor, 20x10ml RB, ID, Hi, add $1,523.70

Ohaus 30314838 Frontier Rotor, 24x1.5/2.0ml, ID, add $664.20

Ohaus 30304361 Frontier Rotor, 24x1.5/2.0ml, ID, Sealable, add $880.20

Ohaus 30314836 Frontier Rotor, 30x1.5/2.0ml, ID, Sealable, add $1,191.60

Ohaus 30314832 Frontier Rotor, 30x15ml RB/FA, ID, add $1,152.00

Ohaus 30314835 Frontier Rotor, 44x1.5/2.0ml, ID, add $936.90

Ohaus 30314841 Frontier Rotor, 4x8-w PCR Strip, ID, add $1,544.40

Ohaus 30314840 Frontier Rotor, 64x0.5ml, ID, add $1,081.80

Ohaus 30314831 Frontier Rotor, 6x50ml RB, ID, Hi, add $1,480.50

Ohaus 30314830 Frontier Rotor, 6x50ml RB/FA, ID, add $736.20

Ohaus 30314826 Frontier Rotor, 6x85ml RB, ID, add $1,709.10

Ohaus 30314825 Frontier Rotor, 6x85ml RB, ID, Hi, add $1,687.50

Ohaus 30314824 Frontier Swing Out Rotor, 2x3MTP, ID, add $1,481.40

Ohaus 30314822 Frontier Swing Out Rotor, 4x100ml, ID, add $1,015.20

Ohaus 30314823 Frontier Swing Out Rotor, 4x100ml, ID, Sealable, add $853.20

FC5816 / FC5816R Compatible Rotors


Ohaus 30314829 Frontier Rotor, 10x50ml FA, ID, add $2,166.30

Ohaus 30314833 Frontier Rotor, 20x10ml RB, ID, Hi, add $1,523.70

Ohaus 30314838 Frontier Rotor, 24x1.5/2.0ml, ID, add $664.20

Ohaus 30304361 Frontier Rotor, 24x1.5/2.0ml, ID, Sealable, add $880.20

Ohaus 30314827 Frontier Rotor, 4x85ml RB, ID, Hi, add $1,742.40

Ohaus 30314821 Frontier Rotor, 6x250ml FB, ID, add $3,024.90

Ohaus 30314831 Frontier Rotor, 6x50ml RB, ID, Hi, add $1,480.50

Ohaus 30314826 Frontier Rotor, 6x85ml RB, ID, add $1,709.10

Ohaus 30314828 Frontier Swing Out Rotor, 16x50ml, ID, add $1,817.10

Ohaus 30314824 Frontier Swing Out Rotor, 2x3MTP, ID, add $1,481.40

Ohaus 30314820 Frontier Swing Out Rotor, 4x250ml, ID, add $1,226.70

Specifications Chart

FC5714 Compatible Rotors

FC5714 Compatible Rotors

FC5718 / FC5718R Compatible Rotors

FC5718 / FC5718R Compatible Rotors

FC5816 / FC5816R Compatible Rotors

FC5816 / FC5816R Compatible Rotors
