NCI 7885 Series Shipping Scales NCI Mailing and Shipping Scale Products
Authorized Dealer
The 7885 is simple to use, durable, accurate and reliable, and ideal for conveyor lines. The remote display can be placed in a convenient location to allow the user to view the weight, zero the scale, or send weight data. This NTEP approved scale fits into any operation as a stand-alone scale, interfaced to a shipping manifest software, or receiving station.

7885 - 9503-16679
Platter Flat

78859503-16680
Platter Ball Top

Specifications Chart

The 7885 is simple to use, durable, accurate and reliable, and ideal for conveyor lines. The remote display can be placed in a convenient location to allow the user to view the weight, zero the scale, or send weight data. This NTEP approved scale fits into any operation as a stand-alone scale, interfaced to a shipping manifest software, or receiving station
  • Remote Display– Six digit LCD display housed in an extruded enclosure with a 7 foot cable, connected via RJ 45 connector on the rear of the scale
  • Remote Display Bracket– Front mounted, using velcro strips to attach the remote display to base
  • Display Controls– ZERO: Includes Auto Zero Tracking or Manual push button to re-establish zero reference. TEST: Runs a diagnostic test to ensure scales is fully functional, and allows a real-time view of internal settings.
  • Construction– Stainless steel weight platter, powder painted 7 gauge steel weigh bridge and base plate
  • Field Calibration– Alternate span points can simplify field calibration by using less than full capacity weights. Can be set-up as either decimal pound or kilogram.
  • RS-232 Cable– Included with each scale, DB 9-pin, null modem, female connector allows you to connect to a PC
  • Emulation Protocols– Standard NCI default with field confi gurable settings of 8213, 3835, SMA, and Auto Weight Send. This allows you to select compatible scale communication settings or scale drivers during field installation when interfacing with shipping software programs or host devices.
NCI 7885 Series Shipping Scales


NCI 9570-13474 MR4KB Scale to Keyboard Wedge Decoder for Model 7829, 7885, 7815 , add $156.00

NCI 7200-11050 Sealing Kit, add $8.00

NCI 7200-14837 12 inch Pole for Remote Display for Model 7815, add $52.00

NCI 1148-15833 Power Supply (230 VAC) European for Model 7815, add $20.00

NCI 7200-17199 Ball Top Shroud (25 Balls), add $240.00

NCI 7200-17226 Front Mounted Remote Display Bracket, add $40.00

Specifications Chart

Model 7885
9503-16679
7885
9503-16680
7885 9503-16680
$542.50
buy now
7885 9503-16680
$696.50
buy now
Capacity x Readability 150 lb x 0.05 lb 150 lb x 0.05 lb
60 kg x 0.02 kg 60 kg x 0.02 kg
Legal For Trade Class III
NTEP CC#02-069
Canada: #AM5507
Computer Interface RS232 RS232
Platter Type Flat Stainless Steel Stainless Steel Ball Top
Platter Size 18" x 18" 18" x 18"
Construction Stainless steel weight platter, powder painted 7 gauge steel weigh bridge and base plate
Display 6 digit LCD

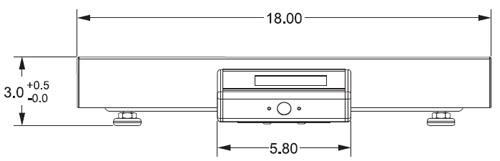

Dimensions 18" L x 18" W x 3" H
457 mm (L) x 457 mm (W) x 76 mm (H)
Power 120 VAC (+10% -15%), 60 Hz, standard 3-wire ground
Operating Environment Temperature: 42° F to 104° F (5° C to 40° C)
Relative Humidity: 10 to 95% (non-condensing)
Input/Output RS-232, bi-directional, confi gurable 1200 – 19.2K baud. Transmits weight and scale status whenever ASCII “W” is sent by a remote device
