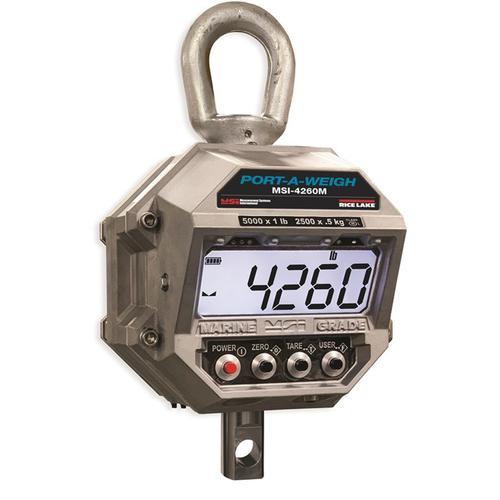

MSI-4260M Port-A-Weigh Marine Crane Scales

Manufacturers

MSI-4260M Port-A-Weigh Marine Crane Scales - Legal For Trade	Authorized Dealer
The MSI-4260M Port-a-Weigh crane scale is the most robust scale on the market for marine and industrial weighing, able to capture weight with + 0.1% accuracy with a standard 5,000 lb capacity.

MSI > Crane Scales

MSI 194593 MSI-4260M Port-A-Weigh LCD IP66 Legal for Trade Marine Crane Scale 5000 x 1 lb

MSI-4260M Crane Scales


Legal For Trade (Selected Models Only)	Canada Measurement (Selected Models Only)

Have Questions?

email Us

Our Staff will be glad to help

Specifications Chart

The MSI-4260M Port-a-Weigh crane scale is the most robust scale on the market for marine and industrial weighing, able to capture weight with + 0.1% accuracy with a standard 5,000 lb capacity.

An IP66 aluminum enclosure stands up to moisture in marine and washdown environments. Sensitive electronic components are sealed off and well-protected, including the MSI-4260M’s sleek and vibrant LCD display. Featuring programmable brightness control, the display ensures users have access to the weight data they need—in any light condition.

In highly regulated marine applications, meeting safety requirements is crucial. The NTEP-Certified MSI-4260M features a 200% Safe and 500% Ultimate Safety Factor, minimizing the risk of accidents from overloading. The MSI-4260M is built to perform reliably for every catch with extended battery life up to 1,000 hours. A brightly lit battery display indicates when the unit is at 25%, 50%, 75% and full power. Timed auto-off and auto-sleep modes conserve power when the unit is not in use, meaning users are never surprised by a dead battery.

LCD display
IP66 cast aluminum
Top lifting eye with lower link interface
Battery operated, six (6) D cell 1.5V alkaline batteries
NTEP Certified configuration
Meets or exceeds OSHA, ANSI, ASME and other safety design standards (5:1 Ultimate Safety Factor)

Rugged remote control (control for On/Off, Zero, Tare and other functions)
RF modem install for connectivity to MSI-8000, MSI-8000HD, MSI-8004HD, TranSend and LaserLight2 remote display. Typically 100 to 300 ft, line of sight; for longer range consult factory.
Wi-Fi communication is available for specialty applications

View all MSI-8000HD
Indicator Options

MSI-4260M Port-A-Weigh Crane Scales
Legal For Trade

	MSI 150971 MSI RF modem option kit (used in MSI-4260, MSI-4260M, MSI-6360, MSI-9600HT). (Factory Install only) , add $225.00
	MSI 139381 MSI-8000 RF Remote Display for MSI-3460, MSI-4260 and MSI-7300 (503208-0001), add $1,132.00
	MSI 173014 MSI-Rugged Remote Control for Products with XBEE Radios, add $301.75
	MSI 153591 MSI-8000HD RF 85-265 VAC Remote Display, add $1,232.80
	Rice Lake 178281 MSI-8004HD AC, red/green 85~264 VAC, 47~440 Hz, 120~370 VDC, add $1,696.00
	MSI 159221 Universal Crane Scale Transport Cart, add $1,192.60
	MSI 178004 4in LASERLIGHT2 RF Six-Digit Scoreboard with ScaleCore RF Kit and Tilt Mounting Bracket, add $2,256.15
	MSI 178006 6in LASERLIGHT2 RF Six-Digit Scoreboard with ScaleCore RF Kit and Tilt Mounting Bracket, add $2,644.40
	MSI 176956 MSI-4260B WIFI Opt. Kit. WIFI Modem Will Allow For Connectivity With Scaleconnect App. (Factory Install only) , add $441.00

Specifications Chart

Model	194593	196908
Price	$4,672.80	$4,963.20
Capacity x Readability	5000 x 1 lb 2500 x 0.5 kg	5000 x 1 lb 2500 x 0.5 kg
RF Included	NO	YES
Accuracy	+ 0.1% +1 d of applied load
Approvals	NTEP CC 19-122: 500 to 70,000 lb Measurement Canada AM-6198: 500 to 5,000 lb
Resolution	Max NTEP Approved Class III: 2,500 d Max NTEP Approved Class IIIL: 5,000 d Max Non-NTEP Approved: 10,000 d
Enclosure	IP66 cast aluminum
Lifting Eye, Shackle & Hook	Top lifting eye with lower link interface
Design Overload	200% Safe / 500% Ultimate
Functions	Power: Turns Unit ON or OFF Zero: Zeros applied load up to 100% of capacity (limited range in NTEP configuration) Tare: Tares applied load and displays weight in Net mode User: Programmable as test, total, unit, peak hold, net/gross, view total and print
Display	Five-digit, 1.75 in (44.5 mm) LCD with programmable brightness control
Displayable Units	Pounds or kilograms selectable
Annunciators	COZ, Battery Level, Net, Total, lb/kg, Stability, RF and Setpoint LEDs
Power	Battery operated, six (6) D cell 1.5 V alkaline batteries
Operating Time	Up to 1,000 hours of battery life with typical use, less with RF modem option
Temperature Range	Operating: -20 ^oF to 122 ^oF (-28 ^oC to 50 ^oC) Certified: 14 ^oF to 104 ^oF (-10 ^oC to 40 ^oC)
Auto-Off Mode	Powers off after the scale is not used for the set time (in minutes); 15, 30, 45, 60 or OFF selectable
Auto Sleep Mode	Power down during non-use after the set time (in minutes) and powers up with weight change or any key press; 5, 15, 30 or OFF selectable
Service Counters	Counts number of lifts over percentage of capacity and lifts over capacity
Calibration	Digital (procedure initiated by calibration switch)
Filtering	OFF, LO, HI-1 or HI-2 selectable
Radio Link	-	802.15.4 at 2.4 GHz
Radio Effective Range	-	Typically 100 to 300 ft line of sight
Warranty	One-year limited
Est. Weight	62 lb	62 lb
