LP-Scale LP7661 Axle Scales	Authorized Dealer

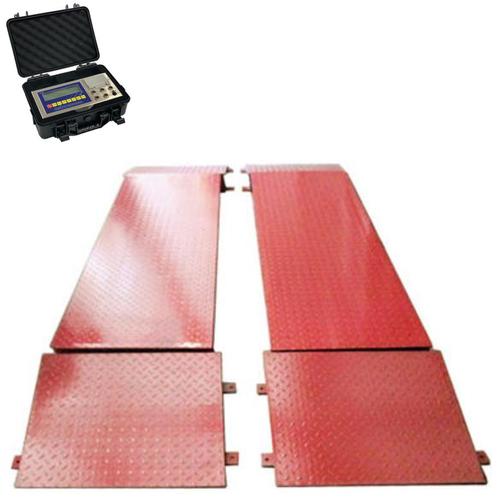

The LP7661 Axle Scale is an axle scale made of welded steel structure. It is equipped with several shear beam load cells and ramps. One weighing system uses two or four platforms and equips LP7560 or LP7561 indicator..
LP Scales >> Wheel Weighing Scales

Have Questions? or email Us Our Staff will be glad to help Specifications Charts Dims

P-Scale LP7661 Axle Scales Select 60,000 x 10 lb LP7661-0307-60 3 x 7 ft $5,376.00 LP7661-0312-60 3 x 12 ft $6,720.00 More info

Indicator Info:
• Model Number: LP7560
• Power Supply: AC 110V/220V (AC±10%)
• Display Type: LCD
• Rated Load: 100000kg
• Accuracy:1kg, 3000e
• Item Name:Stainless Steel Axle Indicator LP7
• Housing:Stainless Steel
• Display:6 digits 20mm LED or LCD
• Input Sensitivity:0.5µV/D
• Zero tracking:0.5 d/s
• Excitation:5VDC
• Operating Temperature:-10~+40 (14~104)
• input voltage:-30~30mV
• Dimension:330mm x 187mm x 75mm

• Equip: four platforms, the max capacity of the first two platforms is 5 ton, and the last two platforms are 15 ton
• Weighing mode: the front wheels of the vehicle is loaded by the first two platforms and the rear wheels by the latter two platforms
• Attention: keep the height of four platforms consistent

• Equip: two platforms, the capacity of each platform is 15 ton
• Weighing mode: the front wheels is weighed first, the rear wheels is weighed later, and the value is accumulated to obtain the whole weight
• Specification: 3m*7m, 3m*12m

Model	LP7661-0307-60	LP7661-0312-60
Price	$5,376.00 Add to Cart	$6,720.00 Add to Cart
Capacity x Redability	60,000 x 10 lb	60,000 x 10 lb
Pan Size	3 x 7 ft x 2	3 x 12 ft x 2
Frame Material	Painted Steel
Pan Material	Checkered steel plate, U beam structure
Display	6 digits 20mm LED or LCD
Optional	Option Indicator Stand, Printer, Remote display, Software
Units	kg/lb switchable
Functions	Accumulate,hold, Animal Weighing,Checking,sorting, Recargable Battrey, RS-323
Power	AC 110V/220V (AC±10%)
Indicator	LP7510
Includes	2 Frames with 2 ramps, LP7560 Weighing indicor, 2X50ft cables

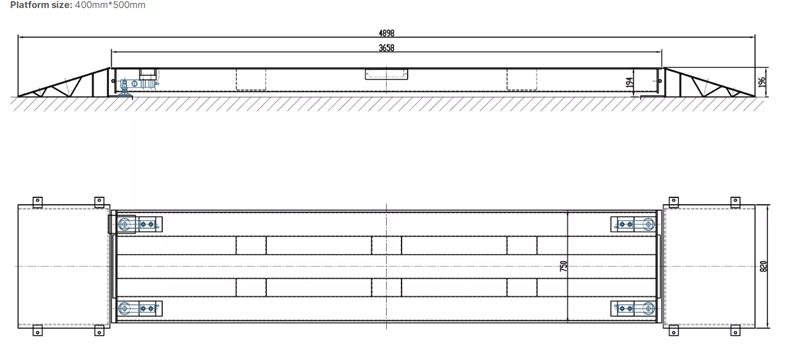

Dims
