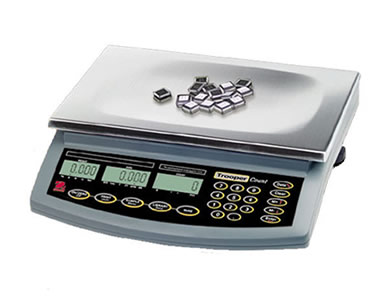

Ohaus Trooper Series Digital Counting Scales |
 Authorized Dealer |
| The Ohaus Trooper Count is an economical counting scale with enhanced software designed for flexible counting operations. Featuring simple to advanced counting modes, 300 memory locations for up to 60 items, and an intuitive, easy-to-operate design, the Ohaus Trooper Count is a practical counting product you can depend on for a full range of industrial use. | |
| Ohaus Scales >> Industrial Scales >> Counting Scales | |
Specifications Chart
 OHAUS Trooper Count Counting Scales are economical and designed for flexible, accurate operation. Ideally suited for inventory use, prepackaging, and other counting operations, the Trooper Count Counting Scales offer accuracy, durability and portability in one practical design. Standard Features Include:
|
Enhanced Software for Counting Applications
Trooper Count minimizes common sampling errors -- sample miscounts or using too light a sample weight:
- Auto Optimization ? Start with a small sample size of 10, and then add random lots of pieces to increase Average Piece Weight accuracy.
- Auto Add ? If the sample weight is too light, Trooper Count will prompt for the correct number of pieces to assure a proper sample weight.
Flexible Counting Operation The Trooper Count is designed for flexible sampling and counting:
- Positive Sampling ? Place a sample on the Trooper Count, tell it how many sample pieces are on the weighing platform, and start counting.
- Negative Sampling ? Place a full box of parts on the scale, remove a sample of pieces, and with four quick keystrokes, the Trooper Count will estimate how many parts are left in the box.
- Manual Sampling ? For parts with an established Average Piece Weight (APW), just input the APW and start counting.
- Positive or Negative Counting ? Count into or out of a container, keeping track of how many pieces are on the scale or have been removed.
- Print and Clear ? The Trooper Count can print and then clear the count for packaging and bagging operations.
- Flexible Taring ? Preset tare weights can be quickly entered via keyboard or using the Tare key.
- Checkweighing and Comparation ? Each of the 60 memory files can have over/under limits programmed for checking lot sizes. Change the APW to 1, and the Trooper Count can check weights using the current weighing unit ? kilograms, grams, pounds or ounces.
Compact for Bench or Portable Use
The Trooper Count was designed with portability in mind. With durable construction, built-in ?C? cell battery operation with power Auto-Off, LCD lighting control and low-battery warning, Trooper Count can go where it is needed.
The Memory You Need for Your Applications
The Trooper Count features 300 memory locations organized into 60 files for inventory, counting and checkweighing applications
- 12-digit Part Number or SKU? for warehouse or inventory applications
- Average Piece Weight (APW)
- Over/Under Points for count checking or checkweighing
- Tare Weight
- Piece count accumulation using dedicated M+/M- keys
Easy-to-Read Display
Large triple-window backlit LCD display for fast readings:
- Weight window displaying Gross/Net weight and weighing unit used
- Data window displaying Gross weight, counting accuracy %, tare weight, APW, pre-set tare status and M+/M- memory accumulation
- Count window displaying current piece count, memory mode indication, over/under indication for comparation and checkweighing
Print or Output to Your PC
- User Selectable Output Fields ? Print one or more data fields for the current part file ? part number, tare count of pieces on weighing platform, average piece weight, net weight, tare weight, total count accumulated in memory, or gross weight
- Output Header ? Connect the Trooper Count to a PC or printer and output the Trooper Count model, unit serial number, and current part data for in-process tracking
- Selectable Output Format ? Output using 24-column or line printer format
- Uses Standard Null Modem Cable To Connect To PC ? No custom cables to buy!
- Compatible with TAL Software Wedge or other utilities
Built For Everyday Industrial Use
- High-impact ABS housing
- Overload stops to protect loadcell
- Flexible membrane keypad
- Adjustable feet and leveling bubble for quick set-up
- AC or battery power
- Cast aluminum weighing spider frame and 304 Stainless Steel Platform
Wide Range of Applications
- In-Process Parts Counting
- Inventorying
- Prepacking Parts
- Warehousing
- Incoming Inventory Check
- Checkweighing
Counting Features Positive and Negative sampling, with user input of sample size or default sample size of 10; positive and negative counting; manual or pre-set tares; selectable memory mode for single part file operation; auto-optimization of average piece weight; auto-add to ensure sample weight accuracy; 60 part files with input for 12-digit part number, average piece weight, tare weight, over / under values and count accumulation; programmable over/under limits with audible beep and LCD indication
| Model Number | TC3RS | TC6RS | TC15RS | TC30RS |
|---|---|---|---|---|
 |
 |
 |
 |
|
Price |
$759.11 |
$759.11
| $868.44
| $998.22
|
| Model Number With Printer | TC3RSP | TC6RSP | TC15RSP | TC30RSP |
 |
 |
 |
 |
|
Price |
$968.00 |
$968.00
| $1097.78
| $1267.56
|
| Default Capacity x Readability | 6 lb x 0.001 lb 3 kg x 0.0005 kg 3,000 g x 0.5 g 96 oz x 0.02 oz |
15 lb x 0.002 lb 6 kg x 0.001 kg 6,000 g x 1 g 240 oz x 0.05 oz |
30 lb x 0.005 lb 15 kg x 0.002 kg 15,000 g x 2 g 480 oz x 0.1 oz |
60 lb x 0.01 lb 30 kg x 0.005 kg 30,000 g x 5 g 960 oz x 0.2 oz |
| NTEP Capacity x Readability | 6 lb x 0.002 lb 3 kg x 0.001 kg 3,000 g x 1 g 96 oz x 0.05 oz |
15 lb x 0.005 lb 6 kg x 0.002 kg 6,000 g x 2 g 240 oz x 0.1 oz |
30 lb x 0.01 lb 15 kg x 0.005 kg 15,000 g x 5 g 480 oz x 0.2 oz |
60 lb x 0.02 lb 30 kg x 0.01 kg 30,000 g x 10 g 960 oz x 0.5 oz |
| Legal for Trade resolution | 1:3,000 | |||
| Compliance/Certifications | NTEP (CC No. 02-0092A) Measurement Canada (Notice of Approval AM-5449), for weighing only |
|||
| Minimum APW with Auto Add | 0.0002 lb 0.0001 kg |
0.0005 lb 0.0002 kg |
0.001 lb 0.0005 kg |
0.002 lb 0.001 kg |
| Minimum APW without Auto Add | 0.00006 lb 0.00003 kg |
0.00015 lb 0.00006 kg |
0.0003 lb 0.00015 kg |
0.0006 lb 0.0003 kg |
| Sample Size | Preset 10 or input via numeric keypad | |||
| Weighing Units | g, kg, lb, oz | |||
| Stabilization Time (seconds) | 1-4 seconds, depending on mode | |||
| Span Calibration | 1/2, 2/3 or full capacity | |||
| Auto Zero Tracking | Off, 0.5, 1 or 3 divisions | |||
| Keyboard | 10 function and 11 numeric membrane keys | |||
| Display | 3 window backlit LCD, 7 segment, 12 mm high digits | |||
| Platform size (in/cm) | 13.5" x 9" (34 x 23 cm) | |||
| Platform construction | Stainless Steel | |||
| Housing | ABS plastic | |||
| Power requirements | AC adapter included or 6 Alkaline "C" batteries (not included) | |||
| Battery Life (typical) | Up to 100 hours | |||
| Interface | Bi-directional RS-232 | |||
| Protection | IP43 | |||
| Dimensions (W x H x D) | 13.5" x 4.5" x 14.5" (34.3 x 11.4 x 36.8 cm) | |||
| Weight (lb/kg) | 8.6 lb / 3.9 kg | |||
| Operating Temperature | 41° to 140°F / 5° to 40° C | |||
