| Analytical and Precision Balances |
|
|
| Manufacturers |
|
|
|
|
|
AND Weighing GF-Series Laboratory Scales |
 |
| The GF Series of lab scales incorporates our unique SHS technology and defies comparison with all others. Our revolutionary and patented Super Hybrid Sensor (SHS) technology improves response speed and minimizes maintenance costs.. |
AND Weighing >> Laboratory Scales
Models GF-200, GF-300, GF-400, GF-600 |
Models GF-1200, GF-2000, GF-3000, GF-4000, GF-6100, GF-6000, GF-8000 |
The GF Series of lab scales incorporates our
unique SHS technology and defies comparison with all others. Our revolutionary
and patented Super Hybrid Sensor (SHS) technology improves response
speed and minimizes maintenance costs. Its unique design provides the
fastest response speed in its class--an amazing one-second. SHS combines
the best of magnetic force restoration and single point parallelogram
load sensing technologies.
- Some Models Legal for Trade (as noted
below)
- Fast, new Super Hybrid Sensor (SHS) gives
you the ultimate in response speed - Just ONE Second!
- Resolution Range among models: 1/60,000
to 1/600,000
- IP54 splashproof operator keyboard protects against dust and spills
- Stainless steel weighing pan.
- Standard RS232 bi-directional communication
- Large, bright Vacuum Fluorescent Display
- see the display even in the dark
- Interval time setting for automatic weighings at intervals from
1 second to 10 minutes
- Weighs in grams, decimal ounces, pennyweight, milligrams, troy
ounces, carats, grains, mommes, taels and tolas
- Percentage, Counting Functions & Comparator
functions plus Density Determination, Animal Weighing and Percentage
weighing functions
- ACAI Counting Function for highly accurate
counting
- Bright, blue Vacuum Fluorescent Display
- GLP/GMP/ISO Compliance to either an AD-8121
printer or to a computer.
- Windows compatible data collection software
- USB compatible
- Auto re-zero function after each weighing
- 5 year warranty
Specifications
- Stabilization Time: 1 second
- Dimensions: 8.27 W x 12.5 D x 3.4 H in (210 W x 317 D x 86 H mm)
- Operating Temp: 5°C ~ 40 °C (14°F ~ 104°F)
- Power: approximately 11VA
- Standard Accessories: Manual, AC Adapter, Dust Cover
|
|
| Model |
GF-200 |
GF-300 |
GF-400 |
GF-600 |
GF-800 |
GF-1000 |
GF-1200 |
GF-2000 |
GF-3000 |
GF-4000 |
GF-6100 |
GF-6000 |
GF-8000 |
 |
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
| Price |
 |
|
|
|
- |
|
|
|
|
|
|
|
|
| Capacity |
210g |
310g |
410g |
610g |
810g |
1100g |
1210g |
2100g |
3100g |
4100g |
6100g |
6100g |
8100g |
| Repeatability |
0.001g |
0.01g |
0.1g |
| Legal for Trade |
GF-200N
| GF-300N
| - |
- |
- |
- |
GF-1200N |
GF-2000N |
GF-3000N |
- |
- |
GF-6000N |
- |
 |
|
- |
- |
- |
- |
|
|
|
- |
- |
|
- |
| Units of measure |
Gram, Decimal ounce, Troy ounce, Pennyweight, Carat, Momme, Grain unit, Pound, Pound/Ounce |
| Linearity |
+0.002g |
+0.003g |
+0.02g |
+0.03g |
+0.1g |
| Stabilization time |
Approx. 1 second |
Approx. 1 second |
Approx. 1.5 second |
Approx. 1 second |
| Sensitivity drift |
+2ppm/oC (When automatic self calibration is not used) |
+5ppm/oC (auto-self califbration OFF) |
| Operating temperature |
5oC to 40oC (41oF to 104oF), 85%RH or less (No condensation) |
| Sensing method |
Super Hybrid Sensor (SHS) *SHS: |
| Display type |
Vacuum Fluorescent Display (VFD) |
| Display refresh rate |
5 times/second or 10 times/second |
Counting mode
Minimum unit mass |
0.001g |
0.01g |
0.1g |
Counting mode
Number of samples |
10, 25, 50 or 100 pieces |
Percent mode
Minimum 100% reference mass |
0.100g |
1.00g |
10.0g |
Percent mode
Minimum 100% display |
0.01%, 0.1%, 1% (Depends on reference mass stored) |
| Standard serial I/F |
RS-232C Interface with Windows Communication Tools (WinCT: included as CD-ROM) |
| Weighing pan |
128 x 128mm (5.04 x 5.04inch |
165 x 165mm (6.50 x 6.50inch) |
| External dimensions |
210(W) x 317(D) x 86(H)mm (8.27 x 12.48 x 3.39inch) |
| AC adapter |
Confirm that the adapter type is correct for the local voltage and power receptacle |
| Power consumption |
Approx. 11VA (supplied by AC adapter) |
| Net weight |
Approx. 3.8kg |
Approx. 4.3kg |

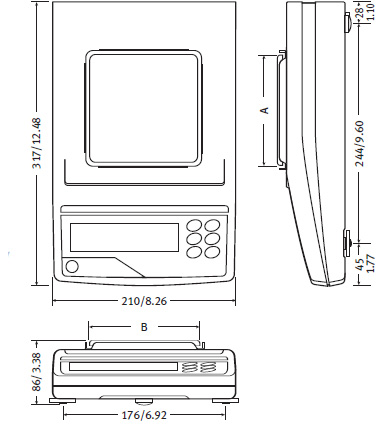

Pan Size (mm/inches)
| Model |
A |
B |
| GF-200/300/400/600/800/1000 |
128/5.03 |
128/5.03 |
| GF-1200/2000/3000/4000/6100/6000/8000 |
165/6.49 |
165/6.49 |
|
|
