Name: AND Weighing FX-1200i Precision Balance,1220 x 0.01 g
Brand: AND Weighing
SKU: 26348
Price: 645.20 USD
Availability: InStock
Rating: 5 (1 reviews)

Analytical and Precision Balances

Lab Balances by Readability

Manufacturers

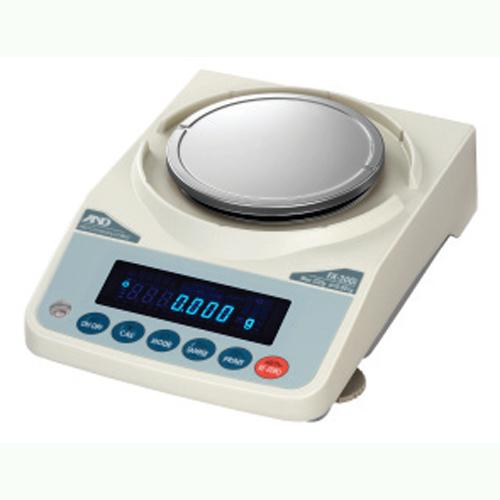

AND Weighing FX-1200i Precision Balance,1220 x 0.01 g
A&D’s FX-i Series entry level precision balance is a full-featured 0.01g to 1mg resolution balance at a very affordable price. The patented Compact Super Hybrid Sensor is at the heart of this unit and provides fast, one-second weighing response time more ...

Scales > Laboratory > Basic

AND Weighing FX-1200i Precision Balance,1220 x 0.01 g

Specifications Chart View Full Detail Page

Have Questions?

email Us

Our Staff will be glad to help

AND Weighing FX-1200i Precision Balance,1220 x 0.01 g
FREE Ground Shipping
(48 US States Only)

Price: $645.20

Available to Ship

Optional Accessories

View Features

AND Weighing
SKU: FX-1200i

Features

A&D’s FX-i Series entry level precision balance is a full-featured 0.01g to 1mg resolution balance at a very affordable price. The patented Compact Super Hybrid Sensor is at the heart of this unit and provides fast, one-second weighing response time.

The FX-i also contains a specially designed internal shock absorber that offers protection from the adverse effects of vertical or transverse overloading. Legal-for-trade models (NTEP and Measurement Canada) are also available.

Statistical Calculation Function
The statistical values Sum, Maximum, Minimum,Range, Standard Deviation, Number of Data,and Coeffi cient of Variation can be displayedor output.

Comparator Function
Easy to compare weighing results by setting HI limit and LO limit to display HI,OK,LO indicator.

ACAI – Automatic Counting Accuracy Improvement
This counting function recalculates the average weight each time a sample is added to eliminate errors caused by variations in unit weight.

Percent Mode Function
A sample can be registered as 100% and the weight of another sample can be compared as a percentage

Animal Weighing Function
The HOLD function enables freezing of weighing data for animal weighing applications and an ANIMAL indicator appears on the display.

Underhook
The underhook allows for measurement of magnetic materials and density measurements in air and water

Standard RS-232C Interface
Incorporates bi-directional communication with a PC, printer or other peripheral devices.

GLP/GMP/GCP/ISO Compliant
In accordance with GLP and LIMS regulations the balance ID number and calibration data can be printed out using A&D’s AD-8121B or a PC.

Auto Power OFF Function
The display switches OFF automatically when the balance is inactive for 10 minutes as a power-saving tool.

Built-in Rechargeable Battery (FXi-09)
An optional Ni-MH rechargeable battery pack can be fitted into the FX-i series for use without AC power and for mobile applications (10 hours charging time for 8 hours operation).

Weight: 10.00 lb

Other AND Weighing FX-i Precision Balances

FX-120i Precision Balance 122 x 0.001 g $632.34	FX-200iN Legal For Trade Class II Precision Balance 220 x 0.001 g $645.00	FX-1200i Precision Balance 1220 x 0.01 g $645.20 You are viewing this product	FX-200i Precision Balance 220 x 0.001 g $655.48	FX-120iN Legal For Trade Class II Precision Balance 122 x 0.001 g $658.05
FX-120iNC Legal For Trade Canada Precision Balance 122 x 0.001 g $658.05	FX-300iN Legal For Trade Class II Precision Balance 320 x 0.001 g $669.00	FX-1200iN Legal For Trade Class II Precision Balance 1220 x 0.01 g $670.90	FX-1200iNC Legal For Trade Canada Precision Balance 1220 x 0.01 g $670.90	FX-200iN Legal For Trade Class II Precision Balance 220 x 0.001 g $676.04
FX-2000i Precision Balance 2200 x 0.01 g $681.18	FX-200iNC Legal For Trade Canada Precision Balance 220 x 0.001 g $681.18	AND FX-300i Precision Balance 320 x 0.001 g $683.75	FX-300iN Legal For Trade Class II Precision Balance 320 x 0.001 g $691.46	FX-300iN-CA Legal For Trade Canada Precision Balance 320 x 0.001 g $691.46
FX-3000i Precision Balance 3200 x 0.01 g $706.89	FX-2000iNC Legal For Trade Canada Precision Balance 2200 x 0.01 g $706.89	FX-2000iN Legal For Trade Class II Precision Balance 2200 x 0.01 g $706.89	FX-3000iNC Legal For Trade Canada Precision Balance 3200 x 0.01 g $719.74	FX-3000iN Legal For Trade Class II Precision Balance 3200 x 0.01 g $719.74
FX-500i Precision Balance 520 x 0.001 g $796.86	FX-5000i Precision Balance 5200 x 0.01 g $799.43

Specifications

Model	FX-120i	FX-200i	FX-300i	FX-500i	FX-1200i	FX-2000i	FX-3000i	FX-5000i
Capacity X Readability	122 g x 0.001g	220 g x 0.001g	320 g x 0.001g	520 g x 0.001g	1220 g x 0.01g	2200 g x 0.01g	3200 g x 0.01g	5200 g x 0.01g
	4.30 x 0.00005 oz	7.76 x 0.00005 oz	11.28 x 0.00005 oz	18.34 x 0.00005 oz	43.0 x 0.0005 oz	77.6 x 0.0005 oz	112.8 x 0.0005 oz	183.4 x 0.0005 oz
	0.268 x 0.000005 lb	0.485 x 0.000005 lb	0.705 x 0.000005 lb	1.14 x 0.000005	2.68 x 0.00005 lb	4.85 x 0.00005 lb	7.05 x 0.00005 lb	11.46 x 0.0005 lb
	0 lb, 4.30 oz x 0.01 oz	0 lb, 7.76 oz x 0.01 oz	0 lb, 11.28 oz x 0.01 oz	1 lb, 18.34 oz x 0.01 oz	2 lb, 11.30 oz x 0.01 oz	4 lb, 13.60 oz x 0.01 oz	7 lb, 0.88 oz x 0.01 oz	11 lb, 7.65 x 1 lb, 0.001 oz
	3.92 x 0.00005 ozt	7.07 x 0.00005 ozt	10.28 x 0.00005 ozt	16.71 x 0.00005 ozt	39.2 x 0.0005 ozt	70.7 x 0.0005 ozt	102.8 x 0.0005 ozt	167.18 x 0.005 ozt
	610 x 0.005 ct	1100 x 0.005 ct	1600 x 0.005 ct	2600 x 0.005 ct	6100 x 0.05 ct	11000 x 0.05 ct	16000 x 0.05 ct	26000 x 0.05 ct
	78.6 x 0.001 dwt	141.7 x 0.001 dwt	206.2 x 0.001 dwt	335.1 x 0.001 dwt	786 x 0.01 dwt	1417 x 0.01 dwt	2062 x 0.01 dwt	3351 x 0.01 dwt
	1882 x 0.02 GN	3395 x 0.02 GN	4938 x 0.02 GN	8024 x 0.02 GR	18827 x 0.2 GN	33951 x 0.2 GN	49383 x 0.2 GN	80248 x 0.2 GN
Legal For Trade Models	FX-120iN	FX-200iN	FX-300iN	-	FX-1200iN	FX-2000iN	FX-3000iN	-
Legal For Trade Models	NTEP Class II - NTEP CofC #08-045A2
NTEP Capacity X Readability	122 g x 0.01g	220 g x 0.01g	320 g x 0.01g	-	1220 g x 0.1g	2200 g x 0.1g	3200 g x 0.1g	-
Canada Measurement Models	FX-120iNC	FX-200iNC	FX-300iNC	-	FX-1200iNC	FX-2000iNC	FX-3000iNC	-
Canada Measurement Models	Canada AM-5692
Canada Measurement Capacity X Readability	122 g x 0.01g	220 g x 0.01g	320 g x 0.01g	-	1220 g x 0.1g	2200 g x 0.1g	3200 g x 0.1g	-
Pan Size	Ø 5.12”				Ø 5.91”
Units of Measurement	g, pcs, %, oz, lb, suit weighing environment conditions. fi tted into the FX-i series for use without AC power and lb-oz, ozt, ct, mom, dwt, GN, tl, tol, mes and MLT
Counting Mode	Min. Unit Mass 0.001g				Min. Unit Mass 0.01g
Counting Mode	# of Samples 5, 10, 25, 50 or 100 pieces
Percent Mode	Min. 100% Ref. Mass 0.1g				Min. 100% Ref. Mass 1.0g
Percent Mode	Min. 100% Display 0.01%, 0.1%, 1% (depends on the reference mass stored)
Repeatability (Std. Deviation	0.001g				0.01g
Linearity	±0.002g				±0.02g
Stabilization Time (typically set at FAST)	Approx. 1 second
Sensitivity Drift	±2ppm / °C (10°C to 30°C)
Operating Temp	5°C to 40°C (41°F to 104°F), 85% RH or less (No condensation)
Display Type	Vacuum Fluorescent Display (VFD)
Display Refresh Rate	5 times / second, 10 times / second or 20 times / second
Std. Serial Interface	RS-232C Interface
Weighing Pan	130mm				150mm
External Calibration	100g 50g	200g 100g	300g 200g 100g	500g 400g 300g 200g 100g 50g	1000g 500g	2000g 1000g	3000g 2000g 1000g	5000g 4000g 3000g 2000g 1000g 500g
AC Adaptor	Confirm that the adaptor type is correct for the local voltage and power receptacle
Power Consumption	Approx. 11VA (supplied to the AC Adaptor)
External Dimensions	193 (W) x 262.5 (D) x 84.5 (H) mm
Net Weight	Approx. 2.5kg
