Mark 10 Series 5i Digital Force / Torque Gauge
Authorized Dealer
The 5i advanced digital force / torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors . With exclusive Plug & TestTM technology, all calibration and configuration data is saved within the sensor’s smart connector
Mark 10 Series 5 Digital Force Gauges

View Specifications Cart

View Grips

View Test Stands

Specifications Chart

Mark 10 Model 5i Digital Force / Torque Gauge

FREE UPS Ground Shipping
(within the 48 continental US States)

Model:

The 5i advanced digital force / torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors (see below). With exclusive Plug & TestTM technology, all calibration and configuration data is saved within the sensor’s smart connector, not the indicator, allowing for true interchangeability. Sensor password protection prevents use of an unauthorized sensor. In addition, all sensors are fully compatible with the more basic 3i force / torque indicator

The 5i shares its menu structure and most specifications with Series 5 digital force gauges. The sampling rate is a blazing fast 7,000 Hz, producing accurate results even for quick-action tests. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the indicator’s many features and configurable parameters. Data can be transferred to a PC or data collectors via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

On-board data memory for up to 1,000 readings is included, as are statistical calculations with output to a PC. Integrated set points with indicators and outputs are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. An analog load bar is shown on the display for graphical representation of applied force or torque

The 5i’s averaging mode addresses the need to record the average load over time, while external trigger mode makes switch activation testing simple and accurate.

The 5i includes MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. Data saved in the indicator’s memory can also be downloaded in bulk. One-click export to Excel easily allows for further data manipulation

Features

  • Interchangeable force and torque sensors through Plug & TestTM technology
  • Sensor password protection, for preventing use of an unauthorized sensor
  • Password protection for individual keys and calibration
  • High-speed 7,000 Hz sampling rate
  • USB, RS-232, Mitutoyo, and analog outputs
  • Large backlit graphic display
  • 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
  • Live load bar graph with set point markers
  • Programmable set points, with alarms and outputs
  • Peak readings and set points always displayed
  • Averaging mode - calculates average readings over time
  • External trigger mode - for switch contact testing or remotely stopping display update
  • Automatic data output via USB/RS-232
  • 5 selectable units of measurement
  • Configurable audio alarms and key tones
  • CE mark

Plug & Testtm Force Sensors

Mark 10 Plug & TestTM Force Sensor

for the Mark 10 5i and Mark 10 3i digital indicators

R01
S-beam force sensors, tension and compression

R02
Miniature button force sensors, compression only

R03
Inline force sensors, tension and compression

R04
Miniature S-beam force sensors, tension and compression

R05
Fully enclosed smart sensors, push and pull

Mark 10 Plug & TestTM Torque Sensor

for the Mark 10 5i and Mark 10 3i digital indicators

R50
Universal torque sensors

R51
Universal torque sensors with interchangeable attachments

R52
Tool calibration torque sensors

R53
Closure torque sensors

R54
Wrench extension torque sensors
Model Model 3i Model 5i Model 7i
Price Model 5i
$517.75
buy now
Model 5i
$850.25
buy now
Model 5i
$1,372.75
buy now
Accuracy (% of full scale + sensor) ±0.2% ±0.1% ±0.1%
Sampling rate 2,000 Hz 7,000 Hz 14,000 Hz
Resolution 1/1,000 up to 1/2,000, depending on sensor up to 1/2,000, depending on sensor
Compability with Mark-10 sensors via Plug & Test TM Technology YES YES YES
Data outputs USB USB, RS-232, Mitutoyo, analog USB, RS-232, Mitutoyo, analog
ASCII command set for external communication “?” command only (for continuous or individual data point output) YES YES
Data capture & storage capabilities* - 1,000 individually saved readings Continuous data capture at up to 14,000 Hz, with buffer, or individually saved readings, 5,000 readings total
Statistical calculations and output to PC - YES YES
Break detection* - - YES
1st / 2nd peak detection* - - YES
Programmable footswitch command string - - YES
Averaging mode - YES YES
External trigger mode - YES YES
Set points (for pass / fail indication) Yes with high / low indicators, markers on analog bar graph, no output Yes, with high / low indicators, markers on analog bar graph, and outputs Yes, with high / low indicators, markers on analog bar graph, and outputs
Password Protection, for keys and calibration - YES YES
Sensor password protection YES YES YES
Overload outputs, w/separate pins for each direction - YES YES
Units of measurement 3 5 7, including coefficient of friction unit and user-defined unit
Peaks and analog load bar always shown on display YES YES YES
Included items Same as Model 7i / 5i, with certificate of calibration without data Carrying case with complete set of attachments, AC adapter, rechargeable battery, and calibration cert with data Carrying case with complete set of attachments, AC adapter, rechargeable battery, and calibration cert with data

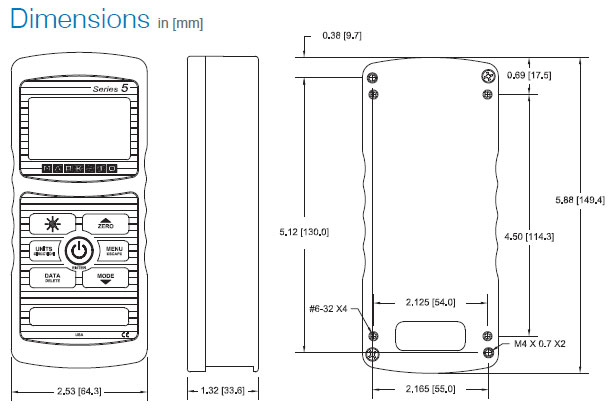

  • Accuracy: ±0.2% of full scale ±1 digit + sensor
  • Sampling rate: 7,000 Hz
  • Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
  • Battery Life:
    • Backlight on: up to 7 hours of continuous use
    • Backlight off: up to 24 hours of continuous use
  • Outputs:
    • USB / RS-232: Configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control.
    • Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible Devices.
    • Analog: ±1 VCD, ±0.25% of full scale at capacity.
    • General purpose: Three open drain outputs, one input.
    • Set points: Three open drain lines.
  • Configurable Settings: Digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration
  • Safe overload: 150% of full scale (display shows “OVER” at 110% and above)
  • Weight: 0.7 lbs (0.3 kg)
  • Included items: Carrying case, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user's guide), and certificate of conformance.
  • Warranty: 3 years (see individual statement for further details)


Grips


Wire Terminal Grips

Dual Roller Grip

Film & Paper Grips

Pneumatic Grip

Parallel Jaw Grip

Self-Tightening Wedge Grip

Miniature Component Grip

Padded Attachments

Bottle Grip

Cap Grip

Jacob's Chuck Grip

Compression Plates

Rubber Tip

Swivel Adapter

STH Attachments

Jacob's Chuck Grip

Hooks

Flat Heads

Extension Rods

Chisel Points

Cone Points

V Grooves

Thread Adapters
