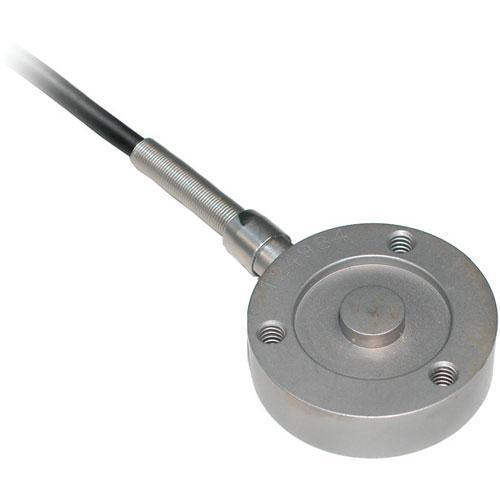

Mark-10 R02 Button Compression Force Sensors
Authorized Dealer
Button sensor for compressive loads of up to 10,000 lb. Compact and rugged, the R02 is ideal for heavy duty applications with space constraints.

View Specifications Cart

View Test Stands

Specifications Chart

Mark-10 R02 Button Compression Force Sensors

FREE UPS Ground Shipping
(within the 48 continental US States)

Model:

Series R02 button type smart sensors are designed for compression measurement applications in virtually every industry. Compact and rugged, Series R02 sensors are ideal for heavy duty applications with space constraints. Capacities available from 100 to 10,000 lbF [500 N to 50 kN]. Compatible with Mark-10 model 5i and 3i indicators (sold separately) through unique Plug & TestTM technology.

  • Compatible with the 5i and 3i digital indicators
  • Unique Plug & TestTM connector holds all calibration and configuration data
  • Small size
  • Stainless steel construction
  • NIST-traceable certificate of calibration included
  • Accuracy: ± 0.5% of full scale ±1 digit + indicatorWeight: 0.4 lbs (0.2 kg)
  • Warranty: 3 years
Model MR02-100 MR02-200 MR02-500 MR02-1000 MR02-2000 MR02-5000 MR02-10000

$707.75
buy now

$707.75
buy now

$707.75
buy now

$707.75
buy now

$707.75
buy now

$707.75
buy now

$707.75
buy now
Capacity x Resolution
With Model 3i
lbF 100 x 0.1 200 x 0.2 500 x 0.5 1000 x 1 2000 x 2 5000 x 5 10000 x 10
kgF 50 x 0.05 100 x 0.1 250 x 0.2 500 x 0.5 1000 x 1 2500 x 2 5000 x 5
N 500 x 0.5 1000 x 1 2500 x 2 5000 x 5 10000 x 10 - -
kN - - - - - 25 x 0.02 50 x 0.05
Capacity x Resolution
With Model 5i and 7i
lbF 100 x 0.05 200 x 0.1 500 x 0.2 1000 x 0.5 2000 x 1 5000 x 2 10000 x 5
ozF 1600 x 1 3200 x 2 8000 x 5 16000 x 10 32000 x 20 - -
gF 50000 x 20 - - - - - -
kgF 50 x 0.02 100 x 0.05 250 x 0.1 500 x 0.2 1000 x 0.5 2500 x 1 5000 x 2
N 500 x 0.5 1000 x 0.5 2500 x 1 5000 x 2 10000 x 5 25000 x 10 50000 x 25
kN - 1 x 0.0005 2.5 x 0.001 5 x 0.002 10 x 0.005 25 x 0.01 50 x 0.02
Model ØA ØB C D ØE F ØG
MR02-100 1.23
[31.3]
0.32
[8.1]
0.05
[1.3]
0.39
[9.9]
1.0
[25.4]
- 0.83
[21.1]
MR02-200
MR02-500
MR02-1000
MR02-2000
MR01-5000 1.48
[37.6]
0.43
[10.9]
0.07
[1.8]
0.62
[15.8]
1.25
[31.8]
0.25
[6.4]
1.08
[27.4]
MR01-10000
