Mark 10 Grips & Attachements for Force Testing

Mark-10 Extension Rods
Mark 10 Extension Rods

Mark 10 Extension Rods

Shipping Weight: 4 lbs

Mark 10 Extension Rods

For use between a force gauge and another attachment or grip. Use them with a Mark-10 force gauge and test stand to create a complete compression testing system.

Model Capacity
(lb / N)
Weight
(lb / kg)
A ØB C D
G1024
200 / 1000
0.01 / 0.005
5.0 / 127.0
0.25 / 6.4
#10-32F
#10-32G
G1024-1
0.02 / 0.009
2.0 / 50.8
G1024-2
0.05 / 0.023
1.0 / 25.4
G1031
500 / 2500
0.05 / 0.023
5.0 / 127.0
0.5 / 12.7
5/16-18F
5/16-18F
G1031-1
0.1 / 0.045
2.0 / 50.8
G1031-2
0.05 / 0.023
1.0 / 25.4

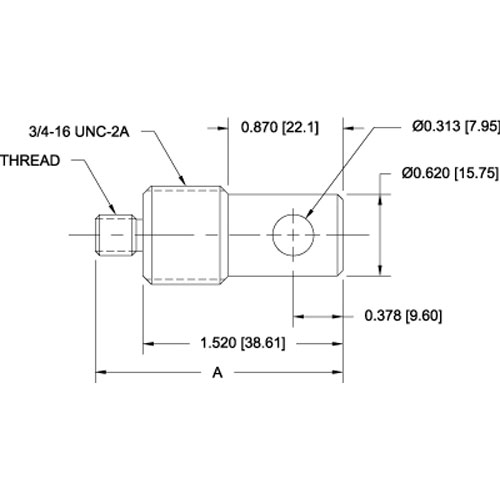

Mark-10 Eye End Adapters
Mark 10 Eye End Adapters dims

Mark-10 Eye End Adapters

Shipping Weight: 4 lbs

These adapters provide a commonly accepted industry method of attaching fixtures to load cells and test frames. They prevent grip rotation and allow for quick removal and installation. Several thread sizes and variations are available to suit most common test frames, load cells, grips, and force gauges. Eye ends and adapters are available individually or in kits.

Model No. A Thread Weight
lb [kg]
Capacity
lbF [N]
G1081 1.82
[46.2]
#10-32 0.13
[0.06]
200
[1,000]
G1081-1 1.88
[47.8]
5/16-18 0.14
[0.06]
200
[1,000]
G1081-2 2.02
[51.3]
1/2-20 0.15
[0.07]
500
[2,500]



Mark-10 Chisel Points
Mark-10 Chisel Points

Mark-10 Chisel Points

Shipping Weight: 2 lbs

Mark-10 Chisel Points

For compressing or puncturing a variety of samples. Use them with a force gauge and a test stand to create a complete testing system.

Model Capacity
(lb / N)
Weight
(lb / kg)
A ØB C
G1025
200 / 1000
0.003 / 0.001
0.5 / 12.7
0.5 / 12.7
#10-32F
G1032
500 / 2500
0.04 / 0.018
1.0 / 25.4
0.5 / 12.7
5/16-18F



Mark-10 Cone Points

Mark-10 Cone Points

Mark-10 Cone Points

Model:

Shipping Weight: 2 lbs

Mark-10 Cone Points

For puncturing a variety of samples. Use them with a force gauge and a test stand to create a complete testing system.

Model Capacity
(lb / N)
Weight
(lb / kg)
A ØB C
G1026
200 / 1000
0.003 / 0.001
0.5 / 12.7
0.5 / 12.7
#10-32F
G1033
500 / 2500
0.03 / 0.014
1.0 / 25.4
0.5 / 12.7
5/16-18F

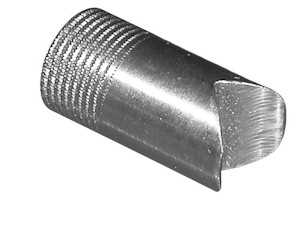

Mark-10 V-Grooves
Mark-10 V-Grooves

Mark-10 V-Grooves

Model:

Shipping Weight: 2 lbs

Mark-10 V-Grooves

For compression testing of round or odd shaped samples. Use them with a force gauge and a test stand to create a complete testing system.

Model Capacity
(lb / N)
Weight
(lb / kg)
A ØB C D
G1027
200 / 1000
0.004 / 0.001
0.5 / 12.7
0.25 / 6.4
#10-32F
0.08 / 2.0
G1034
500 / 2500
0.04 / 0.018
1.0 / 25.4
0.5 / 12.7
5/16-18F
0.25 / 6.4

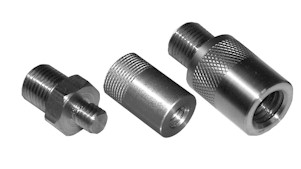

Mark-10 Thread Adapters
Mark-10 Thread Adapters

Mark-10 Thread Adapters

Model:

For use between a force gauge and another attachment or grip. Use them with a force gauge and a test stand to create a complete testing system.

Model Capacity
lbF [N]
Length
in [mm]
Thread A Thread B Price
G1051 100 lb
500 N
0.55 [14.0] #4-40M #10-32M
$20.00
G1050 100 lb
500 N
0.75 [19.1] #10-32F #4-40M
$20.00
G1039 200 lb
1,000 N
0.75 [19.1] #10-32F #10-32F
$15.00
G1030 200 lb
1,000 N
0.50[12.7] #10-32F 5/16-18M
$20.00
G1067 200 lb
1,000 N
0.75 [19.1] #10-32F 1/2-20M
$20.00
G1048 200 lb
1,000 N
0.75 [19.1] #10-32F M4M
$20.00
G1057 200 lb
1,000 N
0.75 [19.1] #10-32F M6F
$20.00
G1054 200 lb
1,000 N
0.75 [19.1] #10-32F M6M
$20.00
G1060 200 lb
1,000 N
0.75 [19.1] #10-32M #10-32M
$20.00
G1063 200 lb
1,000 N
1.30 [33.0] #10-32M 5/16-18F
$20.00
G1047 200 lb
1,000 N
0.75 [19.1] #10-32M M4F
$20.00
Model Capacity
lbF [N]
Length
in [mm]
Thread A Thread B Price
G1069 500 lb
2,500 N
1.25 [31.8] 5/16-18F 1/4-28M
$20.00
G1037 500 lb
2,500 N
1.00 [25.4] 5/16-18F 5/16-18F
$20.00
G1059 500 lb
2,500 N
1.13 [28.7] 5/16-18F 1/2-20F
$20.00
G1066 500 lb
2,500 N
0.75 [19.1] 5/16-18F 1/2-20M
$20.00
G1049 500 lb
2,500 N
1.25 [31.8] 5/16-18F M6M
$20.00
G1040 500 lb
2,500 N
0.92 [23.4] 5/16-18M 5/16-18M
$20.00
G1041 500 lb
2,500 N
1.06 [26.9] 1/2-20M 5/16-18M
$20.00
G1091 1000 lb
5,500 N
1.30 [33.0] 1/2-20F 1/2-20F
$20.00
Mark-10 G1086 ASTM D1894 Coefficient of Friction Fixture
 Mark-10 G1086 ASTM D1894 Coefficient of Friction Fixture

Mark-10 G1086 ASTM D1894 Coefficient of Friction Fixture

Shipping Weight: 4 lbs

The G1086 COF fixture is an integral part of a COF measurement system, typically including a motorized test stand and COF gauge. The G1086 can be used for a wide range of materials, ideal for conformance to ASTM D1894 and other relevant standards. Static and kinetic coefficients can be measured using the M5-2-COF gauge.

The fixture includes a large work table with sample clamp, level, 200 g sled, cable, and low-friction pulley. The fixture is directly compatible with the M5-2-COF gauge, ESM303 test stand, and ESM301 motorized test stand.

FEATURES & SPECIFICATIONS
  • Table surface material: 6061 T6 aluminum
  • Sled material: 303 SS
  • Maximum sled travel: 10.5 in (265 mm)
  • Mounts directly to the ESM303 and ESM301 motorized test stand

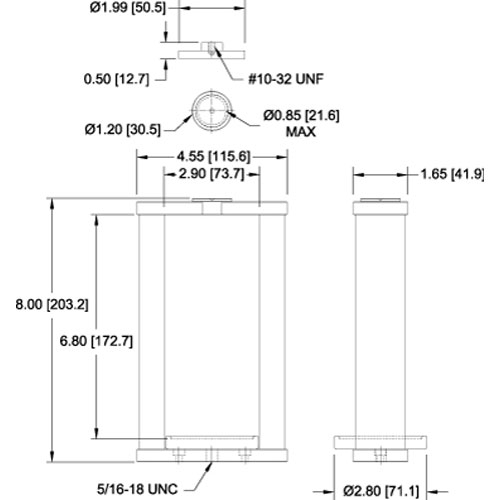

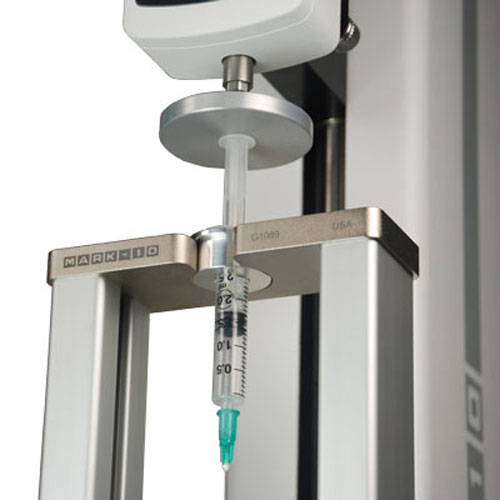

Mark-10 G1089 ISO 7886-1 Syringe Compression Fixture
  Mark-10 G1089 ISO 7886-1 Syringe Compression Fixture

Mark-10 G1089 ISO 7886-1 Syringe Compression Fixture

Shipping Weight: 4 lbs

This fixture is designed to test compression force of a syringe plunger, as per ISO 7886-1 and other relevant standards. Four blank stainless steel inserts are included, and may be drilled in the field to accommodate various diameter barrels. When used with appropriate instruments, such as an ESM303 test stand and Series 7 force gauge, initial and secondary peaks may be captured, as well as average force over a period of time.

FEATURES & SPECIFICATIONS
  • Secures a syringe assembly for plunger compression force testing
  • Capacity: 100 lbF [500 N]
  • Replaceable inserts, may be drilled in the field up to 0.85 in [21.6 mm] dia.
  • Removable cup tray
  • Material:
    Fixture: Nickel-plated aluminum upper and lower brackets, anodized aluminum upright supports
    Cup plate: Nickel-plated aluminum
    Replaceable inserts: Stainless steel
    Compression plate: Anodized aluminum
