Ohaus Scout Pro Balances
Models SP-202, SP-401, SP-602 & SP-402
Ohaus Scout Pro Balances
Models SP-601, SP-2001, SP-4001, SP-6001 & SP-6000
Ohaus Scout Pro Balance Model SP-123 with included draftshield
|
|
Ohaus takes the classic Scout® balance to the next level with the
all-new Scout Pro! Designed for use in laboratory, industrial or education
applications, and featuring
easy-to-use two-button operation, a high-contrast LCD display, multiple
weighing units, four application modes, and the option of either RS232
or USB connectivity, the Scout Pro is the portable balance for you!
Simple to operate, Scout digital scales allows weighing with minimal
instruction, and the large, crisp display lets you view results from
any angle. A sealed front panel, molded spill ring and stainless steel
platform frotect from spills and make the Scout Pro digital scales easy
to keep clean.
- Multiple Weighing Units – Including grams, kilograms, pounds,
ounces, a combined pound:ounce display, troy ounces and pennyweights
- change weighing units at the touch of a button
- Multiple Application Modes – Including enhanced parts counting,
percentage weighing, totalization, and display hold
- Enhanced parts counting with average piece weight recalculation
- Totalization for summing sample weights - only Ohaus Scout
Pro digital scales allows repeated summation to the limit of
the display, not just the capacity of the balance
- Percent weighing for comparing sample weights to a reference
weight
- Display hold for weighing large packages - only Ohaus Scout
pro offers this feature in a portable balance
- Below-balance weighing using integral weigh below hook for
density determination
- Easy to Use – The high-contrast LCD display combined with
two key operation makes the Scout Pro a snap to operate
- USB or RS232 Connectivity – Quickly-installed option with
integral cable allows data connection to PC or printer - Only Ohaus
Scout Pro offers USB capability in an economical portable balance
- Easy to Clean – Removable stainless steel weighing platform,
sealed front panel and molded spill ring help keep the Scout Pro safe
from spills
- Battery or AC Power – Uses 4 ´AA´ batteries with
auto shut-off feature for 40 hours of operation, or the Scout Pro can
be run on the included AC powerpack
- Integral Weigh-Below Hook – Critical for density or specific
gravity determination
- Integral Security bracket
- Integral shipping lock to protect the weighing mechanism during transportation
- Sealed front panel and molded spill ring to protect the balance during
use
- Physical lockswitch to allow the balance to be locked into a specific
configuration, reducing operator error
- 2 year Ohaus warranty
Model Number |
SP-123 |
SP-202* |
SP-402* |
SP-602 |
SP-401* |
SP-601* |
SP-2001 |
SP-4001 |
SP-6001 |
SP-6000 |
Price |
$339.95 |
$227.50 |
$318.50 |
$353.50 |
$126.00 |
$175.00 |
$227.50 |
$318.50 |
$353.50 |
$175.00 |
Capacity |
120 g |
200 g |
400 g |
600 g |
400 g |
600 g |
2000 g |
4000 g |
6000 g |
6000 g |
Readability |
1 mg |
0.01 g |
0.1 g |
1.0 g |
Repeatability (std dev) |
0.003 g |
0.01 g |
0.1 g |
1.0 g |
Linearity |
± 0.003 g |
0.01 g |
± 0.1 g |
± 1.0 g |
| Weighing Units |
g, N, oz |
g, oz, dwt, ozt |
g, oz, dwt, ozt, lb, kg, lb:oz |
| Application Modes |
Parts Counting, Display Hold,
Totalization, Specific Gravity, Percent Weighing |
Operating Temperature |
50° to 104°F / 10° to 40°C |
Calibration |
External, digital calibration from keypad |
Power |
4 AA alkaline batteries (not included) or AC adapter
(included) |
Tare Range |
To capacity by subtraction |
Over Range Capacity |
Capacity +90d |
Stabilization Time |
3 seconds |
Display Type |
LCD with 6 digits -- 0.6" (15 cm) high |

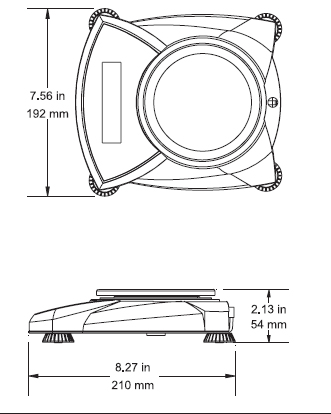

Dimensions (W x H x D) |
7.5 x 4.4 x 8.3 in
(19.2 x 10.8 x 21 cm) |
7.5 x 2. x 8.3 in
(19.2 x 5.4 x 21 cm) |
7.5 x 2 x 8.3 in
(19.2 x 5.4 x 21 cm) |
Pan Size |
3.6" (9 cm) diameter |
4.7" (12 cm) diameter |
6.5" x 5.5" (16.5 x 14 cm) |
*Includes span calibration mass
Ohaus SF-42 Impact
Printer
 Ohaus
is introduces its newest compact impact printer, the SF42. Coupled
with an Ohaus balance featuring GLP functions such as the MB45, Explorer
and Navigator, the SF42 is the economical choice for providing a
fully documented audit trail. Audit trails required to meet today’s
most stringent standards for quality and verification.
- Compact design
- Quick and easy setup
- Ink ribbon prevents fading
- Self test mode assures proper functionality
- Compatible with Ohaus balances equipped with RS232 interface
General Specifications:
- Interface: Serial (RS232 Compatible)
- Printer Method: Impact Dot Matrix (Inked Ribbon)
- Character Format: 5 x 7 Dot Matrix
- Character Dimension: (in/cm) 0.04 x 0.10 / .11 x .26
- Character Density: 42 Characters per line
- Printing Speed: 40 lines per minute
- Paper Width: (in/cm) 2.25/5.7
- Power Adapter: AC adapter (110/120, 220/240 VAC) 50/60Hz
- Power: 9 V dc, 600mA, (center pin positive)
- Operating Temp. 32°to 104F°/0°C to 40°C
- Dimensions (W x H x D) (in/cm): 4 x 3.7 x 7.3 / 10.4 x 9.6 x
18.6
- Weight (lb/kg) 1.3 / 0.59 (without internal paper roll)
Interface Specifications:
- Connector: 25 Pin D type (Female)
- Baud Rate: Selectable (1200, 2400, 4800, 9600)
- Data Bit: 7 or 8
- Parity: Even, odd or none
- Stop Bit: Auto select
|
