Shimpo TTC Torque Tool Testers

Have Questions? or email Us Our Staff will be glad to help TTC-I Specifications Chart TTC-E Specifications Chart

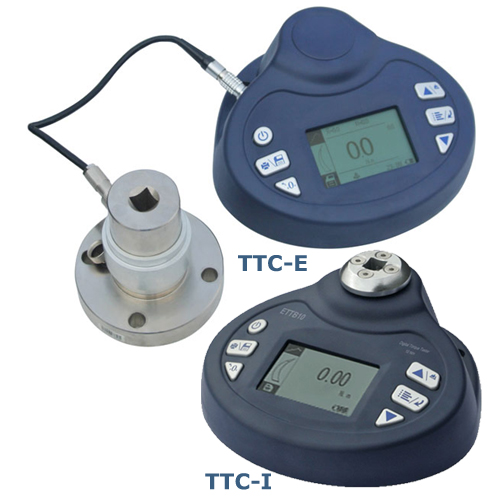

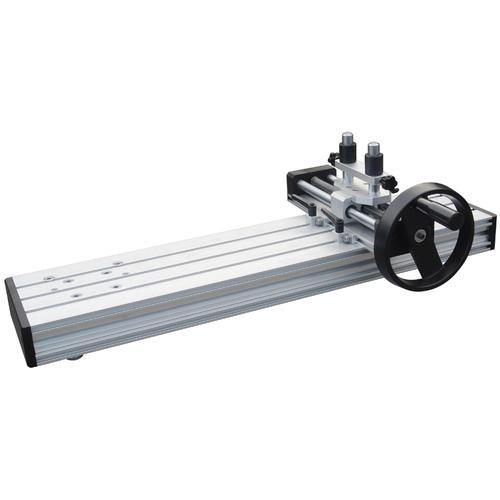

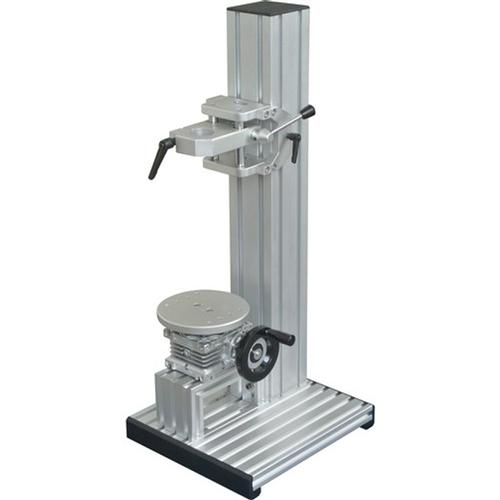

Shimpo TTC Torque Tool Testers FREE UPS Ground Shipping (48 US States Only) Select TTC-I Models TTC-I-2 - 17.7 x 0.002 in-lbf $895.50 TTC-I-5 - 43.3 x 0.005 in-lbf $895.50 TTC-I-10 - 88.5 x 0.01 in-lbf $985.50 TTC-I-20 - 177 x 0.02 in-lbf $1,075.50 TTC-I-50 - 443 x 0.05 in-lbf $1,102.50 TTC-I-100 - 885 x 0.2 in-lbf $1,345.50 TTC-E Models TTC-E-200 - 1770 x 0.2 in-lbf $1,795.50 TTC-E-500 - 4425 x 0.5 in-lbf $1,975.50 TTC-E-800 - 7080 x 1 in-lbf $2,065.50 Replacements Shimpo TTST-V Vertical Rotary Torque Test Stand For TTC and FG-7000T, add $2,250.00 Shimpo TTST-1 Horizontal Manual Torque Test Stands For TTC and FG-7000T, add $1,147.50 Shimpo TTST-2 Horizontal Manual Torque Test Stands For TTC and FG-7000T, add $1,237.50 Shimpo FG-7USB Replacement USB Cable for FG-3000 and FG-7000 Force Gauges, add $10.80 Shimpo FG-7CHRG Replacement AC-Adapter for FG-3000 FG-7000 and TTC, add $17.10 View Spec Cart

The TTC's provide long operation life and power flexibility with the ability to work from the internal rechargeable battery or included AC adapter. The TTC's have six modes of operation: Track for live readings, Peak which records the highest level over a test, First Peak which records a reading after a programmed decrease, Auto Peak which resets after a period of time, Auto First Peak which resets the first peak after a period of time, Double Peak which provides two separate peak readings from programmed decreases. Preset operation with programmable tolerance thresholds for quick pass fail tool test is available in all modes.

The analog bar graph on the backlit, reversible LCD aids users by providing the resultant torque’s current position compared to the full scale range along with the direction of the force. Pass/fail icons produce live test feedback allowing instant determination of the results.

Every tester comes standard with USB and RS-232 outputs. The TTC's software enables the uploading of data and the additional statistical analysis with its auto-calculation of the selected values.

These excellent features make the TTC Torque Tool Testers a valuable and versatile addition to the production and quality control departments

• Strong, light-weight, compact aluminum enclosure allows portability and usage in any shop environment
• Flexible six modes of operation: Track, Peak, First Peak, Auto Peak, Auto First Peak, Double Peak
• Backlit graphical, reversible display with analog bar graph plus CW/CCW directional indication provides fast interpretation of tool response. Selectable chart display mode aids viewing performance over the entire test
• Preset operation with Pass-Fail LED icons enable quick determination of tool performance acceptance
• Units come standard with USB or RS232 communication output for data upload
• 1000 memory record storage plus software provides easy data transfer
• 0.3% accuracy provides a standard for checking tools on ranges up to 590 ft-lb (800 N-m)
• Operation via the rechargeable battery or the AC
• Available rundown adapter for power tool testing on certain models
• Calibration certificate with data guarantees performance upon purchase

EDMS Data Acquisition Software (free download on website) Allows full testing of FG Series Force Gauges with live analysis of the test results. Users can set a delay or a time period for the test data to record as well as begin or end if a load threshold is reached. The load can be inverted so the graph shows the resultant force in the direction desired. Average and peak readings are automatically calculated, but the user can zoom in on a section of a graph and recalculate the new average and peak over the selected portion of the test. Besides acquiring live data, the EDMS program can also upload previously stored readings from the gauge. Additionally, the software provides the ability to easily save the data set to a spreadsheet file, plus save the resultant graph as a photo for later review.

Model	TTC-I-2	TTC-I-5	TTC-I-10	TTC-I-20	TTC-I-50	TTC-I-100
Price	$895.50 Add to Cart	$895.50 Add to Cart	$985.50 Add to Cart	$1,075.50 Add to Cart	$1,102.50 Add to Cart	$1,345.50 Add to Cart
Capacity X Readability	17.7 x 0.002 in-lbf	43.3 x 0.005 in-lbf	88.5 x 0.01 in-lbf	177 x 0.02 in-lbf	443 x 0.05 in-lbf	885 x 0.2 in-lbf
	2 x 0.0002 N-m	5 x 0.001 N-m	10 x 0.01 N-m	20 x 0.002 N-m	50 x 0.01 N-m	100 x 0.02 N-m
	200 x 0.02 N-cm	500 x 0.1 N-cm	1000 x 1 N-cm	2000 x 0.2 N-cm	5000 x 1 N-cm	10000 x 1 N-cm
	1.48 x 0.0002 ft-lbf	3.7 x 0.0005 ft-lbf	7.4 x 0.001 ft-lbf	14.8 x 0.002 ft-lbf	36.8 x 0.005 ft-lbf	74 x 0.01 ft-lbf
	20 x 0.002 kgf-cm	50 x 0.01 kgf-cm	100 x 0.1 kgf-cm	200 x 0.02 kgf-cm	500 x 0.1 kgf-cm	1000 x 0.1 kgf-cm
Measuring Range	0.5% - 100% capacity
Accuracy	± 0.3 % (5 to 100% capacity)
Units of Measure	N-cm, N-m, in-lb, ft-lb, kg-cm (depending on range)
Measure Modes	Track, Peak, First Peak, Auto Peak, Auto First Peak & Double Peak
Tool Socket Size	TTC-2/5/10: 1/4" & 1/2" (6.3 & 12.5 mm)			TTC-20/50/100: 3/8" & 1/2" (10 & 12.5 mm)
Overload Protection	120% of Full Scale
Sampling Rate	2000 Hz
Peak Capture Rate	0.05 s
Display	160 x 128 Dot matrix backlit LCD
Display Update Rate	10 times/second
Memory	1000 data
Set Point	Programmable High and Low Limits
Battery Indicator	Display flashes battery icon when battery is low
Charger/Adapter	Universal USB charger, input 100 – 240 V ac 50/60 Hz
Operating Temperature	14 to 104°F (-10 to 40°C)
Humidity Limit	20 – 80% RH
Power	3.6 V dc 1600 mAH Ni-MH
Battery Life	Approx. 16 Hours continuous on full charge
Output	USB, serial port RS-232, High and low limit NPN
Dimensions	7.75 x 7 x 3.3 inch (197 x 180 x 83 mm)
Product Weight	3.3 lb (1.5 kg)
Package Weight	6.5 lb (3 kg)
Certification	CE
Included Accessories	USB cable, charger adapter, cal. cert. printer cable, square driver adapter connector (Ranges to 200 N-m only)

Model	TTC-E-200	TTC-E-500	TTC-E-800
Price	$1,795.50 Add to Cart	$1,975.50 Add to Cart	$2,065.50 Add to Cart
Capacity X Readability	1770 x 0.2 in-lbf	4425 x 0.5 in-lbf	7080 x 1 in-lbf
	200 x 0.02 N-m	500 x 0.05 N-m	800 x 0.1 N-m
	- N-cm	- N-cm	- N-cm
	148 x 0.02 ft-lbf	368 x 0.05 ft-lbf	590 x 0.1 ft-lbf
	2000 x 0.2 kgf-cm	5000 x 0.5 kgf-cm	8000 x 1 kgf-cm
Measuring Range	0.5% - 100% capacity
Accuracy	± 0.3 % (5 to 100% capacity)
Units of Measure	N-cm, N-m, in-lb, ft-lb, kg-cm (depending on range)
Measure Modes	Track, Peak, First Peak, Auto Peak, Auto First Peak & Double Peak
Tool Socket Size	TTC-200:: 3/8" & 1/2" (10 & 12.5 mm)	TTC-500/800: 3/4" (19 mm)
Overload Protection	120% of Full Scale
Sampling Rate	2000 Hz
Peak Capture Rate	0.05 s
Display	160 x 128 Dot matrix backlit LCD
Display Update Rate	10 times/second
Memory	1000 data
Set Point	Programmable High and Low Limits
Battery Indicator	Display flashes battery icon when battery is low
Charger/Adapter	Universal USB charger, input 100 – 240 V ac 50/60 Hz
Operating Temperature	14 to 104°F (-10 to 40°C)
Humidity Limit	20 – 80% RH
Power	3.6 V dc 1600 mAH Ni-MH
Battery Life	Approx. 16 Hours continuous on full charge
Output	USB, serial port RS-232, High and low limit NPN
Dimensions	7.75 x 7 x 3.3 inch (197 x 180 x 83 mm)
Product Weight	3.3 lb (1.5 kg)
Package Weight	6.5 lb (3 kg)
Certification	CE
Included Accessories	USB cable, charger adapter, cal. cert. printer cable, square driver adapter connector (Ranges to 200 N-m only)
