Imada SH-Series Horizontal Manual Wheel Force Test Stands	Authorized Dealer
For push / pull tests and other force measurements where a horizontal test stand is required, the SH-Series Manual Horizontal Hand Wheel Test Stands are an ideal choice. The test stands feature the advantages of the hand wheel design; relatively consistent speed, precise gauge positioning, and bi-directional movement. The low-profile SH-Series accepts any of the standard range Imada force gauges and special attachments.
Force Testing >> Manual Test Stands >> Imada Force Testing

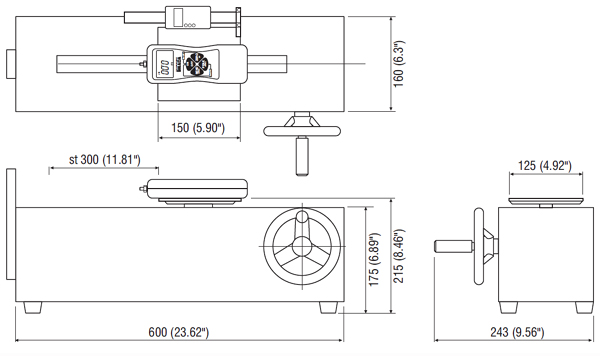

SH-220 SH-750 Force gauge sold separately Specifications Chart Imada SH-Series Horizontal Manual Lever Test Stands Price from Model: Select SH-220 - Basic - SH-220S - Distance Meter - SH-750 - Basic - SH-750S - Distance Meter - SH-220 without distance meter SH-220S with distance meter SH-750 without distance meter SH-750S with distance meter

For push / pull tests and other force measurements where a horizontal test stand is required, the SH-220 Manual Horizontal Hand Wheel Test Stands are an ideal choice. The test stands feature the advantages of the hand wheel design; relatively consistent speed, precise gauge positioning, and bi-directional movement. The low-profile SH-220 accepts any of the standard range Imada force gauges and special attachments.

DS2	ZTA	FB	PS
More Info	More Info	More Info	More Info

• Continuous stroke 7.5"
• Horizontal design is ideal for push / pull testing and other applications
• Hand wheel provides relatively consistent speed for repeatable tests
• Gauge remains in place when hand wheel is released
• One stand for both compression (push) and tension (pull) tests

Models	SH-220	SH-220-S	SH-750	SH-750-S
Capacity	220 lbf	220 lbf	750 lbf	750 lbf
Stroke	11.8" (300mm)	11.8" (300mm)	14.5" (370mm)	14.5" (370mm)
Travel / Rotation	1.2mm	1.2mm	0.6mm	0.6mm
Distance Meter Included	-	Yes	-	Yes
Distance Meter Display		Push button for inch/mm, zero set and on/off		Push button for inch/mm, zero set and on/off
Distance Meter Resolution		0.0005"/0.01 mm		0.0005"/0.01 mm
Distance Meter Accuracy		+0.01"/0.2mm		+0.01"/0.2mm
