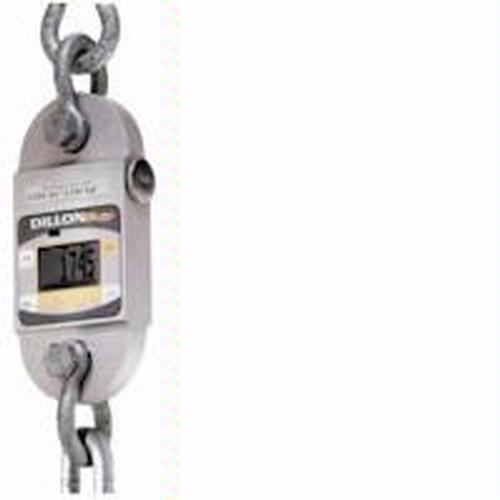

Dillon 36200-0085 EDXtreme EDx-100K Dynamometer, Shackles/Radio 100,000 x 100 lb

Reads in either either pounds, kilograms or newtons. Designed for superior strength and corrosion resistance -- constructed of electroless nickel plated aircraft-quality alloy steel with a 5:1 safety factor. And Xtreme accuracy of 0.1%. more ...
Industrial Scales > Crane Scales & Dynamometers > Digital Dynamometers
Dillon 36200-0085 EDXtreme EDx-100K Dynamometer, Shackles/Radio 100,000 x 100 lb




Call for more info
Capacity x Readability
100000 lbx 100 lb
Download PDF
Dillon 36200-0085 EDXtreme EDx-100K Dynamometer, Shackles/Radio 100,000 x 100 lb
FREE Ground Shipping
(48 US States Only)

Price: $5,842.75


In Stock - Ships within 24 hours

Optional Accessories

View Features

Dillon
SKU: 36200-0085

Features

Quick Specs:

  • Capacity: 100000 lbs, 50000 kg, 500000 N
  • Basic dynamometer, radio equipped with 2 shackles (without backlight)

Dillon EDXtreme -- for the toughest jobs you face

Guesswork is not acceptable -- failure is not an option. When you have people working around high tension cables and massive loads, theres no room for error. You have to have complete confidence in the strength and accuracy of your measurement tools.

Uncompromising on Safety -- adaptable to the need

The EDxtreme exemplifies the trademark precision and rugged construction of Dillon dynamometers. Its highly refined design draws on the inherent strengths of premium grade materials to achieve a 5:1 minimum factor of safety.

While the EDxtreme may be configured for something as simple as a digital hanging scale, it offers a higher level of intelligence. With user-defined functions and sophisticated communication options, the EDxtreme readily adapts to multi-tasking operations or multi-link systems capable of monitoring a series of critical stress points from a single location: it is the definition of application versatility.

Extreme engineering

Building a precision instrument that can survive real-world punishment requires masterful engineering. This is where Dillons experience shines through. The engineers assigned to the EDxtreme drew on a depth of industrial application knowledge and conducted exhaustive materials testing to achieve the highest structural integrity.

  • Superior strength and corrosion resistance - High capacity models are constructed of electroless nickel-plated aircraft-quality alloy steel. Lower capacity models are anodized aircraft-quality aluminum.
  • 5:1 factor of safety - This measure of strength and safety is maintained in all capacities. Computer modeling confirms the low stress and the long product life that is inherent in the EDXtreme design.
  • Retained hardware - Allows permanent attachment of centering spacers, which eliminates fumbling during high capacity rigging.
  • NEMA 4X/IP55 - The EDxtreme is clearly the choice for reliability in any environment -- in plant or out on the job site.

Xtreme accuracy: 0.1%

High resolution and accurate repeatable readings are essential to proper weighing. The higher standards set for the EDxtreme meant taking the time to ensure that material characteristics, load element design and strain gauge meshed perfectly. The result of that effort is a typical accuracy of 0.1% of full scale capacity. The enhanced resolution made of 1 part in 5000 provides the level of readability needed for refined weighing.

Xtreme ease

  • Exclusive SOFTKEY interface - Dillon has eliminated confusing menus for faster setup and simple operation. In addition to lbf, kgf and Newtons, programmable functions can correct for gravitational variations and allow the use of custom units of measurement.
  • Wide andle LCD - Provides improved readability over a wider viewing angle and is available with backlighting for low light conditions.
  • Battery operation - The EDxtreme is powered by two standard C-cell batteries. Batteries are easily accessible for fast replacement.

Configuration Options

A basic stand-alone model can be easily upgraded "in the field" to accomodate changing needs. Remote configuration, data acquisition and single point monitoring of multiple links are all possible with the hardwired or radio communication options available with the EDxtreme.

Additional Features:

  • Popular industry-standard shackles insure proper fit
  • Battery compartment with easy access without tools
  • Sturdy aircraft-quality aluminum (or plated alloy steel case on high capacity models)
  • High-resolution dot-matrix LCD display offers large numbers without confusing abbreviations or multipliers
  • Injection molded, thick Lexan panels offer superior impact protection
  • Softkey interface allows easy and intuitive operation and configuration
  • NEMA 4X/IP55 designed for weather and water resistance
  • Rounded ends reduce weight and prevent binding and snagging with rigging

Dynamometer Specifications

  • Enclosure: designed to NEMA4X/IP55. Suitable for continuous outdoor use.
  • Accuracy: 0.1% of capacity
  • Repeatability: 0.1% of capacity (normal resolution mode)
  • Safe overload: 200% of capacity
  • Body protection: Aluminum capacities are anodized. Alloy steel capacities are electroless nickel plated
  • Bearings: unmatched repeatability attained by needle bearings in shackle pin holes up to EDx-10K. Precision machined shackles act as inner race.
  • Shackles: Forged industry standard anchor shackle bows, galvanized finish. Models up to EDx-10K use precision machined shackle pin. Higher capacities use forged pin.
  • Display: 128 x 64 dot-graphic LCD display shows up to 6 digits 1" (26mm) high plus annunciators and softkeys. Digits are .11" (7mm) thick for unmatched readability.
  • Display Update Rate: 2 times/second
  • Connector: Recessed sealed connector may be used for direct serial communications or connection to a Communicator remote.
  • RS-232 / RS-485: Print or extract data easily. Continuous output can drive a scoreboard. Configurable poll character.
  • Battery Life: 320 hours typical use with two C-cell alkaline batteries. 40 hours typical with Radio Link system.
  • Operating Temp: -4°F to 140°F (-20°C to 60°C)

Ships with dynamometer, radio equipped (requires communicator), 2 shackles, shipping/storage crate(s), batteries, manual, and certificate of calibration.

Other Dillon EDXtreme with Two Shackles, Radio Ready
Image Model Capacity x Readability Legal For Trade
Capacity x Readability
(Pan) Size Price More Info
Dillon 36200-0036 EDXtreme EDx-2.5K Dynamometer, Shackles/Radio 2,500 x 2 lb 36200-0036 Dillon 36200-0036 EDXtreme EDx-2.5K Dynamometer, Shackles/Radio 2,500 x 2 lb $2,031.50
More Info
2500 lb x 2 lb -
Dillon 36200-0044 EDXtreme EDx-5K Dynamometer, Shackles/Radio 5,000 x 5 lb 36200-0044 Dillon 36200-0044 EDXtreme EDx-5K Dynamometer, Shackles/Radio 5,000 x 5 lb $2,205.75
More Info
5000 lb x 5 lb -
Dillon 36200-0051 EDXtreme EDx-10K Dynamometer, Shackles/Radio 10,000 x 10 lb 36200-0051 Dillon 36200-0051 EDXtreme EDx-10K Dynamometer, Shackles/Radio 10,000 x 10 lb $2,511.75
More Info
10000 lb x 10 lb -
Dillon 36200-0069 EDXtreme EDx-25K Dynamometer, Shackles/Radio 25,000 x 20 lb 36200-0069 Dillon 36200-0069 EDXtreme EDx-25K Dynamometer, Shackles/Radio 25,000 x 20 lb $3,038.75
More Info
25000 lb x 20 lb -
Dillon 36200-0077 EDXtreme EDx-50K Dynamometer, Shackles/Radio 50,000 x 50 lb 36200-0077 Dillon 36200-0077 EDXtreme EDx-50K Dynamometer, Shackles/Radio 50,000 x 50 lb $3,642.25
More Info
50000 lb x 50 lb -
Dillon 36200-0085 EDXtreme EDx-100K Dynamometer, Shackles/Radio 100,000 x 100 lb 36200-0085 Dillon 36200-0085 EDXtreme EDx-100K Dynamometer, Shackles/Radio 100,000 x 100 lb $5,842.75
More Info
100000 lb x 100 lb -
Dillon 36200-0127 EDXtreme EDx-160K Dynamometer, Shackles & Radio 160,000 x 100 lb 36200-0127 Dillon 36200-0127 EDXtreme EDx-160K Dynamometer, Shackles & Radio 160,000 x 100 lb $10,684.50
More Info
160000 lb x 100 lb -
Dillon 36200-0093 EDXtreme EDx-220K Dynamometer, Shackles & Radio 220,000 x 200 lb 36200-0093 Dillon 36200-0093 EDXtreme EDx-220K Dynamometer, Shackles & Radio 220,000 x 200 lb $14,654.00
More Info
220000 lb x 200 lb -
Dillon 36200-0119 EDXtreme EDx-330K Dynamometer, Shackles & Radio 330,000 x 200 lb 36200-0119 Dillon 36200-0119 EDXtreme EDx-330K Dynamometer, Shackles & Radio 330,000 x 200 lb $22,316.75
More Info
330000 lb x 200 lb -
Dillon 36200-0101 EDXtreme EDx-550K Dynamometer, Shackles & Radio 550,000 x 500 lb 36200-0101 Dillon 36200-0101 EDXtreme EDx-550K Dynamometer, Shackles & Radio 550,000 x 500 lb $34,688.50
More Info
550000 lb x 500 lb -

* within the 48 continental US States


Optional Accessories


Dillon 36170-0016 Radio/ hardwired  Communicator with Backlight for EDXtreme Dynamometers
more info
Dillon 36170-0016 Radio/ hardwired Communicator with Backlight for EDXtreme Dynamometers
$1,079.00

One of the foremost reasons for choosing an electronic dynamometer is added functionality. The radio or hardwired options available with the EDxtreme offer the convenience and safety of remote operation. Additionally, data from the dynamometer(s) can be downloaded to a PC via an RS-232 connection for compilation and analysis or to generate hard-copy printouts.

Remote control and radio communications are not new to the Dillon product line. In fact, it is the depth of Dillons experience in this area that led to meaningful innovations in the design of the EDxtreme and its optional remote Communicator.

Improved radio performance

Unlike the single frequency products on the market today, the EDxtreme radio dynamometer utilizes leading edge 2.4Ghz radio frequency technology to eliminate common interference. This technology will automatically hop from frequency to frequency to establish and maintain the strongest, most reliable communication.

Dynamic Monitoring and control

The optional Communicator is an extremely powerful hand-held remote that can define the function and manage the operation of one or more EDxtreme dynamometers using wired or radio technologies. Through the programmable SOFTKEY interface, one Communicator can monitor multiple dynamometers within the same airspace. In multiple-link lifting arrays, the Communicator can display readings at any or all lift points and calculate the total load.
