MSI 176825 MSI-7300 Dyna-Link 2 Dynamometer with Bluetooth (Only) Connectivity 380,000 x 200 lb |
|
| Dyna-Link 2 is lighter and more portable than its predecessor. It interfaces with industry-standard Crosby® shackles and a variety of accessories and options, including wireless connectivity with the MSI-8000 RF Remote Display. Longrange viewing is enhanced by a large five-digit, 1.22 inch (31 mm) LCD with resolution settings up to 5,000 divisions and precision accuracy over a wide range of capacities.Will NOT work with any MSI Remote Displays more ... |
|
Industrial Scales >
Crane Scales & Dynamometers >
Digital Dynamometers
|
|
|
|
|
|
Features
Will NOT work with any MSI Remote Displays Dyna-Link 2 is lighter and more portable than its predecessor. It interfaces with industry-standard Crosby® shackles and a variety of accessories and options, including wireless connectivity with the MSI-8000 RF Remote Display. Longrange viewing is enhanced by a large five-digit, 1.22 inch (31 mm) LCD with resolution settings up to 5,000 divisions and precision accuracy over a wide range of capacities.
Dyna-Link 2 is constructed of high-grade, aircraft-quality aluminum with an anodized finish and gasket sealing to ensure NEMA 4/IP65 rated environmental protection.
Peak digital processing with low power consumption provides up to 300 hours of operation from standard common batteries during typical use. The optional MSI-8000 RF Remote Display provides full-function remote control of Dyna-Link 2 features up to distances of 100 feet (30 m). An integrated serial port offers interface capabilities with data collection devices.
Industrys most advanced digital tension dynamometer, the new and improved MSI-7300, provides even more features and benefits than earlier dynamometer models. The new Dyna-Link 2 offers a lightweight, portable design for better handling, and superior viewing with its large 1.2 inch display. Choose from capacities ranging from 0.5 to 300 tons.
Standard Features
- Five-digit 1.22 in. (31 mm) LCD display
- NEMA4/IP65 enclosure for use in all environments
- 200% safe loading, 500% ultimate loading integrity
- Crosby compatible shackle interface
- Multi-feature programming and I/O connectivity
- Two each "C" alkaline batteries for capacities up to 10,000 lb (5,000 kg)
- Two each "D" batteries for capacities 25,000 lb (12,500 kg) and above
- Meets or exceeds OSHA, ANSI, ASME and other safety design standards (7:1 Ultimate Safety Factor)
Options and Accessories
- RF modem link for wireless connectivity with optional MSI-8000 RF Remote Display
- Enhanced display resolution (5000 d)
- Audible setpoint alarm
- Crosby top & bottom shackles
- Portable transport case
- Serial output cable
- Heavy capacity configurations (60 to 275 tons)
Dimensions
X:
28.70
Y:
9.00
Z:
14.00
|
2 Year Manufacture Warranty
|
Other MSI 7300 Dyna-Link 2 Dynamometers
| Image |
Name |
Price |
|
|
$1,360.00
|
|
|
$1,480.00
|
|
|
N/A
|
|
|
$1,540.00
|
|
|
$1,360.00
|
|
|
$1,560.00
|
|
|
N/A
|
|
|
$1,540.00
|
|
|
$1,540.00
|
|
|
$1,560.00
|
|
|
$1,360.00
|
|
|
N/A
|
|
|
$1,640.00
|
|
|
$1,660.00
|
|
|
$1,460.00
|
|
|
N/A
|
|
|
N/A
|
|
|
$2,160.00
|
|
|
$1,960.00
|
|
|
$2,100.00
|
|
|
$2,646.50
|
|
|
$2,488.50
|
|
|
$2,784.75
|
|
|
N/A
|
|
|
$3,416.75
|
|
|
$3,495.75
|
|
|
$3,258.75
|
|
|
N/A
|
|
|
$4,135.50
|
|
|
|
|
|
N/A
|
|
|
|
|
|
N/A
|
|
|
|
|
|
|
|
|
$6,295.50
|
|
|
|
|
|
N/A
|
|
|
$8,415.00
|
|
|
|
|
|
N/A
|
|
|
$9,535.50
|
|
|
|
|
|
|
|
|
N/A
|
|
|
$17,995.50
|
|
|
|
|
|
|
|
Specifications
| Standard models |
502967-0001 |
502967-0002 |
502967-0003 |
502967-0004 |
502967-0005 |
502967-0006 |
502967-0007 |
- |
- |
- |
- |
- |
| models with wireless connectivity |
503381-0001 |
503381-0002 |
503381-0003 |
503381-0004 |
503381-0005 |
503381-0006 |
503381-0007 |
159168
MSI-8000
Included |
159169
MSI-8000
Included |
159170
MSI-8000
Included |
159171
MSI-8000
Included |
159172
MSI-8000
Included |
| models with Build-In Bluetooth® RF |
176806 |
176807 |
176808 |
176809 |
176810 |
176811 |
176812 |
176822 |
176823 |
176824 |
176825 |
176826 |
| models with Build-In Wi-Fi RF |
176813 |
176814 |
176815 |
176816 |
176817 |
176818 |
176819 |
176827 |
176828 |
176829 |
176830 |
176831 |
| Capacity x Readability |
1000 x 0.5 lb |
2500 x 1.0 lb |
5000 x 2.0 lb |
10,000 x 5.0 lb |
25,000 x 10.0 lb |
50,000 x 20 lb |
100,000 x 50 lb |
120,000 x 50 lb |
180,000 x 100 lb |
260,000 x 100 lb |
380,000 x 200 lb |
550,000 x 200 lb |
| 500 x 0.2 kg |
1250 x 0.5 kg |
2500 x 1.0 kg |
5000 x 2.0 kg |
12,500 x 5.0 kg |
25,000 x 10 kg |
50,000 x 20 kg |
60,000 x 20 kg |
90,000 x 50 kg |
130,000 x 50 kg |
190,000 x 100 kg |
275,000 x 100 kg |
| Accuracy |
0.1% of rated capacity |
| Enclosure |
NEMA 4, IP65, anodized corrosion-resistant finish |
| Material |
2024 aircraft grade aluminum |
| Design Overload |
200% Safe / 700% Ultimate* (except where noted) |
200% Safe / 500% Ultimate |
200% Safe / 440% Ultimate |
| Functions |
On/Off, Zero, Hi-Speed Peak Hold, Setpoints, Total, Tare, Auto-Off, Motion Filter |
| Display |
Five-digit, 1.22 in (31 mm) LCD |
| Displayable Units |
Pounds, Kilograms, Kilonewtons, Tons, Metric Tons |
| Pounds, Kilograms, Kilonewtons, Tons, Metric Tons |
Function 1, Function 2, Setpoint 1, Setpoint 2 |
| LCD Annunciators |
LCD Annunciators |
|
Two each “C” alkaline batteries for capacities up to 10,000 lb
Two each “D” alkaline batteries for capacities 25,000–100,000 lb |
| Operating Time |
From 150 to 300 hours in typical use depending on
unit capacity and battery configuration.
Less with optional RF modem link installed |
| Operating Temperature |
-4°F to 130°F (-20°C to 54°C) |
| Calibration |
Digital |
| Filtering |
OFF, LO, HI selectable |
| Data Output |
Serial RS-232 |
|
|
|
|
|
|
|
Optional Accessories
more info
|
MSI 139381 MSI-8000 RF Remote Display for MSI-3460, MSI-4260 and MSI-7300 (503208-0001)
The MSI-8000 RF Remote Display: Wireless Control Made Easy
The MSI-8000 is a wireless remote display for viewing and control of any RF compatible MSI-3460 Challenger 3 or MSI-4260 Port-A-Weigh overhead crane scale, or MSI-7300 Dyna-Link 2 tension dynamometer. Just one MSI-8000 communicates wirelessly with up to four compatible MSI devices
Compact and portable, the MSI-8000’s heavy-duty NEMA 4/IP65 industrial-grade enclosure makes it ideal for use in nearly any operating environment. The MSI-8000 features a large five-digit 1.25 inch (31 mm) LCD display for improved visibility, and a user-friendly keypad for simple configuration and operation. Standard function keys include: Power, Zero, and Tare and three programmable keys for functions like Peak Hold, Totalizing, Unit Select, Print and Setpoints.
The MSI-8000 operates on a license-free 2.4 GHz frequency with a typical application range exceeding 100 feet (33 m). Power is supplied by an internal rechargeable lithium polymer battery, which provides up to 24 hours continuous use between charging. An integrated RS-232 data port allows the MSI-8000 to easily interface with peripheral devices such as printers, PCs and scoreboards
|
|
more info
|
MSI 503381-0001 MSI-7300 Dyna-Link 2 Dynamometer with wireless connectivity 1000 x 0.5 lb
Dyna-Link 2 is lighter and more portable than its predecessor. It interfaces with industry-standard Crosby® shackles and a variety of accessories and options, including wireless connectivity with the MSI-8000 RF Remote Display. Longrange viewing is enhanced by a large five-digit, 1.22 inch (31 mm) LCD with resolution settings up to 5,000 divisions and precision accuracy over a wide range of capacities.
Dyna-Link 2 is constructed of high-grade, aircraft-quality aluminum with an anodized finish and gasket sealing to ensure NEMA 4/IP65 rated environmental protection.
Peak digital processing with low power consumption provides up to 300 hours of operation from standard common batteries during typical use. The optional MSI-8000 RF Remote Display provides full-function remote control of Dyna-Link 2 features up to distances of 100 feet (30 m). An integrated serial port offers interface capabilities with data collection devices.
Industrys most advanced digital tension dynamometer, the new and improved MSI-7300, provides even more features and benefits than earlier dynamometer models. The new Dyna-Link 2 offers a lightweight, portable design for better handling, and superior viewing with its large 1.2 inch display. Choose from capacities ranging from 0.5 to 300 tons.
Standard Features
- Five-digit 1.22 in. (31 mm) LCD display
- NEMA4/IP65 enclosure for use in all environments
- 200% safe loading, 500% ultimate loading integrity
- Crosby compatible shackle interface
- Multi-feature programming and I/O connectivity
- Two each "C" alkaline batteries for capacities up to 10,000 lb (5,000 kg)
- Two each "D" batteries for capacities 25,000 lb (12,500 kg) and above
- Meets or exceeds OSHA, ANSI, ASME and other safety design standards (7:1 Ultimate Safety Factor)
Options and Accessories
- RF modem link for wireless connectivity with optional MSI-8000 RF Remote Display
- Enhanced display resolution (5000 d)
- Audible setpoint alarm
- Crosby top & bottom shackles
- Portable transport case
- Serial output cable
- Heavy capacity configurations (60 to 275 tons)
|
|
more info
|
MSI 149549 (503486-0001) Universal 115 / 230 VAC 50/60 Hz (NA plug standard) battery charger for MSI-8000 remote display
MSI 503486-0001 Universal 115/ 230 VAC 50/60 Hz (NA Plug Standard) Battery charger for MSI-8000 Remote display
|
|
more info
|
MSI 139470 (503414-0002) Heavy Duty RS-232 Serial Cable for Dyna-Link 2 MSI-7300
MSI 503414-0002 RS-232 Serial Cable for MSI-7300
|
|
more info
|
MSI 150964 (503489-0001) RS-232 Serial Cable for MSI-8000 (13 FT / 4 m)
MSI 503489-0001 RS-232 Serial Cable for MSI-8000
|
|
more info
|
MSI 162889 red LED 4 inch 6 digit displayScoreboard 7001 RF (TranSend)
MSI 162889 red LED 4 inch 6 digit displayScoreboard 7001 RF
MSI-SCOREBOARD 4in Red 7001 RF AC Power
|
|
more info
|
MSI 162897 red LED 6 inch 6 digit displayScoreboard 7001 RF (TranSend)
MSI 162897 red LED 6 inch 6 digit displayScoreboard 7001 RFMSI-SCOREBOARD 4in Red 7001 RF AC Power
|
|
more info
|
MSI 162900 Green LED 4 inch 6 digit displayScoreboard 7001 RF (TranSend)
MSI 162900 Green LED 4 inch 6 digit displayScoreboard 7001 RF (TranSend)
MSI-SCOREBOARD 4in Green 7001 RF AC Power
|
|
more info
|
MSI 162898 Green LED 6 inch 6 digit displayScoreboard 7001 RF (TranSend)
MSI 162898 Green LED 6 inch 6 digit displayScoreboard 7001 RF
MSI-SCOREBOARD 4in Red 7001 RF AC Power
|
|
more info
|

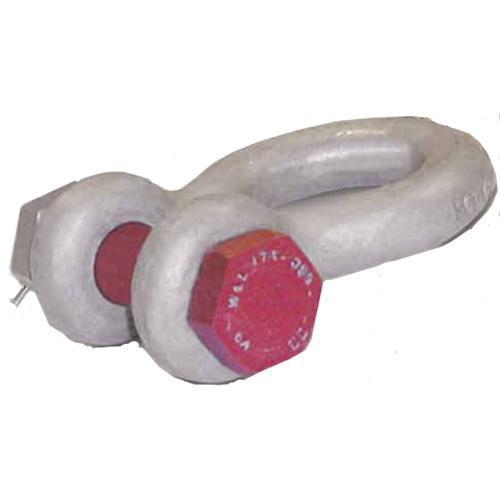

MSI 151361 Shackle Anchor 175 Ton Bolt Type for 380,000 lb cap unit
