Chatillon Grips for Force Measurement

Get Adobe Acrobat Reader FREE

Click here for Vice Action Grips Brochure
Click here for Self Tightening Grips Brochure
Acrobat PDF

Vise Action Grips

GF-1 Manually Tightened Tensile grips
GF-1
Price: $532.00

Manually Tightened Tensile Grips (GF-1)

This general purpose tensile grip features jaw faces that are manually tightens to secure specimens from 6mm to 30mm (0.25 to 1.25 in) in diameter. The throat depth is 45mm (1.75 in). A ball socket mounting screw in the upper grip assures proper alignment with the lower grip. Grips have hardened steel faces. Upper grip weight: 15 oz; Combined grip length: 6-1/2". Capacity: 200 lb;

Applications: Used for tensile testing on small components, wire, yarn, thread and miniature parts

GF-12 Miniature Component Grip
GF-12
Price: $208.05

Miniature Component Grip (GF-12)

Manually tightened grip with a 1/16" wide movable jaw for holding small components or parts.  The tapered nose allow use in confined spaces.  A thumbscrew on the front allows easy installation of samples.  The grip is rated for 30 lb and is provided with a #10-32 female thread for direct attachment to Chatillon light duty gauges. Capacity: 30 lb; Upper grip weight: <1 oz; Combined grip length: 2"

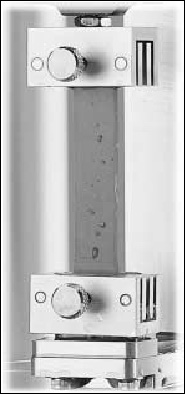

GF 53 Miniature Tensile Vice Grips
GF-53
Price: $556.70

Miniature Tensile Grips (GF-53)

This general purpose tensile grip features jaw faces that are manually tightened to secure miniature specimens. The opening between the faces is 5mm (0.2 in). The throat depth is 12mm (0.5 in). A ball socket mounting screw in the upper grip assures proper alignment with the lower grip.

Stainless steel vise grips with adjustable finger screw on each side. 10-32 thread mounting. Capacity: 20 lb; Depth: 0.5"; Width: 0.8"; Opening between faces: 0.2" Weight: 2 oz

Applications: Used for tensile testing on small components and miniature parts

GF-12 Vice action grips for miniature components
GF-12
Price: $208.05

Vice Action Grip for Miniature Components (GF-12)

This general purpose, vice action grip is designed to tighten using moveable jaws. The jaw features a tapered nose, which is ideal for very small components or where space is limited. A front thumbscrew ensures quick installation and release of the specimen.

Standard jaw face measures 4" x 2" (100 x 50 mm). Accepts samples up to 4" (100 mm) with a maximum sample thickness of 0.5" (12 mm). Has a gripping length of 0.5" (12 mm).  Capacity: 220 lb (1 kN); Minimum load cell: 10 lb (50 N); Weight: 2.2 lb (1 kg); Length: 6" (150 mm)

Applications: Used for tensile testing on small components and miniature parts

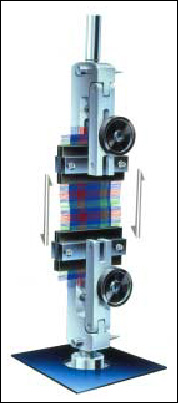

Quick release grips
01-1502 (TG-26)
Price: $2853.80

Corrugated Face Set, 100mm x 50m, set of 4 (01-1505), Add $676.40

Corrugated Face Set, 150mm x 50m, set of 4(01-1978), Add $2086.20

Rubber Face Set, 100mm x 50m, set of 4(01-1683), Add $676.40

Quick Release Vise Grips (01-1502 (TG-26))

This quick release vice action grip features interchangeable jaw faces. It is an ideal general purpose grip for small specimens. Maximum sample width is 100mm (4.0 in). Maximum sample thickness is 12mm (0.5 in). The TG26 vice grip is not supplied when ordering optional jaw faces.

Applications: Used for tensile testing of paper, rubber, thin plastic film, woven and non-woven textiles

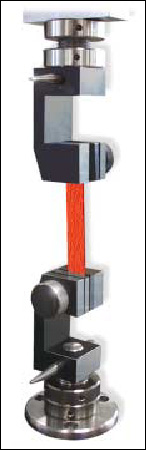

TG34 Thin Film Vice Grips
01-0671 (TG-34)
Price: $948.10

Thin Film Vice Grip (01-0671 (TG-34))

This general purpose, vice action grip is designed to tighten using moveable jaws. The jaw features a tapered nose, which is ideal for very small components or where space is limited. A front thumbscrew ensures quick installation and release of the specimen.

Applications: Used for the tensile testing of paper, rubber, thin plastic film, woven and non-woven textiles

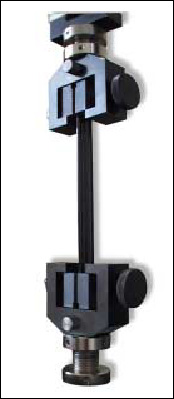

TG74 Adjustable Rear Face Vice Grips
01-1590 (TG-74)
Price: $2123.30

Cross Cut Face Set, 25mm x 25mm, set of 4(01-1592), Add $656.45

Cross Cut Face Set, 50mm W x 25mm, set of 4(01-1593), Add $708.70

Plain Face Set, 50mm W x 25mm, set of 4(01-1591), Add $1180.90

Rubber Face Set, 25mm x 25mm, set of 4(01-1594), Add $734.35

Rubber Face Set, 50mm W x 25mm, set of 4(01-1595), Add $1180.90

Adjustable Rear Face Vice Grips (01-1590 (TG-74))

This vice action grip has fully adjustable faces to help with alignment. The grip is supplied with 25mm x 25mm (1.0 x 1.0 in) standard plain jaw faces. Optional jaw faces are available.

Accepts samples up to 4" (100 mm) with a maximum sample thickness of 0.5" (12 mm). Has a gripping length of 0.5" (12 mm).  Capacity: 220 lb (1 kN); Minimum load cell: 10 lb (50 N); Weight: 2.2 lb (1 kg); Length: 6" (150 mm)

Packaging: includes upper and lower grips with standard straight cut faces.

Applications: Used for the tensile testing of paper, rubber, thin plastic film, woven and non-woven textiles, and foils

Self Tightening Grips

GF-6 Narrow Width Fabric and Rubber grip
GF-6
Price: $951.90

Narrow Width Rubber & Fabric Grips (GF-6)

Eccentrically mounted serrated rollers self-tighten on the sample when load is applied. A ball socket mounting screw in the upper grip assures proper alignment between grips.

Will handle rubber or other flat specimens 1" wide and up to 1/4" thick.  Capacity: 200 lb; Upper grip weight: 8 oz; Combined grip length: 6-1/2"

Applications: Tensile testing of narrow width rubber and fabric by stretching a sample to break and recording the relationship between force and extension.

GF-7 Rubber & Fabric grips
GF-7
Price: $1257.00

Standard Width Rubber & Fabric Grips (GF-7)

Capable of handling specimens 3" wide and up to 1/4" thick.  Eccentrically mounted, serrated roller grips allow for self tightening of specimen when load is applied.  Ball socket mounting screw in upper grip assures proper alignment between grips. Capacity: 200 lb; Upper grip weight: 1 lb; Combined grip length: 6-1/2"

Applications: Tensile testing of standard width rubber and fabric by stretching a sample to break and recording the relationship between force and extension

Bollard Grips
01-1829 (TG-12)
Price: $1280.00

Bollard Grips (01-1829 (TG-12))

With this grip, the specimen is wrapped around the bollard and the free end clamped.  Grip stresses the specimen are distributed in the material in contact with the bollard circumference.  Used on yarn, wool, man-made fibers and other threads and flexible wires.  Maximum sample diameter is 0.2" (5 mm). Bollard diameter is 1.25" (32 mm)  Capacity: 440 lb (2 kN); Minimum load cell: 10 lb (50 N); Weight: 0.5 lb (0.25 kg); Length: 3.25" (83 mm)

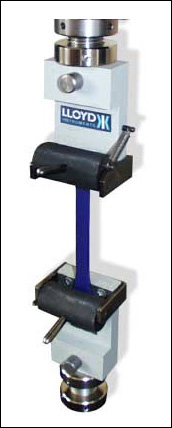

Eccentric Roller Grip - TG22
01-2091 (TG-22)
Price: $1083.00

Eccentric Roller Grip, 50 mm (01-2091 (TG-22))

General Purpose, self tightening grips feature an eccentric roller design ideal for dumbbell and flat specimens. The roller operates using a basic cam jamming principle. The rollers have a cross hatched, serrated finish that help prevent slipping. Clamps hold the sample securely against the horizontally grooved back panel. Maximum sample width is 50mm (2.0 in). Maximum sample thickness is 5mm (0.2 in).

Applications: Ideal for tensile testing of sheet materials including polymers and rubbers

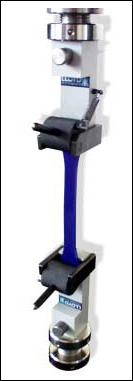

01-2092 (TG-10) Eccentric Roller Grip
01-2092 (TG-10)
Price: $1388.05

Eccentric Roller Grips, 25 mm (01-2092 (TG-10))

General Purpose, self tightening grips feature an eccentric roller design ideal for dumbbell and flat specimens. The roller operates using a basic cam jamming principle. The rollers have a cross hatched, serrated finish that help prevent slipping. Clamps hold the sample securely against the horizontally grooved back panel. Maximum sample width is 25mm (1.0 in). Maximum sample thickness is 5mm (0.2 in).

Applications: Ideal for tensile testing of sheet materials including polymers and rubbers
